DSL Busbars for Industrial Overhead EOT Cranes

DSL Busbars are made up of highly electrically conductive metals and they distribute & carry power from a source to a destination or multiple destinations.They are used in EOT Cranes to supply power from the grid to the crane control panel. Full Form of DSL busbar is Down Shop Lead

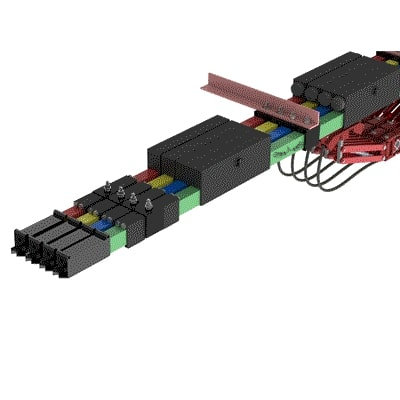

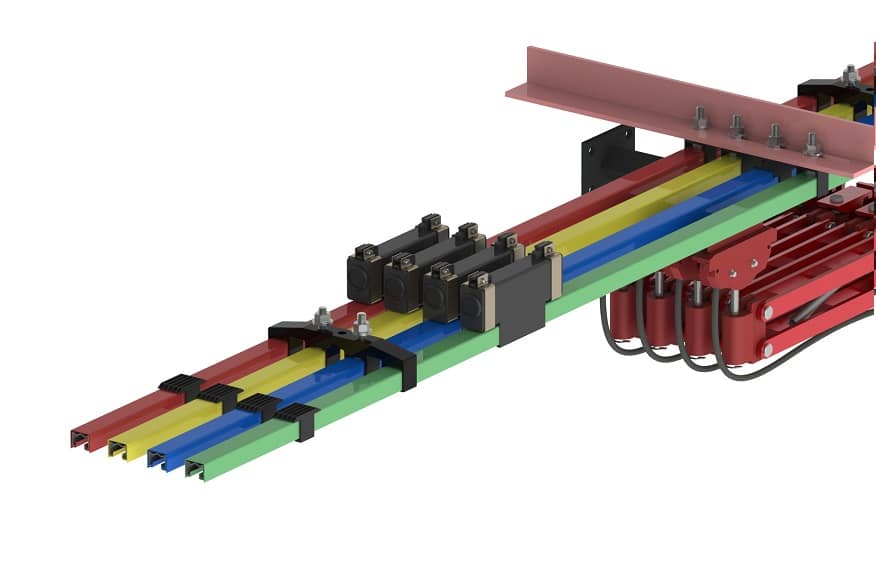

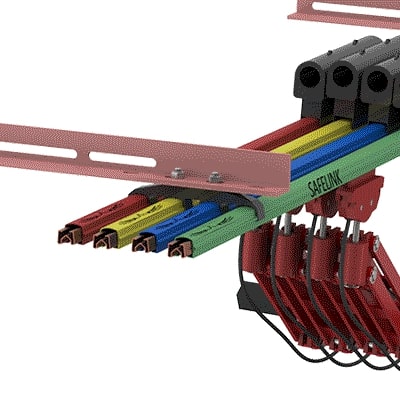

A Busbar Assembly of 4 individual busbars

Overhead EOT Crane DSL Busbar Manufacturer in India

To Manufacture DSL Busbars for EOT cranes requires significant investment in equipment ,time and skilled technicians. With decades of experience and facilities spread across India, Anand Systems Engineering has become the top Eot Crane DSL busbar manufacturer with over 1000+ businesses using different profiles of DSL busbars manufactured by us.

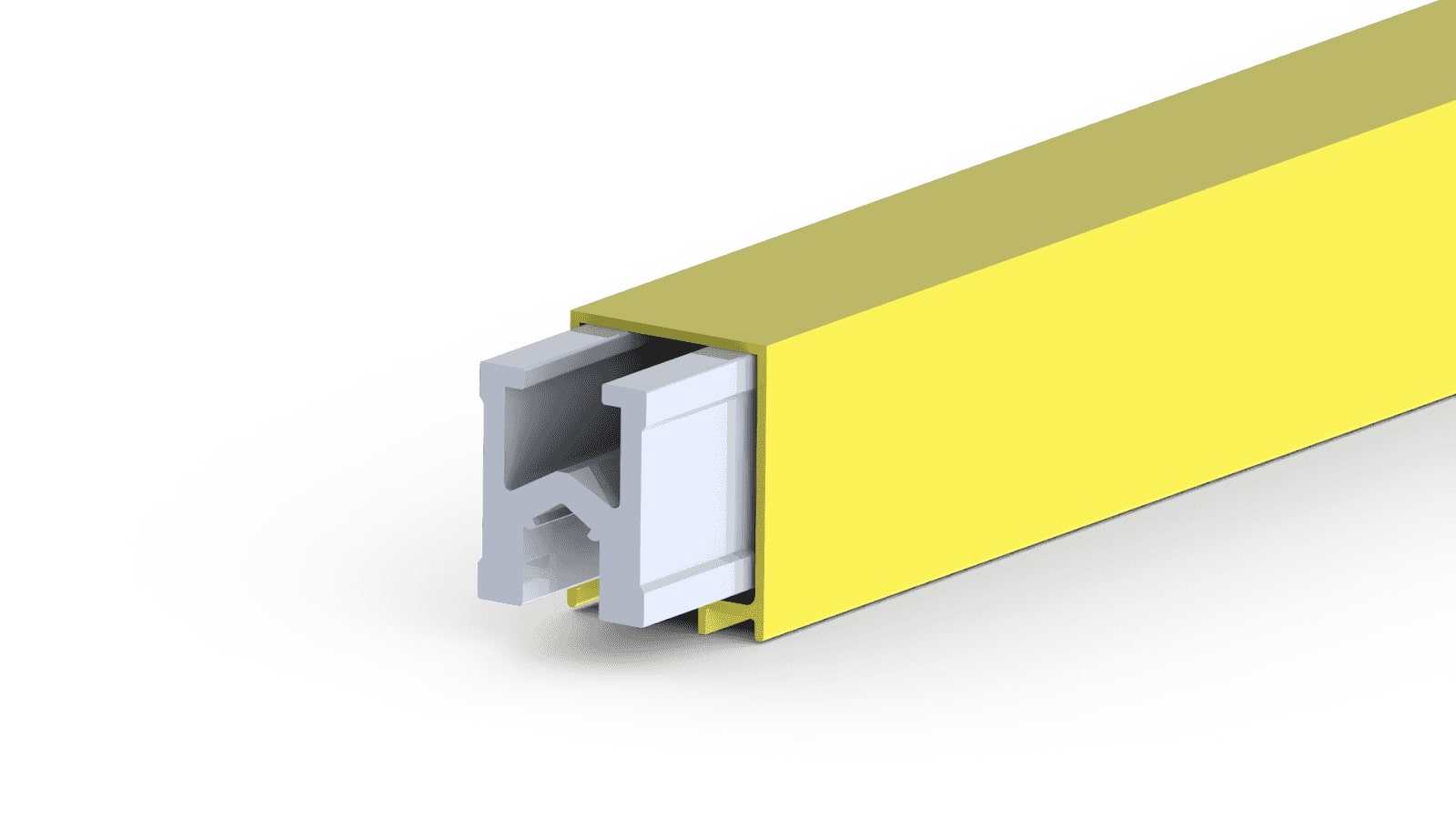

Different Profiles of DSL Busbars For Electric Overhead Cranes

DSL Busbar profiles reduce the overall weight of the system as compared to flat busbars and provide the cost benefit to the user. Prefabricated Busbar Profiles are advantageous to flat busbars because profiles optimize the space of installation, help make the installation easy. Long installation busbars should be using profiles to reduce the skin effect. Depending upon the electrical frequency of the AC voltage, due to skin effect the AC current tends to flow near the surface of the conductor. Hence areas of the busbar with low current density can be removed, thereby saving weight and cost. The skin depth of copper busbar is 8.5mm at 60 hz frequency.

As the frequency of the AC voltage increases, the skin depth reduces. Using DSL busbar profiles helps reduce the effect of skin depth by optimizing the areas of higher and lower current density and achieving better performance even when utilizing less weight than flat busbars. Current density can be uniformly spread across the cross section of the profile.

What are DSL Busbars?

DSL Busbars are made up of highly electrically conductive sheet metal and they distribute and carry power from source to a destination or multiple destinations. They can be used in all kinds of Factories, Buildings, Malls, Airports etc.

DSL Busbars come in a variety of configurations, shapes, sizes, materials and current carrying capacity.

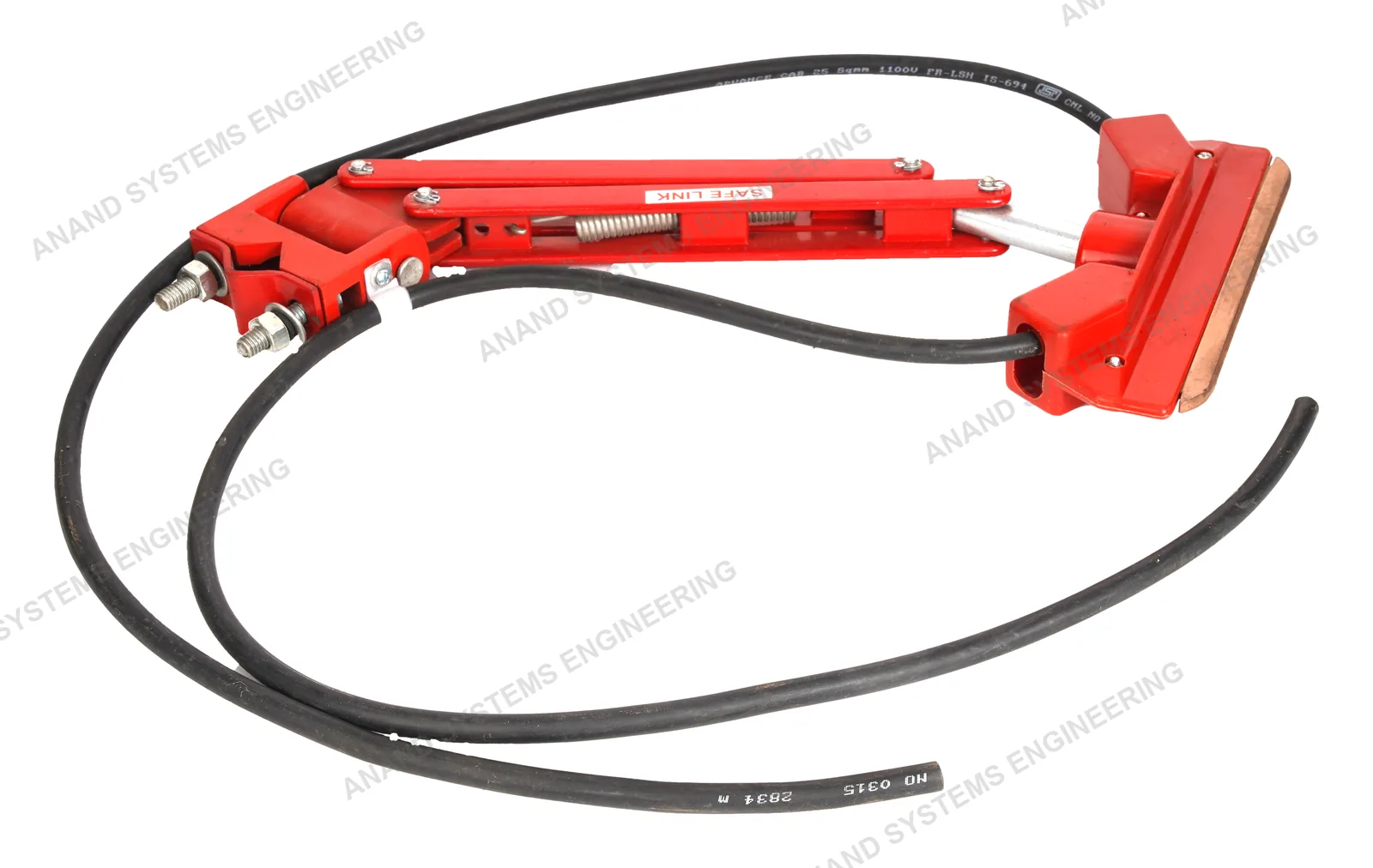

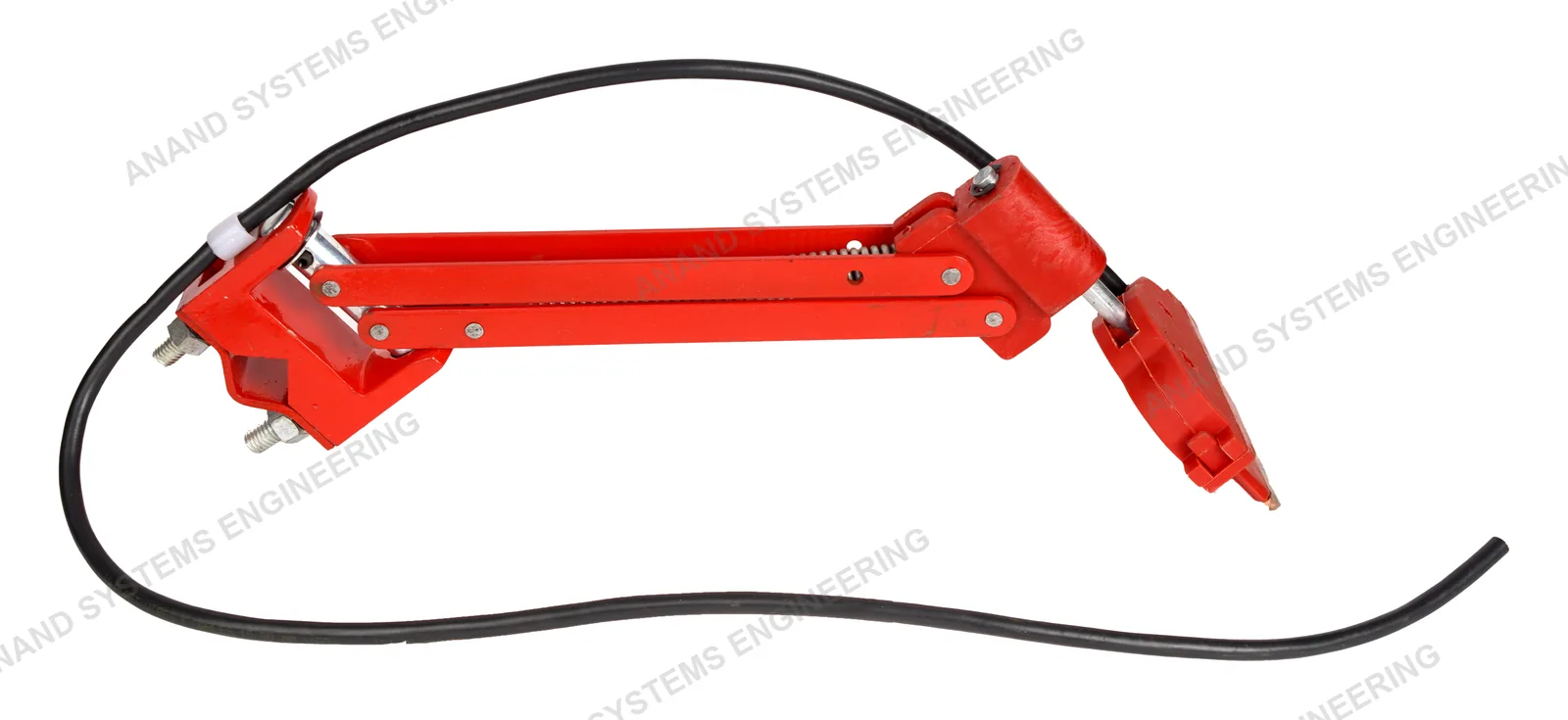

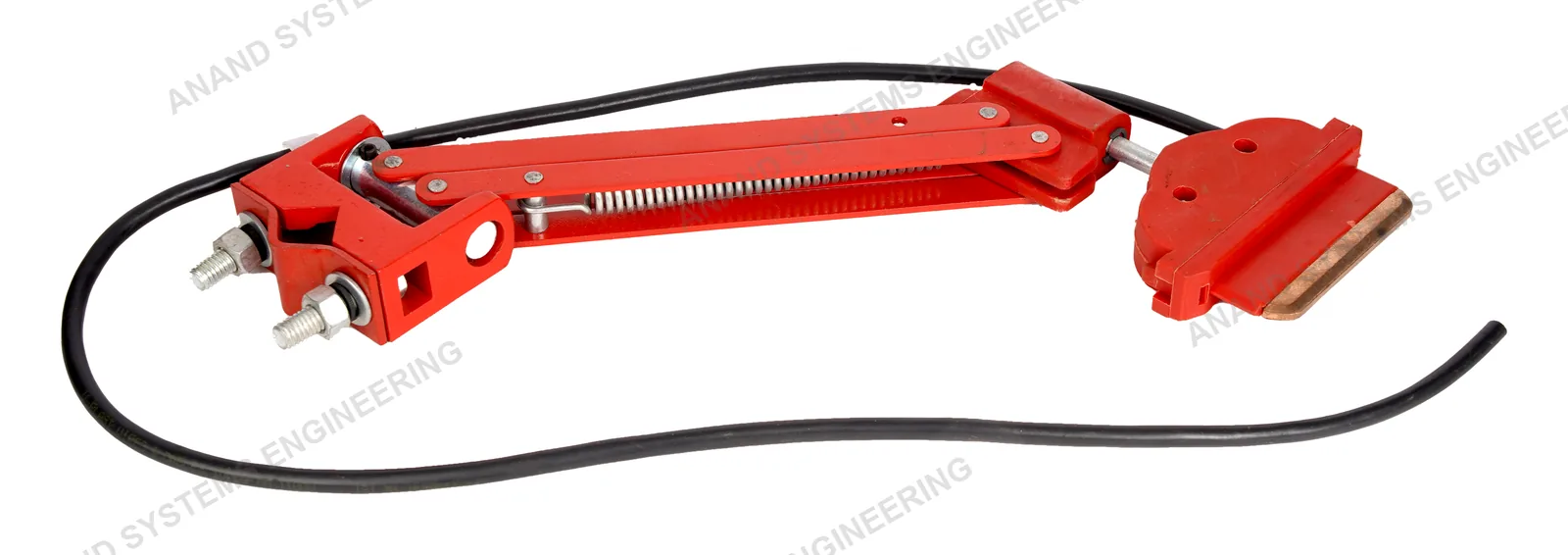

Conductor bar assembly

When you need to conduct a significant amount of current, DSL busbars are your best bet. For example, if you want to power many of your heavy duty cranes in one bay, you use a system of DSL busbars.

The efficiency of a busbar will depend upon the Ratio of the Input Power to the Power Output.

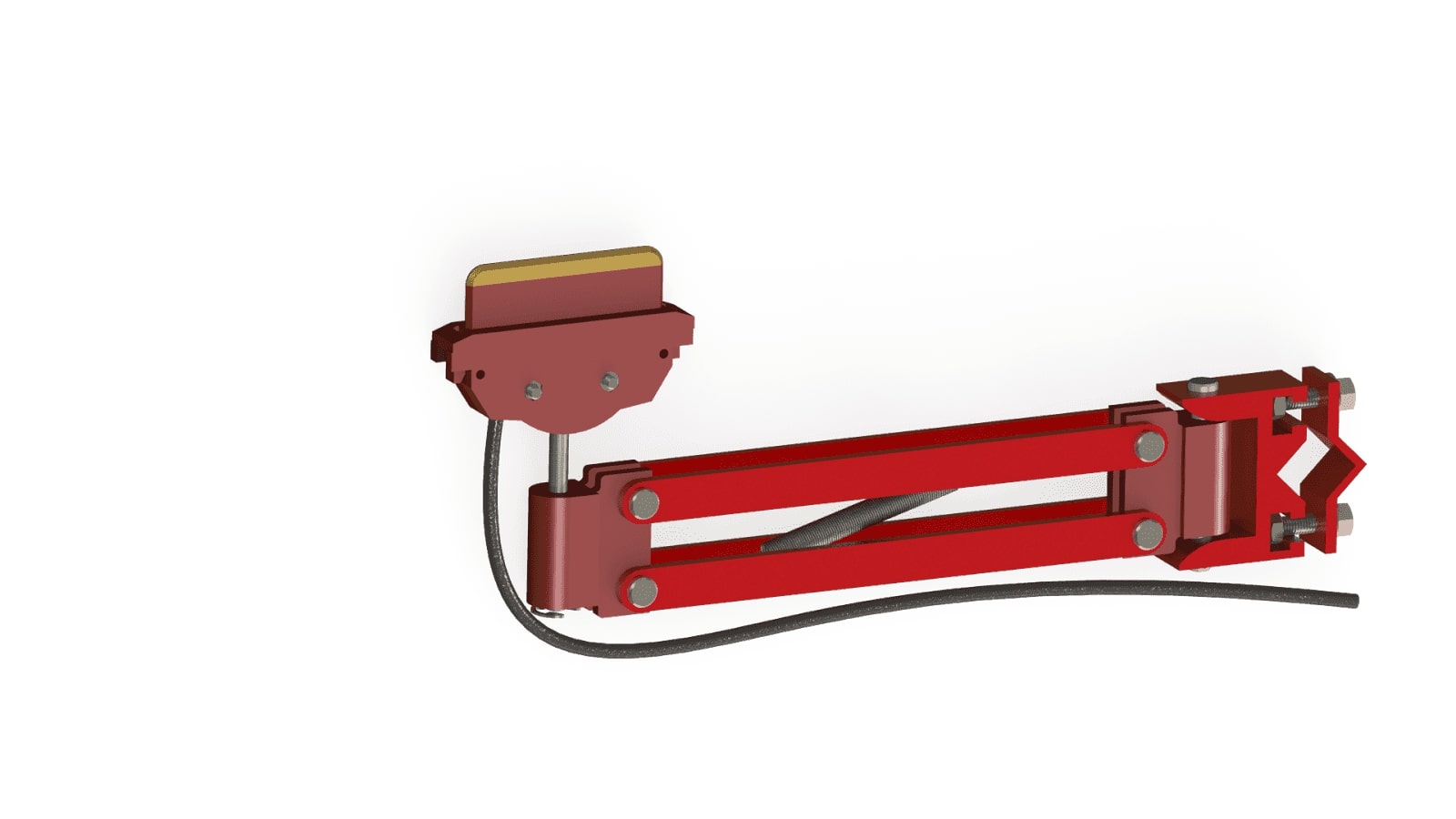

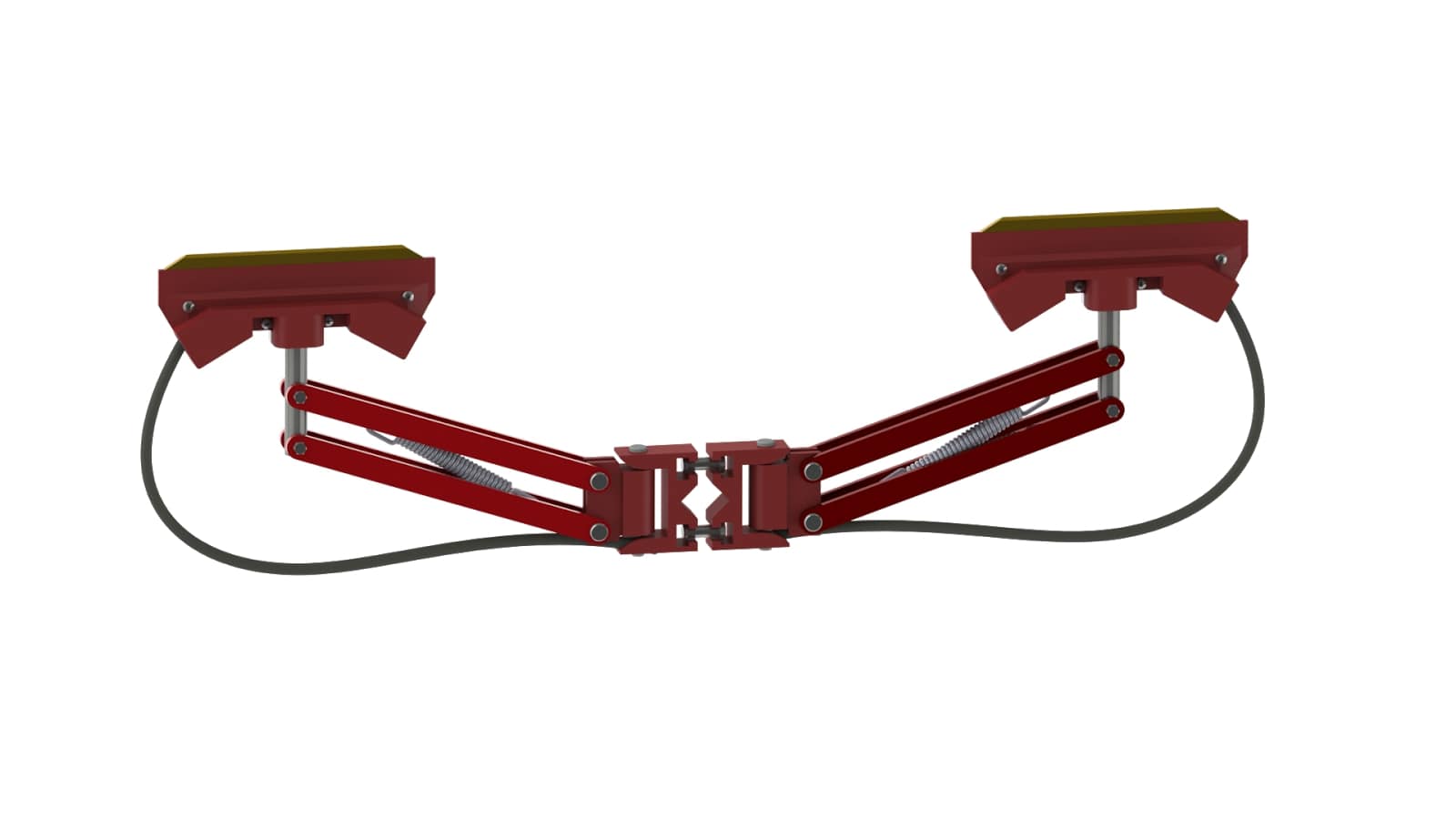

Bus bar feeder system

In Low Power Systems Such as a ‘pcb’ in a household or industrial appliance,the ground or Power plane can be thought of as a bus bar.Current in these low power systems tend to be in the milli ampere range.

In High Power Systems, where you have to transfer 1000 Amperes of Current through a three phase busbar system, it is a different game. The design, Installation, Safety during such an installation become critical factors.

What is the Need for DSL Busbars?

They are a very efficient system to carry significant amounts of current between different electrical subsystems.

Where are DSL Busbars used?

  • Factories

  • Buildings

  • Airports

A busbar is not the only solution to deliver power to your machinery but it can be used in many different configurations.

Busbar Configuration

What is the Current carrying capacity of DSL Busbars?

The Current carrying capacity of the busbar are highly dependent on the operating temperature. In an Industrial environment, most of the heat lost by the busbar will be due to Convection. Current carrying capacity of a busbar can range from 1 Ampere to 1200 Amperes.

Thick copper busbar installation
Current Carrying Capacity of busbars
  • 40 Ampere Busbar

  • 60 Ampere Busbar

  • 100 Ampere Busbar

  • 140 Ampere Busbar

  • 200 Ampere Busbar

  • 250 Ampere Busbar

  • 300 Ampere Busbar

  • 400 Ampere Busbar

  • 500 Ampere Busbar

  • 600 Ampere Busbar

  • 700 Ampere Busbar

  • 800 Ampere Busbar

  • 900 Ampere Busbar

  • 1000 Ampere Busbar

  • 1200 Ampere Busbar

Does the Resistance of a Busbar Matter?

Yes, it matters.
Heat generated by the busbar = I2R
Where I = Current Carried By the Busbar
R = Resistance of the busbar
Increase in resistance of the busbar, produces more heat which in turn reduces the total power efficiency of the busbar system decreases.

Resistance of DSL Busbars

Which Busbar Should I choose for my application?

  • Energy Efficiency Required
  • Current Carrying Capacity Required
  • Life Time Cost
  • Length of Busbar Installation
  • Maintenance Procedures of Different DSL Busbars
  • Cooling Method Provided to the Busbar
  • Inductance & Capacitance of Longer DSL Busbars
  • Space Constraints
  • Cost Constraints

Materials Used in DSL Busbars

From boarding passes to movie tickets, there's pretty much nothing you can't store with Front Pay. Plus, you can take your money further with exclusive offers, discounts, and even reminders to use your loyalty card when you enter the store.


Used in corrosive atmosphere, chemical plants, 60 Amps in W type.

Stainless Steel DSL Busbars

Galvanized Iron

Let's go through the important technical parameters of Iron as a metal:
Melting point of Iron: 1538 °C
Boiling Point of Iron: 2862 °C
Density of Iron: 7.874 g/cm 3
Electrical Resistivity of Iron: 96.1 nΩm

Applications of Iron DSL Busbars are in trolleys, over head cranes, hoists.

Galvanized Iron DSL Busbars

Aluminium Busbar

Let's go through the important technical parameters of Aluminium as a metal:
Melting point of Aluminium: 660.32 °C
Boiling Point of Aluminium: 2470 °C
Density of Aluminium: 2.7 g/cm 3
Electrical Resistivity of Aluminium: 26.5 nΩm

Properties of Aluminium:

Aluminium is ready available because it makes up almost 10 percent of the earths’ crust. Aluminium has almost 33% density of copper or Steel. When exposed to air, aluminiums’ outer layer oxidizes and helps in making aluminium excellent at corrosion resistance and hence aluminium maintains a good silvery finish at all times.

Aluminium is a good material for DSL Busbars because of its very High electrical and thermal conductivity, low Density, excellent corrosion resistance and high mechanical strength.

Aluminium DSL Busbars are cheaper than copper DSL Busbars but offer about 60 % of coppers electrical conductivity. Aluminium also weighs almost half of copper DSL Busbars. Since Aluminium is a soft metal, Aluminium DSL Busbars can be made with the help of rolling machines or extrusion machines.

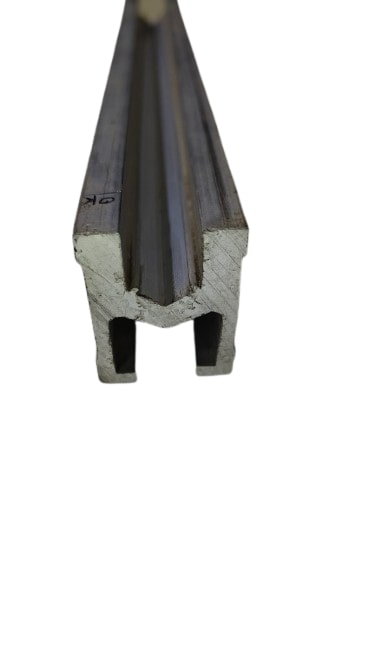

Aluminium DSL Busbars

Copper Busbar

First lets go through the important technical parameters of Copper as a metal:
Melting point of Copper: 1082 Degrees
Boiling Point of Copper: 2564 Degrees
Density of Copper: 8.96 g/cm 3
Electrical Resistivity of Copper: 16.78 nΩMeter

Since Copper is malleable and Ductile it can be formed into many different kinds of shapes. It also has a high thermal conductivity to spread out the heat evenly. Due to all these parameters, copper is the most favoured material to be used in DSL Busbars.

Copper DSL Busbars are much superior to aluminium DSL Busbars in terms of conductivity but the trade off here is cost and weight. Since the density of copper is high, it is more robust to external mechanical disturbances and damage.

Copper DSL Busbars will transfer significant amounts of current, hence, there will be a small percentage of power lost in transmission and converted into heat. This heat will be lost to the external environment through convection and radiation.

Copper DSL Busbars

Cost Comparison of DSL Busbars For Overhead Cranes

Image Description

Steel Busbar

Image Description

GI Busbar

Image Description

Aluminium Busbar

Image Description

Copper Busbar

Electrical performance of DSL Busbars for Overhead Cranes

Steel Busbar

Steel Busbar


GI Busbar

GI Busbar


Aluminium Busbar

Aluminium Busbar


Copper Busbar

Copper Busbar

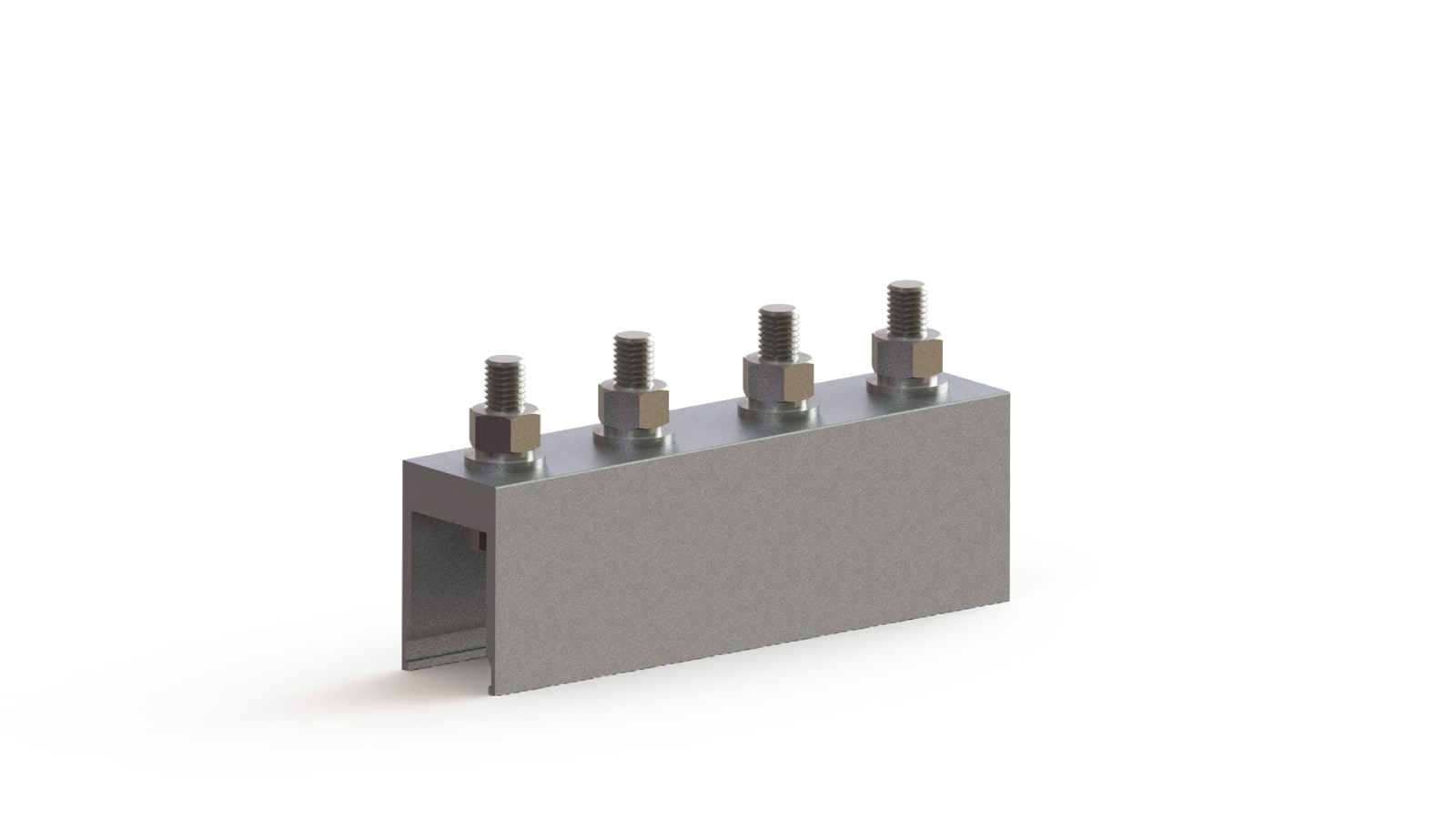

Different types of Joints for DSL Busbars

Bolt type joint diagram

Bolt Type Joint

Pin type Joint diagram

Pin Type Joint

Weld type joint diagram

Weld Type Joint

Rivest type joint

Rivet Type Joint

Busbar Protection

Protection from Short Circuits

In a three phase power delivery system, a minimum of three parallel DSL Busbars will be used to deliver power to the crane machinery. The gap between the DSL Busbars is an important parameter to avoid short circuits.

If there is a short circuit, the current will rise until the protection device kicks in. This very high current will heat the DSL Busbars and will cause mechanical stress to the busbar as well as its support units.

Protection from Human Touch

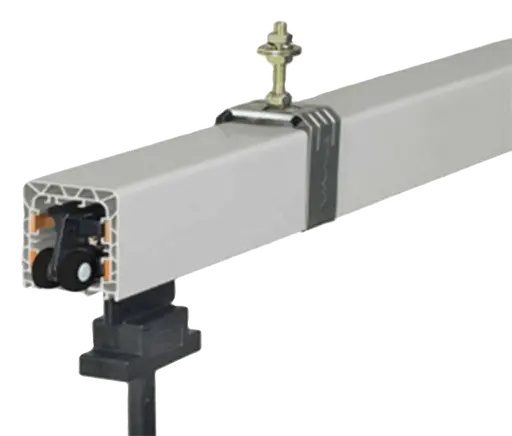

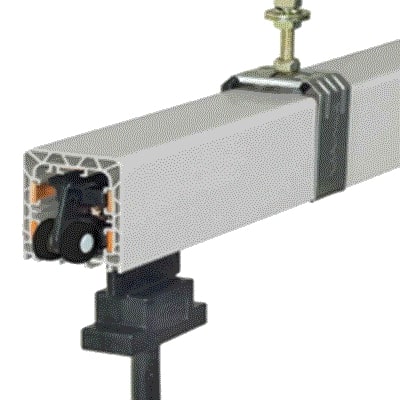

We only recommend insulated DSL Busbars, because like every other electrical circuit, DSL Busbars need to be protection from human touch. No live or HOT sections are exposed to the external environment.

Safe distance should also be maintained between two parallel DSL Busbars. Insulation will also help in prevention of short circuit in the presence of foreign material touching two DSL Busbars.

Warning - Risk of electric shock

Lifetime cost of Busbar


Installation Design

The design of the electrical system will play a major role in the installation price. The design of installation should focus on minimizing the time required to install the busbar and all its supporting components ,should minimize maintenance time,should provide easy and safe access to the maintenance and installation personnel. A well designed electrical system ,will allow for connections and disconnections in the future without stopping the production of a factory. The design should also allow for extensions to the busbar if required.

Image Description

Cost of Installation

Cost to erect the busbar to the particular height, complexity of the busbar installation. Time to install all the number of supporting components such as joints, brackets,pins,etc play a major role in installation cost.

Image Description

Recurring Cost

Maintenance cost of a busbar will be reduced if the busbar is used correctly. Using the busbar at lower working temperatures and not overstressing the DSL Busbars will cause the DSL Busbars to increase their life and reduce the maintenance costs.

graph depicting Cost of Energy

Energy Cost

The amount of voltage drop in a busbar will affect the cost of energy you pay . Selecting the right conductor size will greatly minimize the voltage drop.As the weight of material increases the cost of the busbar increases, and the cost of energy decreases.

End of life of busbar

End of Life Cost

At the End of Life of the system, the DSL Busbars and its supporting components have to be removed.The cost of material used for the DSL Busbars will be of significant value. As the cost of metal increases the cost of material used for the busbar might appreciate. All other supporting plastic components will have to be recycled.Keeping all these points in mind, you can get a very practical view of the overall cost of a busbar system.

Voltage Drop

Voltage drop of a busbar is very important parameter to consider.In laymans terms - the amount of voltage not reaching the desired equipment from the power supply = Voltage Drop.
It is highly dependent on the resistance of the busbar being used and the amount of current being consumed.
Temperature also affects the voltage drop to some degree.

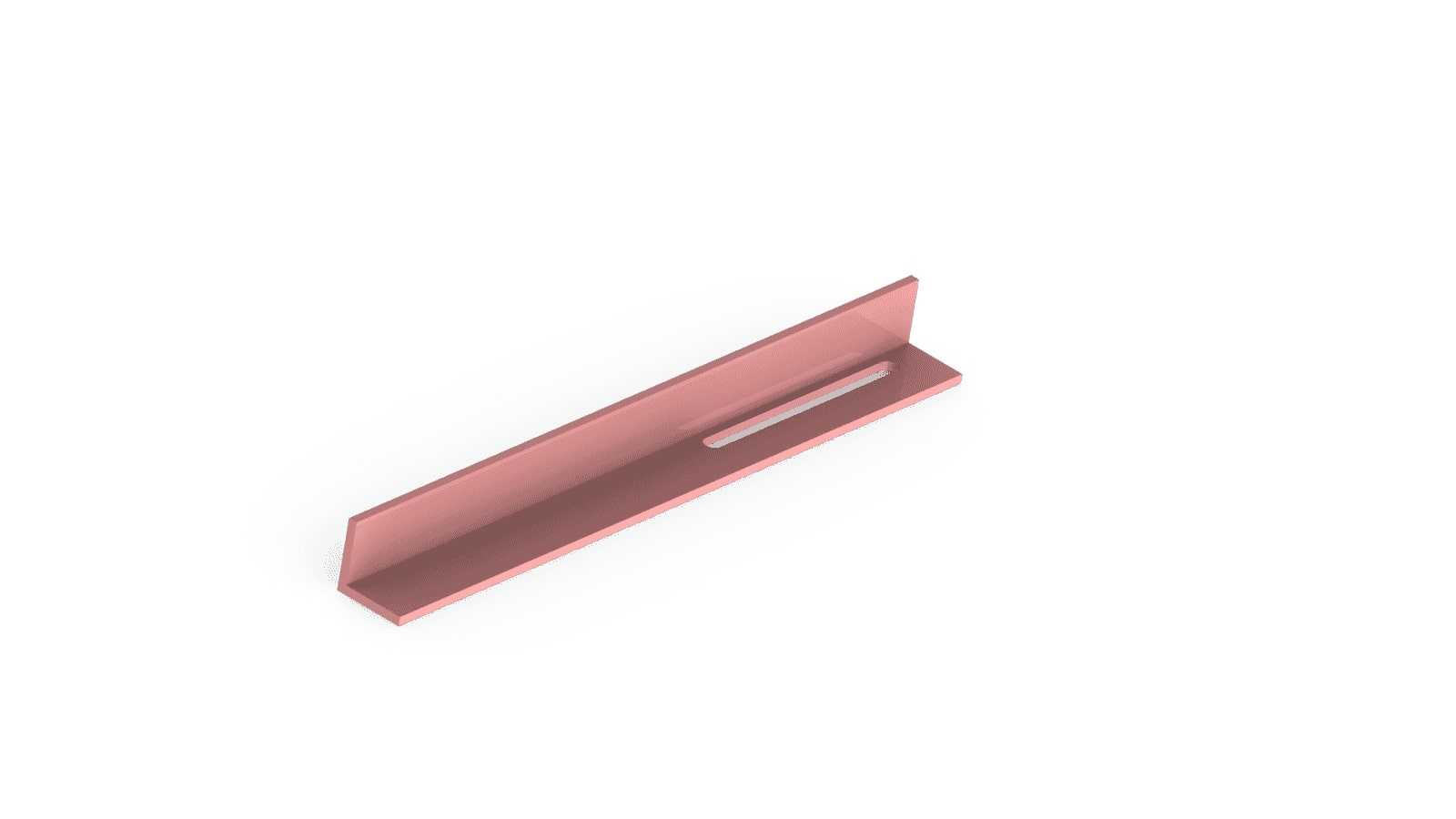

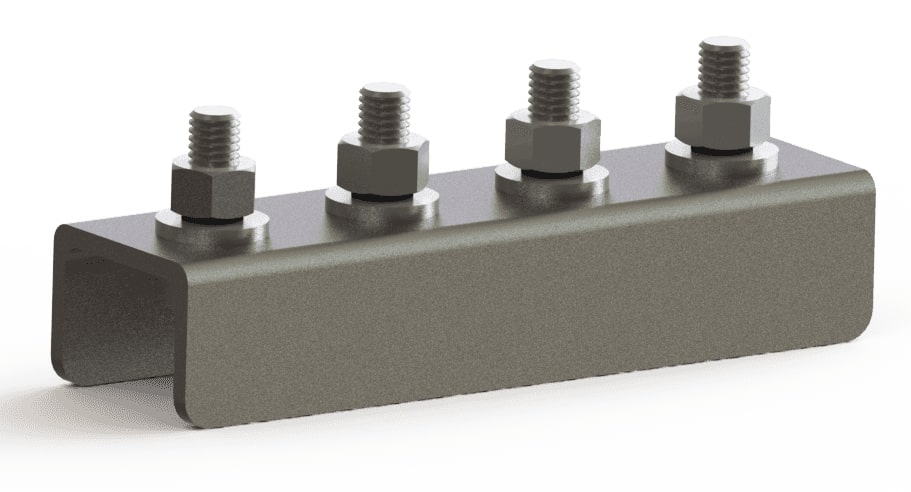

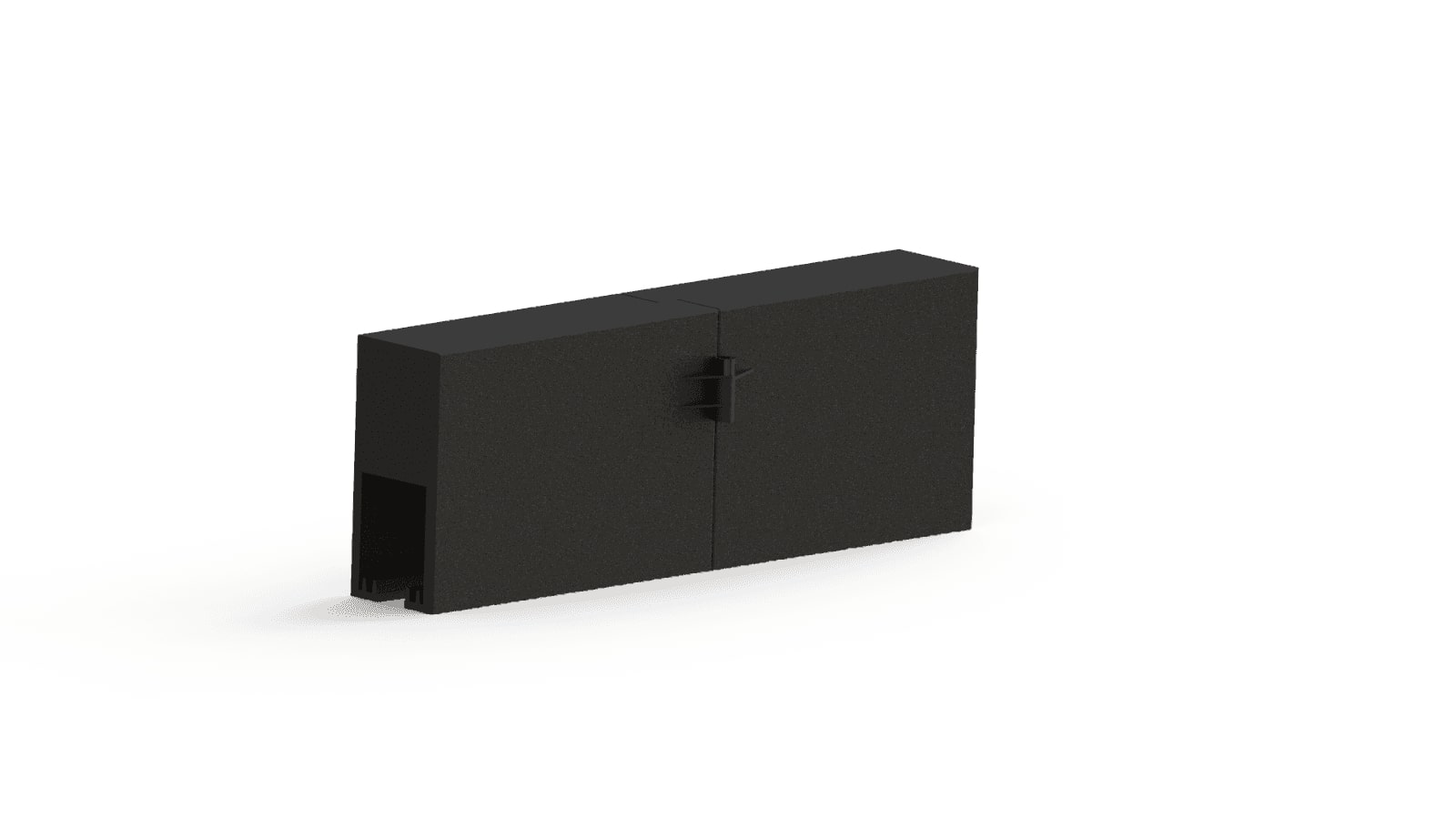

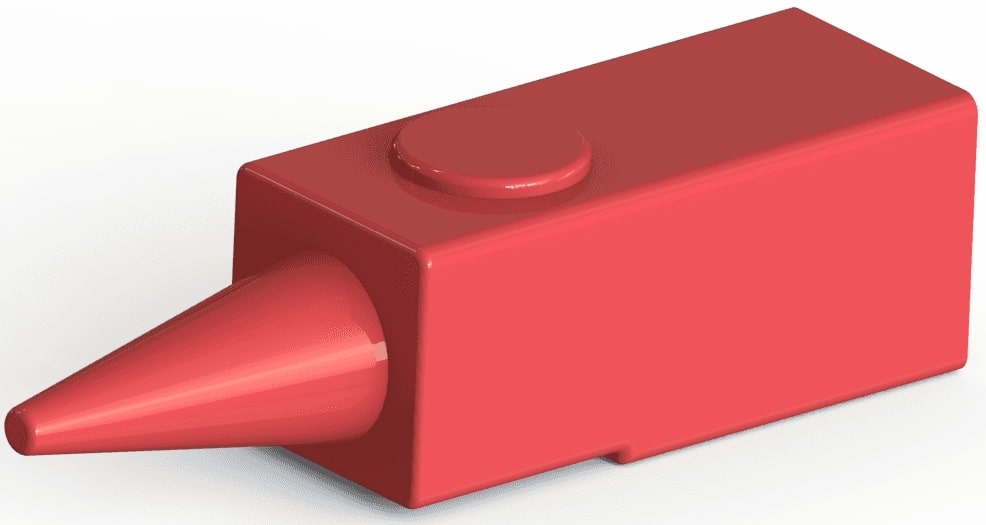

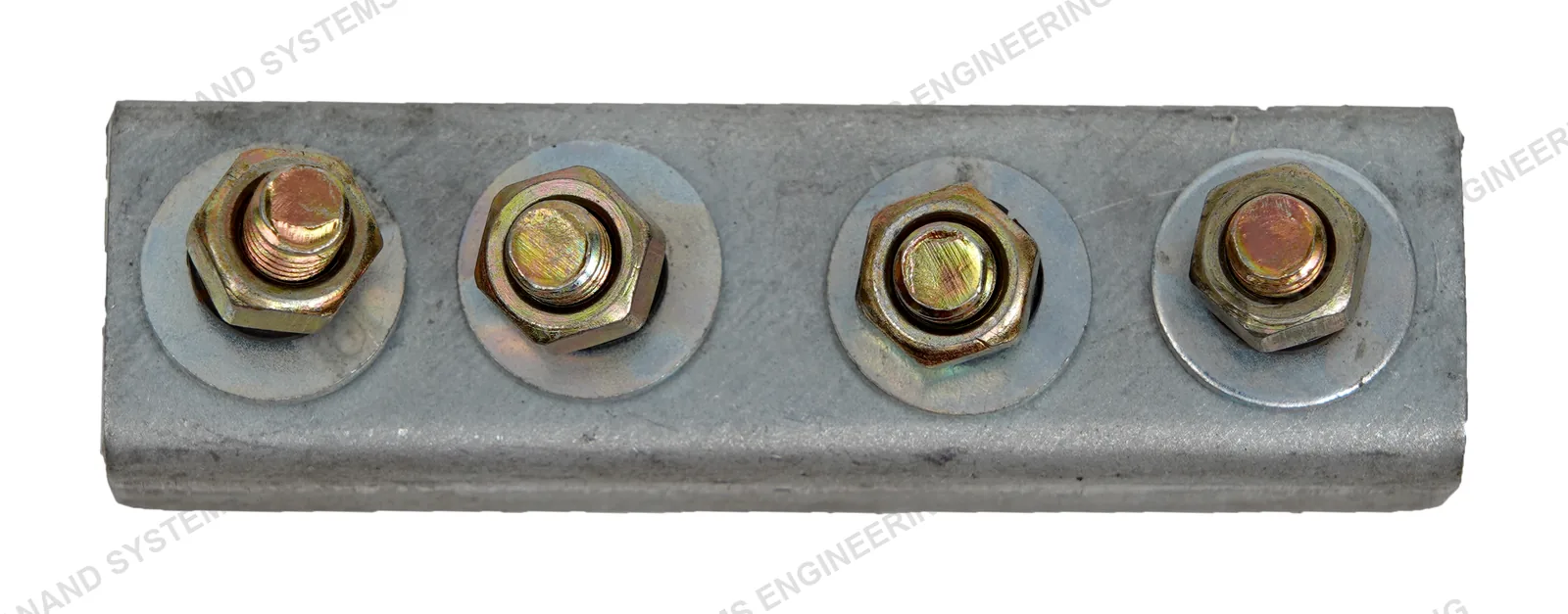

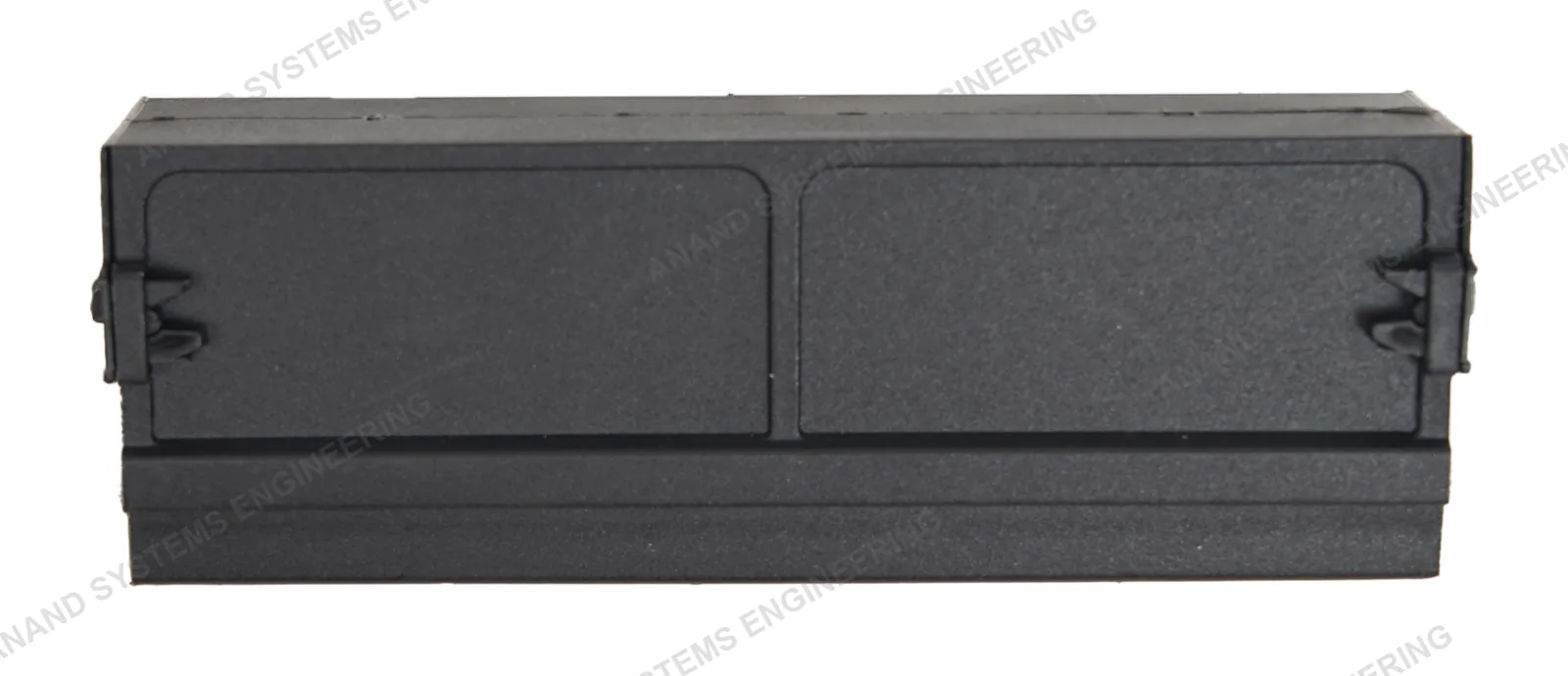

Profile Joints

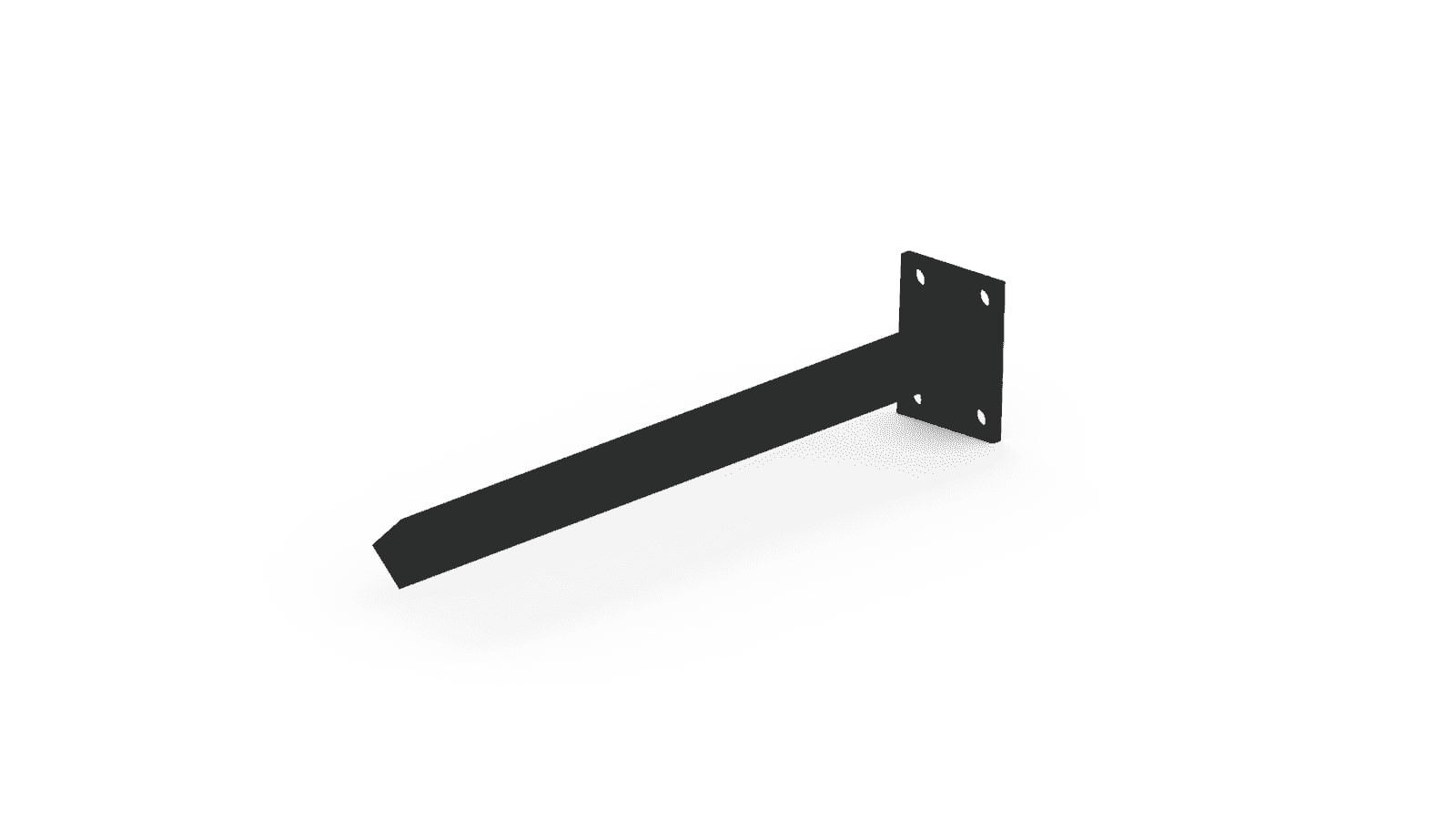

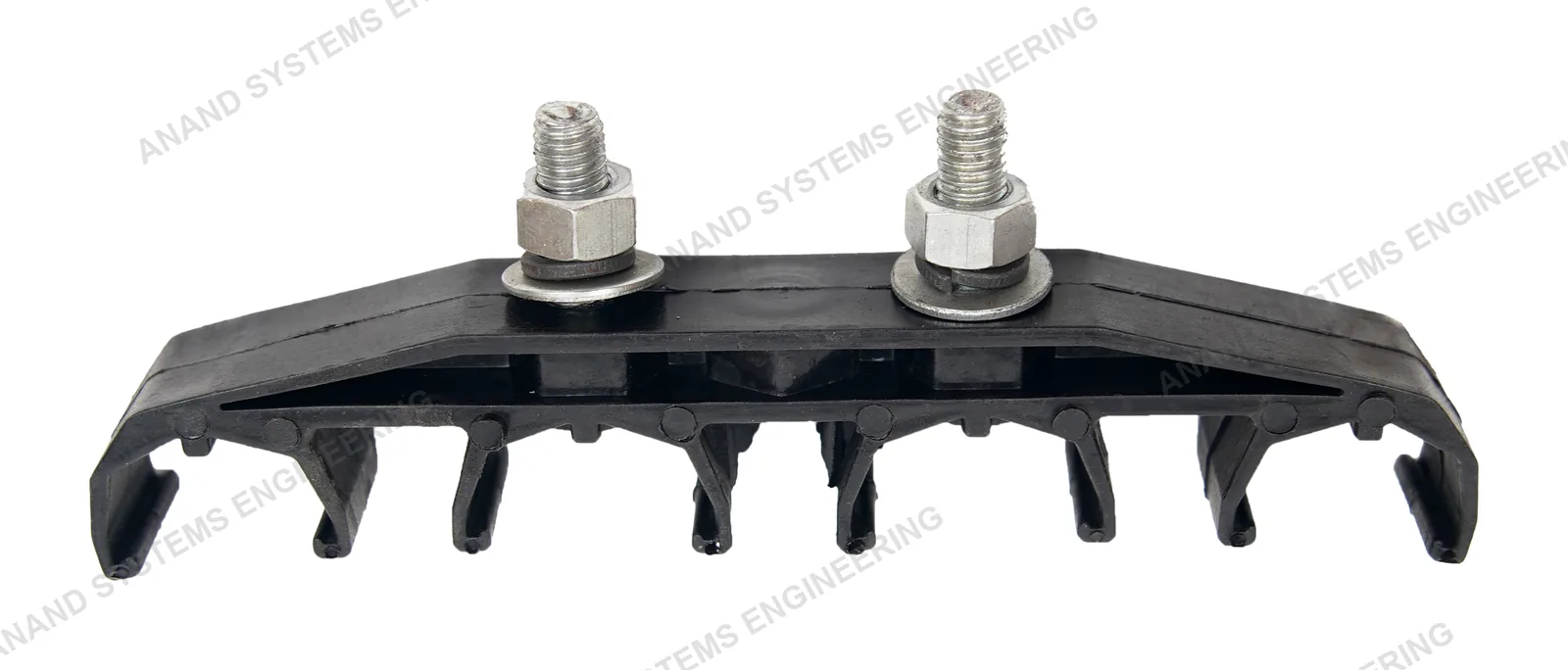

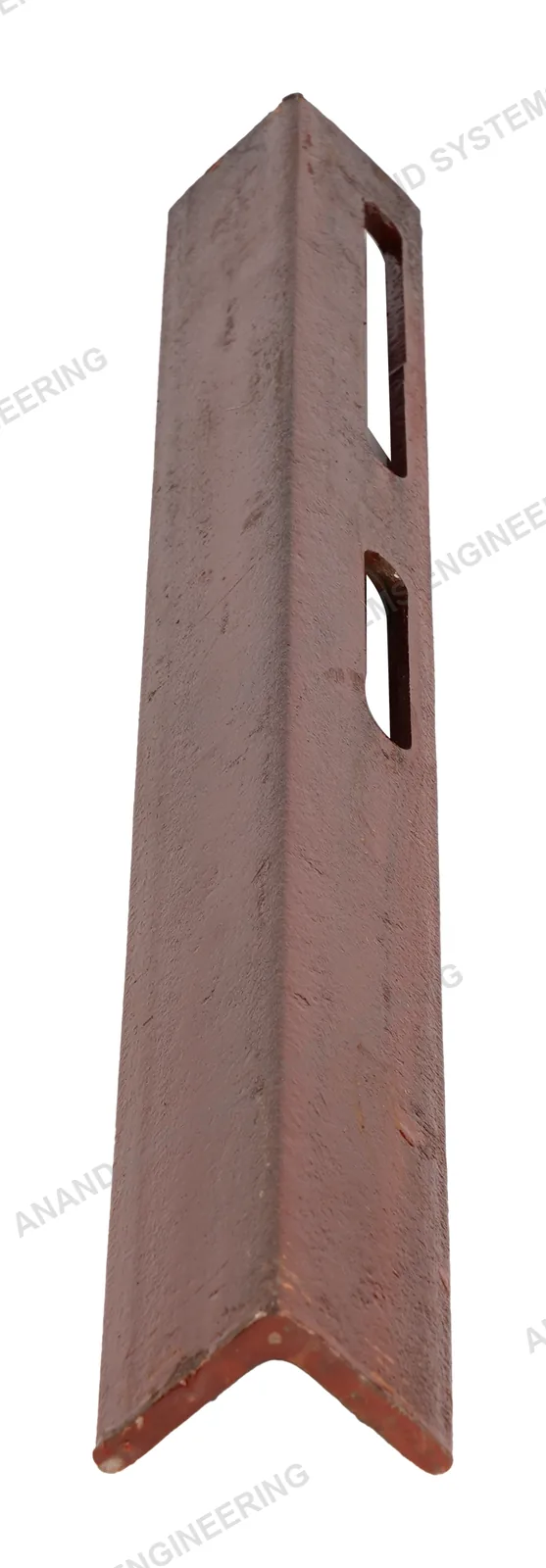

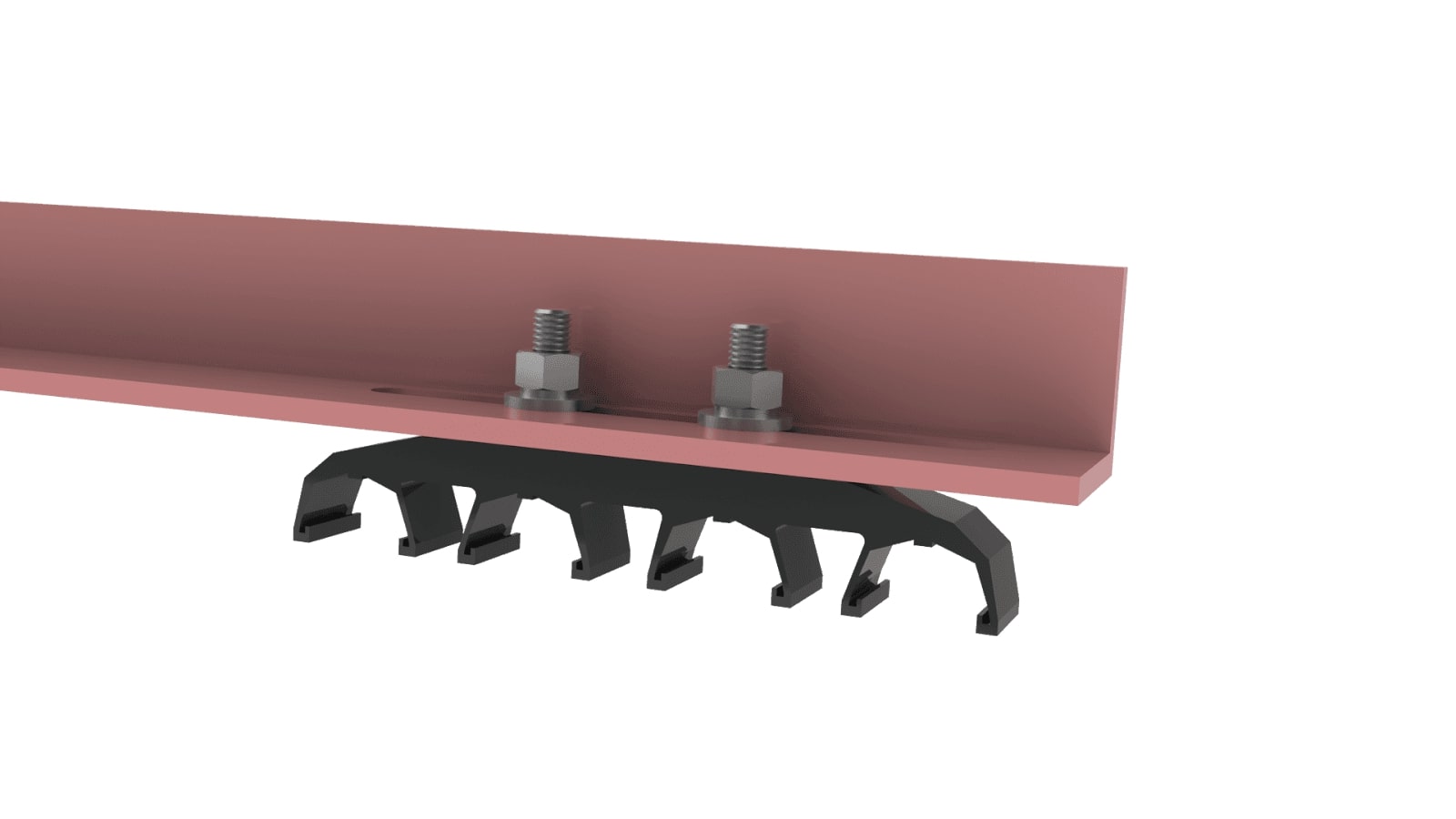

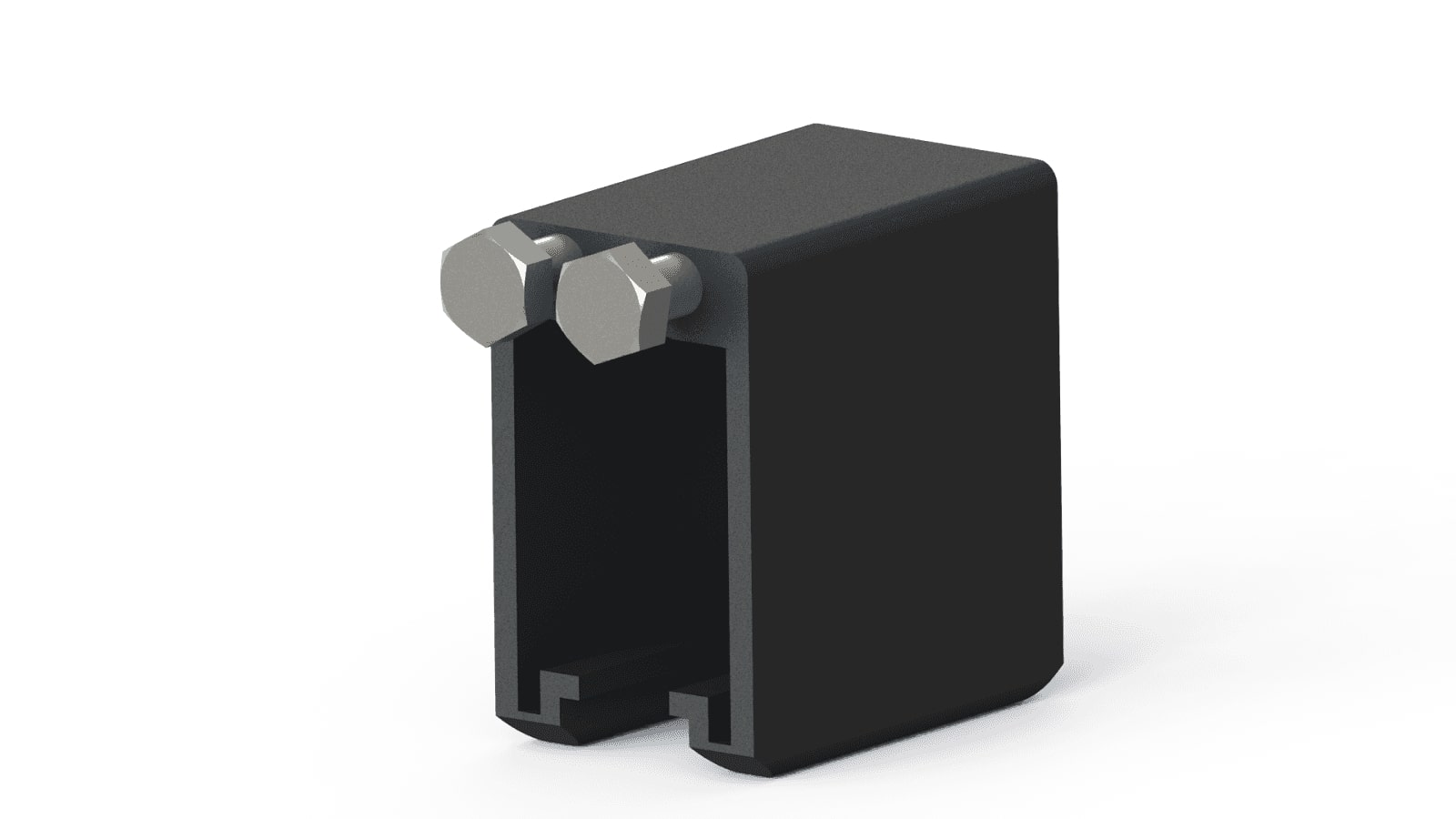

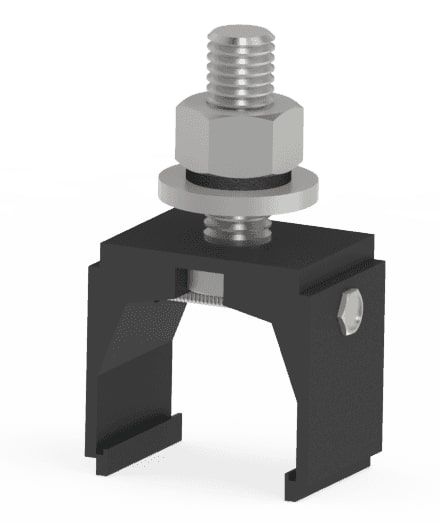

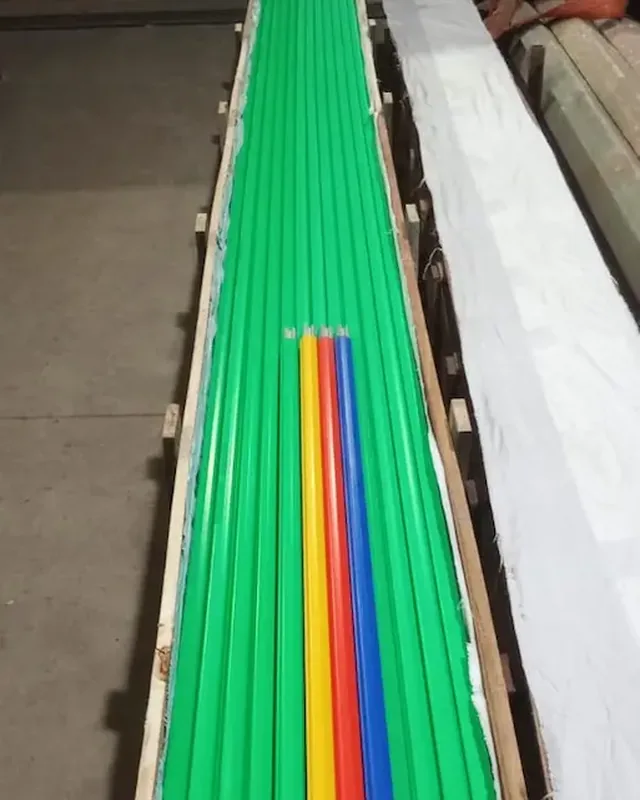

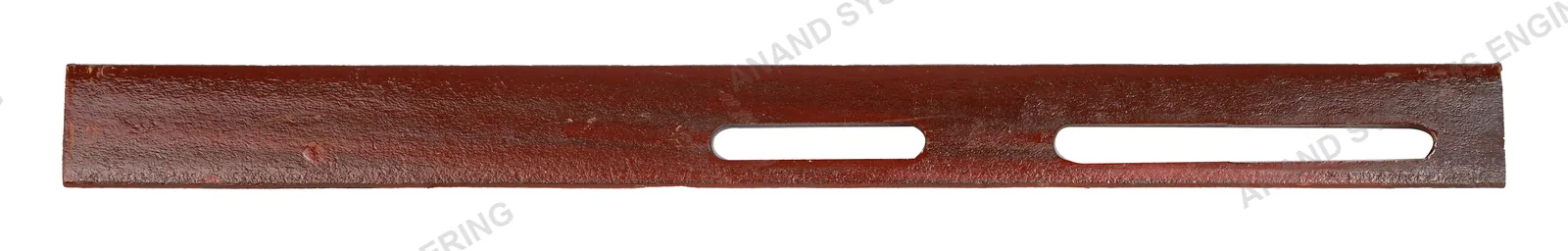

Busbar profiles from Anand are available in 4 to 4.5 meter long sections. These sections can be easy joined together to make long busbar installations. Specific Jointing tools and MS web brackets are available to join and support the whole installation. Manufacturing busbar profiles requires lots of initial investment in forming machines, testing equipment and a good quality production process. First the flat metal of the required dimensions is loaded onto a spool. This material is put into a forming machine which has circular dies which form the shape of the particular busbar Profile. The profile is then drawn through a cutting die where the profile is cut at the specific length.
