Crane Radio Remote Controls for Industrial EOT overhead Cranes

Single & Dual Step/Speed Push Button type Wireless Remote

  • Joystick Radio Remote Controls
  • PWM & Analog output Radio Remote Controls

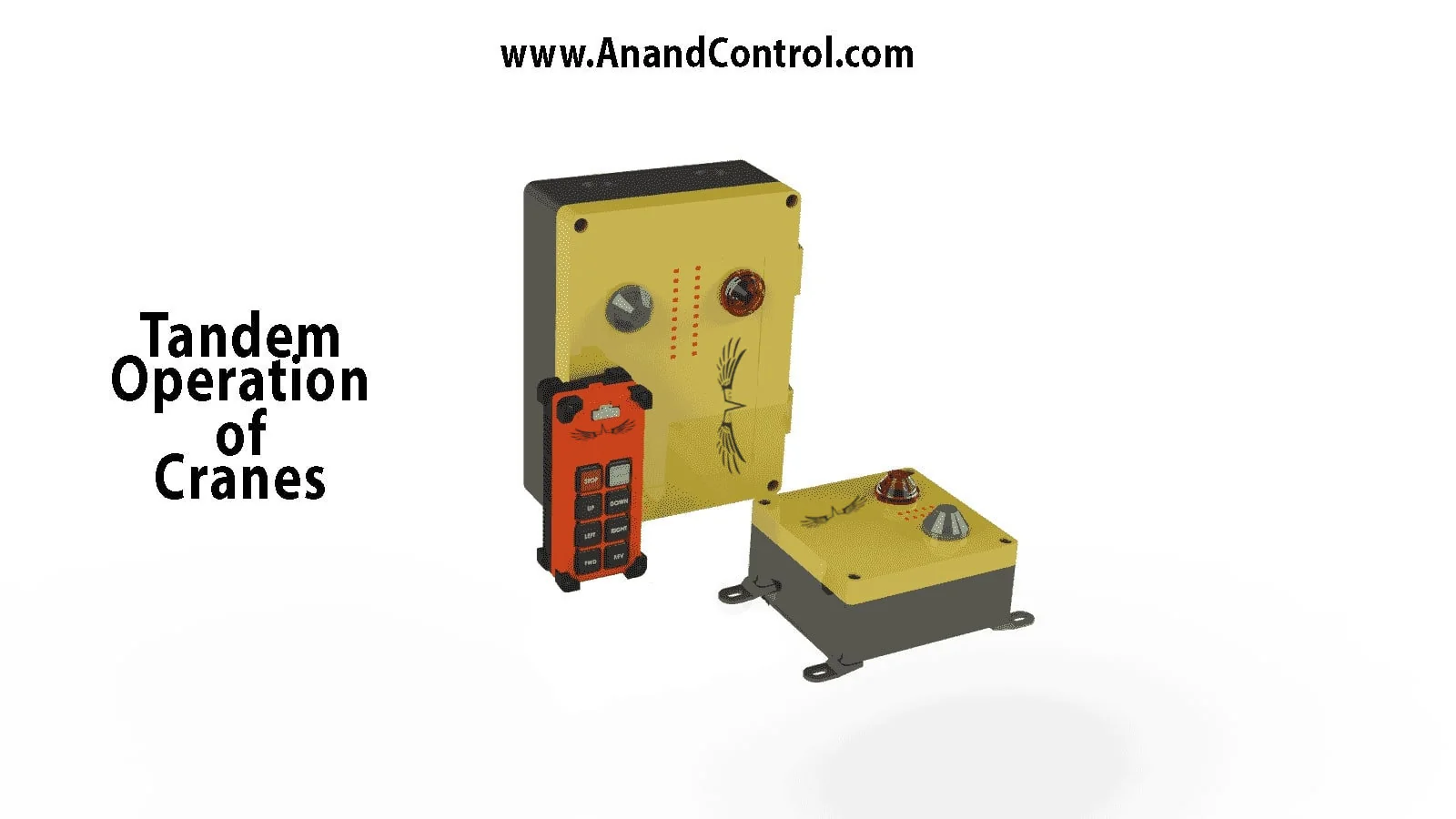

  • Tandem (Syncronized) Pair Radio Remote controls
  • Integration with any PLC or Control Panel.
  • Wireless Remote Controls Supplier for Single Girder EOT overhead Crane, Double Girder EOT overhead Crane, Jib Crane, Tower Crane, Gantry Crane, Goliath Cranes , Boom and Column Welding Machines, Hoists, SPM Machines, Blue Metal Stone Crushing Machines , Hydra Cranes , Hydraulic Machines, Proportional Solenoid Valves.
  • Customized Wireless Controls for Sewage Tankers , Welding Machines.

Customized and Standard Industrial Wireless Remote Control Manufacturer for EOT overhead Cranes in India
RRC For Worldwide use in 2.4 Ghz Band.

Best Price Ultra Reliable Industrial Crane Remote Transmitters and Receivers for Wireless Operation of Cranes.

Download Radio Remote Catalog Download Anand Maks Remote Control Brochure Download Joystick Catalog

User Manual

*Any type of Software & Hardware Customized Remote Controls Available.

*All Anand Products are Designed & Made in India.

*CraneSCADA compatible.


Premium Crane Remote Controls Designed & Made in India

RADIO REMOTE CONTROLS FOR CRANES

Launching New AnandMaks Radio remote Control for EOT Cranes

Introducing Maks series Crane Remote - the latest and most advanced industrial radio remote control for cranes. With our new and unique product, you'll never have to worry about a broken button again!

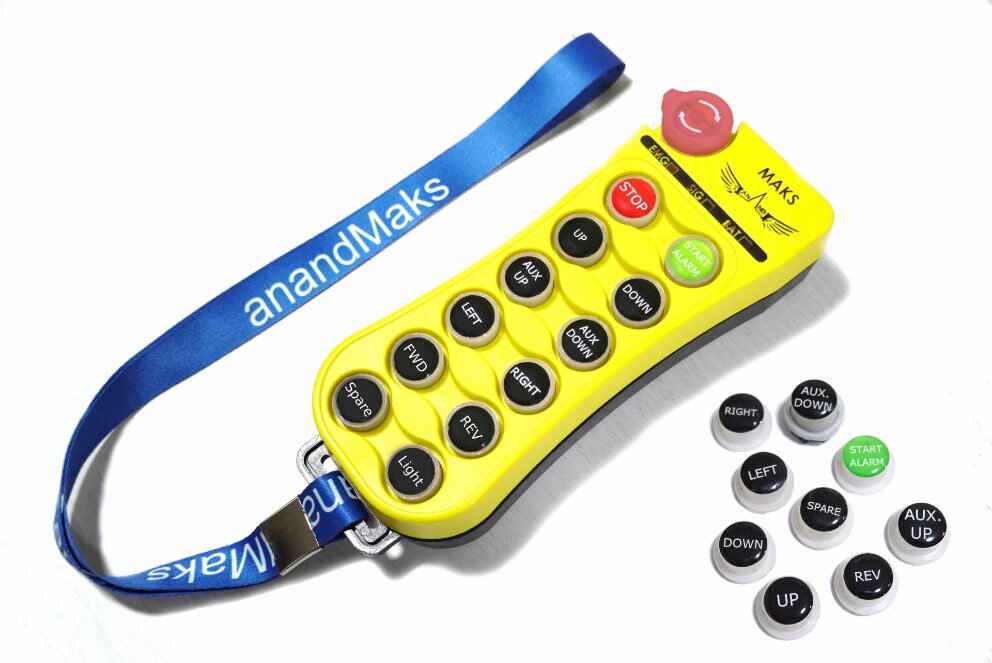

Our Maks series remote control is designed with replaceable buttons, which means that you can easily replace any button that stops working instead of having to replace the entire remote control. This feature not only saves you time and money, but also ensures that your operations run smoothly and uninterrupted.

Our Maks series remote control is also designed to be user-friendly and ergonomic, making it comfortable to hold and easy to use. This feature ensures that you can operate the remote control comfortably for long periods of time, reducing fatigue and increasing productivity.

Our team of experts has worked tirelessly to design and manufacture this product, ensuring that it meets the highest standards of performance and reliability. We believe that the Maks series remote control is the future of industrial operations, and we are confident that it will revolutionize the way you operate your cranes.

Don't settle for a remote control that's more trouble than it's worth. Upgrade to the Maks series and experience the difference for yourself. Our unique product will help you to save time, money, and the frustration of dealing with broken buttons. Contact us today to get your hands on the Maks series and take the first step to upgrading your operations.

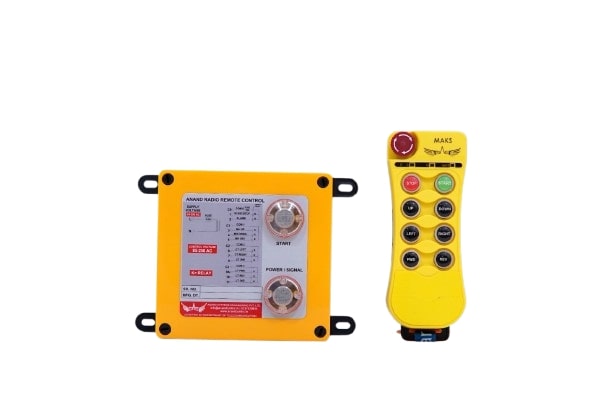

AnandMaks Radio remote
AnandMaks Radio remote

Crane Remote Control

Designed & Manufactured by Anand Systems Engineering

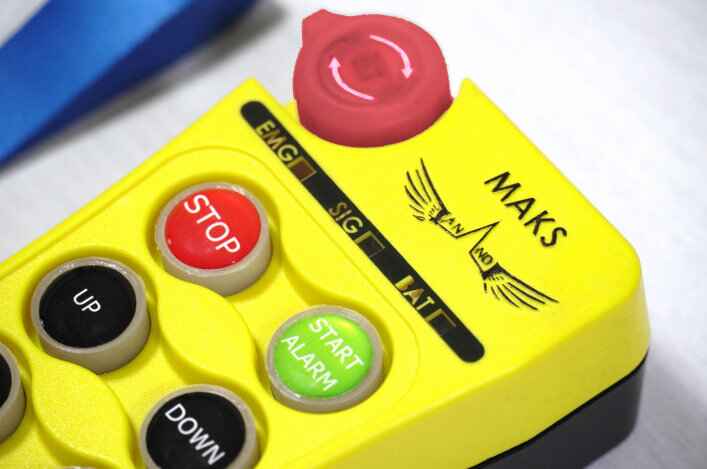

Comes with On-Site Replaceable Push Buttons

AnandMaks Radio remote

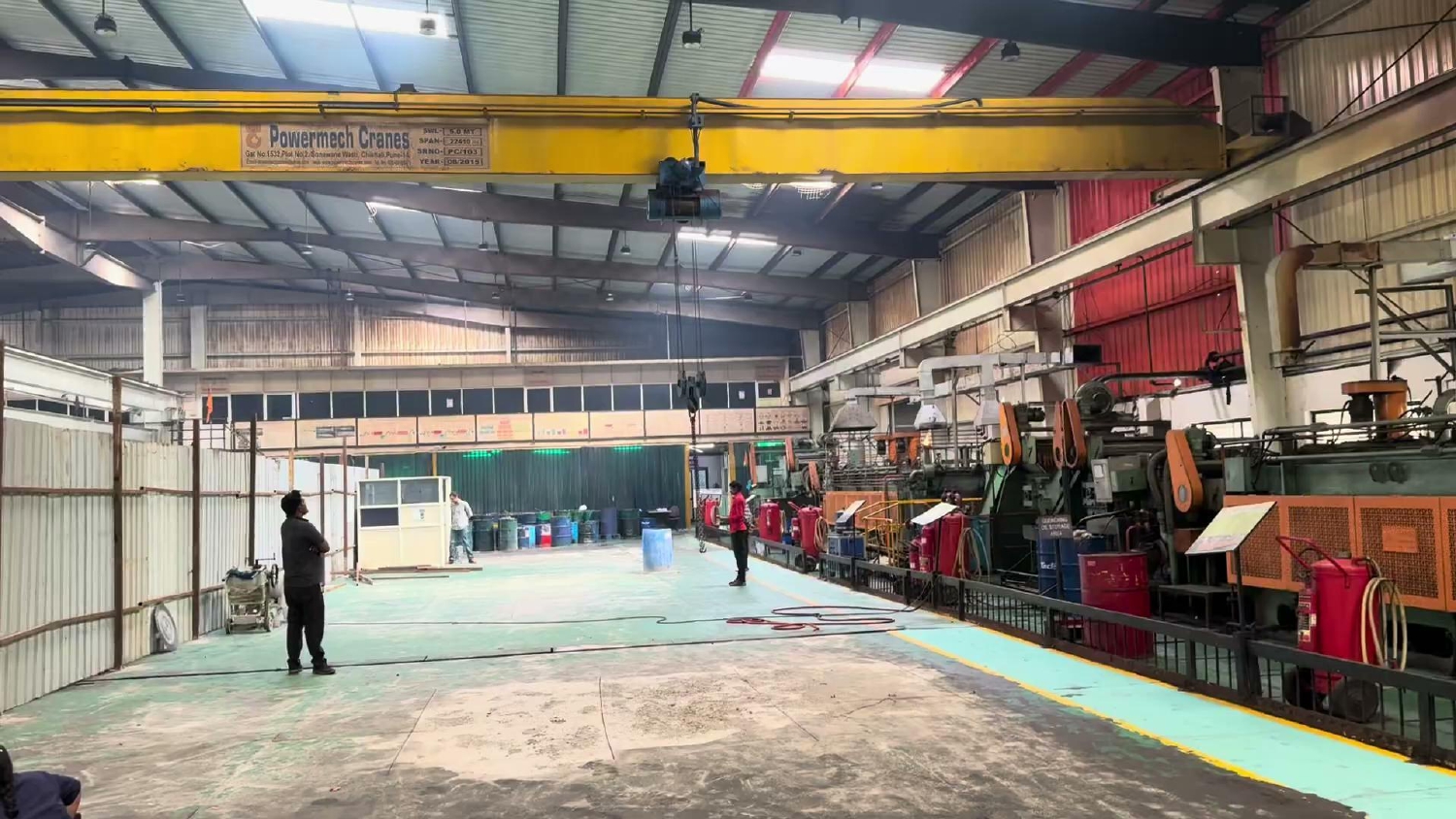

Anand MAKS has prevented a total downtime of 10,000+ hours of EOT Crane Operations.

2 years warranty* | 30 days Money-Back Guarantee

Are you Struggling with :

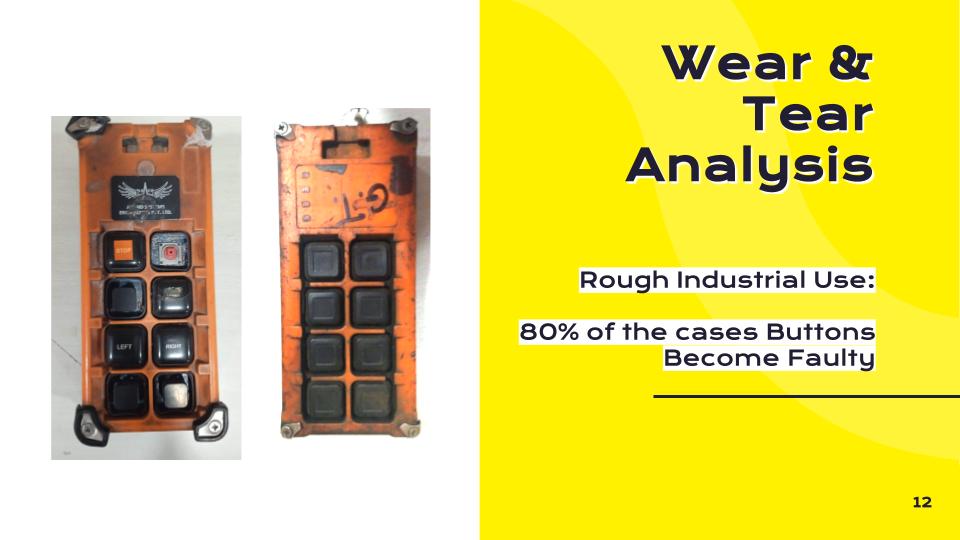

Crane Operation is halted due to a single faulty Push Button on Remote?
● Tired of Sending System Frequently for month-long Expensive repairs?
Disruptions & Panic in the Workshop due to Faulty Remote Control?
● Wasting Time Troubleshooting Electrical issues due to faulty system?
● Facing Challenges with the supplier ignoring your Service related calls?
Not getting enough Range ? Need to Change Batteries Regularly?

“AFTER MANUFACTURING & SELLING 1000+ RADIO REMOTE CONTROLS IN THE LAST 3 YEARS WE REALIZED THAT 80% OF THE REMOTE CONTROLS COME FOR SERVICE WITHIN 1-2 YEARS OF OPERATION DUE TO PUSH BUTTON WEAR/TEAR“

MAKS Benefits :

Crane Operation will never be halted due to faulty push buttons
● Operator can instantly replace push buttons within 2 minutes.
Disruptions & Panic will vanish.
● You will get guaranteed 1000+ hours of battery life. No Range issues.

AnandMaks Radio remote

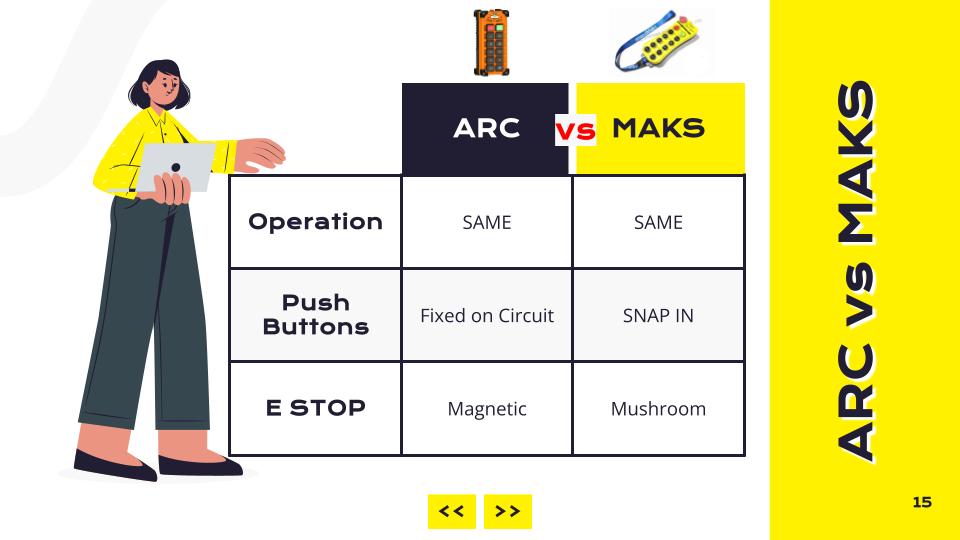

Problems with current Remote Controls Impact of the Problem AnandMAKS Solution
damaged / malfunctioning push buttons ? WIFI ICAN -Need to send the remote control for repairs to dealer -High cost of repairing -Lost productivity -Fire fighting & Panic -Activate Spare Remote/ Activate Pendant With On-field replaceable push buttons you can replace the Faulty Push button within 2 minutes and restart your operations.
Cheap Low cost Imported remote controls? SHIP ICAN Low Reliability -No repairs / No service -No Certification -Use & Throw -Loss of Reputation of Supplier/Crane Manufacturer Maks is Certified by WPC,IDEMI. -All Spares/repairing available -Dedicated customer service line
Short Battery Life? BATTERY ICAN -Need to change batteries Frequently during busy working hours. -Increased cost & Hassle Maks has Guaranteed minimum +1000 hour battery life.
Damaged Antenna ? ANTINA ICAN -Leads to significantly Reduced Range & malfunctioning remote control. -Maks comes with ‘Internal Antenna’ on the Transmitter & Receiver which can never be damaged, broken or stolen.
Bad customer service support from Supplier? CONTACT ICAN Supplier does not pick your service call , doesn't know how to fix your issues & denies responsibility for faulty remote control. Maks remote control comes with a dedicated customer support line from 10 am-6.30pm.

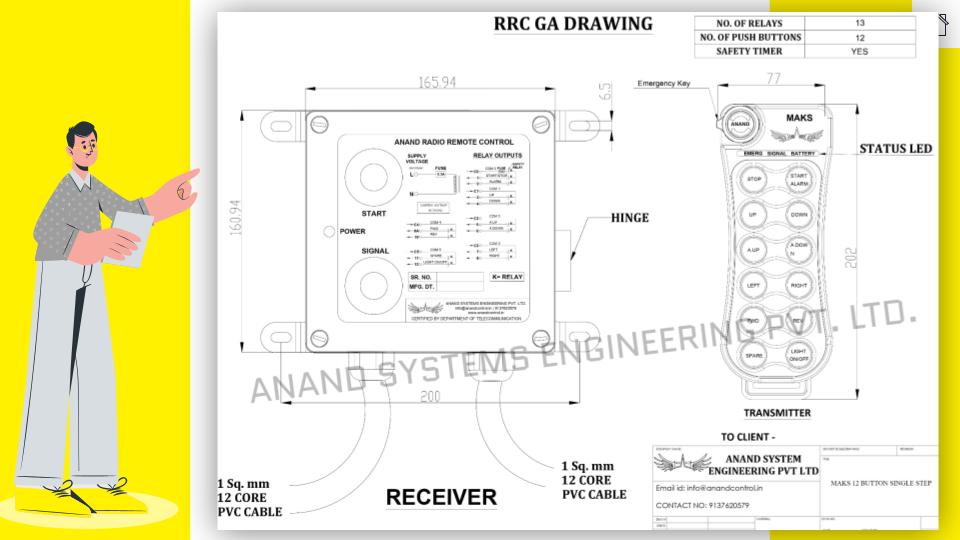

Product Overview - DESIGNED BY THE BEST

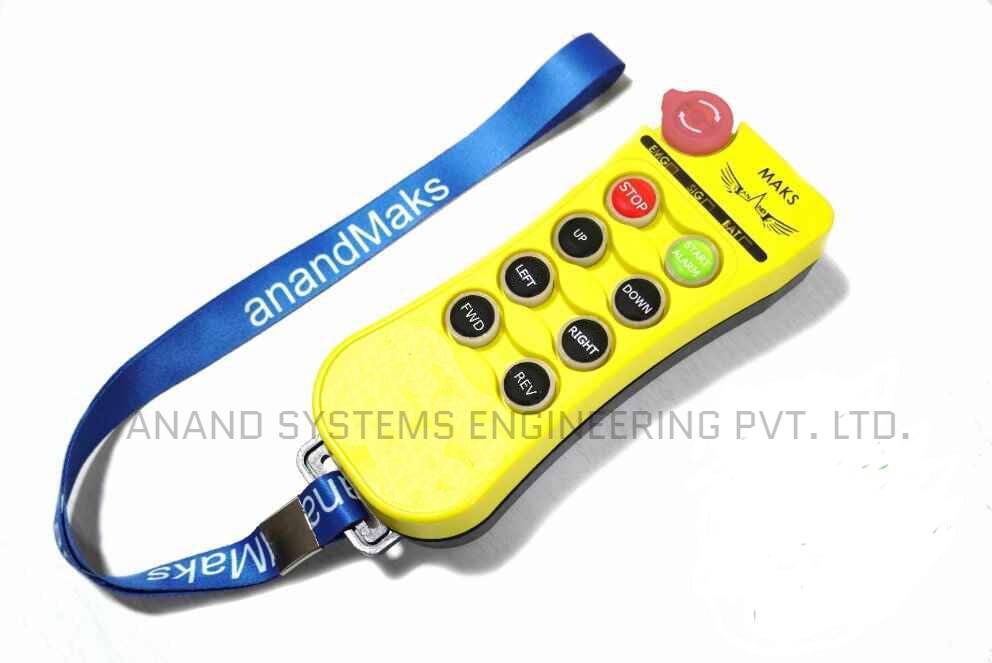

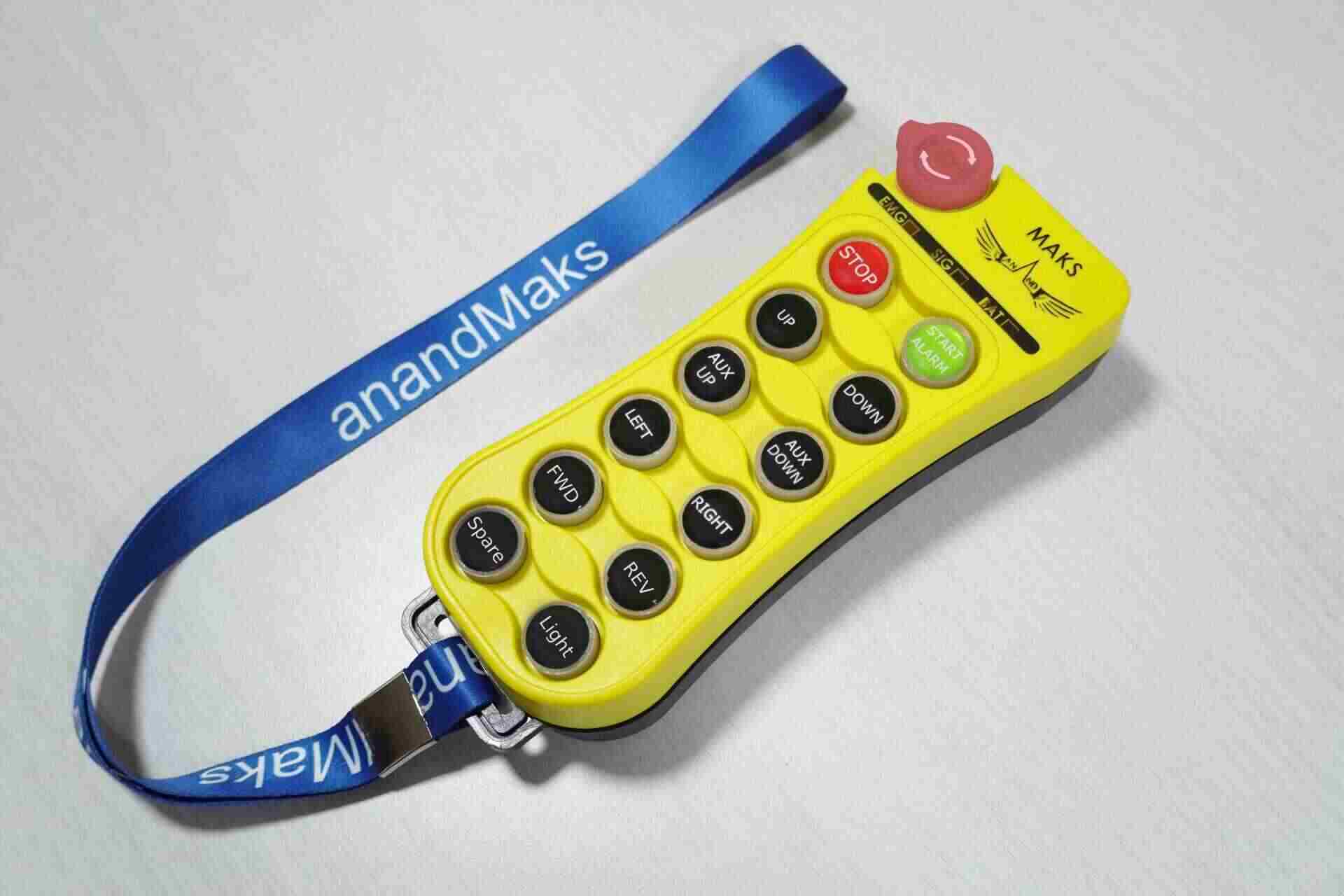

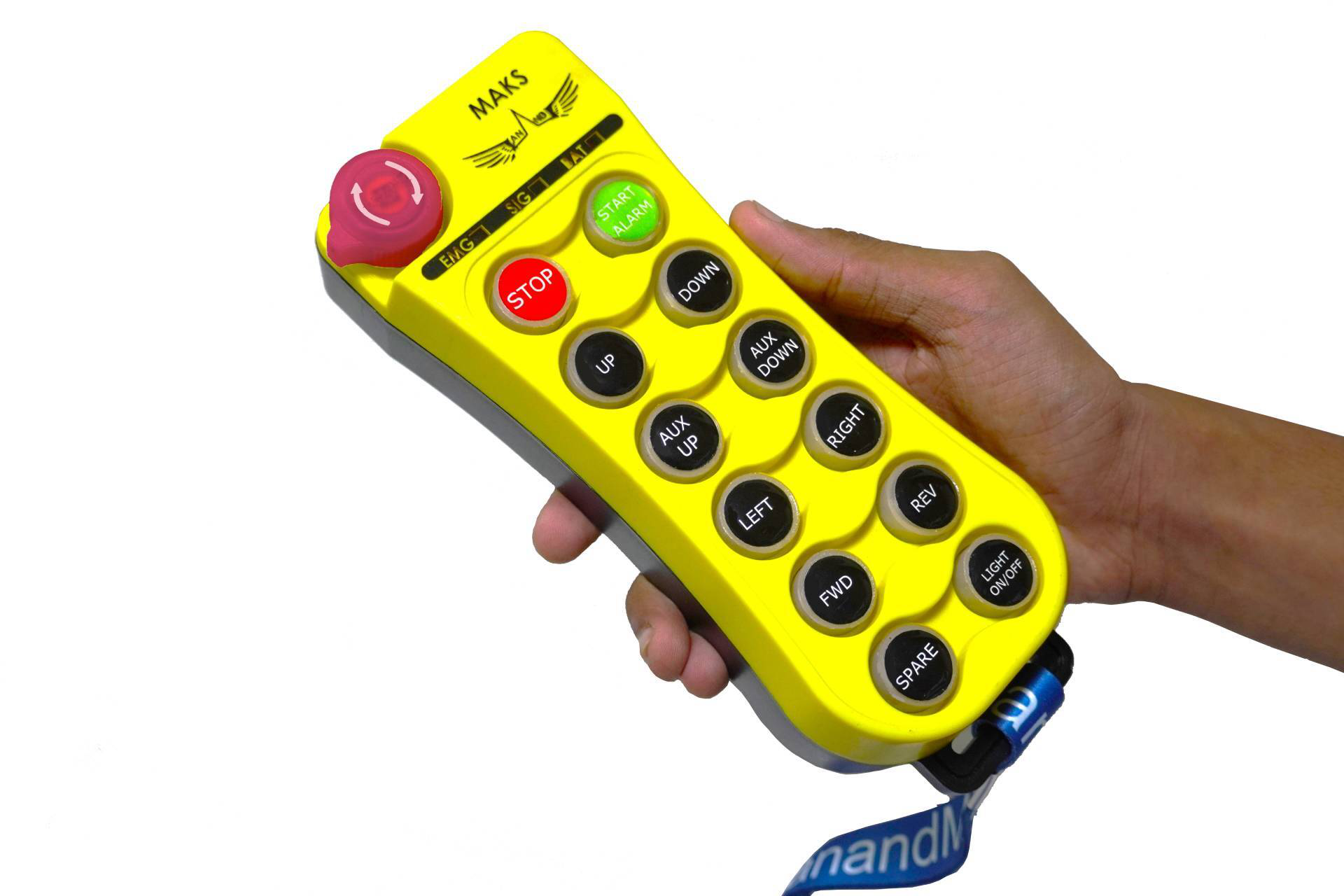

Introducing the “Maks” series - the latest and most advanced industrial
radio remote control for EOT cranes and Hoists. With our new and unique
product, you'll never have to worry about servicing the remote control again!

Maks series remote control is designed with replaceable buttons, which means that you can easily replace any button within 2 minutes that stops working instead of having to replace or send for repair the entire remot control. This feature not only saves you time and money, but also ensures that your operations run smoothly and uninterrupted.

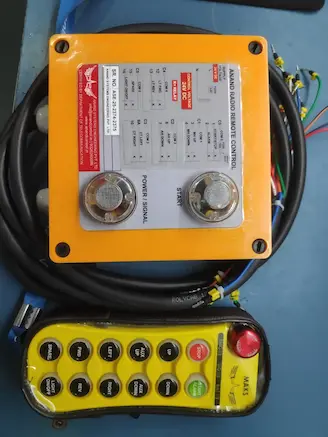

AnandMaks Radio remote

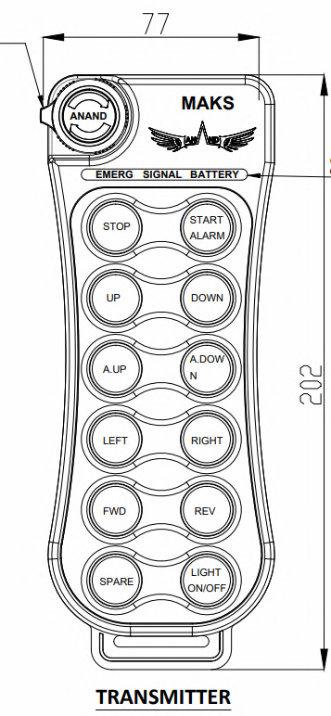

MAKS DESIGNE REMOTE

Maks series remote control is also designed to be user-friendly and ergonomic, with Mushroom E Stop & 3 indications making it comfortable to hold and easy to use.

Our team of experts has worked tirelessly to design and manufacture this product, ensuring that it meets the highest standards of performance and reliability. We believe that the “Maks” series remote control is the future of industrial operations, and we are confident that it will revolutionize the way you operate your cranes

Don't settle for a remote control that's more trouble than it's worth. Upgrade to the Maks series and experience the difference for yourself. Our unique product will help you to save time, money, and the frustration of dealing with broken buttons. Contact us today to get your hands on the “Maks" and take the first step to upgrading your operations.

COST SAVINGS:

In terms of cost, assuming that a traditional remote control needs to be repaired once every 1 year and that the cost of repairs plus shipping is around Rs.6,000 - Rs15,000. In addition, the cost of lost productivity due to the remote control being out of service is assumed to be around Rs. 20,000 - Rs 1,00,000 per day. Over a 3 year period, the total cost of repairs, shipping, and lost productivity comes to around Rs. 2 Lakhs to 10 Lakhs per year.

On the other hand, the Maks series remote control has a one-time purchase cost and a button replacement cost. Maks series remote control offers significant cost savings compared to traditional remote controls.

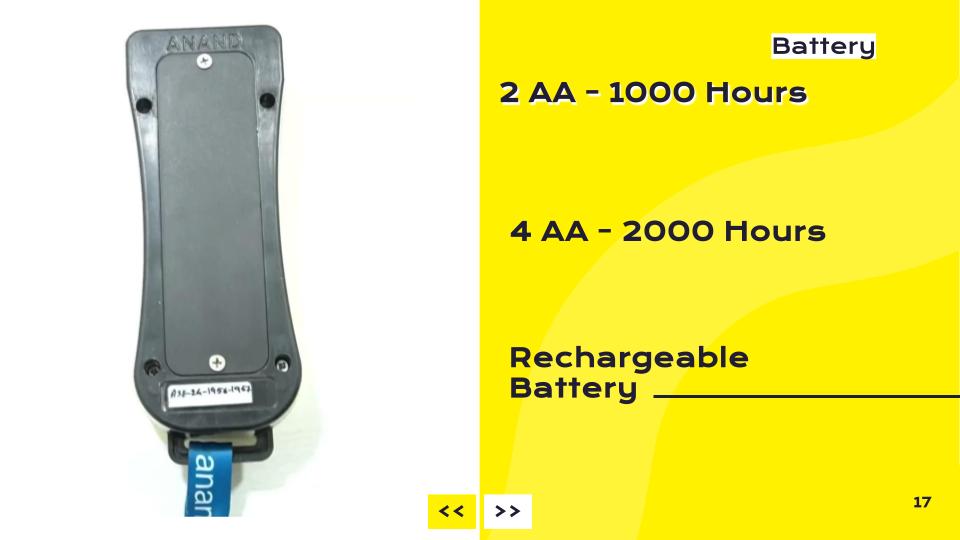

BEST BATTERY LIFE:

It's also worth noting that the Maks series remote control offers additional benefits such as installing 4 AA Batteries for Doubling the battery life, and improved productivity.
We guarantee 1000+ Hours of Battery Life.

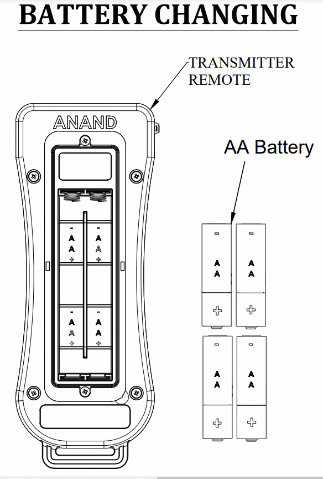

MAKS REMOTE DIAGRAM WITH CELL

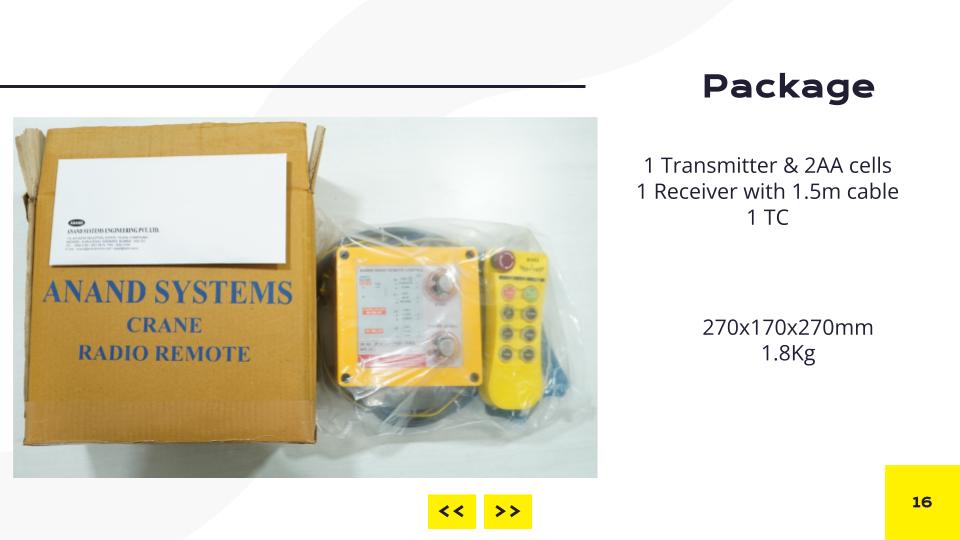

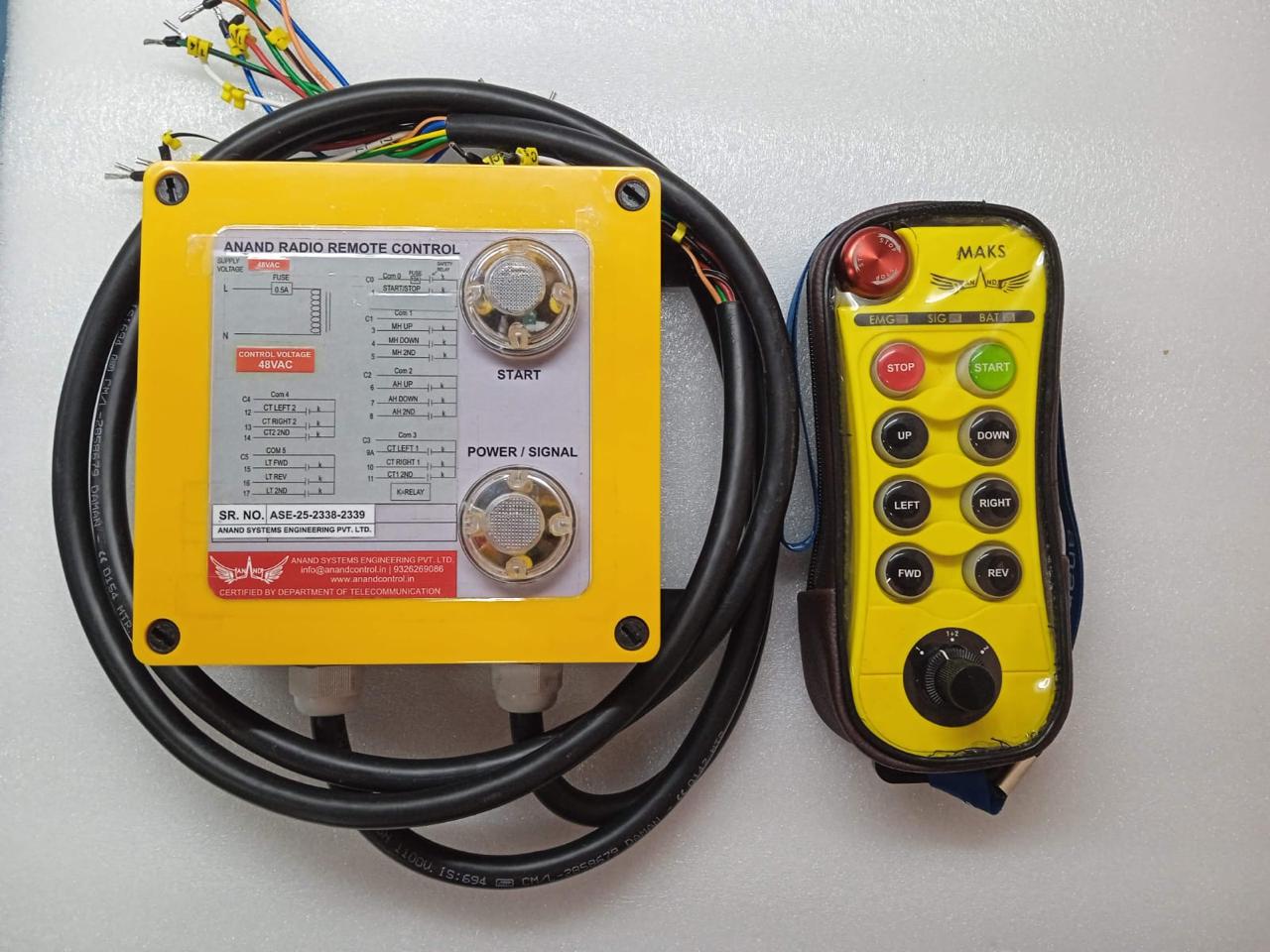

Package Includes:

1 Transmitter with 2 AA Alkaline Batteries,1 Spare Push Button

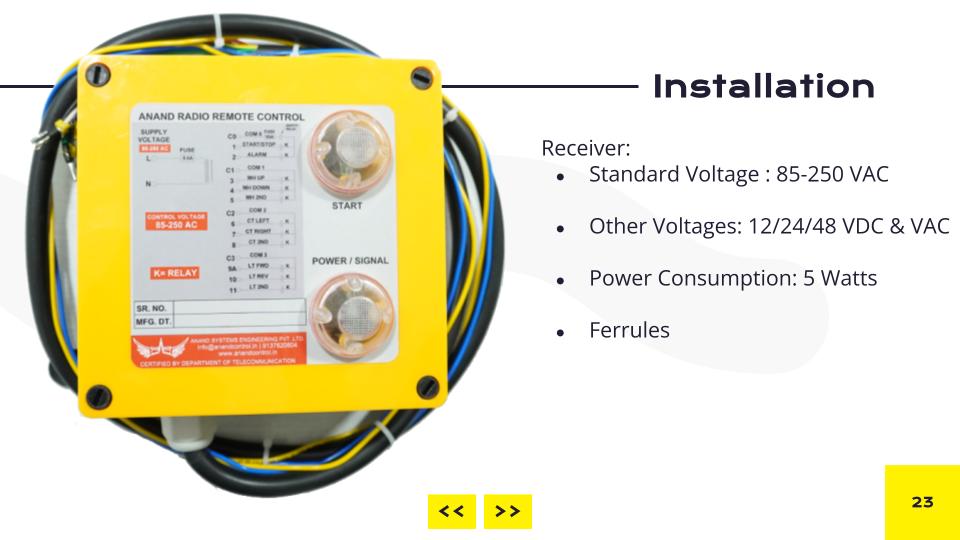

1 Receiver with 1.5 Meters Cable
1 Test Report , 1 Wiring Diagram, 1 Delivery Challan, 1 Tax Invoice
Warranty:
MAKS comes with “2 years warranty” on internal electronics circuits from the date of Dispatch
Contact us:
Get in touch with us at 91376-20579, info@anandcontrol.in or visit our website www.anandcontrol.in
Money Back Guarantee:
If you don’t find value with this product, we will Provide a No-Questions-Asked - “30 Days Money Back Guarantee” from date of dispatch


Working principle of Radio Remote Control for overhead Crane.

The industrial overhead crane radio remote control is a cutting-edge technology that allows operators to control the crane's movements with precision and ease. The system is composed of two units: the transmitter and the receiver. The transmitter, which is a hand-held remote control device, is designed to be portable and easy to use. It is equipped with push button switches that allow the operator to control the crane's movements with just the touch of a button.

When a switch is pressed on the transmitter, it generates a combination of data that is sent to the receiver unit in real-time. The data is encrypted to ensure secure communication between the transmitter and receiver, so you can be sure that only authorized personnel can operate the crane. Once the receiver receives the data, it decodes and decrypts the information and activates the appropriate relay, which in turn controls the desired switch in the crane control panel.

The communication between the transmitter and receiver happens multiple times per second, allowing for quick and responsive control of the crane. This means that the operator can make adjustments on the fly, ensuring that the crane is always working at its optimal performance. The transmitter continuously monitors various parameters of the communication link, including the number of successful transmissions, received signal strength, and link quality indication, to ensure safe and reliable operation of the crane.

Anand Transmitters and Receivers also use Automatic Frequency Hopping technique which is a method of changing the transmission frequency to avoid interference from other radio signals and increase the safety of the crane. This ensures that the crane's operation is uninterrupted, and the crane is operated safely.

Anand radio remote controls for overhead cranes use game-changing technology that provides operators with unparalleled control and precision. Its advanced features such as real-time communication, encryption, and automatic frequency hopping make it one of the most reliable and secure systems on the market. It's designed to make crane operation safer, more efficient and more productive. The technology is revolutionizing the way cranes are operated, making it an essential tool for any industrial facility.

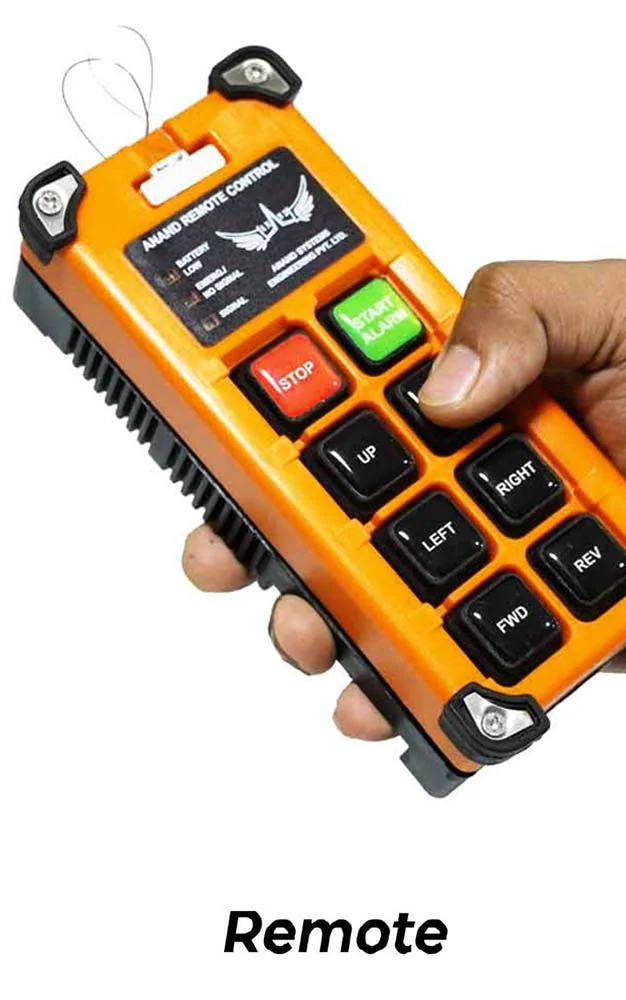

Radio Remote Control Working Principle

Our Wireless Crane Remote Controls are Trusted by the Industry Leaders

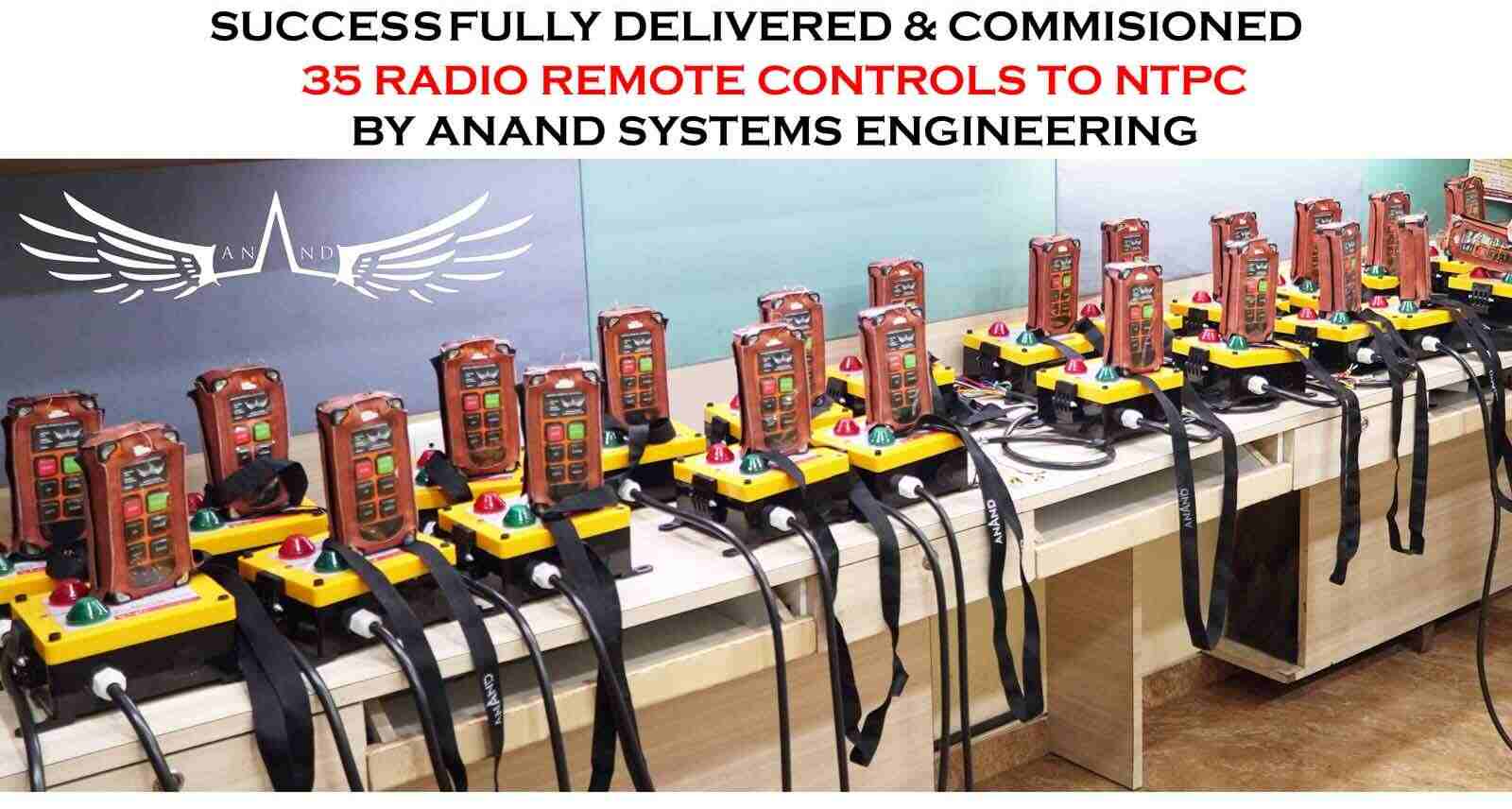

Radio Remote Control National Thermal Power Company
Radio Remote Controls client list

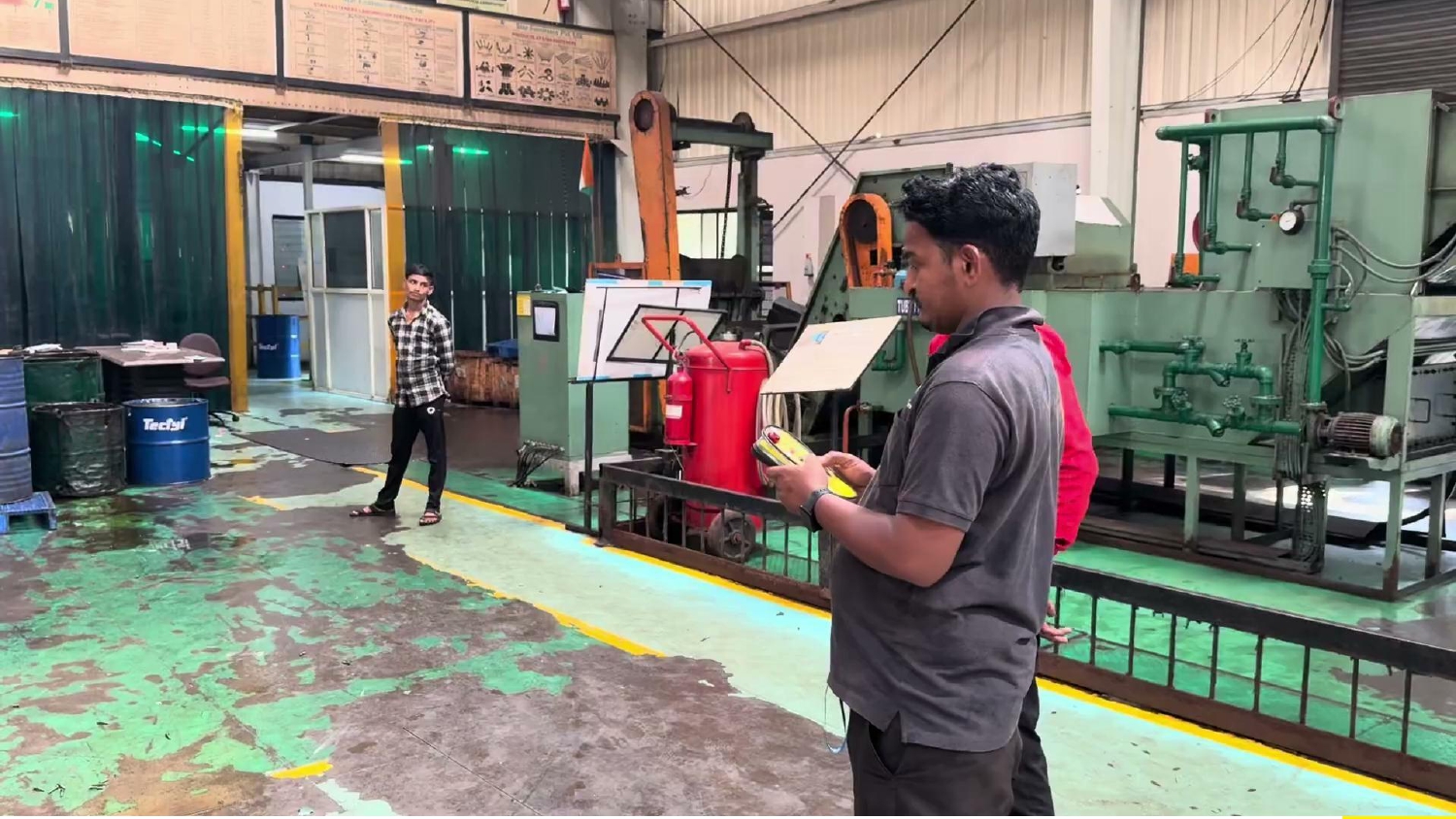

We provide free On-site demo of Radio Remote controls

At Anand Systems Engineering, we understand the importance of upgrading your crane's control system to increase productivity and safety. That's why we offer a complimentary on-site demonstration of our state-of-the-art radio remote controls to help you make an informed decision.

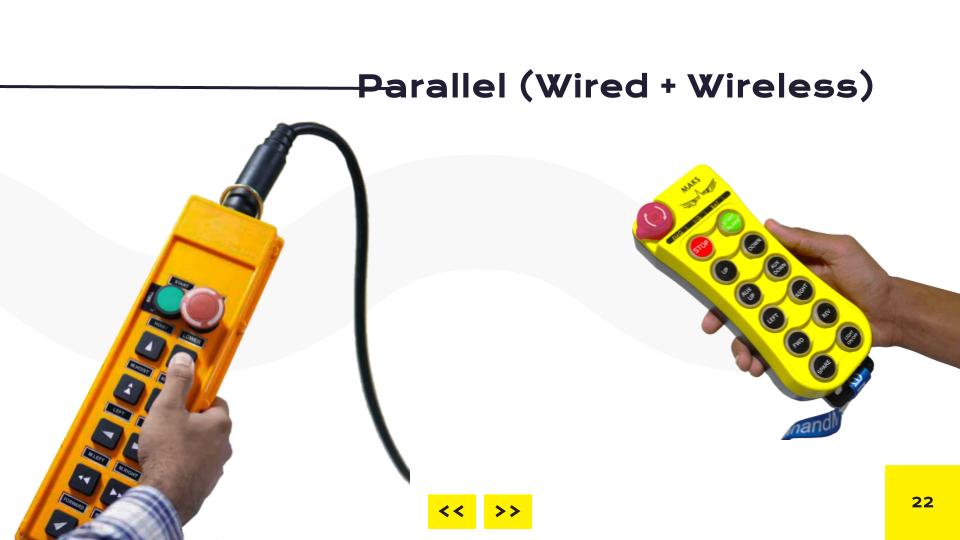

Whether you're looking to upgrade from wired pendants to wireless remote controls, or if you're facing issues with your current remote controls, our team of experts is here to help.

Our on-site demo service is available in any location in India, so regardless of your location, we can bring our expertise to you. During the demonstration, our team will explain the operation, features, and benefits of our radio remote controls and answer any questions you may have.
We'll also address any challenges you're currently facing with your crane's control system and provide solutions to improve your operations.

Book your free on-site demo today by contacting us at 9137620579 or by emailing us at info@anandcontrol.in. We'll work with you to schedule a convenient time and location for the demonstration. Don't miss out on this opportunity to upgrade your crane's control system and boost your productivity.
Call or email us today to schedule your free on-site demo!

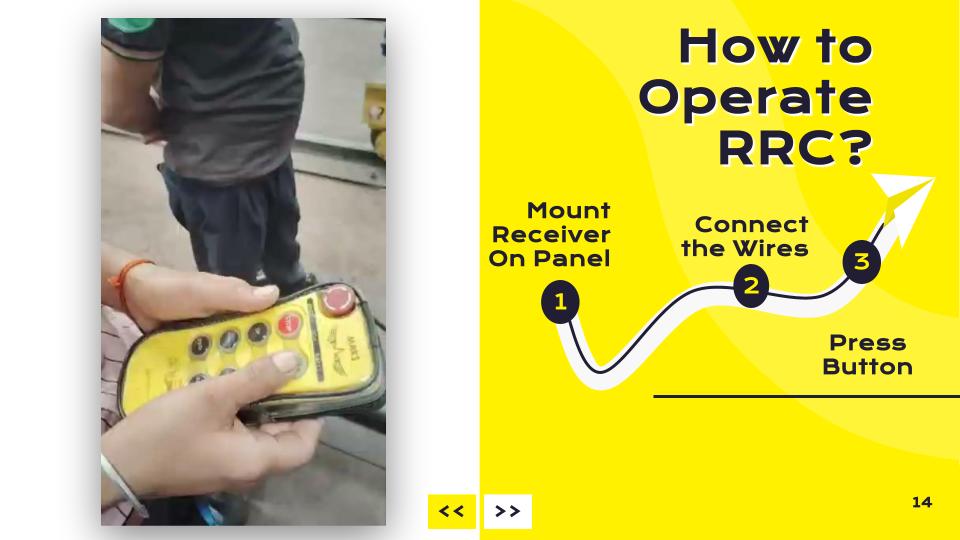

Operation of Radio remote control for cranes

Crane Remote Control for every Overhead EOT Crane and Hoist.

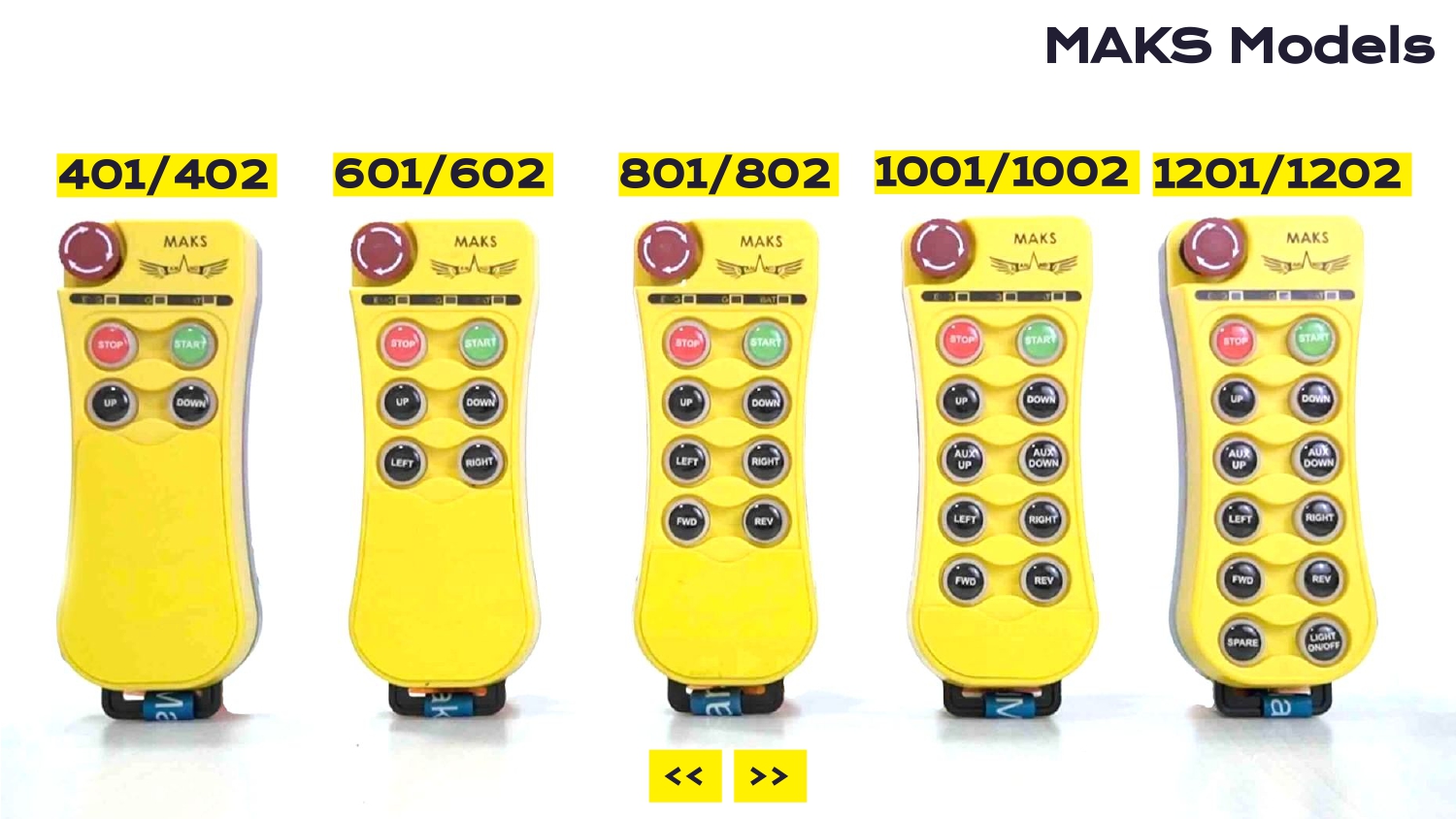

Standard Available Models

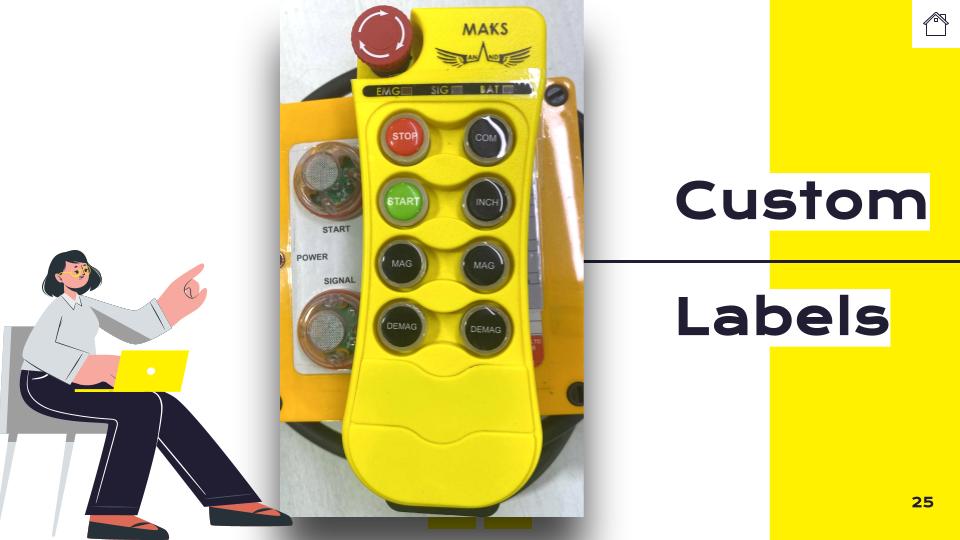

*all Models can have customized labels,customized Interlockings , customized functions .

Joystcik Radio Remote Controls For Cranes

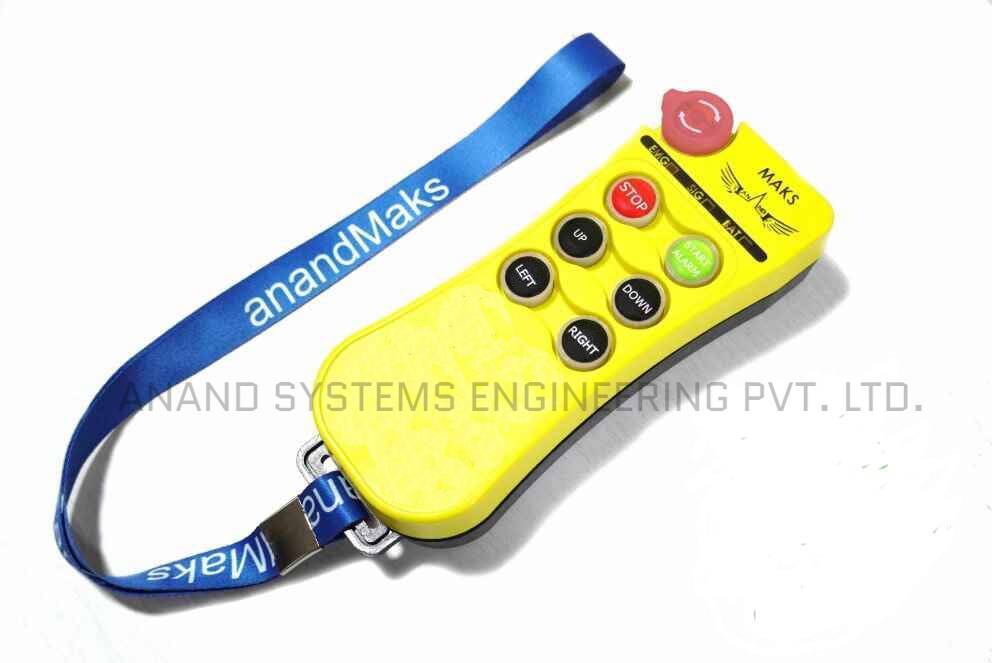

ARC-601: 6 Button Single Speed Remote Control
ARC-602: 6 Button Dual Speed Remote Control
ARC-601 & ARC-602 Models have On/Off , MH Up/Down , CT Left/Right Keys

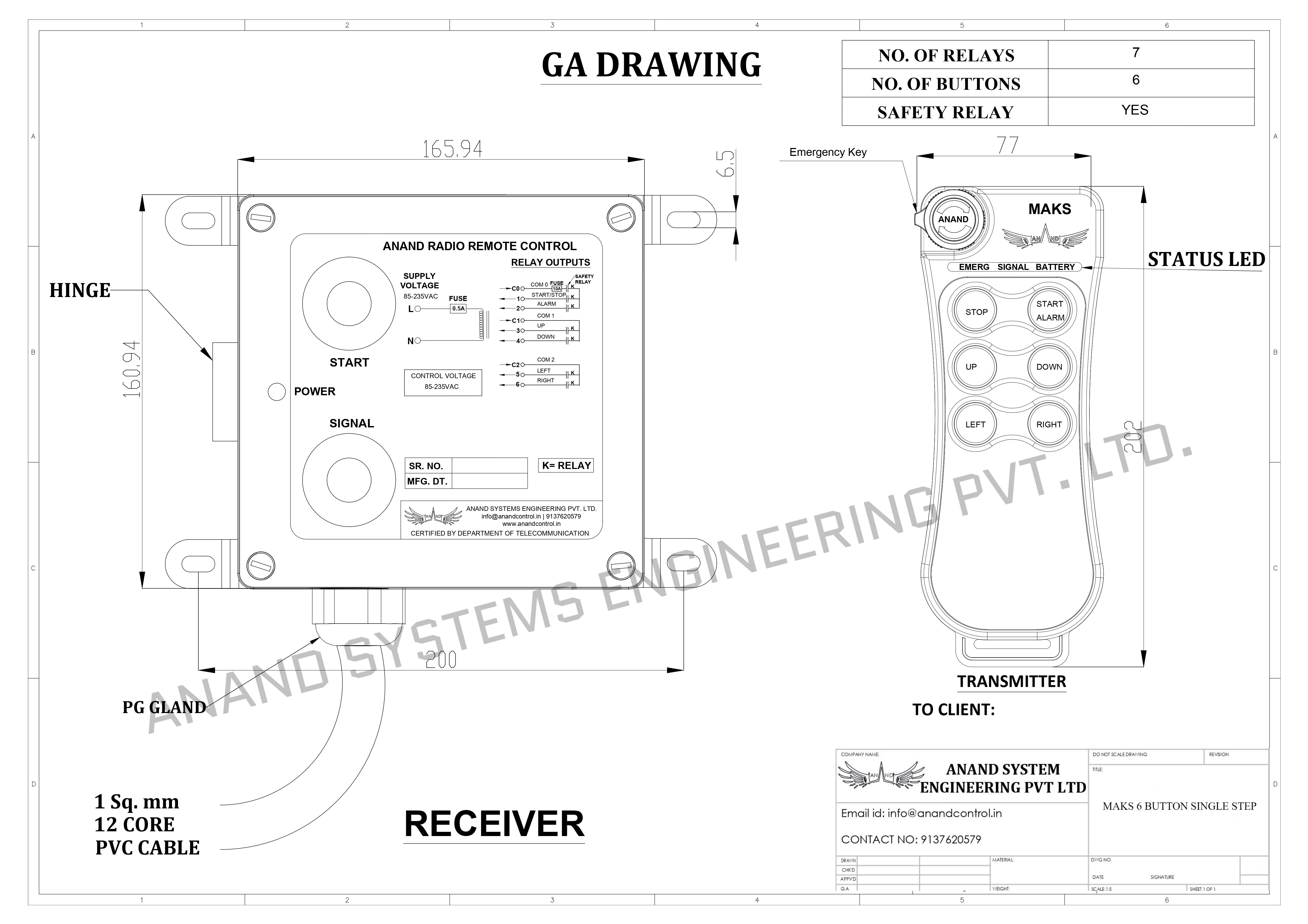

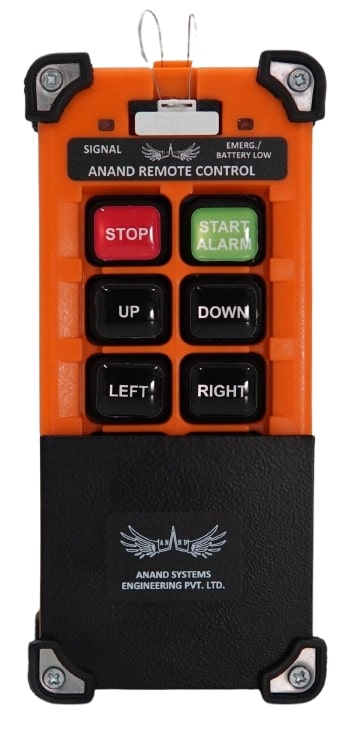

ARC-601 6 Way Radio Remote Control

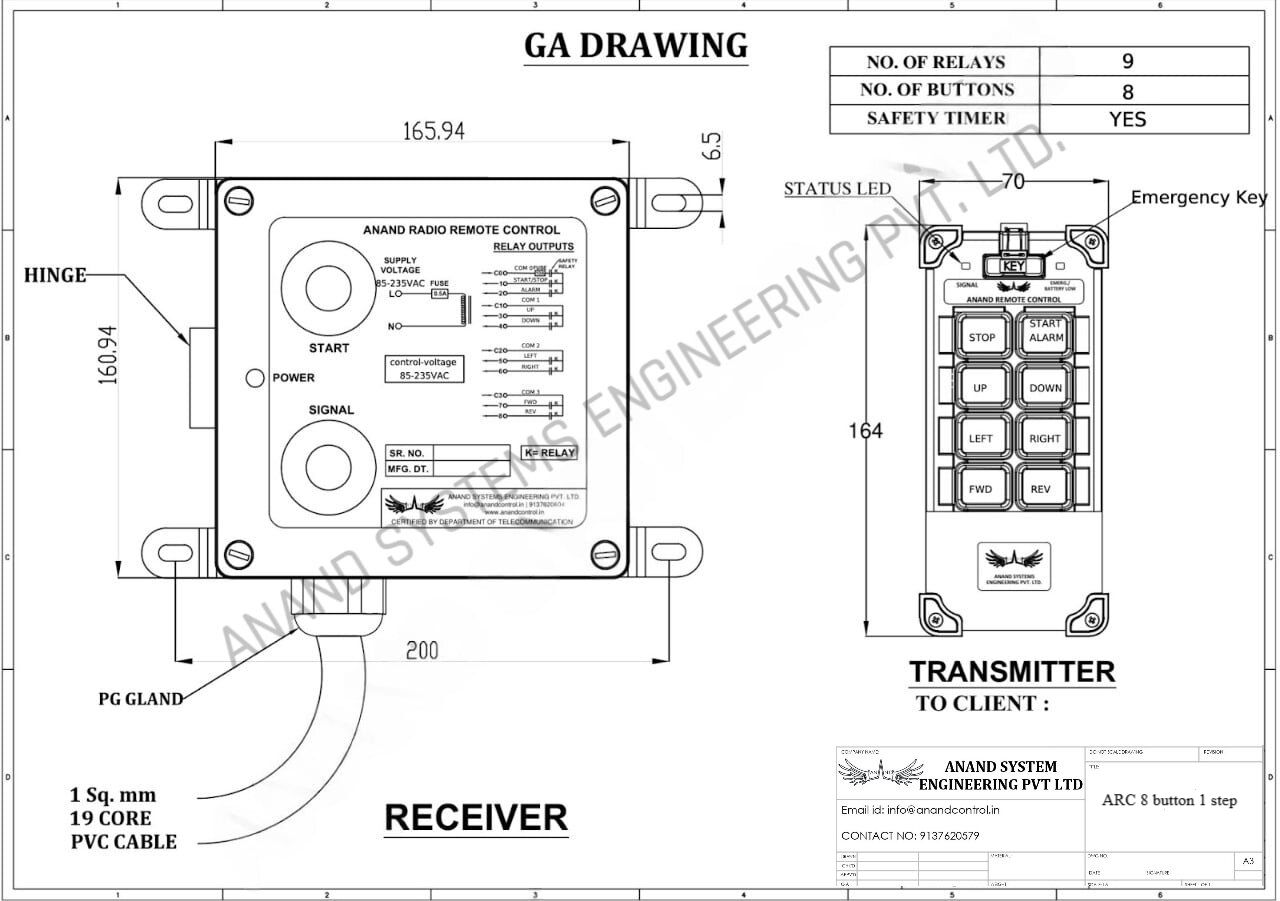

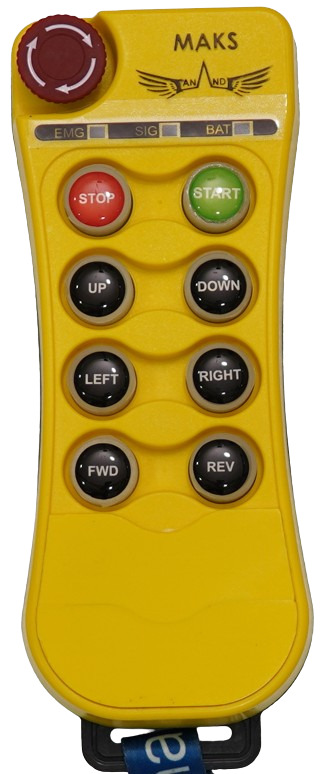

ARC-801: 8 Button Single Speed Remote Control

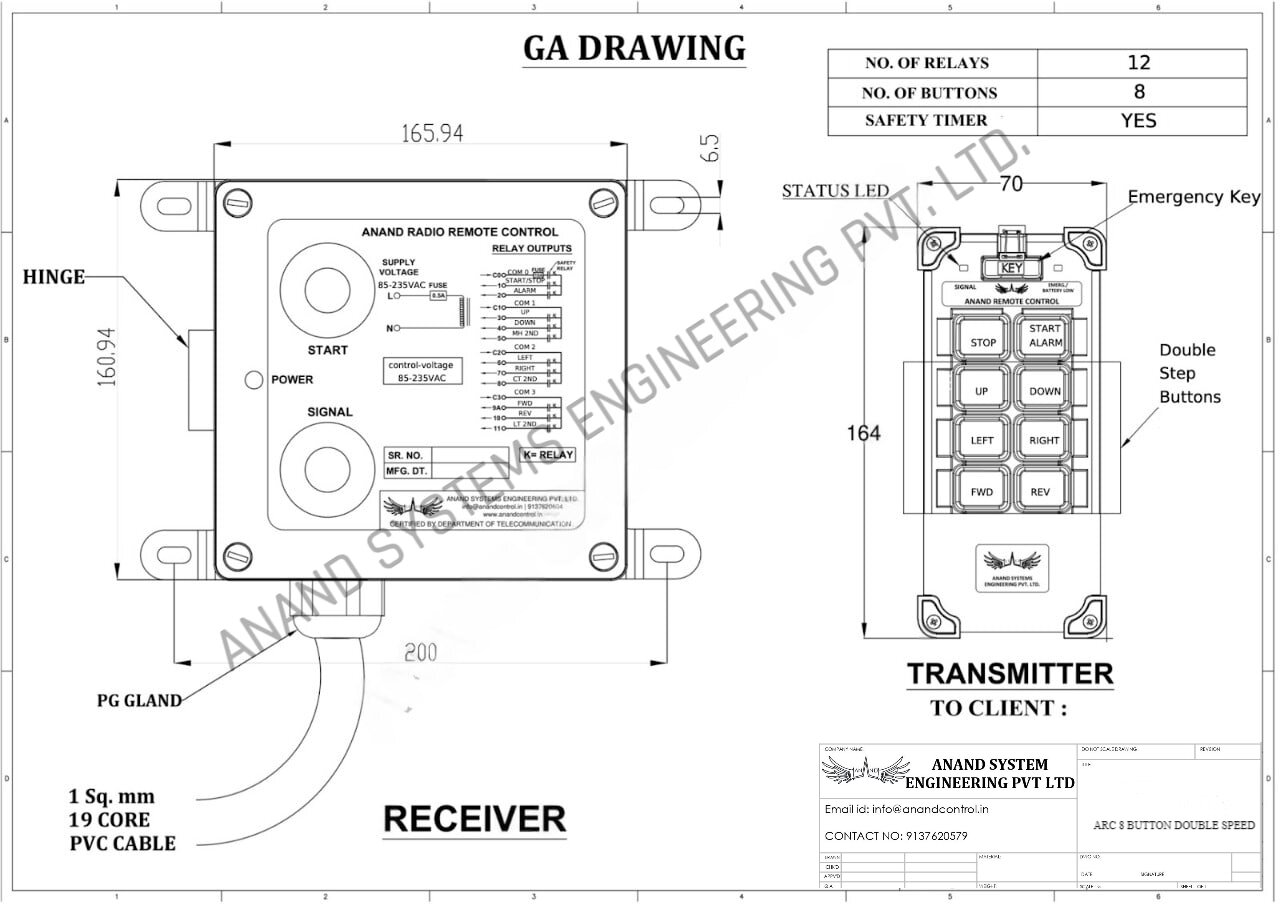

ARC-802: 8 Button Dual Speed Remote Control
ARC-801 & ARC-802 Models have On/Off , MH Up/Down , CT Left/Right , LT Fwd/Rev Keys

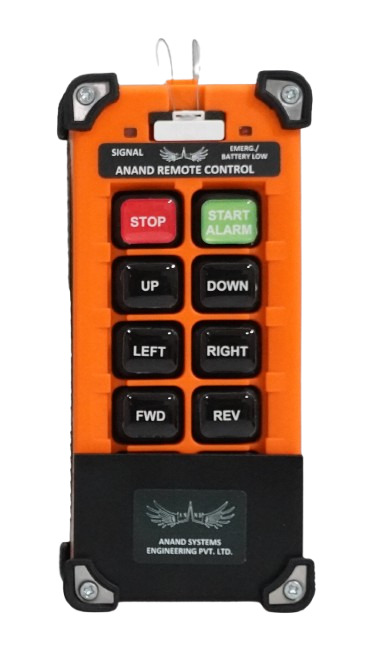

ARC-801 8 Way Radio Remote Control

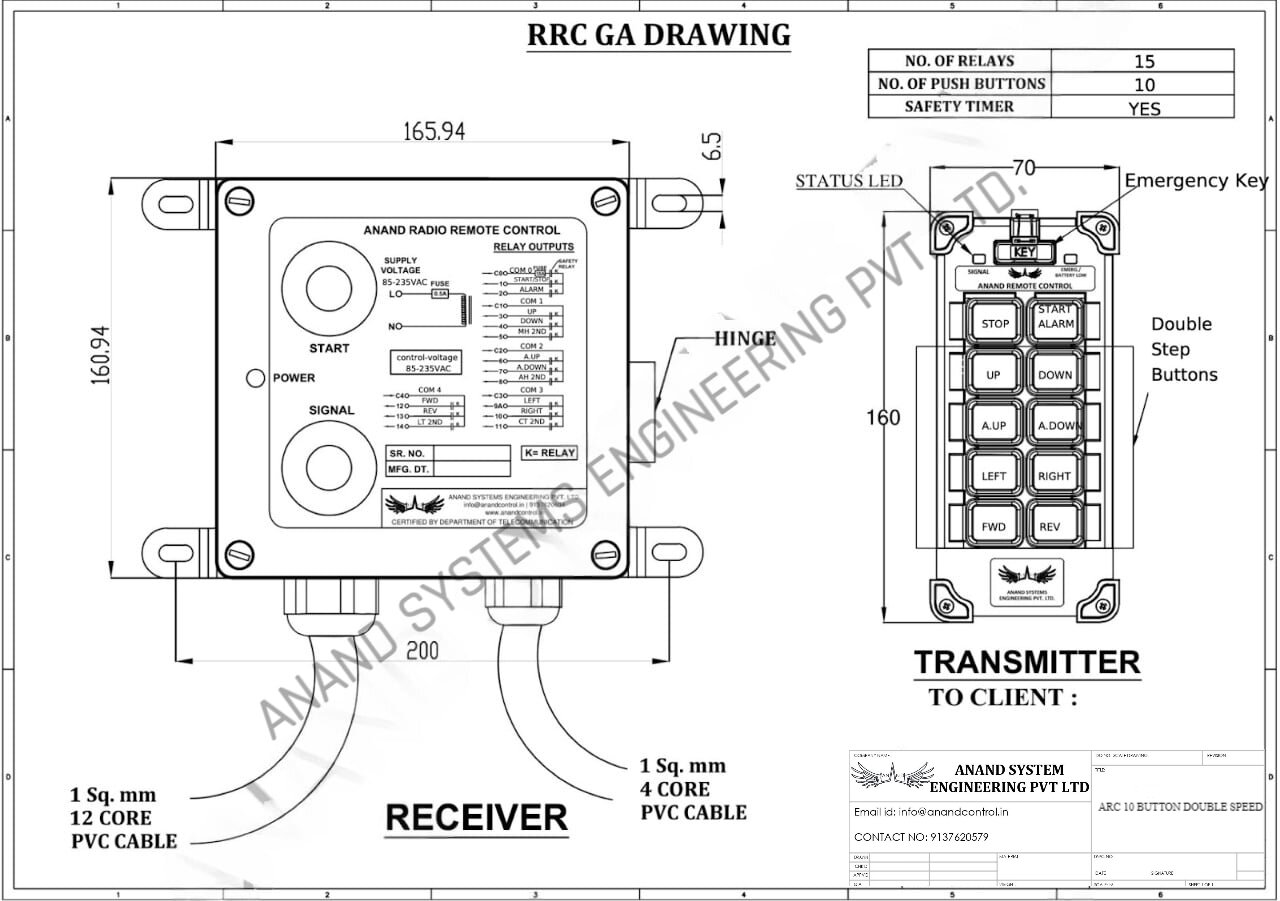

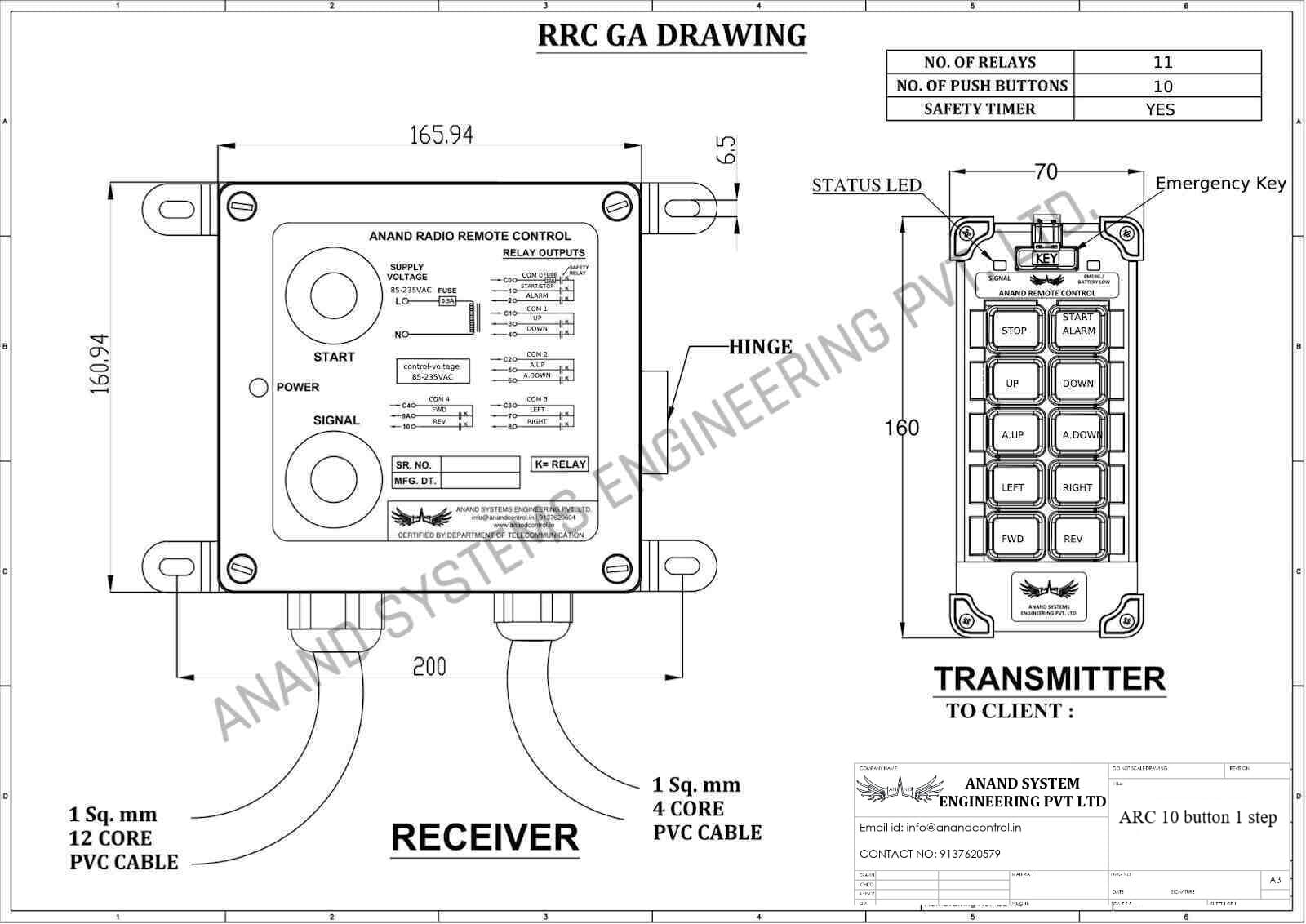

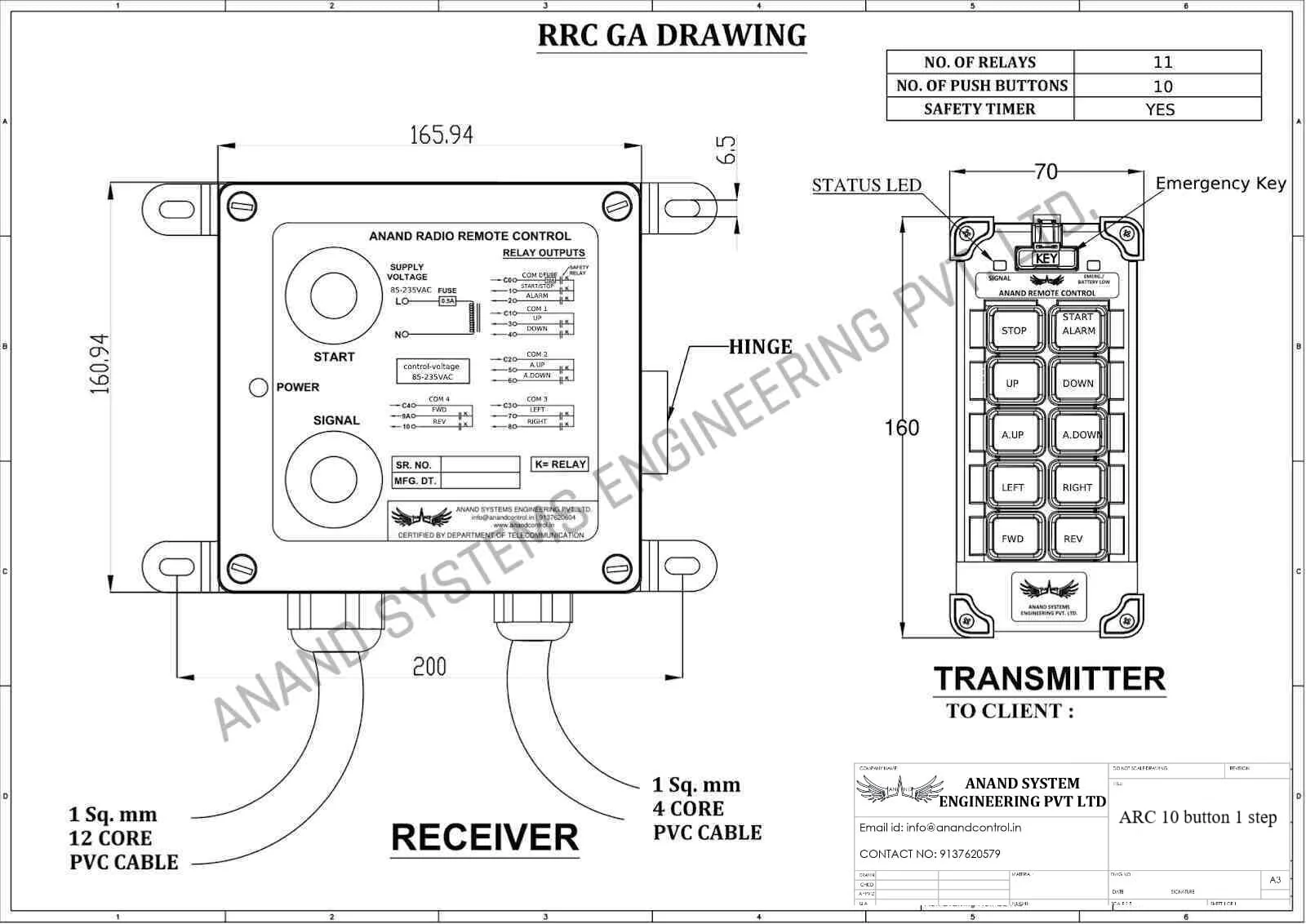

ARC-1001: 10 Button Single Speed Remote Control
ARC-1002: 10 Button Dual Speed Remote Control
ARC-1001 & ARC-1002 Models have On/Off , MH Up/Down , AH Up/Down , CT Left/Right , LT Fwd/Rev Keys

ARC-1001 10 Way Radio Remote Control

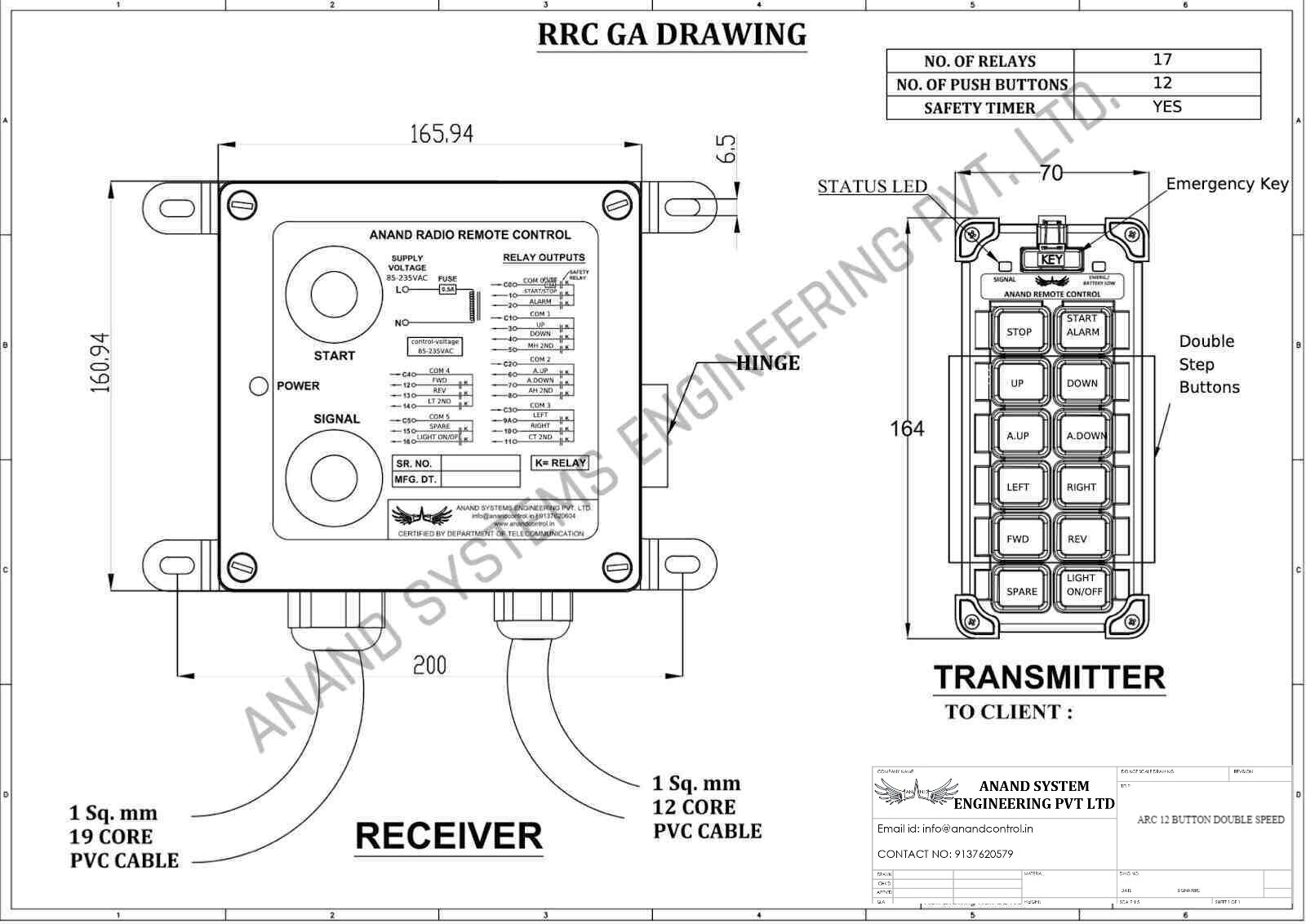

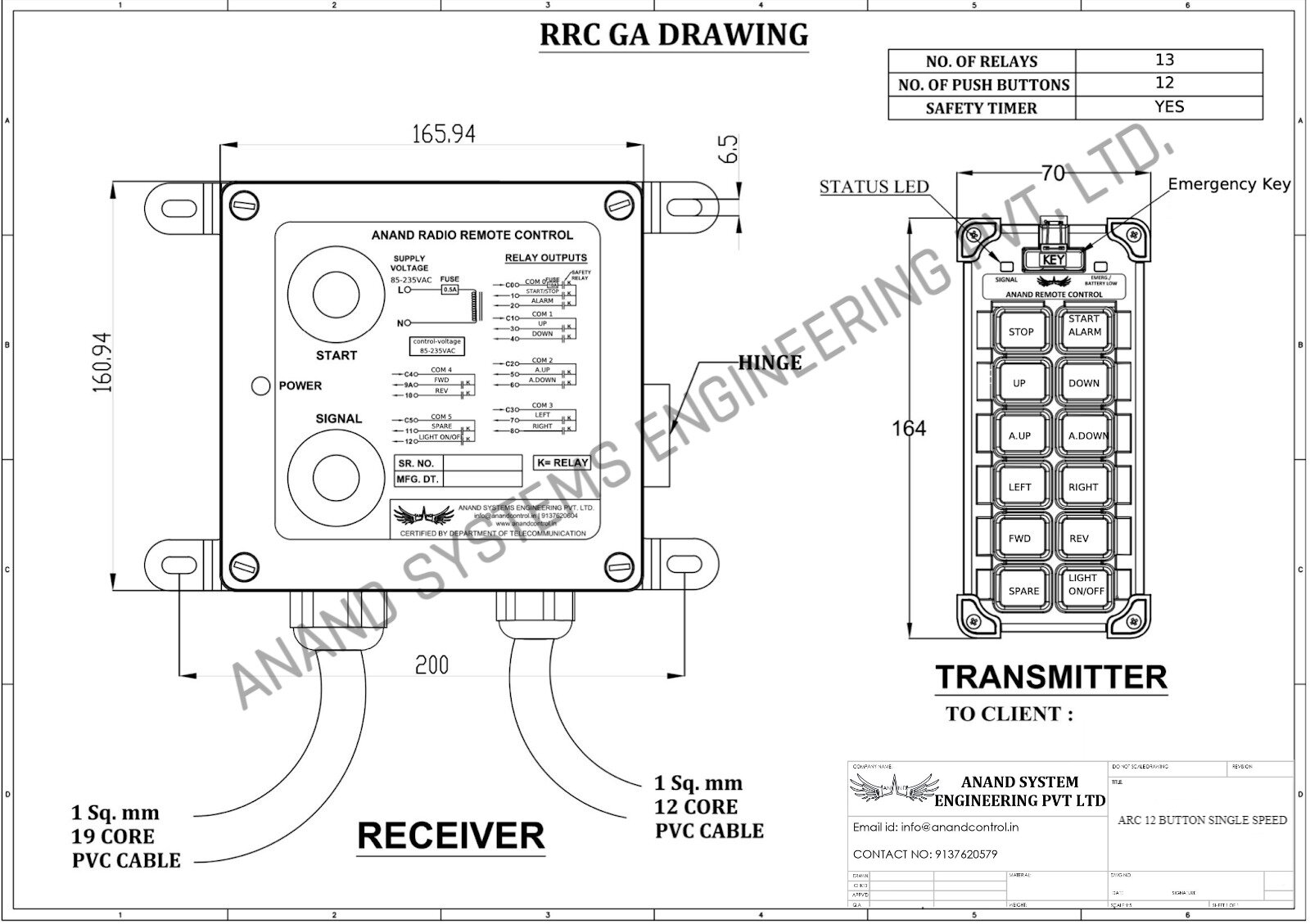

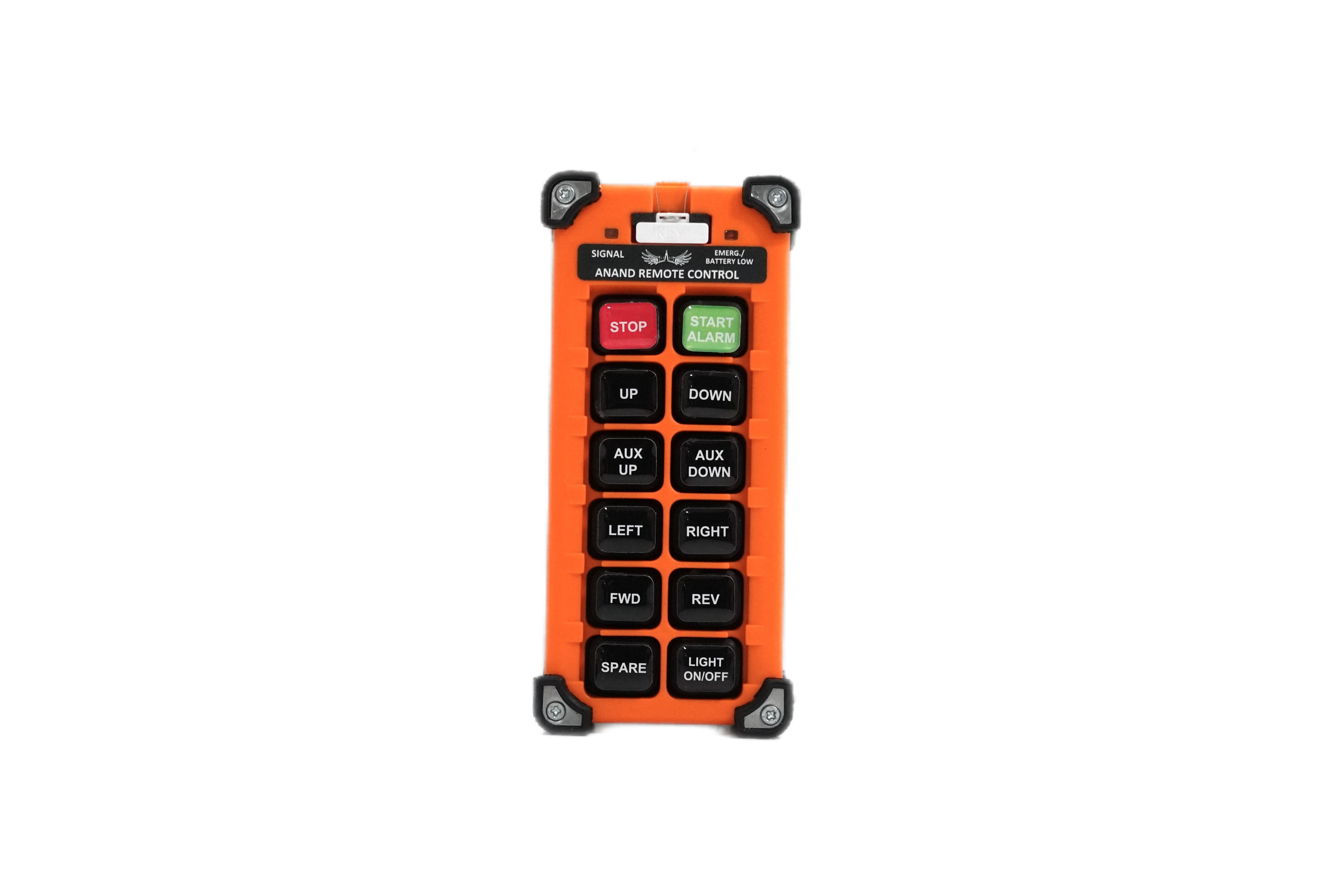

ARC-1201: 12 Button Single Speed Remote Control
ARC-1202: 12 Button Dual Speed Remote Control
ARC-1201 & ARC-1202 Models have On/Off , MH Up/Down , AH Up/Down , CT Left/Right , LT Fwd/Rev , Spare/Light Keys

ARC-1201 12 Way Radio Remote Control

Anand Radio Remote Controls are highly optimized & customized for your Electric Overhead Crane. We offer a wide range of Crane remote control system to accomplish two goals: minimize production downtime with extremely high reliability and Increase Safety by meeting the highest possible safety standards.Please find here the tips for selecting a radio remote control for your crane.

Radio Remote Controls

Anand Wireless Remote Controls are designed from the ground up for harsh Industrial Use.

Icon
Long Range Remote Control for Cranes - 100 Meters . +4dBm Maximum RF transmit Power.
Icon
Battery Life - 6 Months . Micro Amps Current Consumption. With Rechargable Battery Option.
Icon

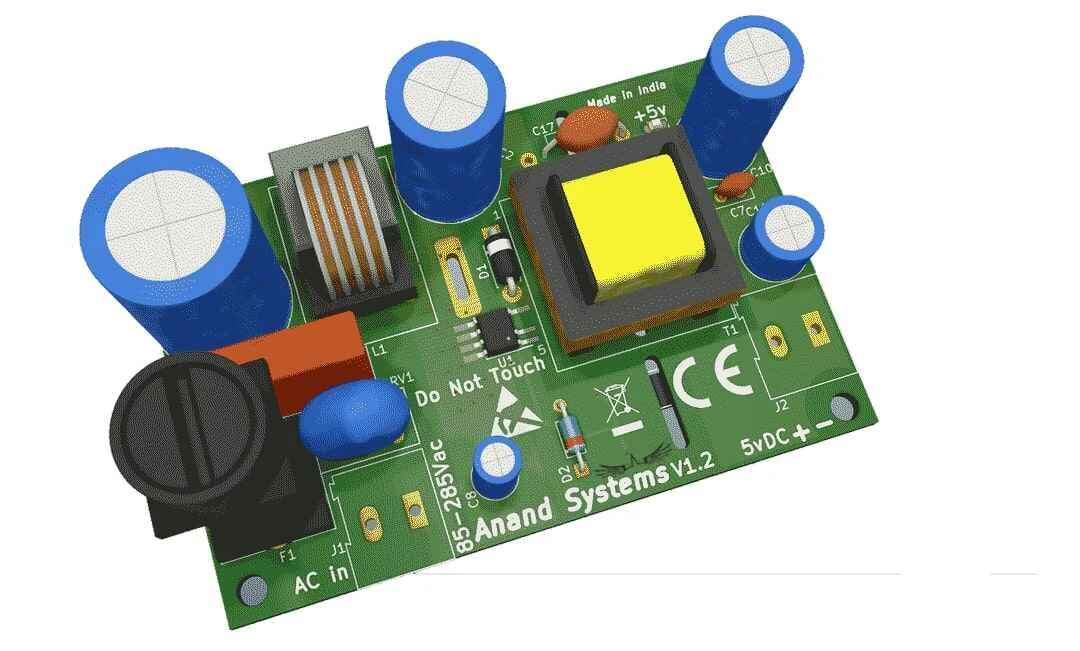

Modern Switched Mode Power Supply 85-285 VAC
Icon
Operating Temperature - 0-60 Degrees celcius.
Icon

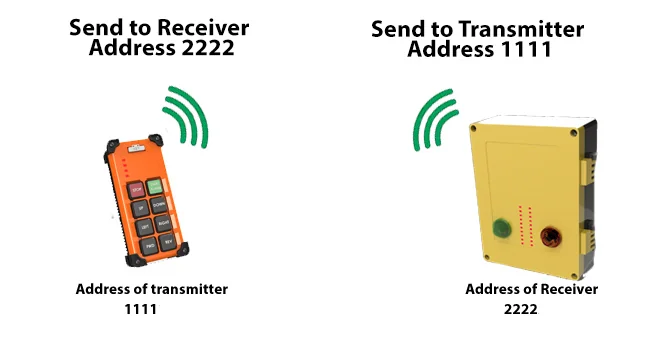

8 byte Digital Address per Unit. No Frequency Tuning Crystal Required.
Icon
IP 65 Protection for extremely Harsh Industrial use.
Icon
Misra C Standard Software.

Product List of Crane Remote

Sr. no. Product Name Description Part Number

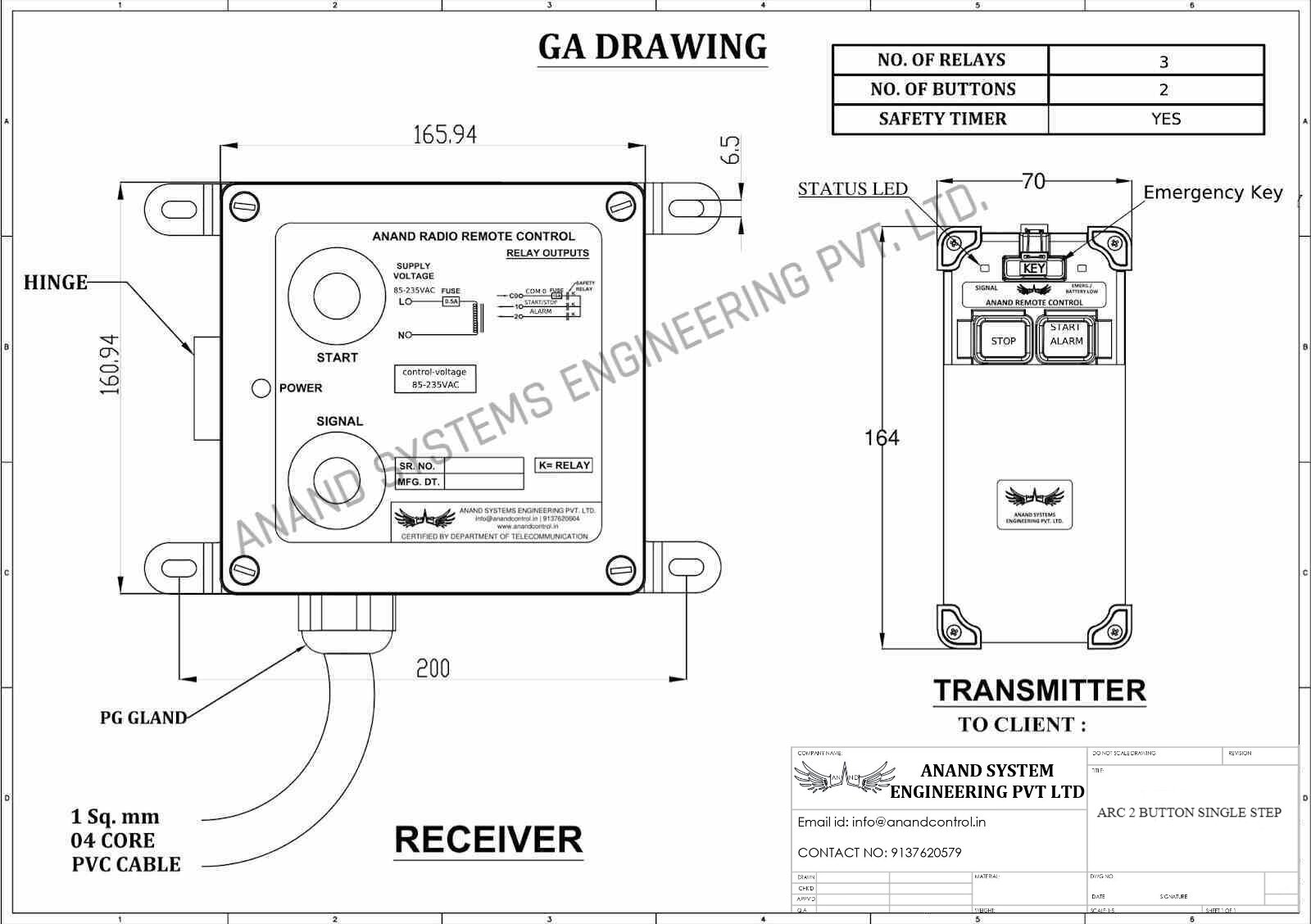

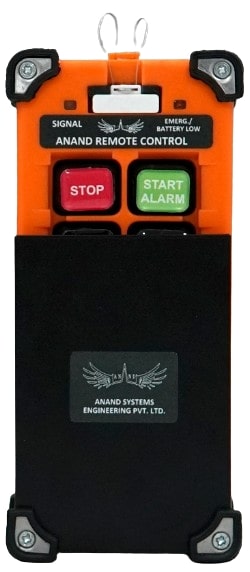

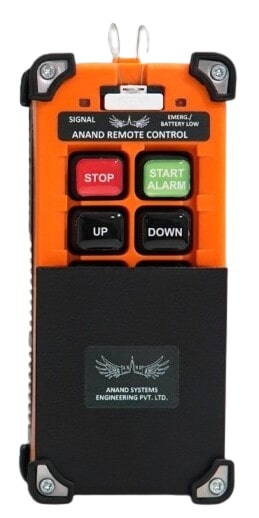

1 ARC 2 Button 1 Speed 2 Button 1 Speed - E Stop Start/Stop ARC-201
2 ARC 4 Button 1 Speed RRC 4 Button 1 Speed - E Stop Start/Stop ,Up/Down ARC-401

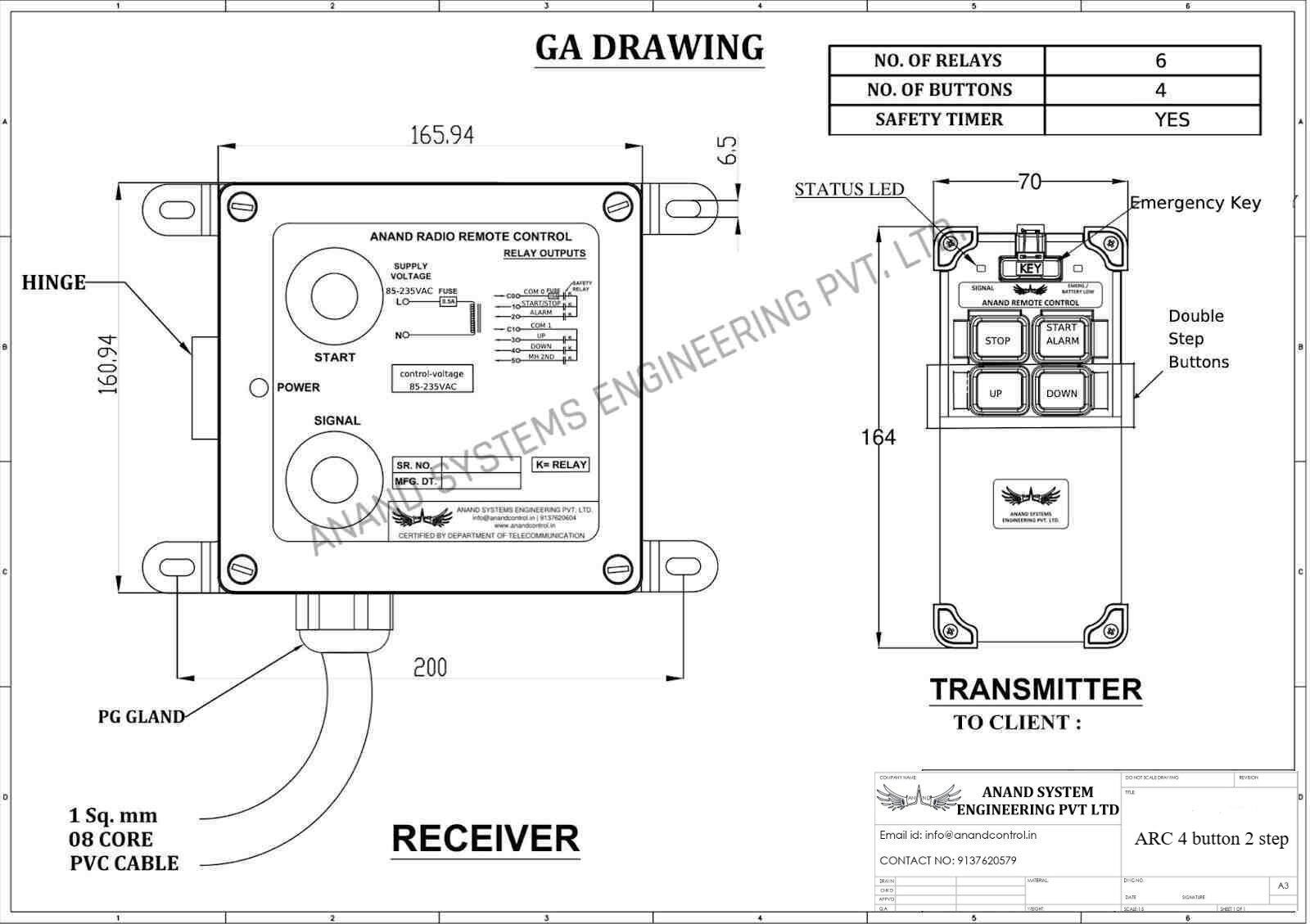

3 ARC 4 Button 2 Speed RRC 4 Button 2 Speed - E Stop Start/Stop ,Up/Down ARC-402

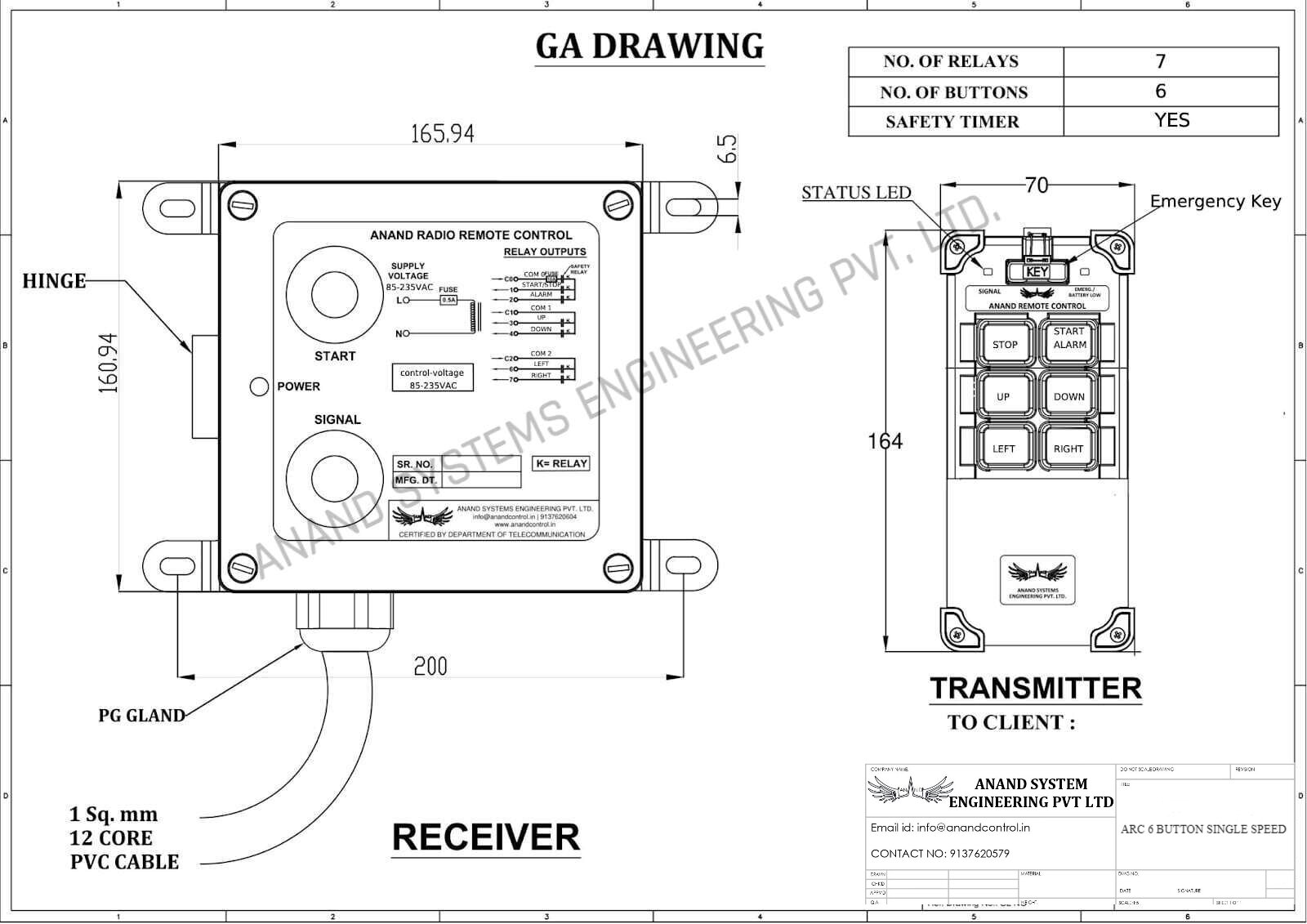

4 ARC 6 Button 1 Speed RRC 6 Button 1 Speed - E Stop Start/Stop ,Up/Down ,Left/Right ARC-601

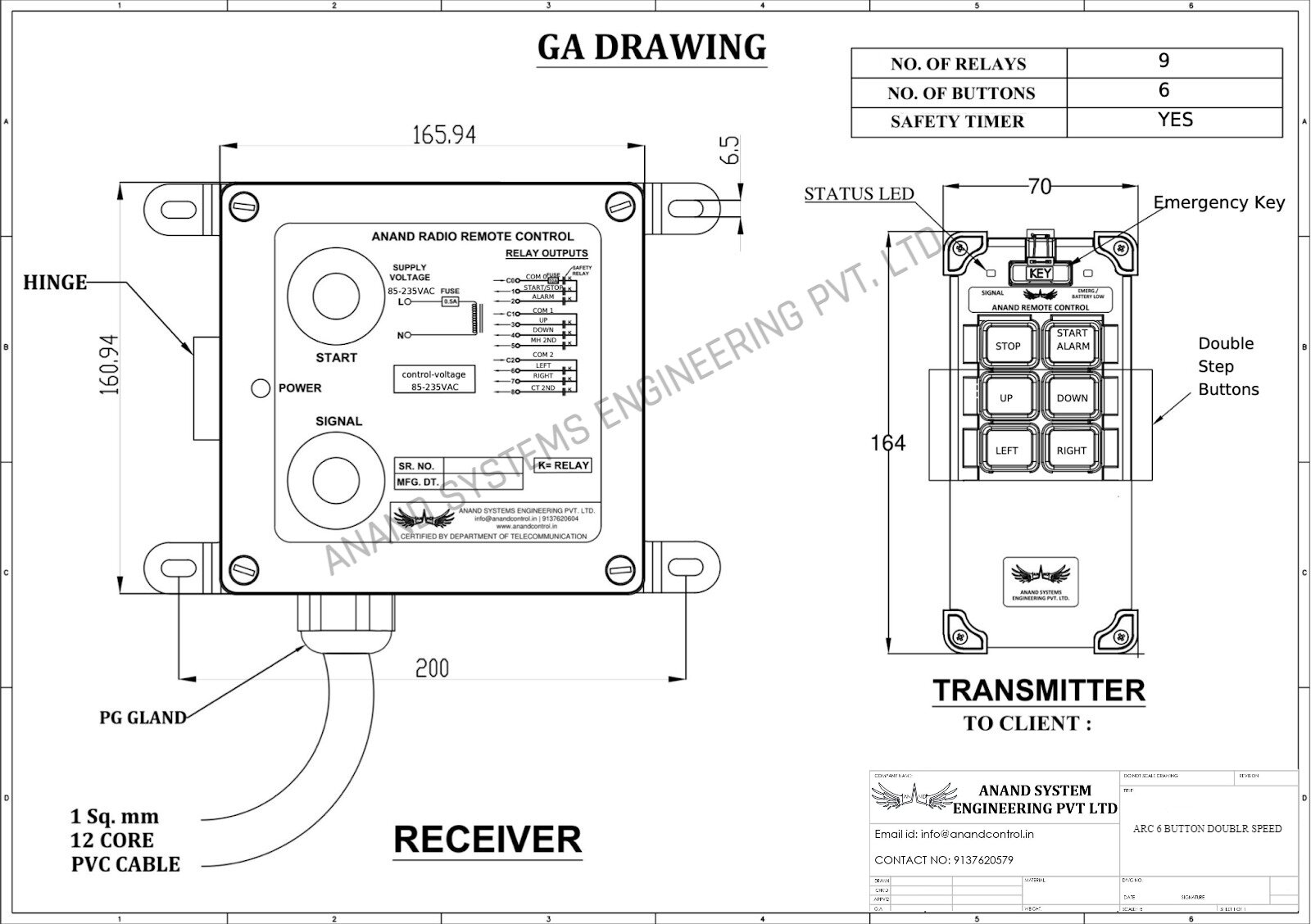

5 ARC 6 Button 2 Speed RRC 6 Button 2 Speed - E Stop Start/Stop ,Up/Down ,Left/Right ARC-602
6 ARC 8 Button 1 Speed RRC 8 Button 1 Speed - E Stop Start/Stop ,Up/Down ,Left/Right, Fwd/Reverse ARC-801
7 ARC 8 Button 2 Speed RRC 8 Button 2 Speed - E Stop Start/Stop,Up/Down,Left/RIght,Fwd/Reverse ARC-802
8 ARC 10 Button 1 Speed RRC 10 Button 1 Speed - E Stop Start/Stop ,MH Up/Down ,AH Up/Down ,CT Left/Right,LT Fwd/Reverse ARC-1001
9 ARC 10 Button 2 Speed RRC 10 Button 2 Speed - E Stop Start/Stop ,MH Up/Down ,AH Up/Down ,CT Left/Right,LT Fwd/Reverse ARC-1002
10 ARC 12 Button 1 Speed RRC 12 Button 1 Speed - E Stop Start/Stop ,MH Up/Down ,AH Up/Down ,CT Left/Right,LT Fwd/Reverse, Spare/Light ARC-1201
11 ARC 12 Button 2 Speed RRC 12 Button 2 Speed - E Stop Start/Stop ,MH Up/Down ,AH Up/Down ,CT Left/Right,LT Fwd/Reverse,Spare/Light ARC-1202
12 ARC 12 Button 2 Speed RRC 5 motion 12 Button 2 Speed - E Stop Start/Stop ,MH Up/Down ,AH Up/Down ,CT1 Left/Right,CT2 Left/Right,LT Fwd/Reverse ARC-1222

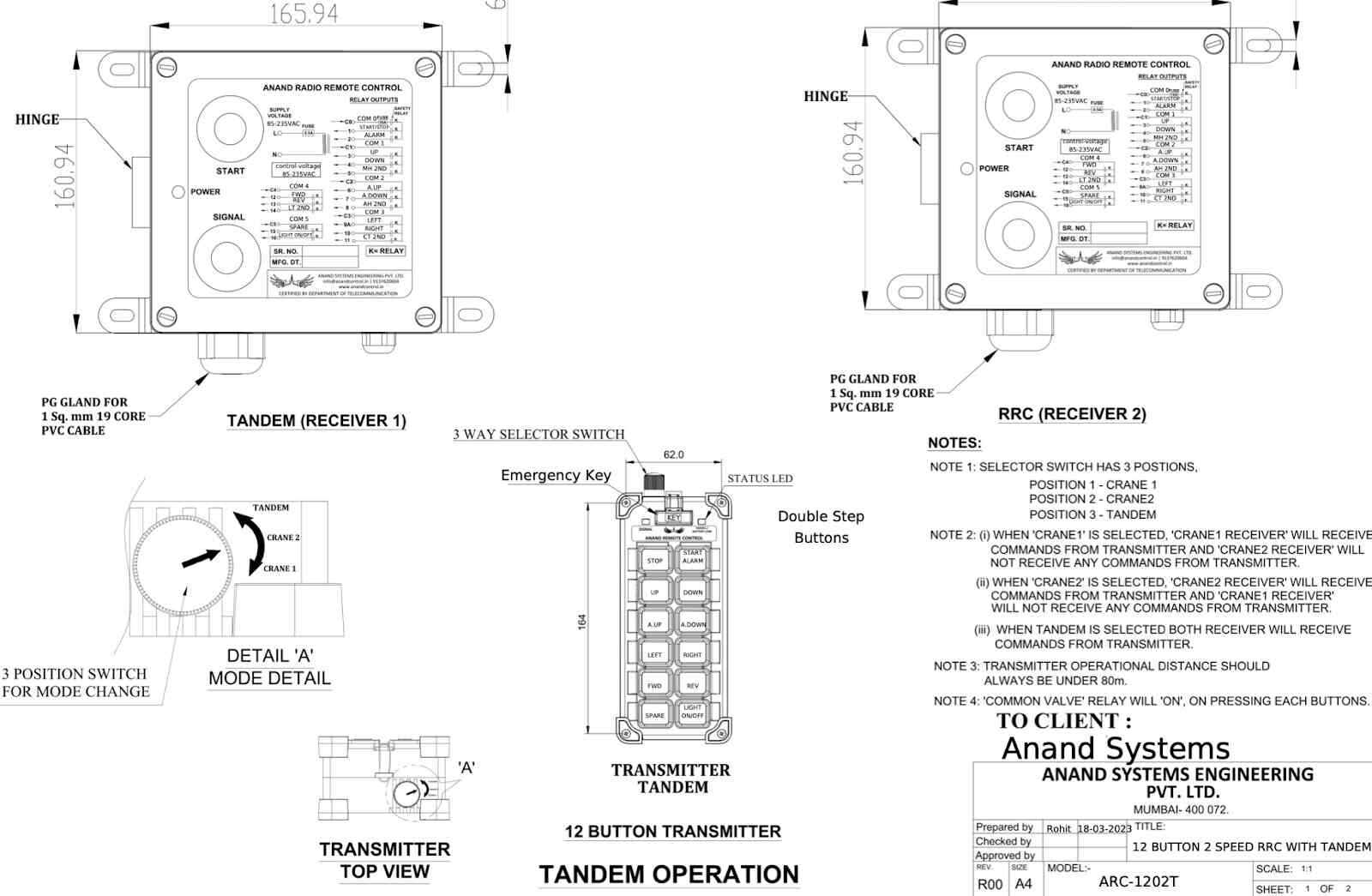

13 ARC Tandem 2 Button 1 Speed RRC Tandem 2 Button 1 Speed - E Stop Start/Stop ARC-201-T
14 ARC Tandem 4 Button 1 Speed RRC Tandem 4 Button 1 Speed - E Stop Start/Stop ,Up/Down ,Left/Right ARC-401-T
15 ARC Tandem 4 Button 2 Speed RRC Tandem 4 Button 2 Speed - E Stop Start/Stop ,Up/Down ARC-402-T
16 ARC Tandem 6 Button 1 Speed RRC Tandem 6 Button 1 Speed - E Stop Start/Stop ,Up/Down ,Left/Right ARC-601-T
17 ARC Tandem 6 Button 2 Speed RRC Tandem 6 Button 2 Speed - E Stop Start/Stop ,Up/Down ,Left/Right ARC-602-T
18 ARC Tandem 8 Button 1 Speed RRC Tandem 8 Button 1 Speed - E Stop Start/Stop ,Up/Down ,Left/Right, Fwd/Reverse ARC-801-T
19 ARC Tandem 8 Button 2 Speed RRC Tandem 8 Button 2 Speed - E Stop Start/Stop ,Up/Down,Left/RIght,Fwd/Reverse ARC-802-T
20 ARC Tandem 10 Button 1 Speed RRC Tandem 10 Button 1 Speed - E Stop Start/Stop ,MH Up/Down ,AH Up/Down ,CT Left/Right,LT Fwd/Reverse ARC-1001-T
21 ARC Tandem 10 Button 2 Speed RRC Tandem 10 Button 2 Speed - E Stop Start/Stop ,MH Up/Down ,AH Up/Down ,CT Left/Right,LT Fwd/Reverse ARC-1002-T
22 ARC Tandem 12 Button 1 Speed RRC Tandem 12 Button 1 Speed - E Stop Start/Stop ,MH Up/Down ,AH Up/Down ,CT Left/Right,LT Fwd/Reverse, Spare/Light ARC-1201-T
23 ARC Tandem 12 Button 2 Speed RRC Tandem 12 Button 2 Speed - E Stop Start/Stop ,MH Up/Down ,AH Up/Down ,CT Left/Right,LT Fwd/Reverse,Spare/Light ARC-1202-T
24 ARC Tandem 12 Button 2 Speed RRC 12 Button 2 Speed - E Stop Start/Stop ,MH Up/Down ,AH Up/Down ,CT1 Left/Right,CT2 Left/Right,LT Fwd/Reverse ARC-1222-T

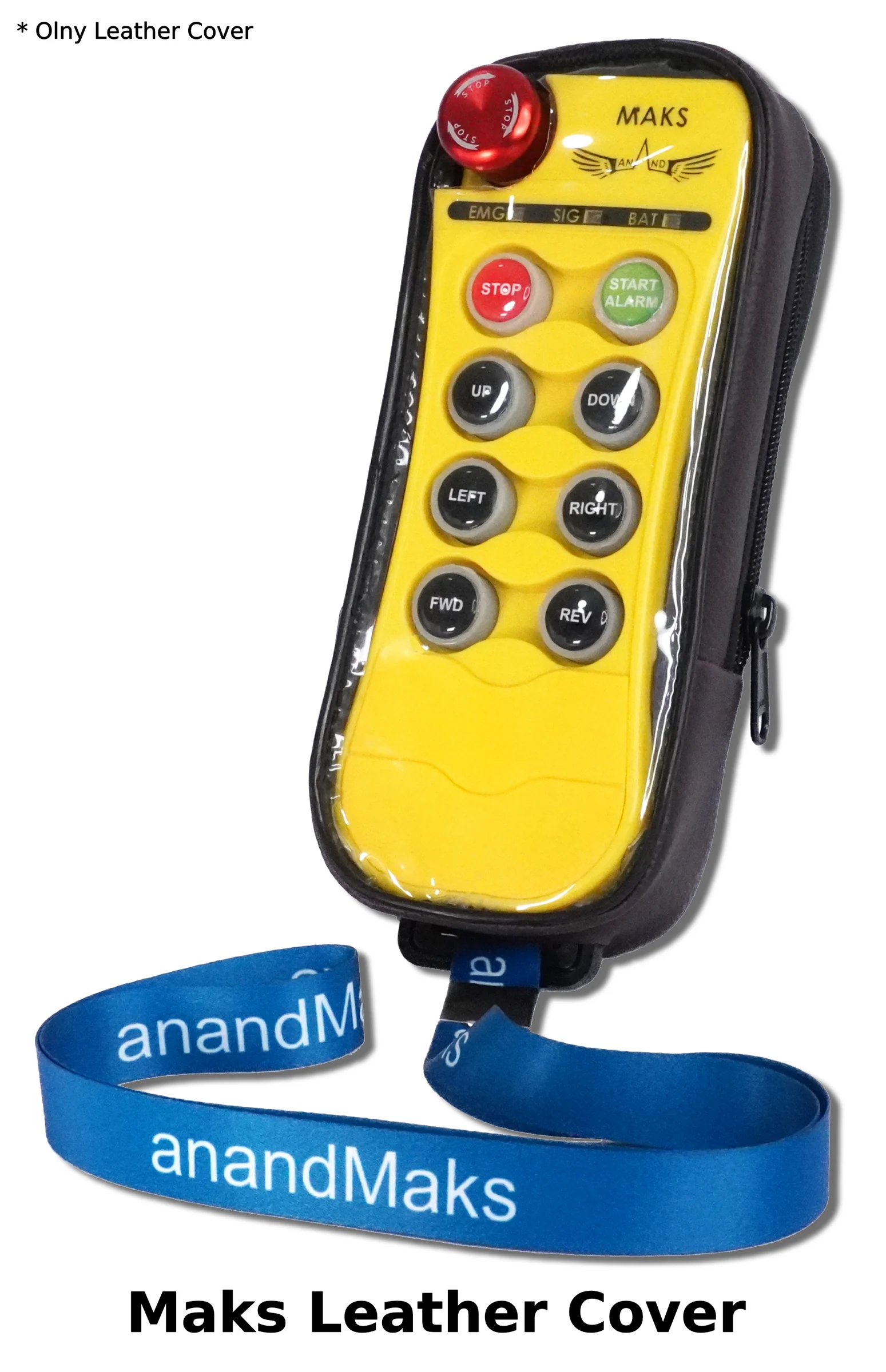

25 ARC Leather Cover ARC Transmitter Leather Cover ARC-Leather-Cover
26 Arc Range Adjustment Range Reduction for Radio Remote Control Arc-RangeAdjustment
27 ARC-Batt-Nimh Rechargeable NimH Battery 2 Cells with Charger ARC-Batt-Nimh
28 ARC-SPARES spares for Radio Remote control systems ARC-SPARES

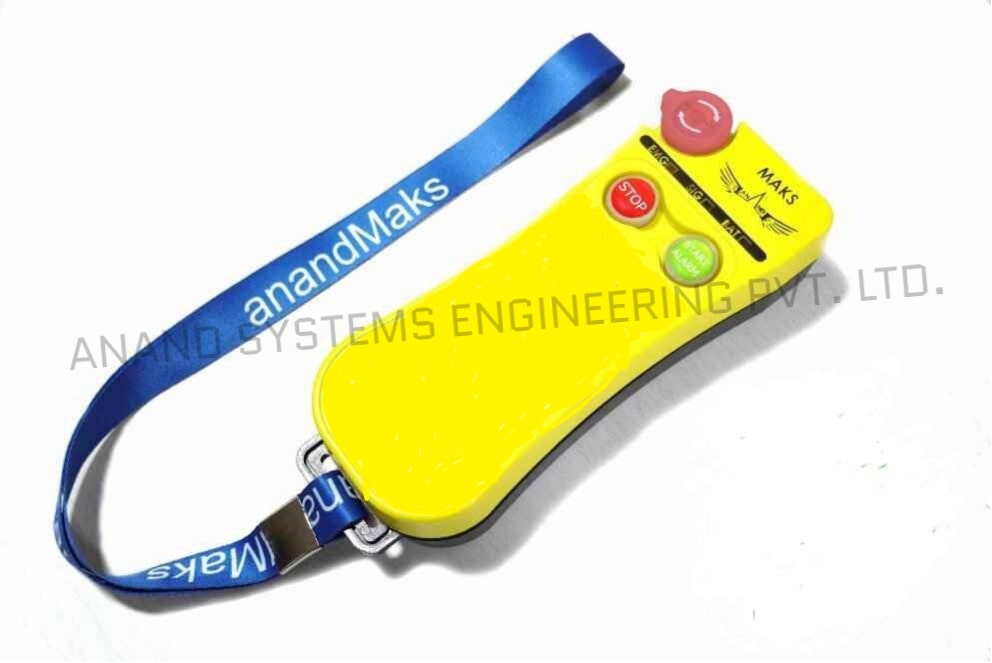

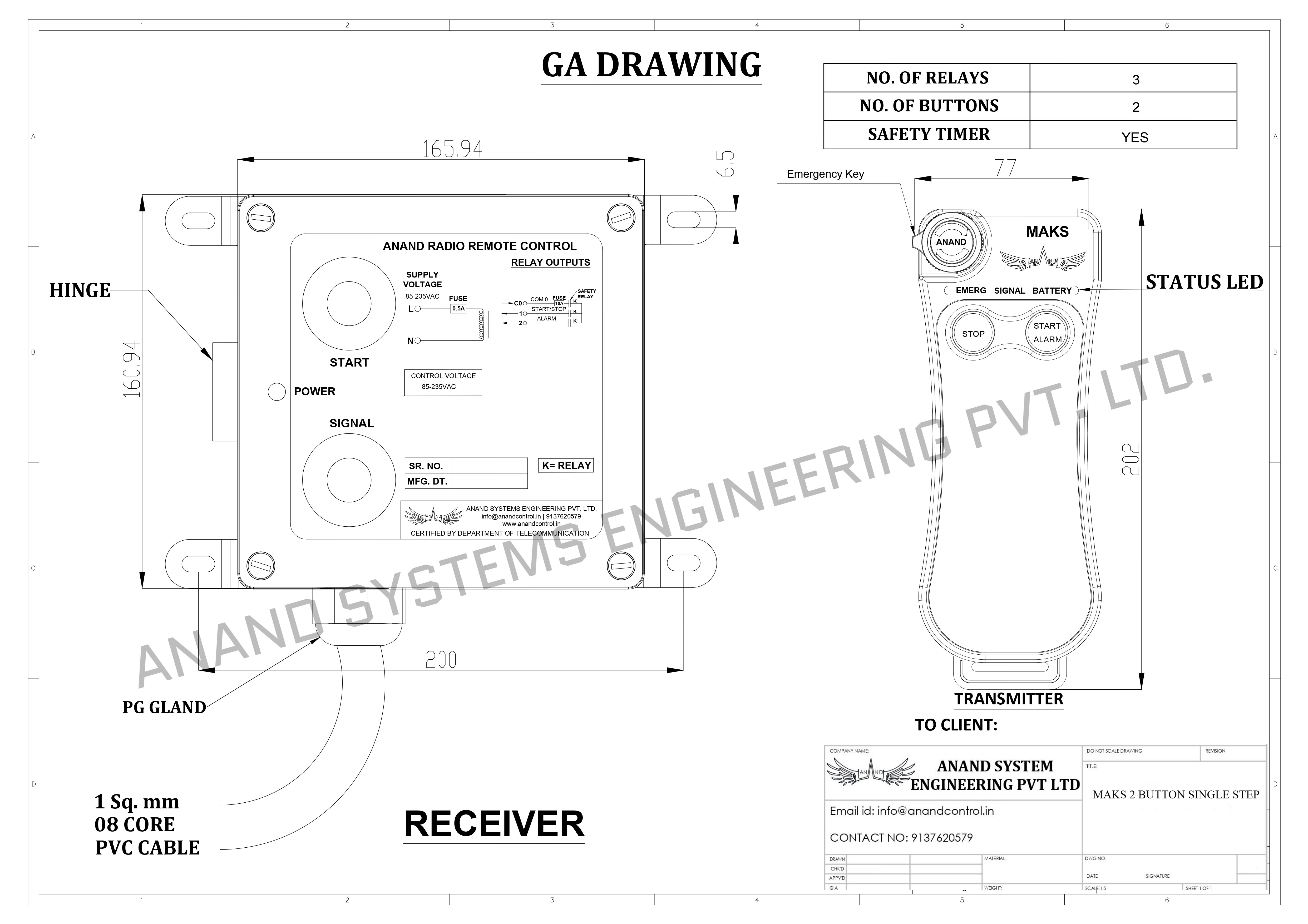

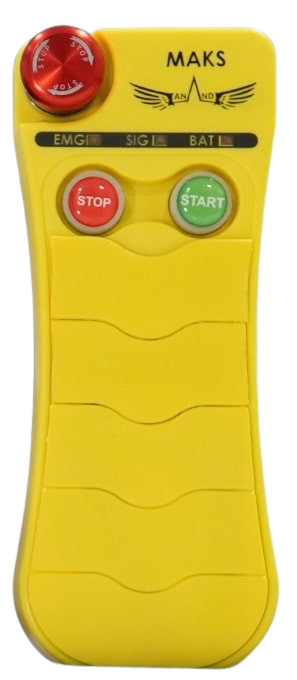

29 MAKS 2 BUTTON SINGLE STEP 2 Button 1 Speed - E Stop Start/Stop MAKS-0201
30 MAKS 2 BUTTON DOUBLE STEP 2 Button 1 Speed - E Stop Start/Stop MAKS-0202

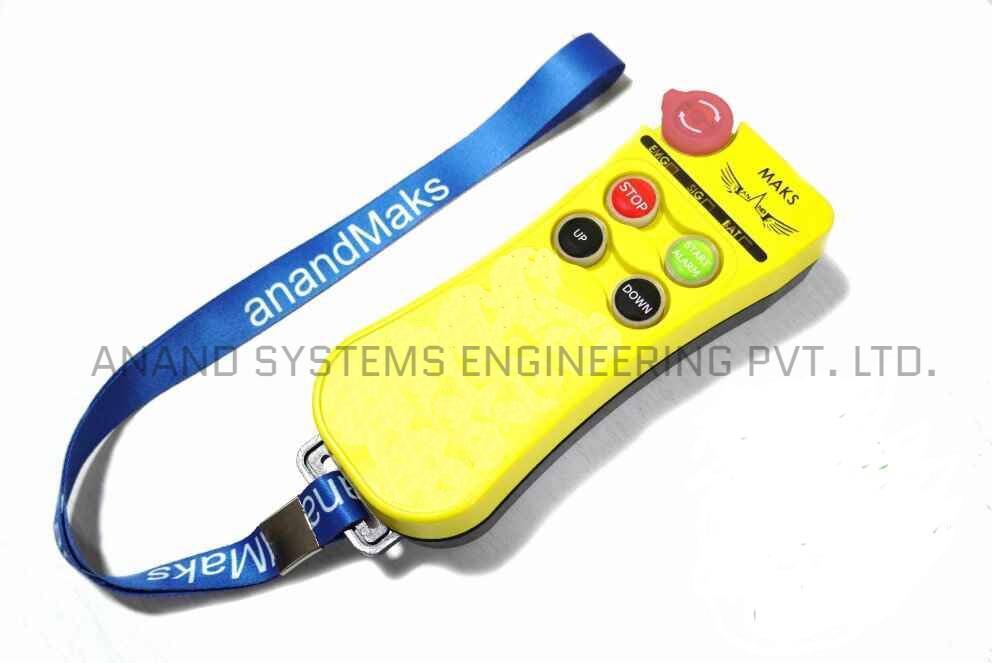

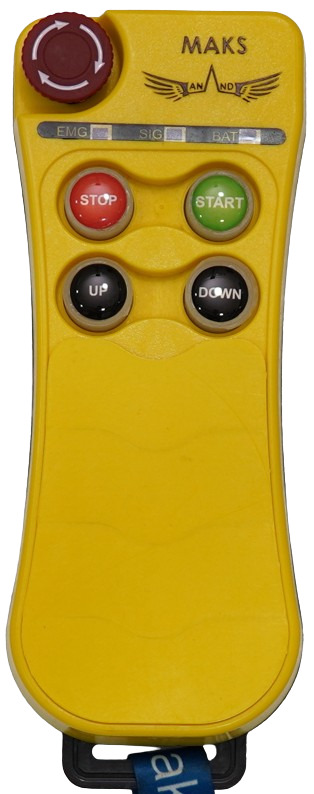

31 MAKS 4 BUTTON SINGLE STEP 4 Button 1 Speed - E Stop Start/Stop ,Up/Down MAKS-0401

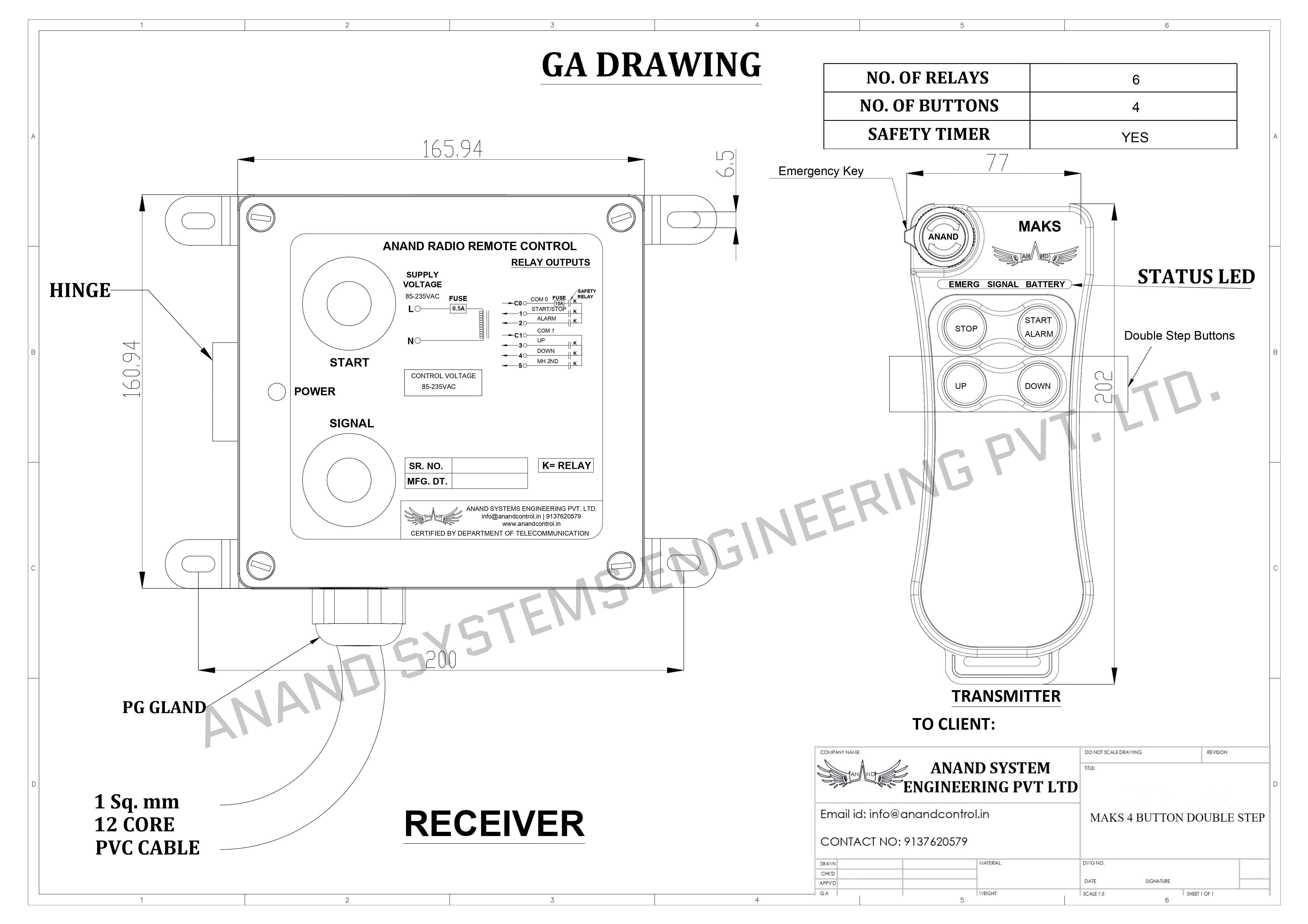

32 MAKS 4 BUTTON DOUBLE STEP 4 Button 2 Speed - E Stop Start/Stop ,Up/Down MAKS-0402

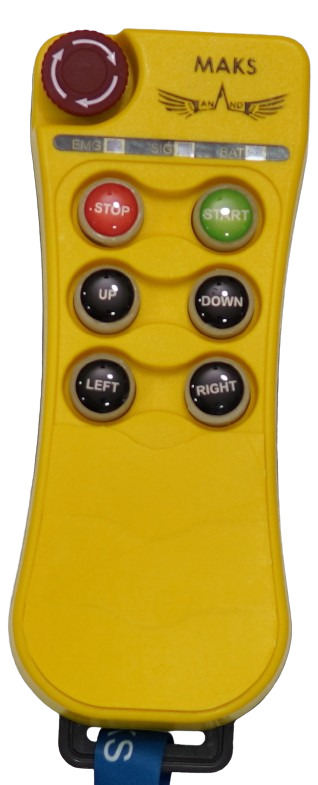

33 MAKS 6 BUTTON SINGLE STEP 6 Button 1 Speed - E Stop Start/Stop ,Up/Down ,Left/Right MAKS-601
34 MAKS 6 BUTTON DOUBLE STEP 6 Button 2 Speed - E Stop Start/Stop ,Up/Down ,Left/Right MAKS-602

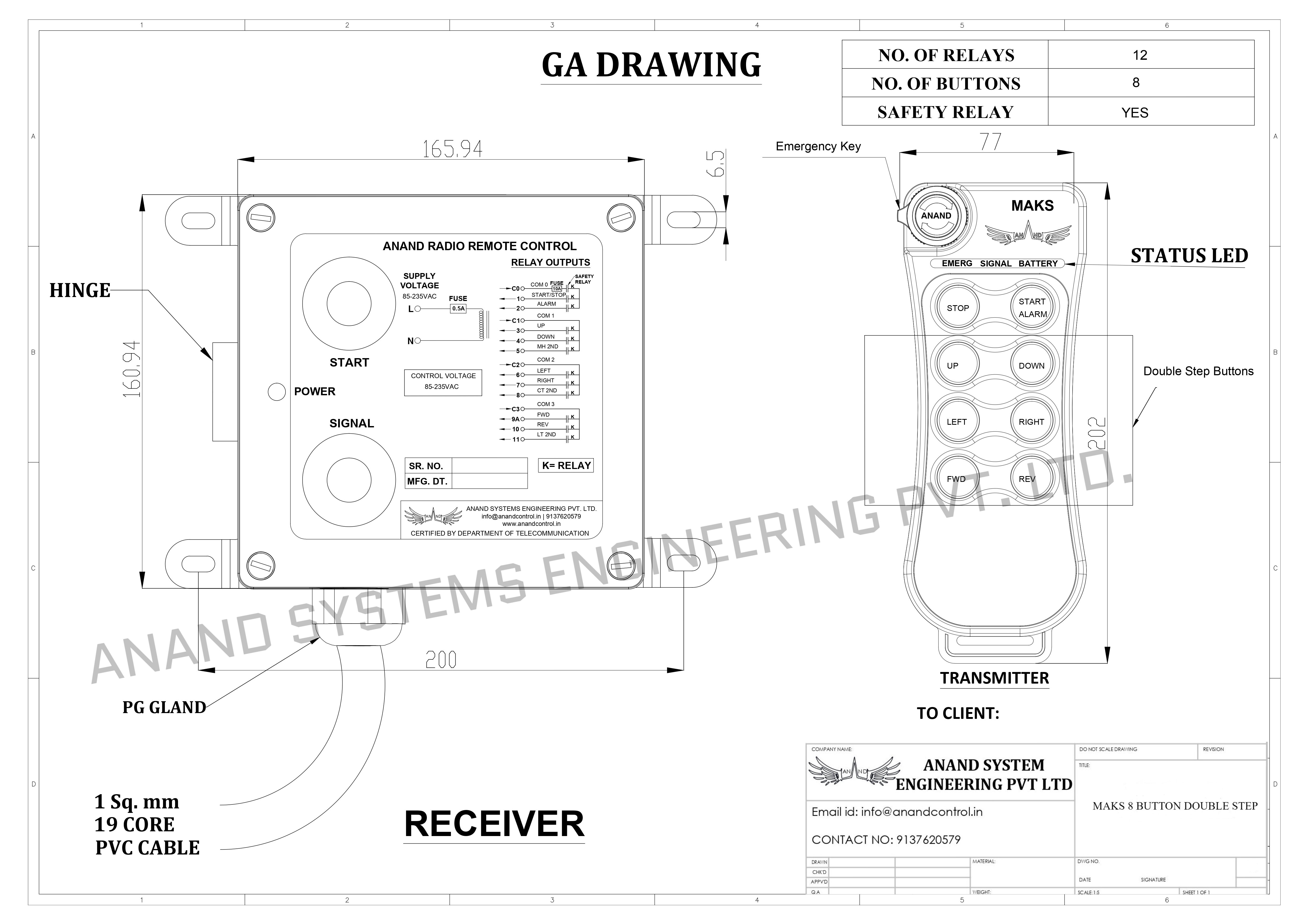

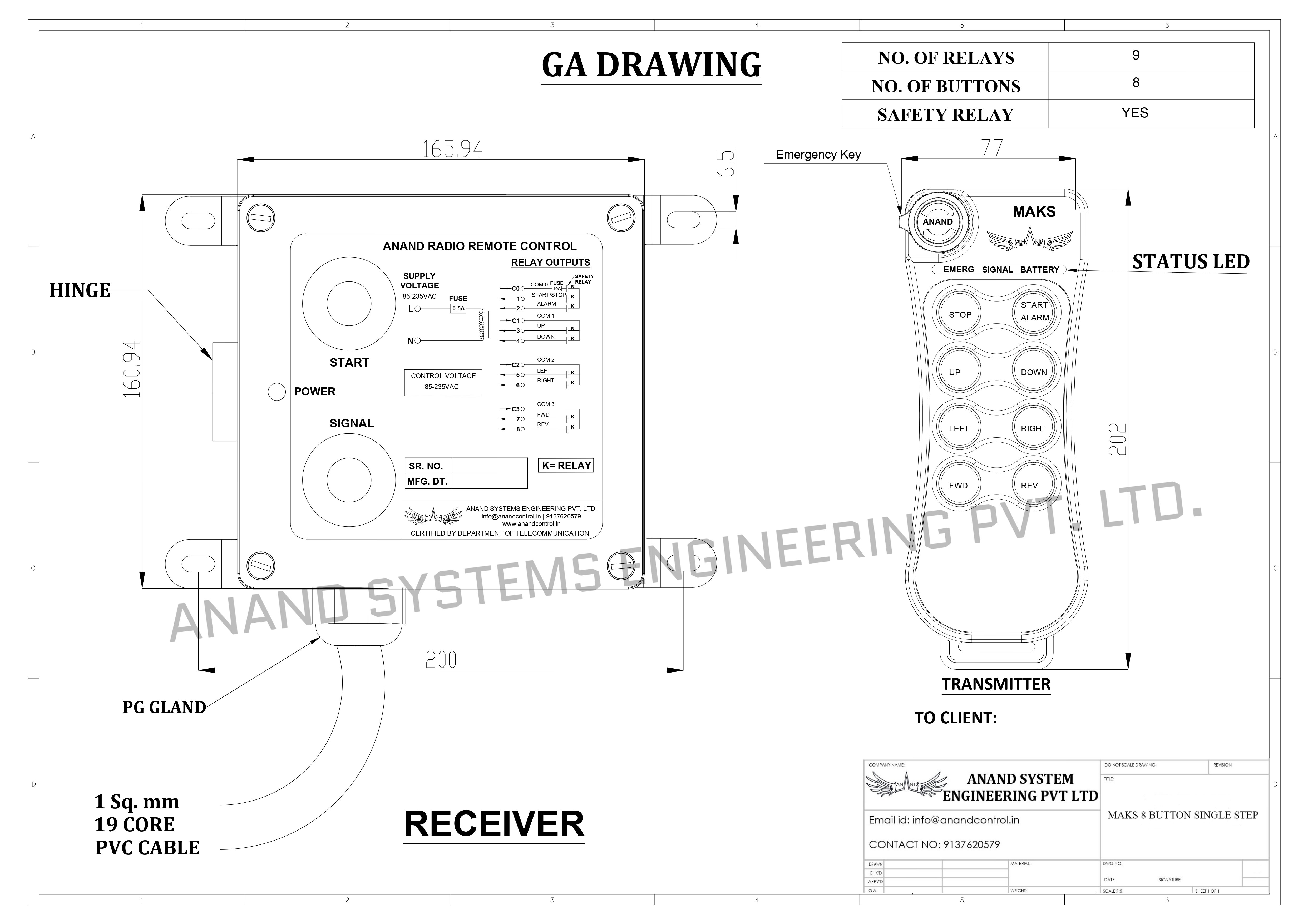

35 MAKS 8 BUTTON SINGLE STEP 8 Button 1 Speed - E Stop Start/Stop ,Up/Down ,Left/Right, Fwd/Reverse MAKS-801
36 MAKS 8 BUTTON DOUBLE STEP 8 Button 2 Speed - E Stop Start/Stop,Up/Down,Left/RIght,Fwd/Reverse MAKS-802

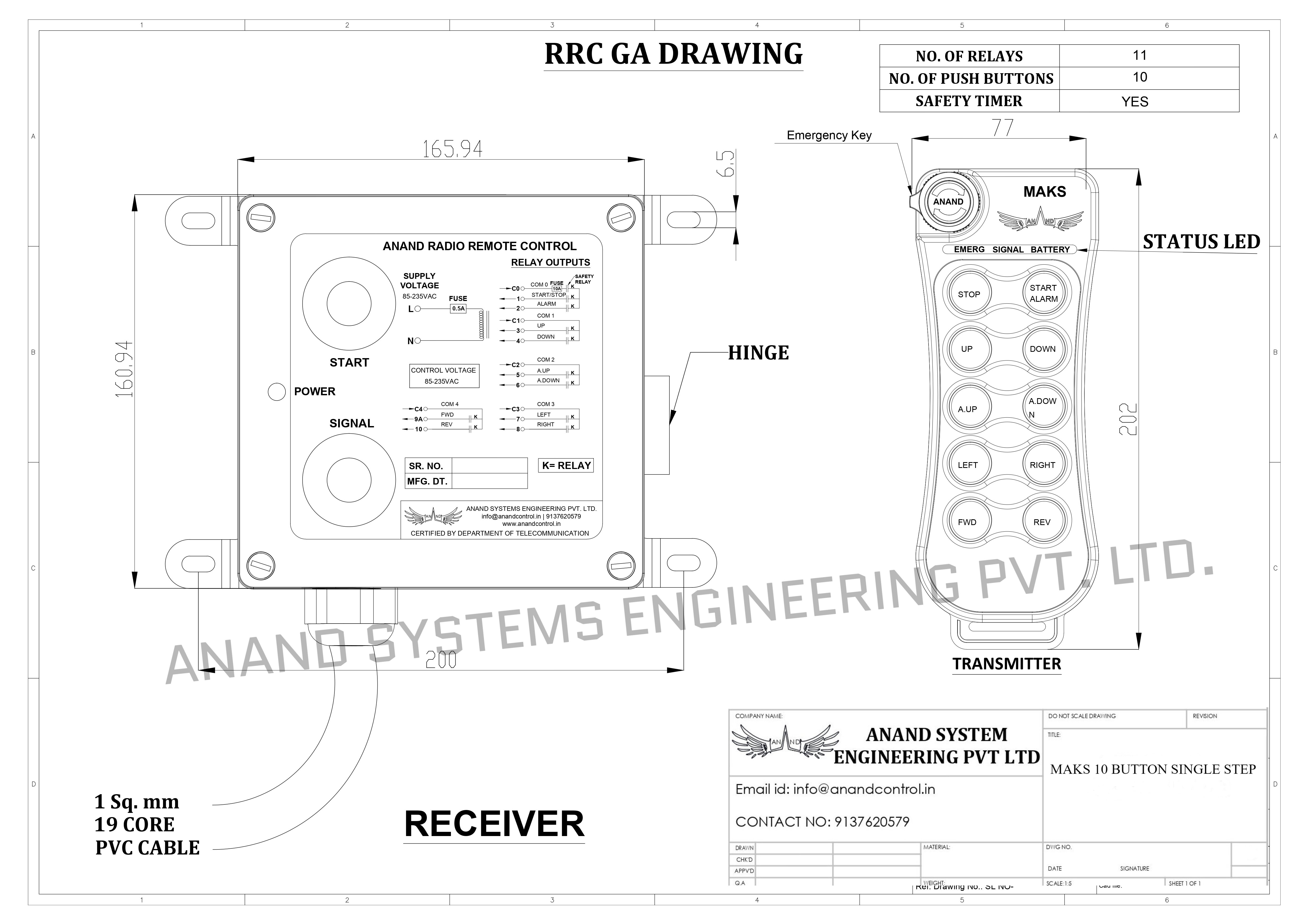

37 MAKS 10 BUTTON SINGLE STEP 10 Button 1 Speed - E Stop Start/Stop ,MH Up/Down ,AH Up/Down ,CT Left/Right,LT Fwd/Reverse MAKS-1001
38 MAKS 10 BUTTON DOUBLE STEP 10 Button 2 Speed - E Stop Start/Stop ,MH Up/Down ,AH Up/Down ,CT Left/Right,LT Fwd/Reverse MAKS-1002

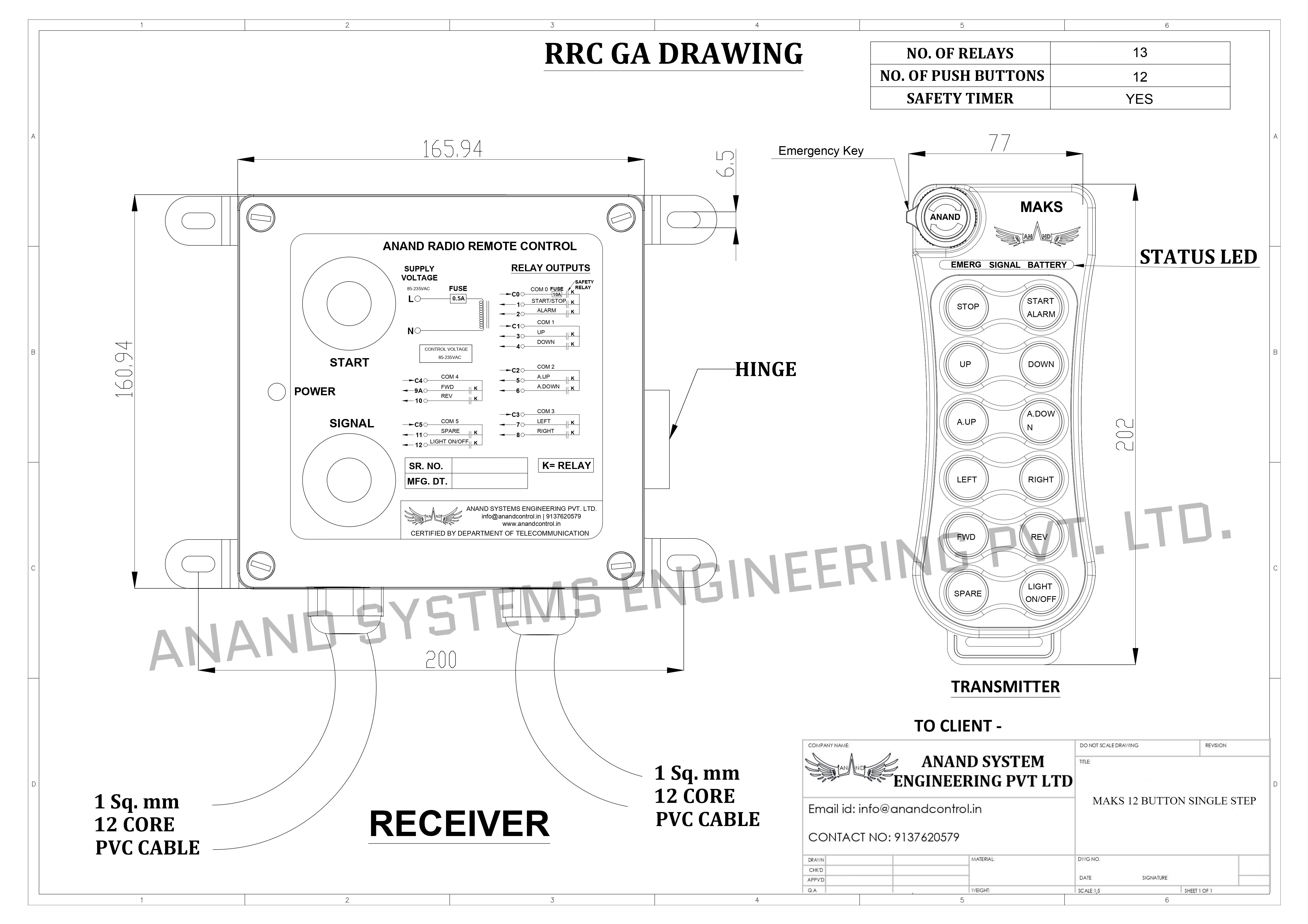

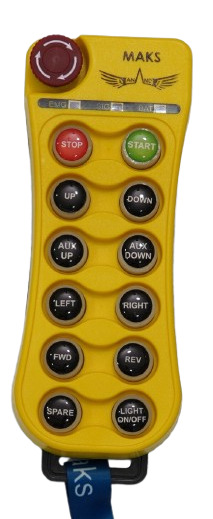

39 MAKS 12 BUTTON SINGLE STEP 12 Button 1 Speed - E Stop Start/Stop ,MH Up/Down ,AH Up/Down ,CT Left/Right,LT Fwd/Reverse, Spare/Light MAKS-1201

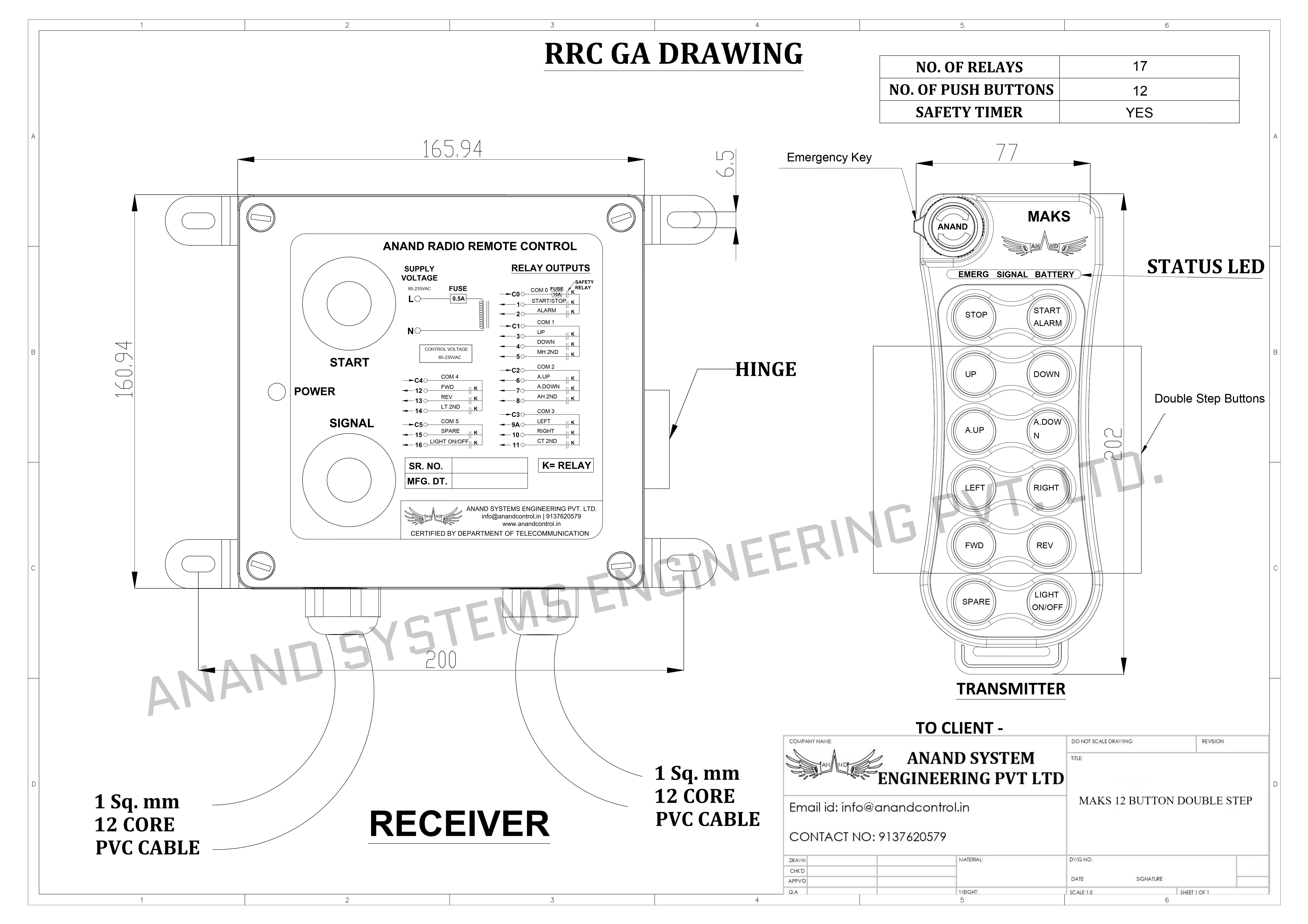

40 MAKS 12 BUTTON DOUBLE STEP 12 Button 2 Speed - E Stop Start/Stop ,MH Up/Down ,AH Up/Down ,CT Left/Right,LT Fwd/Reverse,Spare/Light MAKS-1202

Advanced Industrial Crane Radio Transmitter & Receiver

Image Description
Different features of the Transmitter system

Our Crane Wireless Remote Controls employ advanced Radio-Frequency circuit design and safe Embedded Software at the core level.

With unmatched safety and reliabilty you can configure your Radio Remote control according to your crane.

Highly Configurable and Customizable Transmitter

Anand crane Remotes have the ability to transmit and receive at a range of more than 200 meters line of sight at full power. Software programmed to have a custom range from 10 meters up to 200 meters according to user requirement without changing any hardware. Anand Remotes have been designed from the ground up to transmit signals over long distances at the lowest power possible.

Customized Range Radio Communication

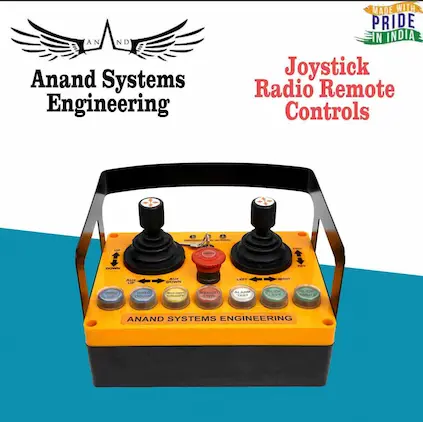

Joystick Remote Control Transmitter & Receiver for EOT Cranes

Image Description
Different features of the Transmitter system

State of the art industrial Joystick based Remote Controls for Industrial Cranes and any kind of industrial machinery.

Upto 5 Steps per direction, Ergonomic Shoulder and waist Strap & Rechargeable batteries.

Customized Joystick Remote Controls . Made in India.Joystick Radio Remote Control Manufacturer in Mumbai, Pune , Bangalore, Delhi , Chennai , Kolkatta .

Joystcik Radio Remote Controls For Cranes

Working Principle of Joystick Radio Remote Control

Instead of push buttons , Machines like cranes, hoists , welding equipment , etc can be operated with the help of Joystick remote control . Joysticks can move in 2 directions namely North / South and East / West.

Joystick remote controls can have upto 5 steps in each direction whereas push buttons can have a maximum of 2 steps. Therefore , the machine can be operated at 5 different speed levels in each direction.

Joystick can be configured in many different options such as spring return , latch type , interlockings , analog output , digital output.

Analog Joystick radio remote controls using potentiometers can be used to wirelessly control the speed of Variable frequency drives , proportional control of hydraulic pumps , etc.

Digital Joystick Radio remote controls using switches can be used to control the speed of Slip ring Induction motors Joysticks remote controls have a knob assembly on the top for easy operation and a flexible rubber boot to prevent dust & water ingress during operation .

Depending on the machine being controlled , there can be 1,2,3 or 4 dual axis joysticks or upto 8 single axis joysticks in a single remote control.

Because the joystick remote control is bulkier than push button remote controls , Anand systems engineering provides a waist and shoulder belt along with the system.

Conventional 22mm Diameter Push Button Type Radio Remote Control & receiver

Image Description
Conventional 22mm Dia Push Button Type Wireless Pendant Radio Remote Control

Conventional push button type radio remote control is a popular choice for clients who want large 22mm diameter push buttons with contact blocks instead of tactile push buttons. These push buttons have a distinct clicking feel, which makes it easier for the user to know when a button press has been registered. The contact blocks are designed to provide reliable and durable switching action, making this type of remote control a great option for demanding industrial applications.

Conventional Push button type radio remote control with shoulder belt

The conventional push button remote control features a customized design.The push buttons and selector switches are designed according to clients application which makes it easy to hold and use. It is ideal for applications that require a simple, straightforward control solution, such as crane control, hoist control, and other special purpose heavy machinery. The remote control is equipped with a radio receiver that provides a strong, reliable signal for communicating with the equipment being controlled.

One of the key advantages of using this type of remote control is its high level of durability and reliability. The push buttons are designed to withstand heavy use, and the radio receiver is protected against harsh environmental conditions. This makes the conventional push button type radio remote control a great choice for industrial and outdoor applications.

Finally, for added convenience, the remote control also features a sturdy shoulder belt for hands-free use. This makes it easier for operators to control equipment without having to hold the remote control, which can be especially useful in demanding industrial applications.

In conclusion, the conventional push button type radio remote control is a versatile and reliable solution for clients who require large 22mm diameter push buttons with contact blocks. Its compact design, durable construction, and reliable radio receiver make it a great option for a wide range of industrial and outdoor applications.

In-House Customization of Industrial Wireless Radio Remote Controls. SPM , Hydraulic , Cranes , Welding ,etc

Image Description
Close up Photo of Customized Radio remote control

At Anand Systems Engineering, we specialize in manufacturing customized radio remote control solutions for industrial machines. Our wireless controls are designed to provide a safe and efficient way for operators to control machinery from a distance, increasing productivity while reducing the risk of accidents.

Our experienced team of engineers will work with you to design a remote control that meets your specific needs. Whether you need a basic, single-function controller or a more complex system with multiple functions, we have the expertise to deliver a solution that fits your unique requirements.

Our radio remote controls feature advanced technologies that ensure reliable, interference-free operation, even in harsh environments. They are built to withstand extreme temperatures, moisture, and other environmental conditions, and are easy to use and maintain.

We offer a wide range of customization options, including control layouts, button configurations, and color schemes. Our team will work closely with you to ensure that the remote control meets your exact specifications and is fully integrated with your machinery.

With our customized radio remote controls, you can improve the safety and efficiency of your industrial operations, reduce downtime, and increase productivity. Contact us today to learn more about our solutions and to discuss your specific requirements.

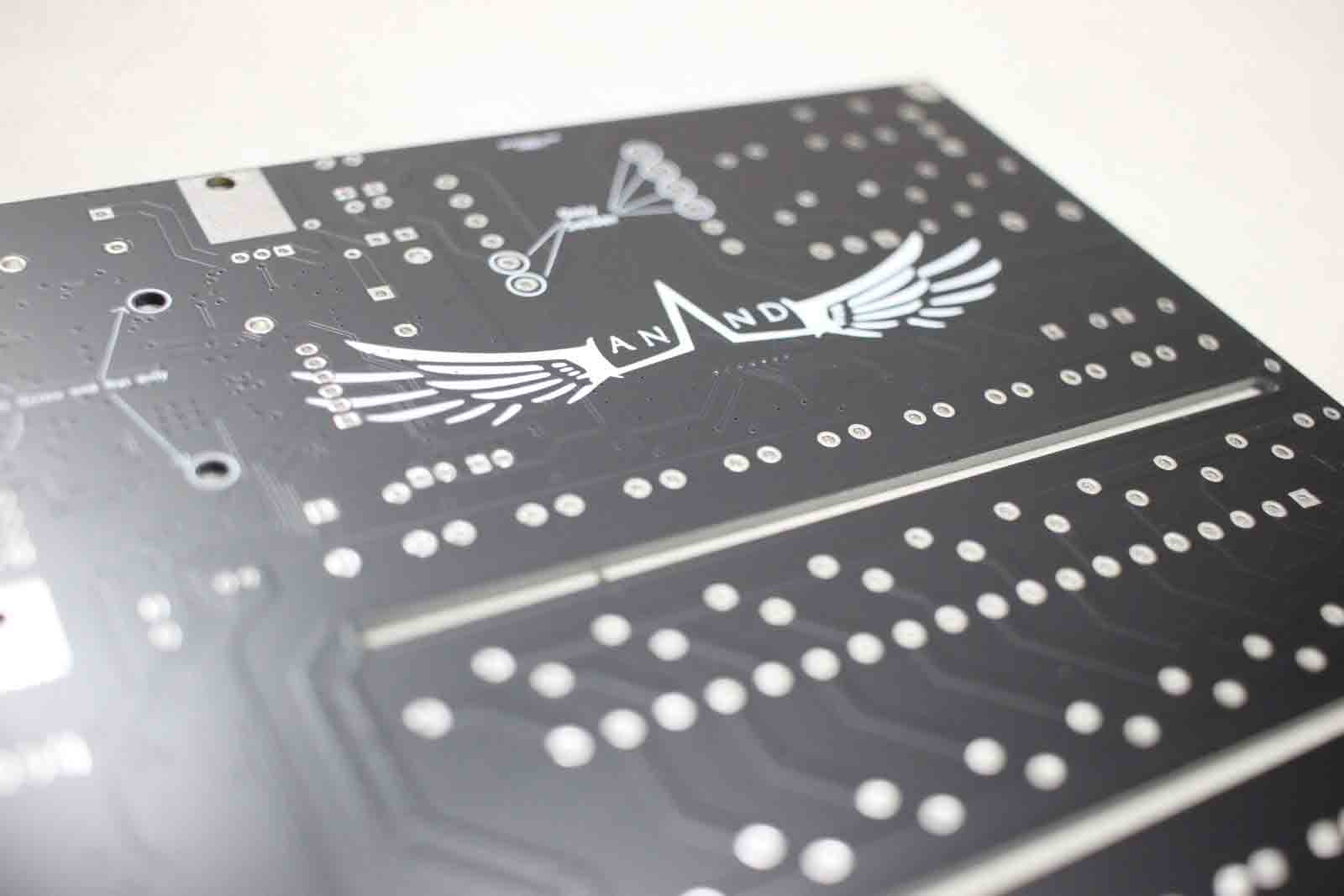

welding radio remote control circuit

The close-up photo of our custom radio remote control circuit for welding machines is a testament to our commitment to quality and precision in manufacturing. Our skilled team of engineers meticulously designed and assembled each component to ensure that the circuit can withstand the harsh conditions of welding environments.

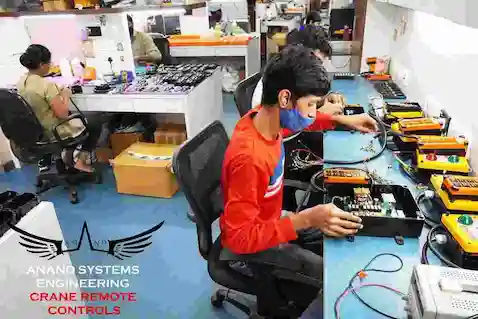

Our process for manufacturing customized remote controls begins with an in-depth consultation with the customer to determine their specific needs and requirements. Our experienced engineers will work closely with the customer to design a remote control system that meets their unique specifications, taking into account factors such as the type of industrial machine, the required range and frequency, and the necessary safety features.

Once the design is finalized, our skilled technicians will begin assembling and testing the remote control components in our state-of-the-art facility, using only the highest-quality materials and the latest manufacturing techniques. We conduct rigorous quality control checks at every stage of the process to ensure that the finished product meets our exacting standards and the customer's expectations.

Our goal is to deliver a customized remote control that is reliable, efficient, and easy to use, and that helps our customers improve the safety, productivity, and profitability of their industrial operations.

Radio Remote Control with Adjustable Range

Image Description
Close up Photo of Adjustable Range Radio remote control

Our customisable range radio remote control is designed to provide users with a convenient and efficient way to operate their hoisting, cross travel, and long travel equipment. With a range of up to 100 meters, this radio remote control can be used from a safe distance, making it ideal for industrial and construction sites where safety is a top priority.

One of the standout features of our radio remote control is the range increase and decrease buttons. With these buttons, users can adjust the range of the remote control to suit their specific needs. This means that if there are multiple cranes in your factory ,you can adjust the range of each remote control to prevent accidental operation if the transmitters from two different cranes get mixed up .

This also means that if you're working on a smaller site, you can reduce the range to conserve battery life, while if you're working on a larger site, you can increase the range to ensure that you're always in control.

Another key feature of our radio remote control is the hoisting, cross travel, and long travel buttons. These buttons allow users to operate their equipment with ease, without the need for manual intervention. Whether you're hoisting heavy loads or moving equipment from one location to another, our radio remote control makes it easy and hassle-free.

In addition to these features, our customisable range radio remote control is designed to be durable and reliable, ensuring that it can withstand even the toughest working conditions. With its user-friendly interface, intuitive controls, and long-range capabilities, it's the perfect tool for anyone looking to operate their equipment safely and efficiently.

welding radio remote control circuit

The receiver of the radio remote control also features an LCD display which shows the currently set range of the remote control between 0 and 100 meters, making it easy for users to monitor their range settings.

It's important to note that the range adjustment feature can only be accessed when the adjust range button is pressed on the receiver. This ensures that users can make changes to the range of the remote control only when they need to, preventing accidental changes that can lead to unwanted disruptions.

Features

Reliably Control your Crane with Crane remote control.

SVG

Receiver Feedback



Advanced closed loop communication between Transmitter and Receiver

Whenever you want reliable communication between the transmitter and receiver you require feedback


The Anand transmitter and receiver have the capability of both transmitting The Anand transmitter and receiver have the capability of both transmitting and receiving. Hence whenever data is sent from the transmitter, the receiver transmits the feedback signal back to the transmitter.



Such communication between the transmitter and receiver happens more than 10 times a second. In the feedback message, the transmitter can understand various parameters such as reliability of the communication link, number of retries for a successful transmission,received signal strength,etc.



Feedback allows the transmitter to know if the receiver has received the transmitted signal correctly. Any faults or noise interference in the receiver can also be transmitted back to the transmitter. This allows the transmitter to be aware of the receiver environment at all times.

Remote control Memory card module
SVG

Config Card

Removable highly secure memory module.

Anand Crane Remote Controls can be supplied with a removable highly secure memory module.


If one Crane remote control or receiver is taken for maintenance, the spare units can be activated by inserting the memory module.


This memory module contains all the settings of the Crane remote control.Any Setting can be changed accordingly.


No Need of any Programmer device.

SVG

Tandem Mode

Control 2 or more Cranes by one Transmitter

Tandem Mode is operated with the help of a Selector Switch.


During tandem mode, the Anand Remote is synchronized with multiple receivers .


Movements of both the cranes are synchronized and as soon as one crane receiver stops responding, the other crane receiver is given a stop command for safety reasons.


Tandem Mode Operation
8 Byte Digital Address of each Radio system
SVG

Digital Address

All Radio systems have configurable 8 Byte Digital Address

A digital address is assigned to each remote control and receiver instead of tuning crystals present in old technology remote controls.

Auto Power Control

Remote Control automatically adjusts transmit power. This save battery life of the remote control. Anand Remotes can be programmed to have an auto power control system where the signal power sent by the transmitter is reduced or increased according to the distance of the receiver from the transmitter. Minimum 6 Month Battery life Using the most modern microprocessors and advance radio frequency engineering anand systems guarantees that your batteries will last a long time. Anand Remotes Batteries last more than 1000 hours of use for a normal 8 hour shift. Radio Remote Goes to Sleep mode as soon as button is released and wakes up immediately on key press. Advance Radio Frequency Engineering uses least amount of radio power for signal to reach the receiver.

Watch our video for understanding Radio waves.


Download the Power Point Presentation : Understanding Radio Waves

Anand Receiver

Image Description
Features

Highly Configurable Receiver

SVG

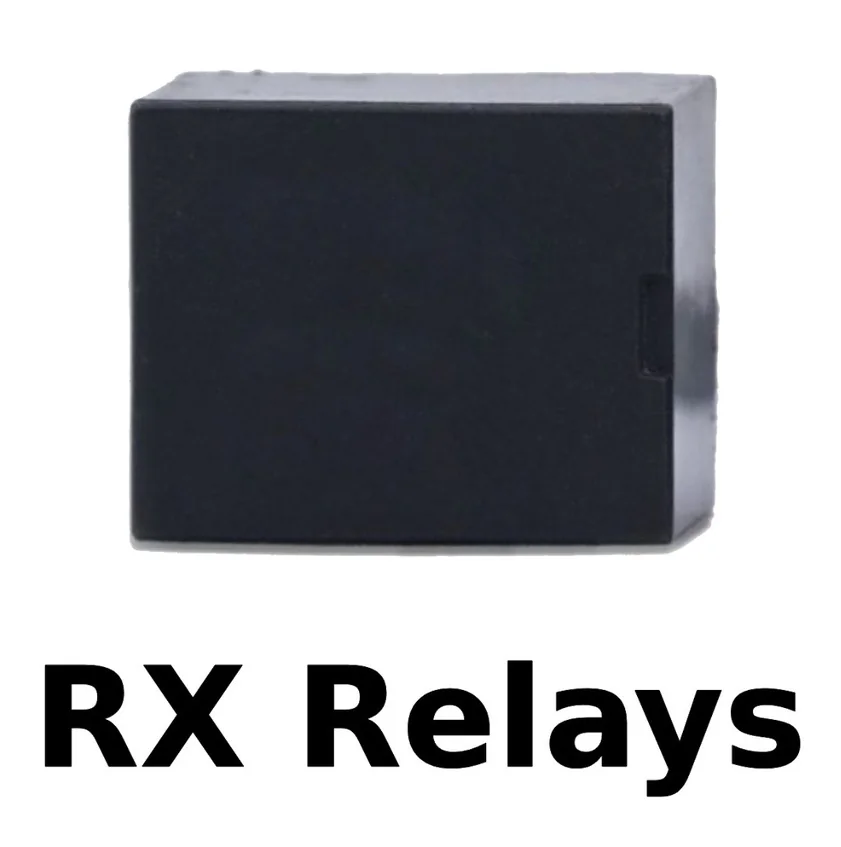

2 to 18 Relays.

Relay Contact Rating: 275 Vac at 10 Amps.

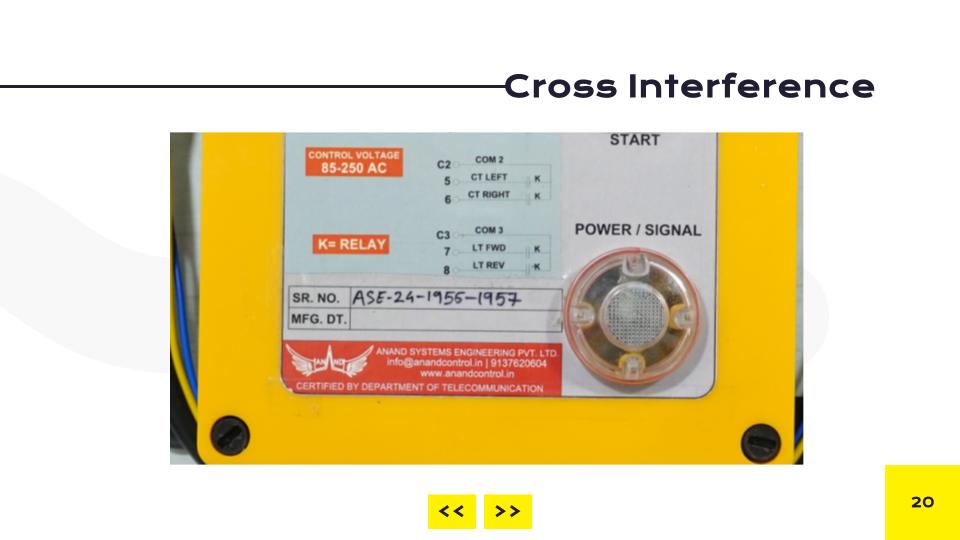

Anand Radio Remote Control Receiver

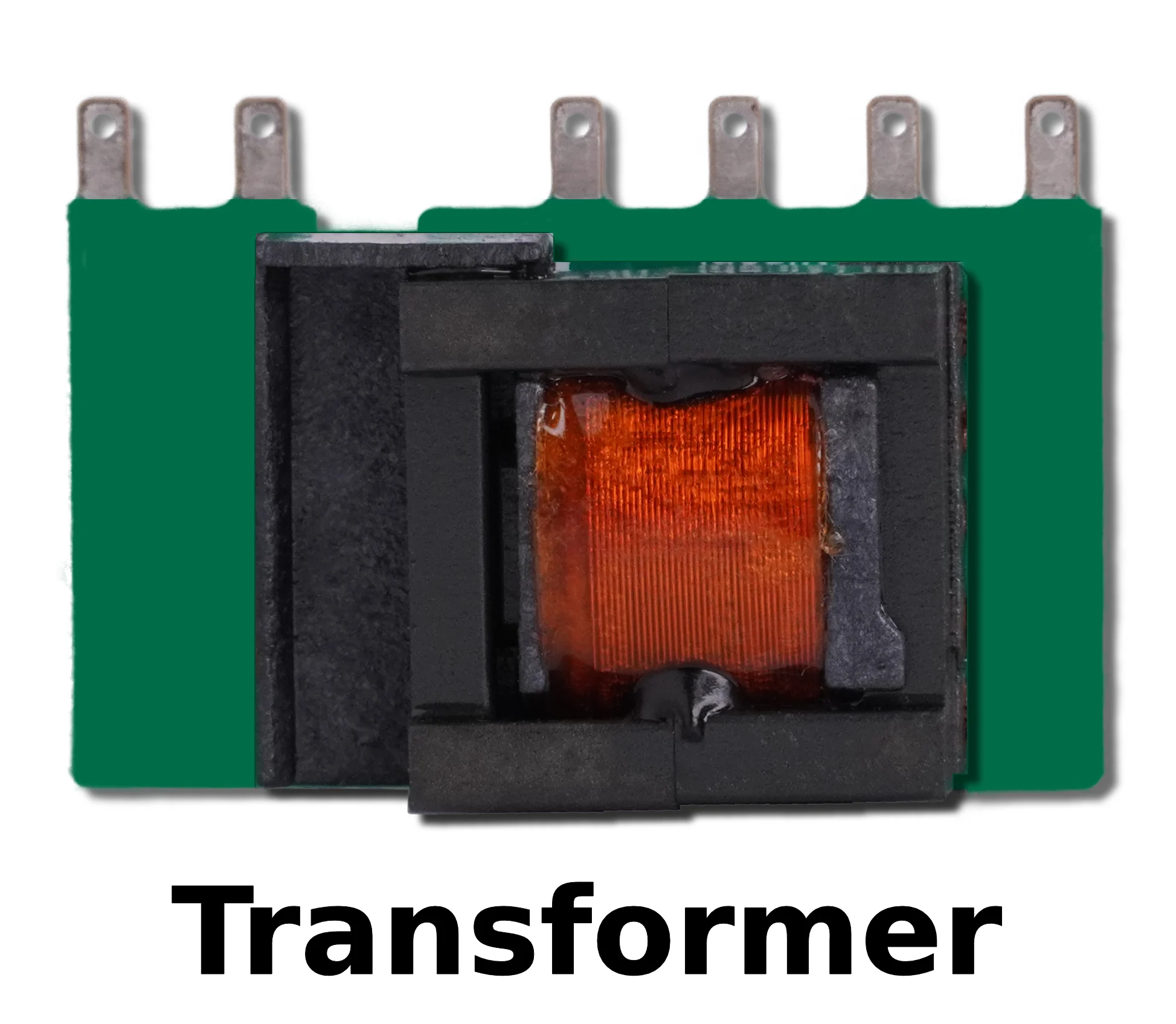

Advanced Switched Mode Power Supply
SVG

30 milli Watt Idle Power Consumption

After 10 Idle Minutes Receiver Switches off all Relays and Goes into ultra low power consumption mode to save on electricity costs.

SVG

Operation Indicators to see status from 200 Meters distance.
Power Indicating Lamp
Signal Received Indication
Main Line Contactor On/Off Indicator

Anand Radio Remote Control Receiver
Radio Remote Control Button Configuration

Any Transmitter button can be configured to operate any number of relays

Radio Remote Control Internal Antenna

Omnidirectional 2.1dBi Internal Antenna for protection from Dust and external Enviroment

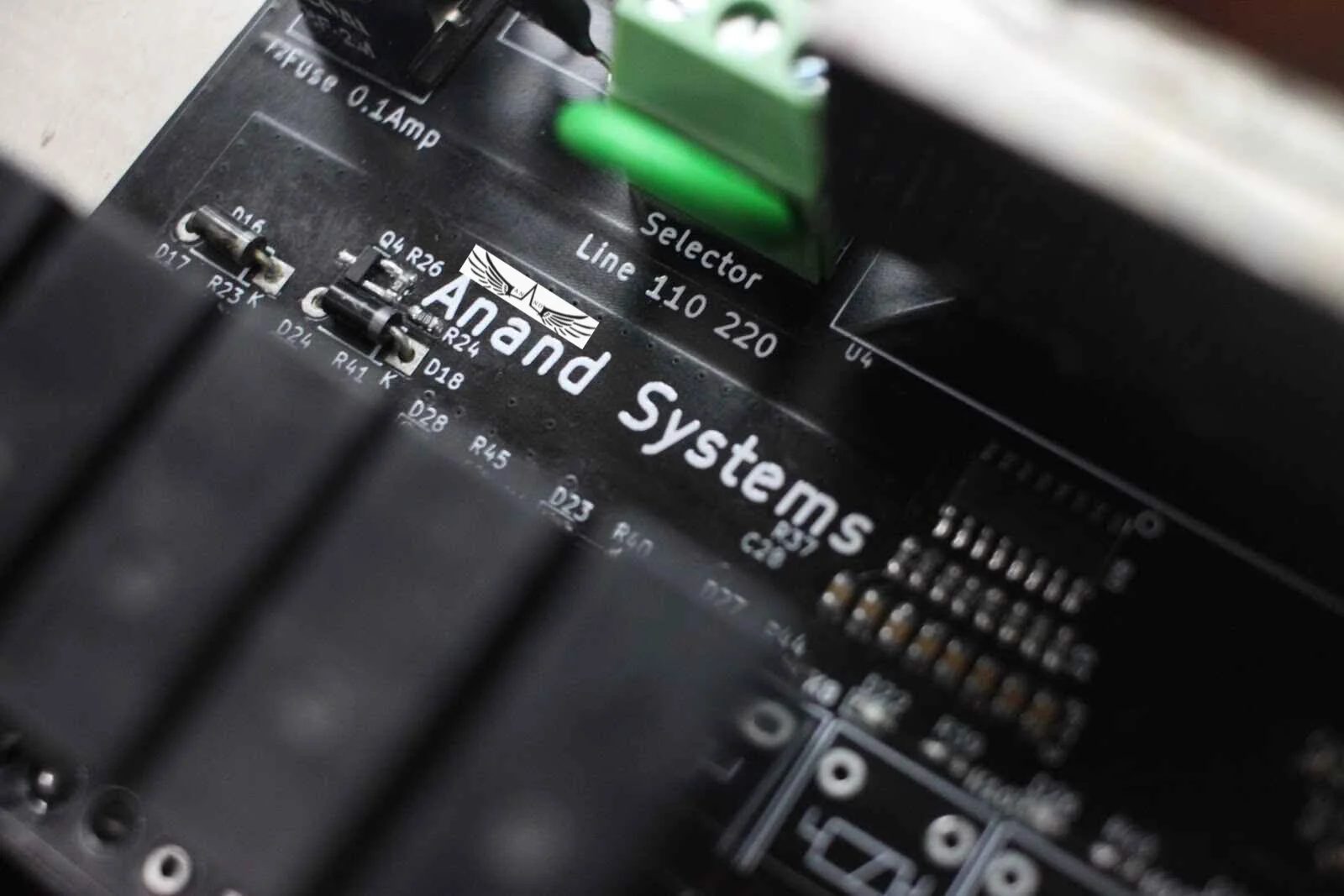

advanced safety circuits

Advanced Safety Circuit to shutdown relays incase of faults or malfunction.

Applications of Radio Remote Controls

Built for safe wireless operation for any kind of machinery.

EOT Cranes

Electric Hoists

Gantry Cranes

Goliath Cranes

Mobile Cranes

Tower Cranes

Image Description
Image Description

Anand Transmitter & Receiver Technical Data Specifications

Specifications of a remote control
Communication & Transmission Frequency
Frequency Band 2.4Ghz (Industrial ,Scientific & Medical )
Spread Spectrum Technology Direct Sequency Spread Spectrum
Number of Channels 16
Channel Bandwidth 2 Mhz
Co-Existance with multi Radios 100 Radios
Transmit Power Default:Auto Power
(configurable):-17dBm to +4dBm
Line of Sight Range 200 Meters
Communication Type Half Duplex Closed Loop
Reception Sensitivity -103 dBm
Mechanical Specification:

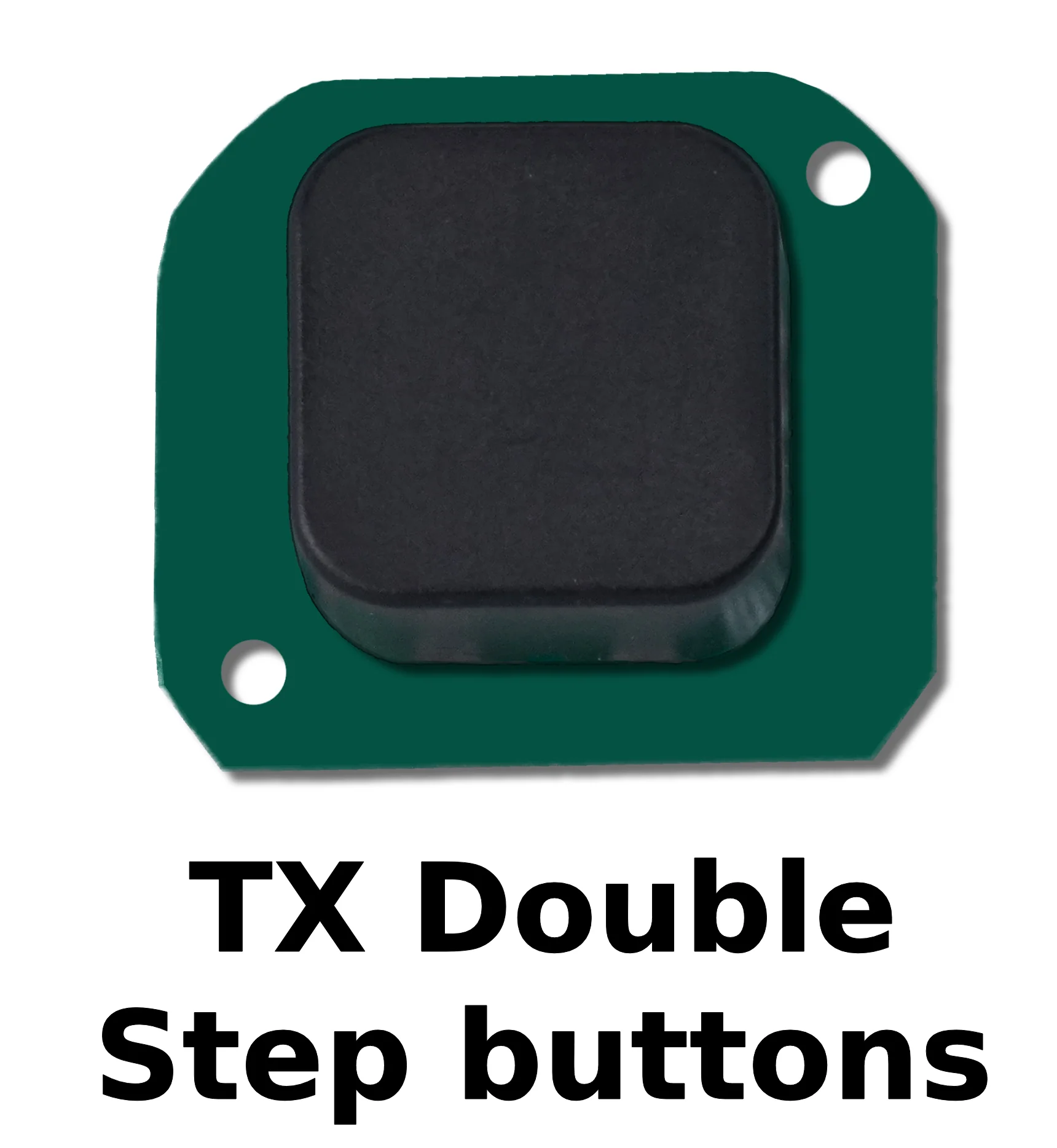

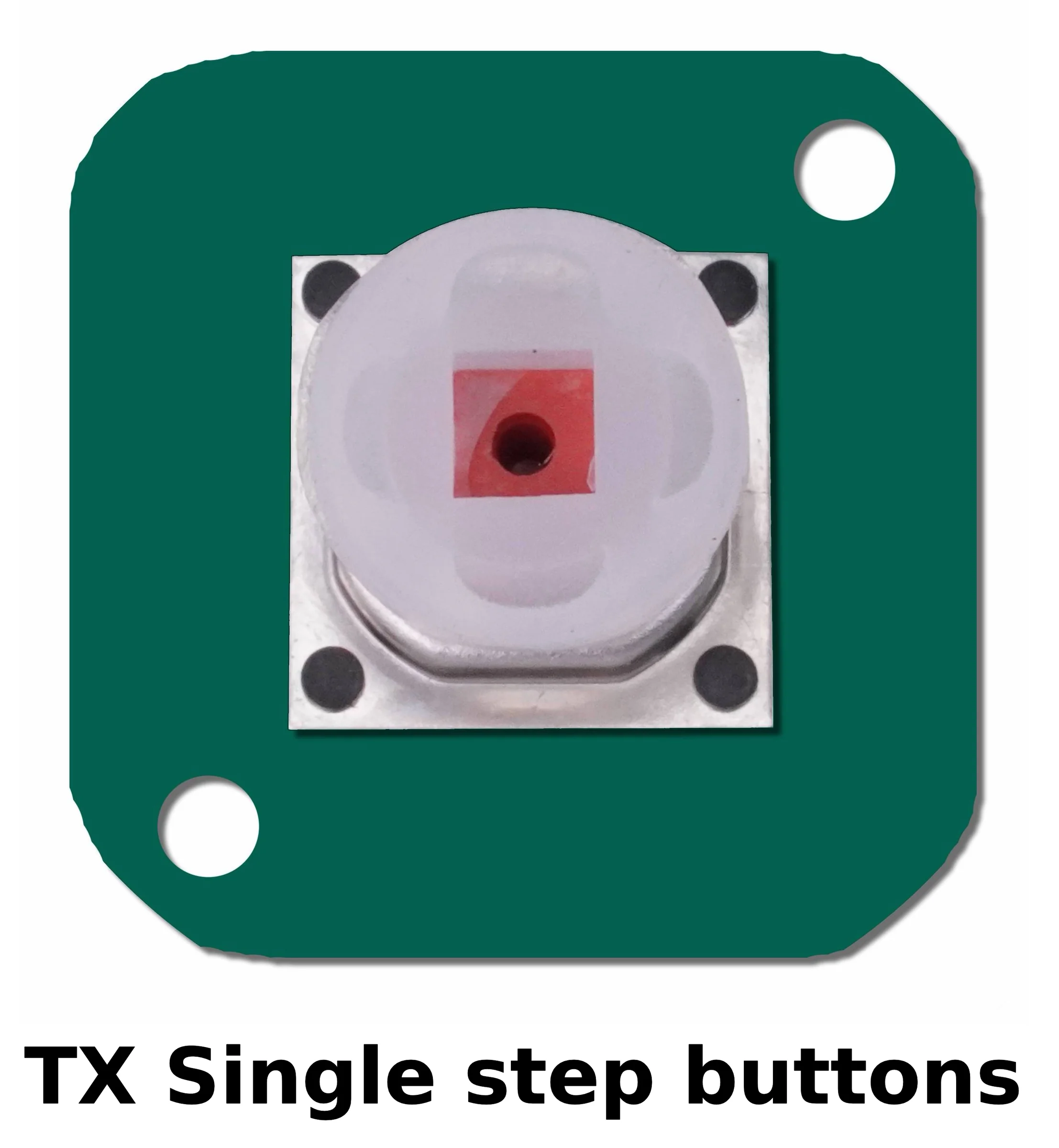

Push Button Single Step Double Step
Electrical Life 20,000 Cycles
Actuation Force 490 Grams 1st Step:600 Grams
2nd Step:1150 Grams
Button Type Tactile
Radio Antenna Internal
Operating Temperature 0 to 60℃
Led Indication Led 1:Power
Led 2:Battery Low
Led 3:Emergency
Led 4:Receiver Acknowledgment
Electrical Specification of Transmitter:
Operating Temperature 0-60℃
Battery Life Typical Operationg 4-6 Months
Low Power Indication 20% Battery Life remaining
Removable Config Card Yes.No Need of Copier device.

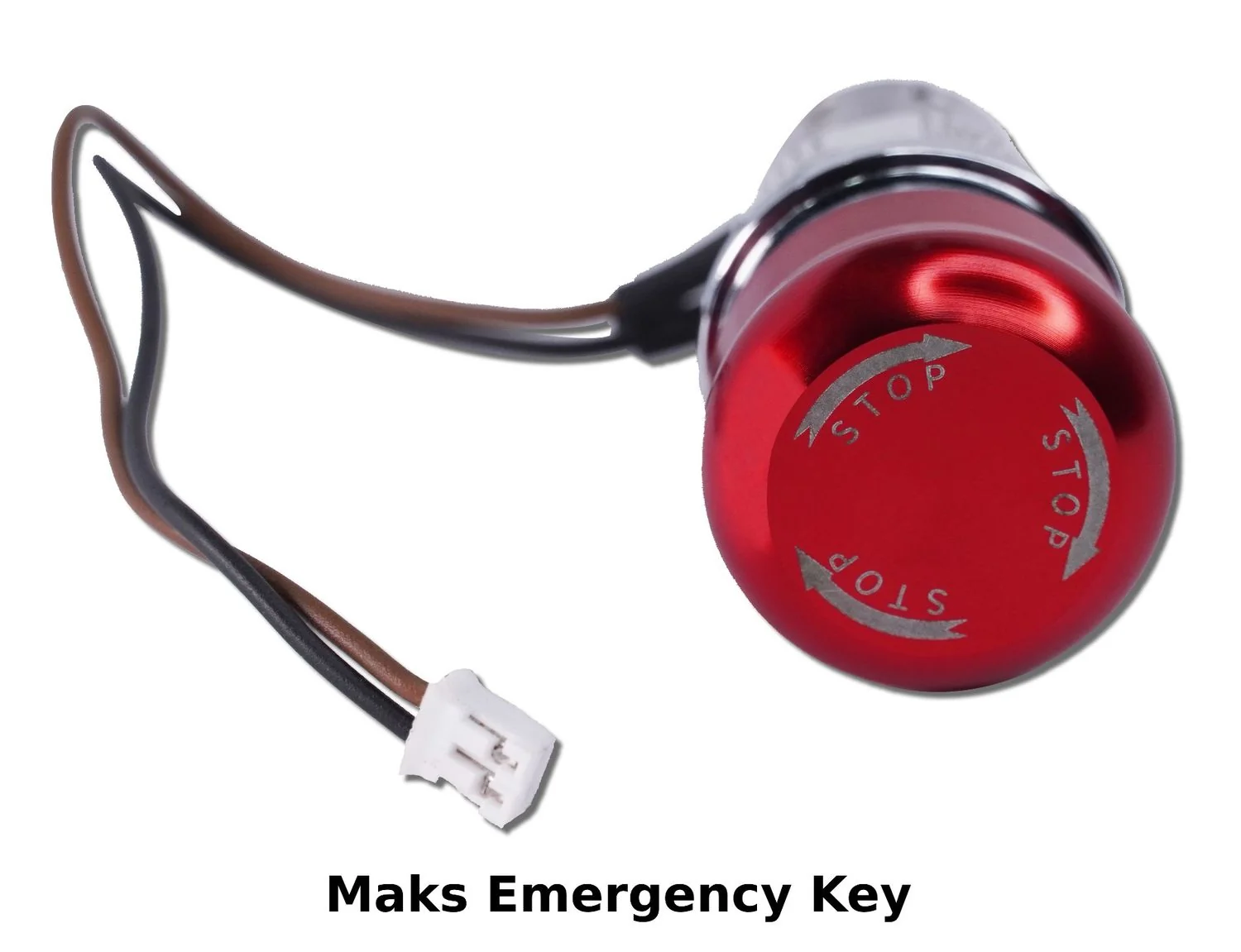

Emergency Stop Magnetic
Electrical Specification of Receiver:
Number of Relays 2 to 40 Relays
Relay Rating 250Vac 10Amperes/30Vdc
No Load Power Consumption 0.1 Watts
Main line Relay Indicator Red Bright Light
Power Supply 110Vac/230Vac/ 12VDC – 40 VDC
Tandem Operation Yes(Configurable)
Security Specification:
Advanced Encryption Standard 128 Bit AES Key
Software Standard Misra C Standard
Auto Main Line Shutdown Idle Time 10 Minutes(User Configurable)

2 Button 1 Speed Radio Remote Control

2_button_1_speed

This Remote Control comes with 1 Transmitter and 1 Receiver
Transmitter :
1 Emergency Stop.
1 Stop Push Button
1 Start Push Button
Signal , Emergency and Low Battery Indications
Receiver:
1 Start Relay , 1 Alarm Relay , 1 Safety relay in Series with Start Relay
4 Core Cable to connect to the Control Panel
Signal , Power and Start relay Indications.

4 Button 1 Speed Radio Remote Control

4_button_1_speed

This Remote Control comes with 1 Transmitter and 1 Receiver
Transmitter :
1 Emergency Stop,Stop & Start Single Step Push Buttons ,Up / Down Single Step Push Buttons
Signal , Emergency and Low Battery Indications
Receiver:
1 Start Relay , 1 Alarm Relay , 1 Safety relay in Series with Start Relay
1 Up Relay, 1 Down Relay
4 Core Cable to connect to the Control Panel
Signal , Power and Start relay Indications.

4 Button 2 Speed Radio Remote Control

_button_2_speed

This Remote Control comes with 1 Transmitter and 1 Receiver
Transmitter :
1 Emergency Stop,Stop/Start Push Buttons,Up / Down Double Step Push Buttons
Signal , Emergency and Low Battery Indications
Receiver:
1 Start Relay , 1 Alarm Relay , 1 Safety relay in Series with Start Relay
1 Up Relay ,1 Down Relay , 1 Up/Down 2nd Step Relay
8 Core Cable to connect to the Control Panel
Signal , Power and Start relay Indications.
Wiring Diagram Sticker and Mounting Brackets

6 Button 1 Speed Radio Remote Control

6_button_1_speed

This Remote Control comes with 1 Transmitter and 1 Receiver
Transmitter :
1 Emergency Stop,Stop/Start Push Buttons,Up/Down Single Step Push Buttons,Left/Right Single Step Push Buttons.
Signal , Emergency and Low Battery Indications
Receiver:
1 Start Relay , 1 Alarm Relay , 1 Safety relay in Series with Start Relay
1 Up Relay ,1 Down Relay
1 Left Relay ,1 Right Relay
12 Core Cable to connect to the Control Panel
Signal , Power and Start relay Indications.
Wiring Diagram Sticker and Mounting Brackets

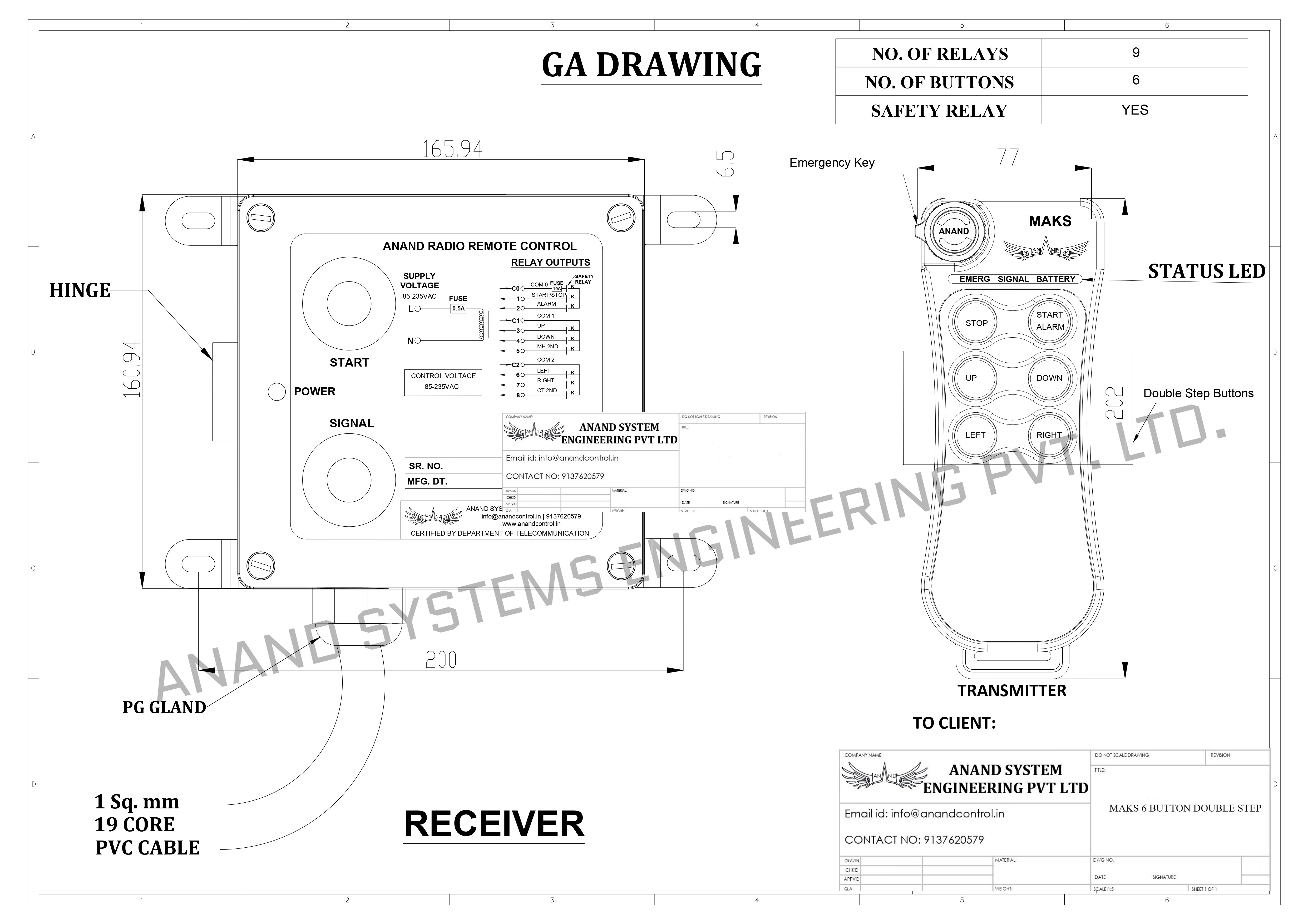

6 Button 2 Speed Radio Remote Control

6_button_2_speed

This Remote Control comes with 1 Transmitter and 1 Receiver
Transmitter :
1 Emergency Stop,Stop/Start Push Buttons,Up/Down Double Step Push Buttons,Left/Right Double Step Push Buttons,
Signal , Emergency and Low Battery Indications
Receiver:
1 Start Relay , 1 Alarm Relay , 1 Safety relay in Series with Start Relay
1 Up Relay ,1 Down Relay, 1 Up/Down 2nd Step Relay
1 Left Relay ,1 Right Relay, 1 Left/Right 2nd Step Relay
12 Core Cable to connect to the Control Panel along with ferrule numbers,
Signal , Power and Start relay Indications.
Wiring Diagram Sticker and Mounting Brackets.

8 Button 1 Speed Radio Remote Control

8_button_1_speed

This Remote Control comes with 1 Transmitter and 1 Receiver
Transmitter :
1 Emergency Stop,Stop/Start Push Buttons,Up/Down Single Step Push Buttons,Left/Right Single Step Push Buttons,Fwd/Reverse Single Step Push Buttons
Signal , Emergency and Low Battery Indications
Receiver:
1 Start Relay , 1 Alarm Relay , 1 Safety relay in Series with Start Relay
1 Up Relay ,1 Down Relay
1 Left Relay ,1 Right Relay
1 Forward Relay ,1 Reverse Relay
19 Core Cable to connect to the Control Panel along with ferrule numbers
Signal , Power and Start relay Indications.
Wiring Diagram Sticker and Mounting Brackets.

8 Button 2 Speed Radio Remote Control

8_button_2_speed

This Remote Control comes with 1 Transmitter and 1 Receiver
Transmitter :
1 Emergency Stop,Stop/Start Push Buttons,Up/Down Double Step Push Buttons,Left/Right Double Step Push Buttons,Forward/Reverse Double Step Push Buttons.
Signal , Emergency and Low Battery Indications
Receiver:
1 Start Relay , 1 Alarm Relay , 1 Safety relay in Series with Start Relay
1 Up Relay ,1 Down Relay, 1 Up/Down 2nd Step Relay
1 Left Relay ,1 Right Relay, 1 Left/Right 2nd Step Relay
1 Forward Relay ,1 Reverse Relay, 1 Fwd/Reverse 2nd Step Relay
19 Core Cable to connect to the Control Panel along with ferrule numbers
Signal , Power and Start relay Indications.
Wiring Diagram Sticker and Mounting Brackets.

10 Button 1 Speed Radio Remote Control

10_button_1_speed

This Remote Control comes with 1 Transmitter and 1 Receiver
Transmitter :
1 Emergency Stop,Stop/Start Push Buttons,Main Hoist Up/Down Single Step Push Buttons,Auxiliary Hoist Up/Down Single Step Push Buttons,Left/Right Single Step Push
Buttons,Fwd/Reverse Single Step Push Buttons Signal , Emergency and Low Battery Indications
Receiver:
1 Start Relay , 1 Alarm Relay , 1 Safety relay in Series with Start Relay
1 Main Hoist Up Relay ,1 Down Relay
1 Auxiliary Hoist Up Relay ,1 Down Relay
1 Left Relay ,1 Right Relay
1 Forward Relay ,1 Reverse Relay
16 Core Cable to connect to the Control Panel along with ferrule numbers
Signal , Power and Start relay Indications.
Wiring Diagram Sticker and Mounting Brackets.

10 Button 2 Speed Radio Remote Control

10_button_2_speed

This Remote Control comes with 1 Transmitter and 1 Receiver
Transmitter :
1 Emergency Stop,Stop/Start Push Buttons,Main Hoist Up/Down Double Step Push Buttons,Auxiliary Hoist Up/Down Double Step Push Buttons,Left/Right Double Step Push
Buttons,Forward/Reverse Double Step Push Buttons.
Signal , Emergency and Low Battery Indications
Receiver:
1 Start Relay , 1 Alarm Relay , 1 Safety relay in Series with Start Relay
1 Main Hoist Up Relay ,1 Down Relay, 1 Main Hoist Up/Down 2nd Step Relay
1 Auxiliary Hoist Up Relay ,1 Down Relay, 1 Auxiliary Hoist Up/Down 2nd Step Relay
1 Left Relay ,1 Right Relay, 1 Left/Right 2nd Step Relay
1 Forward Relay ,1 Reverse Relay, 1 Fwd/Reverse 2nd Step Relay
19 Core Cable to connect to the Control Panel along with ferrule numbers
Signal , Power and Start relay Indications.
Wiring Diagram Sticker and Mounting Brackets.

12 Button 1 Speed Radio Remote Control

12_button_1_speed

This Remote Control comes with 1 Transmitter and 1 Receiver
Transmitter :

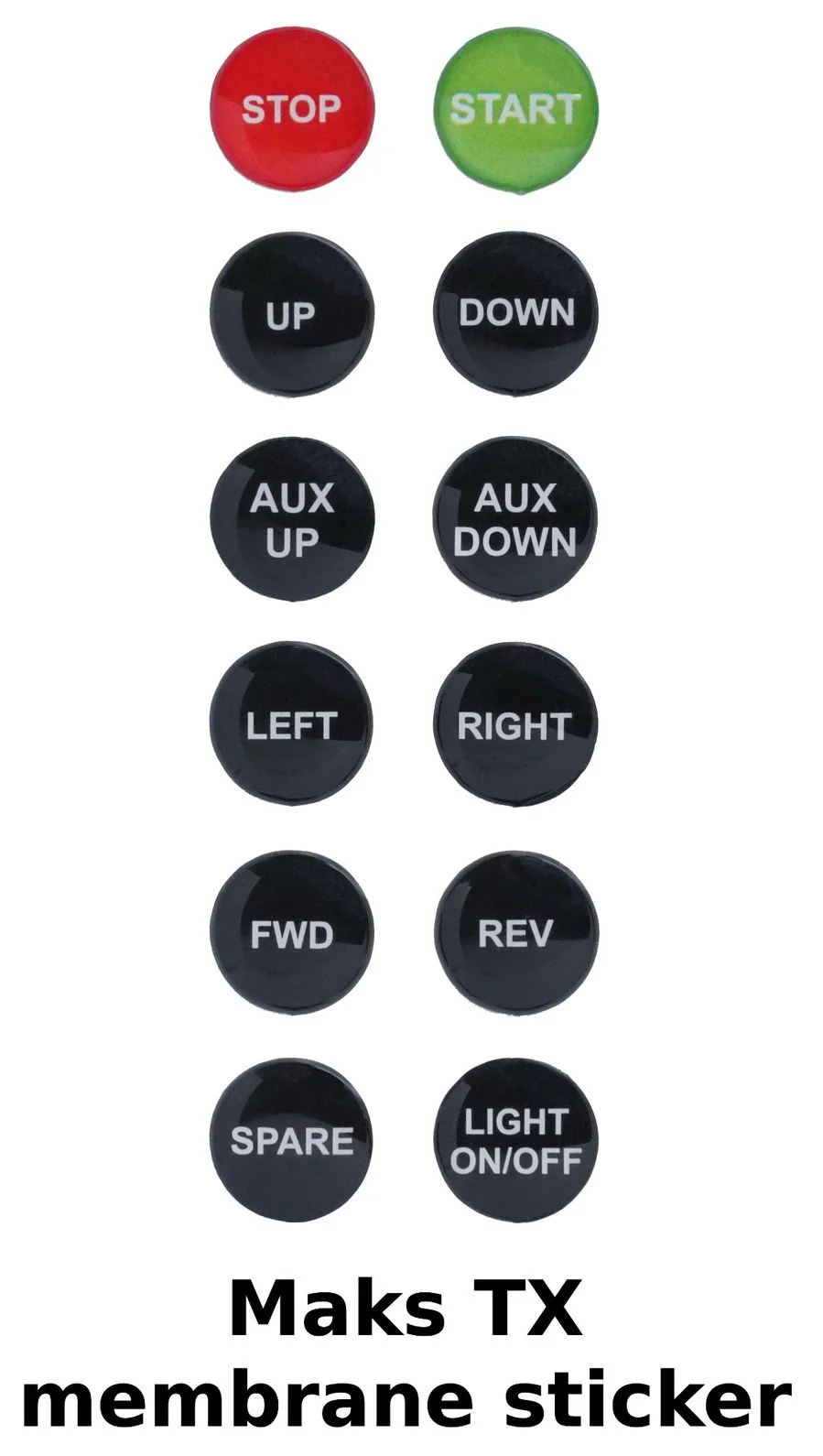

1 Emergency Stop,Stop/Start Push Buttons,Main Hoist Up/Down Single Step Push Buttons,Auxiliary Hoist Up/Down Single Step Push Buttons,Left/Right Single Step Push
Buttons,Fwd/Reverse Single Step Push Buttons, Light / Spare Single Step Push Buttons
Signal , Emergency and Low Battery Indications
Receiver:
1 Start Relay , 1 Alarm Relay , 1 Safety relay in Series with Start Relay
1 Main Hoist Up Relay ,1 Down Relay
1 Auxiliary Hoist Up Relay ,1 Down Relay
1 Left Relay ,1 Right Relay
1 Forward Relay ,1 Reverse Relay
1 Light Relay, 1 Spare Relay
31 Core Cable to connect to the Control Panel along with ferrule numbers
Signal , Power and Start relay Indications.
Wiring Diagram Sticker and Mounting Brackets.

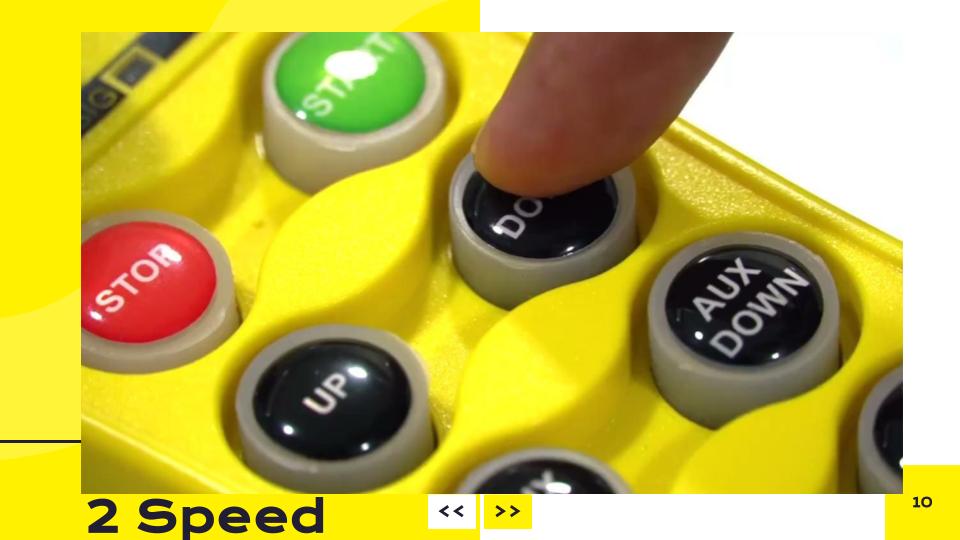

12 Button 2 Speed Radio Radio Remote Control

12_button_2_speed

This Remote Control comes with 1 Transmitter and 1 Receiver
Transmitter :
1 Emergency Stop,Stop/Start Push Buttons,Main Hoist Up/Down Double Step Push Buttons,Auxiliary Hoist Up/Down Double Step Push Buttons,Left/Right Double Step Push
Buttons,Forward/Reverse Double Step Push Buttons , 1 Light/Spare Single Step Push Buttons
Signal , Emergency and Low Battery Indications.
Receiver:
1 Start Relay , 1 Alarm Relay , 1 Safety relay in Series with Start Relay
1 Main Hoist Up Relay ,1 Down Relay, 1 Main Hoist Up/Down 2nd Step Relay
1 Auxiliary Hoist Up Relay ,1 Down Relay, 1 Auxiliary Hoist Up/Down 2nd Step Relay
1 Left Relay ,1 Right Relay, 1 Left/Right 2nd Step Relay
1 Forward Relay ,1 Reverse Relay, 1 Fwd/Reverse 2nd Step Relay
1 Light Relay , 1 Spare Relay
31 Core Cable to connect to the Control Panel along with ferrule numbers
Signal , Power and Start relay Indications.
Wiring Diagram Sticker and Mounting Brackets.

Tandem Remote Controls

Now what would you do if you want to lift and move an object weighing 10 Tons?
You will have to use 2 overhead cranes, each with a capacity of 5 tons , operating both cranes in
synchronization, to lift 10 Tons.You can think of both the cranes now as 1 Single crane of 10 Tons.

For synchronizing the operation of both the overhead cranes, you will have to ask 2 operators to
individually operate each crane in sync . Suppose you have to lift the object , both the operators
will have to somehow coordinate with each other to press the “UP” button at the same time ,
otherwise the load will tilt and there is a chance of a major mishap.
Or you can ask 1 operator to operate both the remote controls, 1 in the
left hand and 1 in the right hand, which again is a recipe for disaster.

Solution:
Tandem remote controls, also known as synchronized pair radio remote controls, are an
essential tool for heavy lifting in industries when the weight of the load exceeds the capacity of
a single crane. In such situations, two or more cranes need to work together to lift the load
safely and efficiently in a synchronized manner.

transmitter_tandem

How Does Tandem Remote Control Work?
A Single Transmitter is paired with 2 Receivers .Whenever a Button is pressed on the transmitter
, it will send signal to both the receivers at the same time, so both the cranes operate at the
same time.
With the help of a 3 Way Selector Switch on the Transmitter , the Crane Operator can select
Crane 1, Crane 2 or Tandem Operation.
If Crane 1 is Selected: The Transmitter will send signals to Crane 1 Receiver only.
If Crane 2 is Selected: The Transmitter will send signals to Crane 2 Receiver only.
If Tandem is Selected: The Transmitter will send signals to Crane 1 & Crane 2 Receivers
simultaneously.

A single operator can control both cranes simultaneously, allowing for smooth and precise
movements.

One of the significant advantages of using tandem remote controls is that it eliminates the need
for a second operator, reducing the cost and time required for the lifting process.

Tandem remote controls come in different types and configurations, depending on the specific
needs of the lifting application. They can be configured to control two cranes simultaneously,
with each crane receiving its signal.

To ensure maximum safety and efficiency, tandem remote controls should be equipped with
fail-safe systems, such as emergency stop buttons, overload protection, and collision avoidance
systems. The operator should also receive proper training on the use of tandem remote controls
and the specific lifting application.

Checkout our other Products or read more information.

Interested in Reading more information.

SVG

How do radio Remote Controls Work?

Read this extensive guide on Radio Communication.
SVG

Advanced Data Pendants by Anand Systems Engineering

A new Revolution in Pendant stations.
SVG

Want to Increase the Battery life of Radio Remote Control?

Read our blog on extending the battery life.
SVG

Crane Monitoring System

All Anand Pendants and Remotes are CraneSCADA compatible.

Read more
