4 Button single Speed Radio Remote Control
Introduction
Model name: ARC-401
When artificially generated radio waves are used to control any type of machinery or equipment wirelessly, such kind of a control system is called a Radio Remote Control.
It typically consists of a transmitter device which radiates data in the form of a radio wave in free space with the help of an antenna towards the receiver. The receiver then picks up this signal with an antenna and decodes the data. Radio remote controls are completely wireless systems which can transmit and receive data over very long distances.
This Remote Control comes with 1 Transmitter and 1 Receiver
Transmitter :
1 Emergency Stop,Stop & Start Single Step Push Buttons ,Up / Down Single Step Push Buttons
Signal , Emergency and Low Battery Indications
Receiver:
1 Start Relay , 1 Alarm Relay , 1 Safety relay in Series with Start Relay
1 Up Relay, 1 Down Relay
4 Core Cable to connect to the Control Panel
Signal , Power and Start relay Indications.
Working of Radio Remote Control
Signal Received or transmitted by Antenna
Once the antenna has picked up the signal ,a band pass filter only allows the desired frequencies to pass while attenuating other frequencies .
Since many different radio waves are traveling through air at a given point of time, the antenna must be tuned to receive waves at the required frequency.
For example , an antenna tuned to 2.4ghz frequency will have a very low return loss at 2.4ghz and will exhibit a very high return loss at other frequencies .
For a monopole or Dipole Antenna, the length of the antenna depends on the wavelength of the desired frequency.
λ = c/f
λ = wavelength
C = Speed of light
F = desired frequency
Features:
IP65 Certified-Water & DustProof
Internal Antenna protected from external environment
Signal,Power & Start Indications for transparent Operation

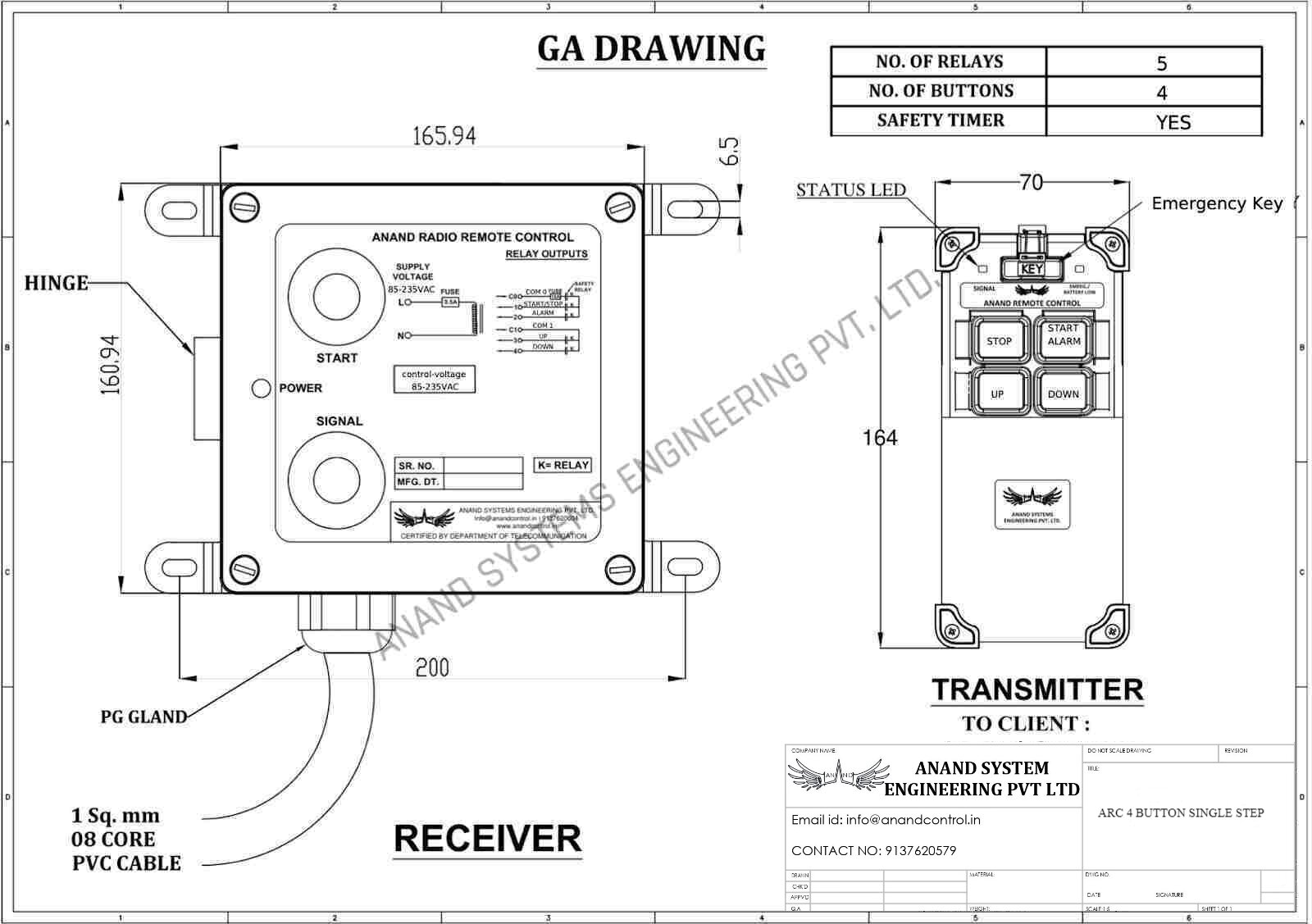

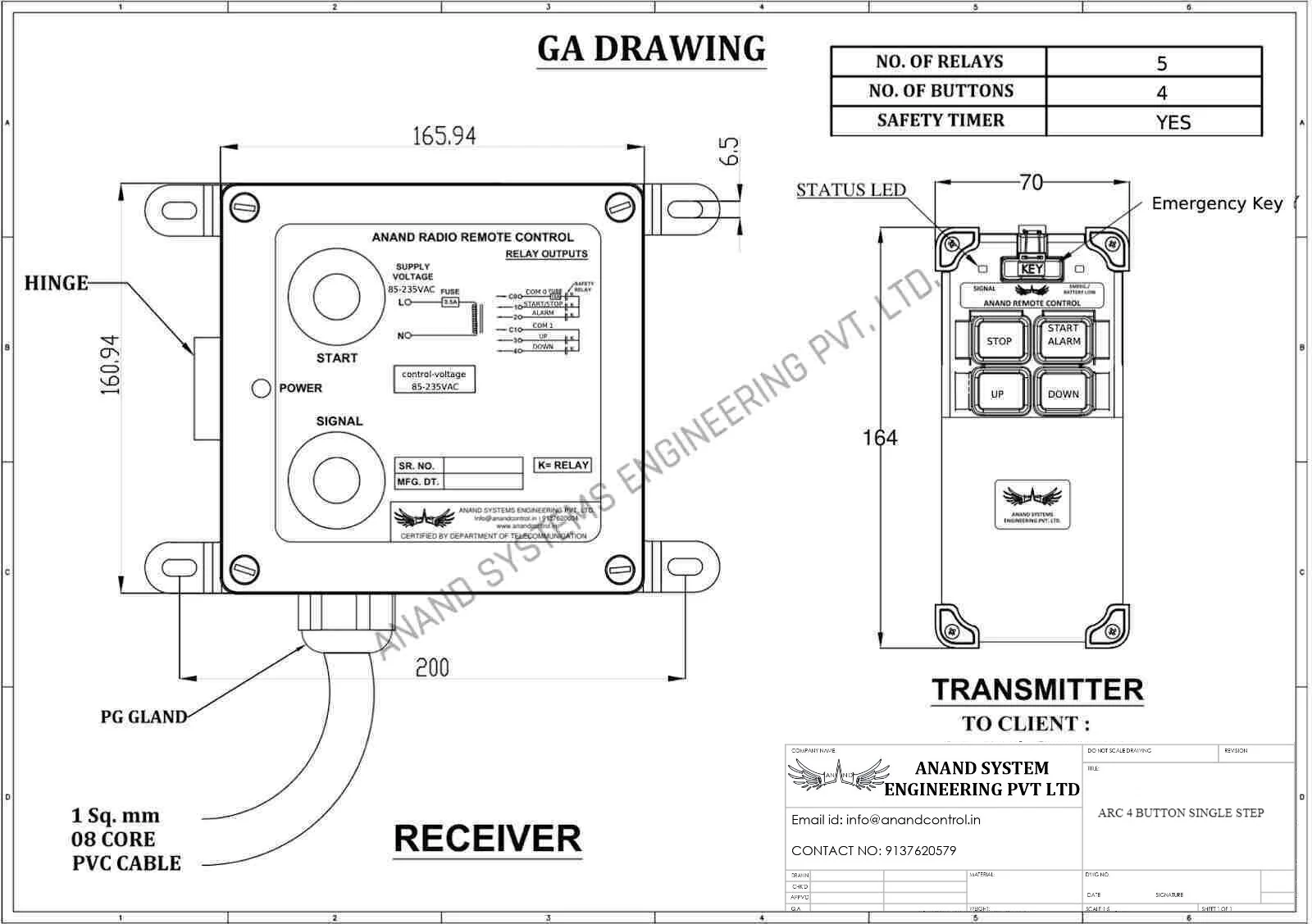

Wiring Diagram for easy installation
Receivers are Made of Tough Polycarbonate plastic
Technical Data:
| Communication & Transmission Frequency | |||
|---|---|---|---|
| Frequency Band | 2.4Ghz (Industrial ,Scientific & Medical ) | ||
| Spread Spectrum Technology | Direct Sequency Spread Spectrum | ||
| Number of Channels | 16 | ||
| Channel Bandwidth | 2 Mhz | ||
| Co-Existance with multi Radios | 100 Radios | ||
| Transmit Power | Default:Auto Power (configurable):-17dBm to +4dBm |
||
| Line of Sight Range | 200 Meters | ||
| Communication Type | Half Duplex Closed Loop | ||
| Reception Sensitivity | -103 dBm | ||
Warranty:
4 Button 1 Speed Radio Remote Control “2 years warranty” on
the date of Dispatch
Contact us:
Get in touch with us at 91376-20579, info@anandcontrol.in or visit our
website www.anandcontrol.in
Packing Details:
4 Button 1 Speed Radio Remote Control comes in a durable and eco-friendly Packing designed to ensure safe delivery.
1 Transmitter with 2 AA Alkaline Batteries
1 Receiver with 1.5 Meters Cable
1 Test Report , 1 Wiring Diagram, 1 Delivery Challan, 1 Tax Invoice
Monitored Delivery
The logistics tracking management system does not guarantee faster delivery but ensures monitored delivery, thus facilitating the overall process by getting an insight regarding the causes of delay or any foul play, causing delayed or failed deliveries.
