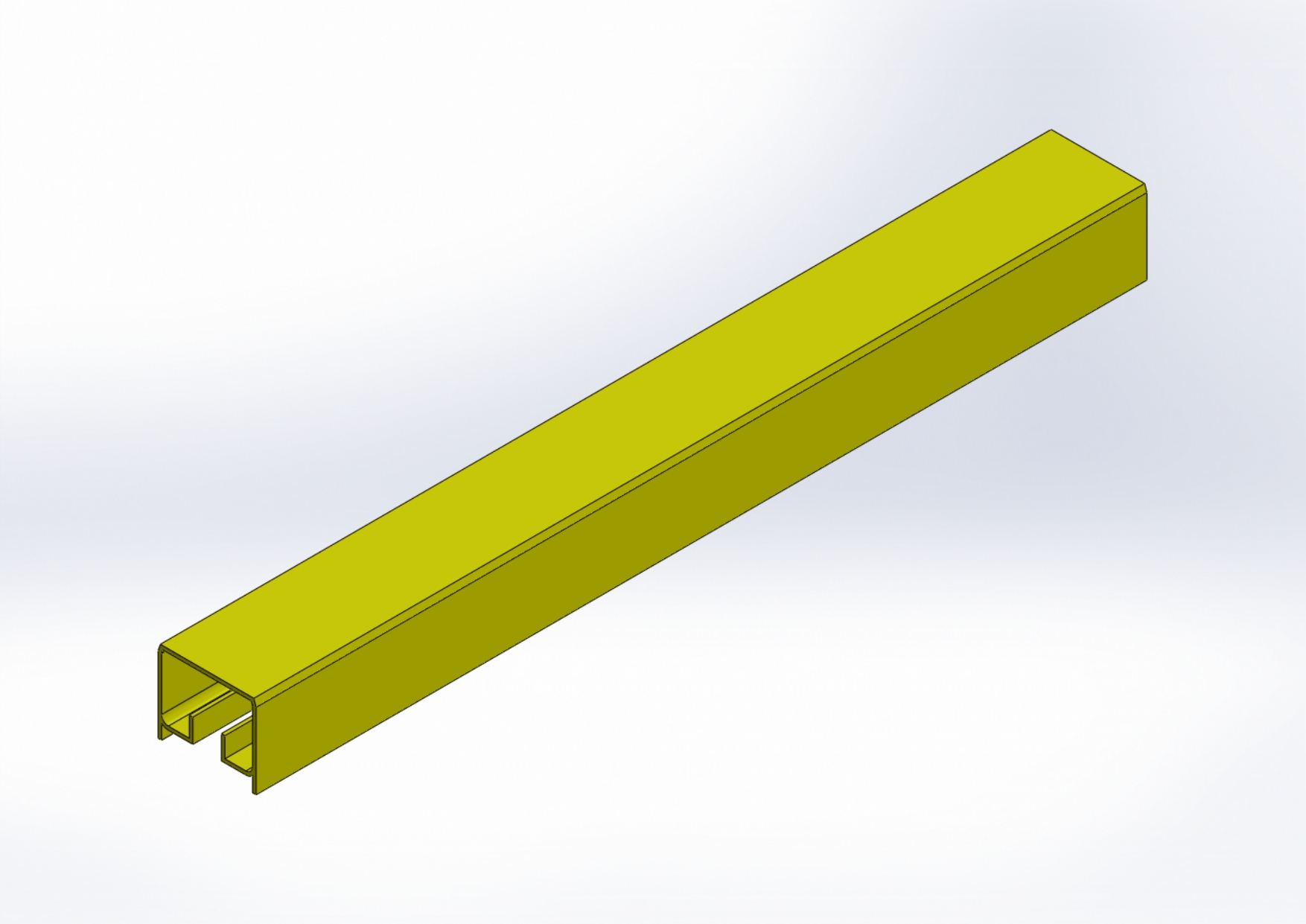

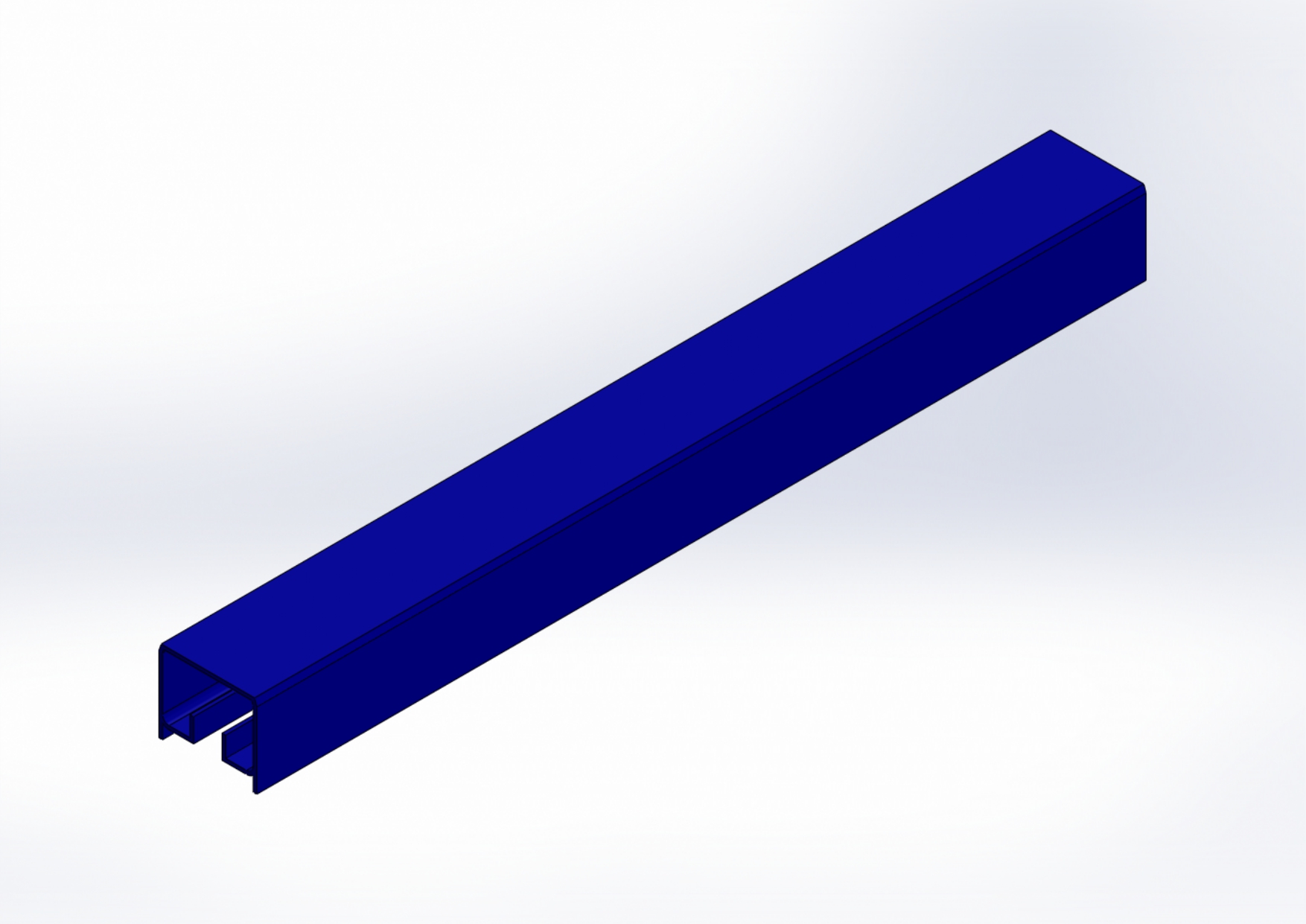

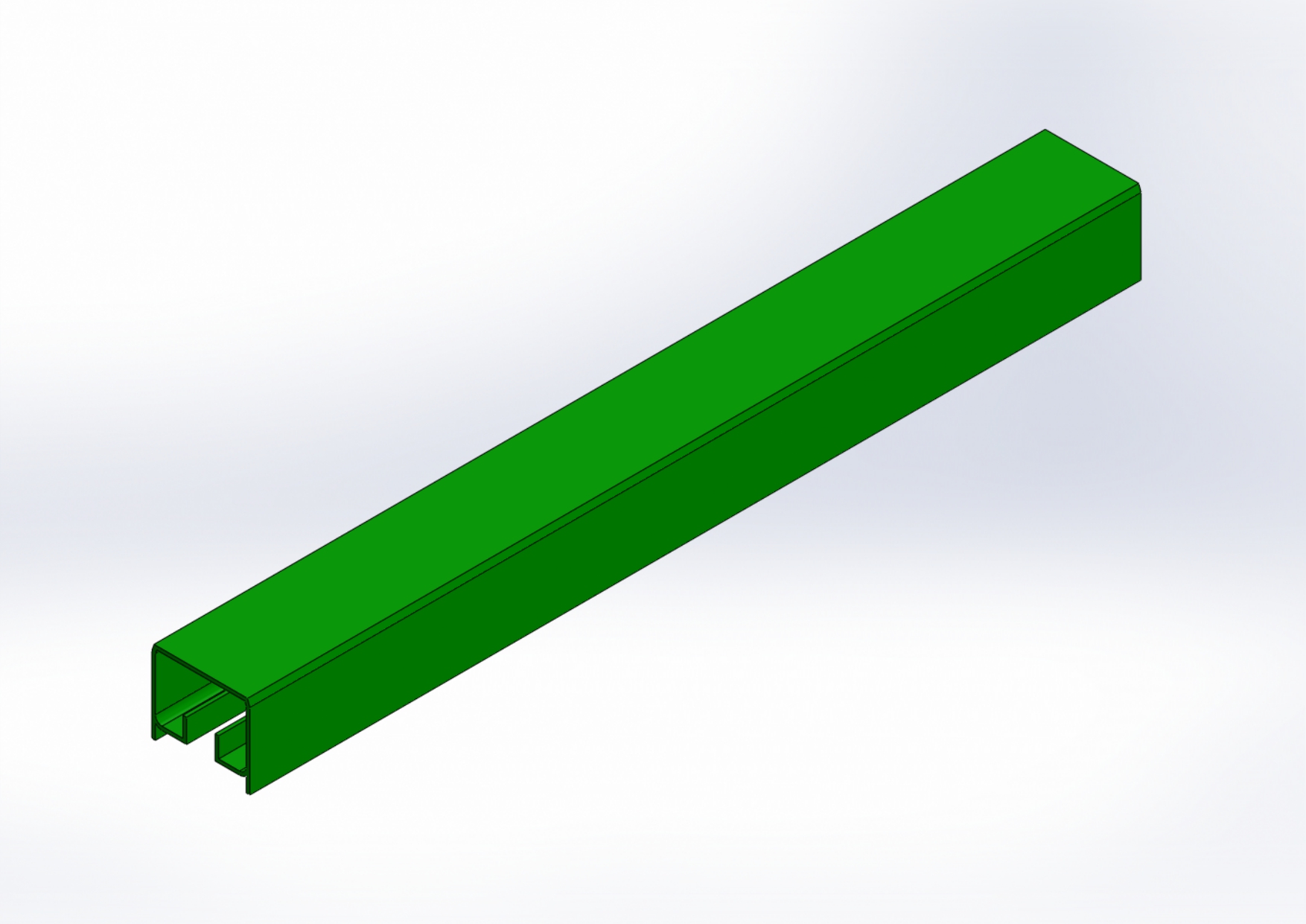

Bolt Joint W Type DSL Busbars for EOT Cranes.

Safelink W Series

Most Selling ,Easy Maintenance DSL Busbar For Industrial Cranes

Download Catalog

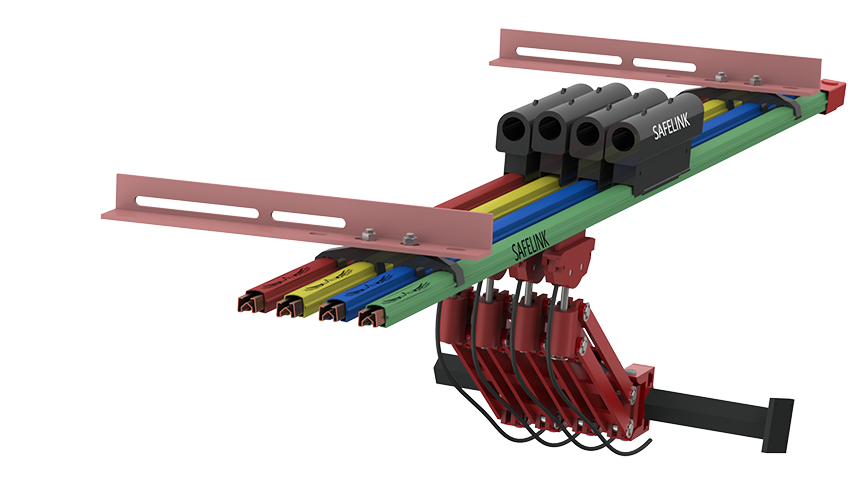

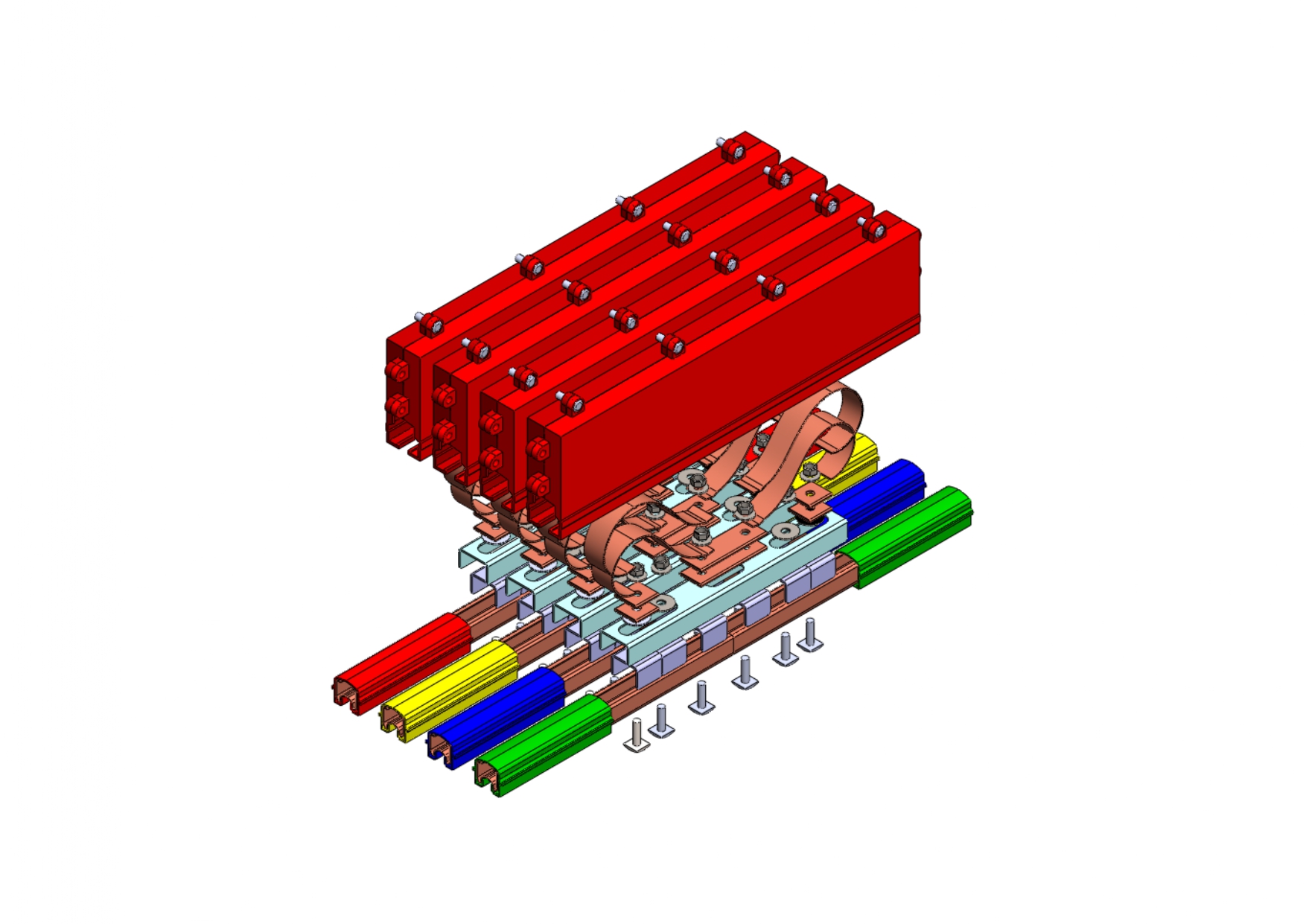

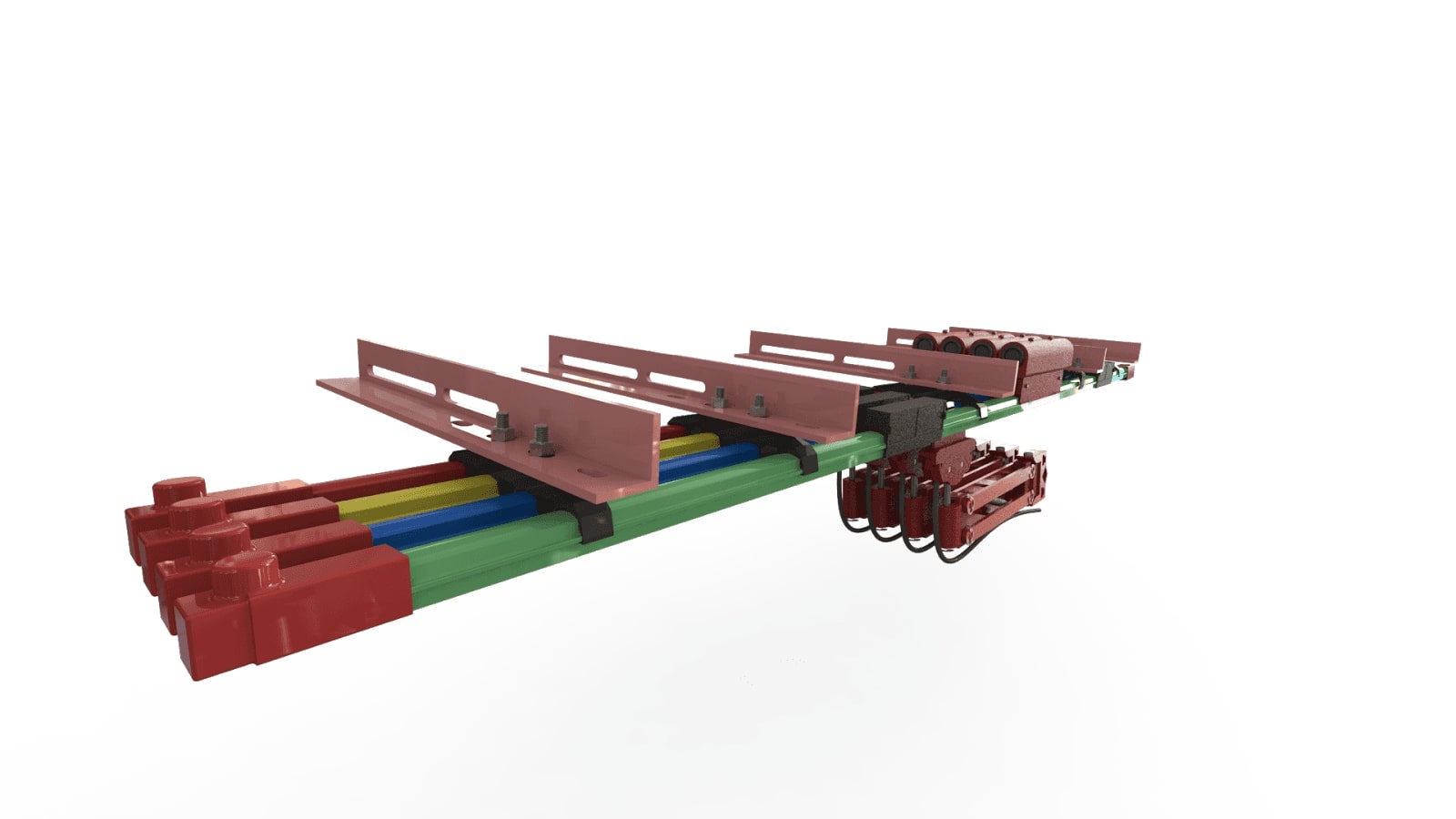

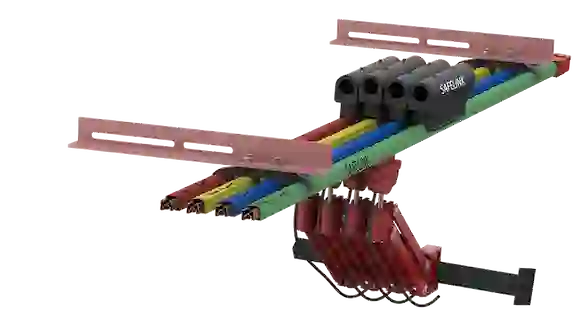

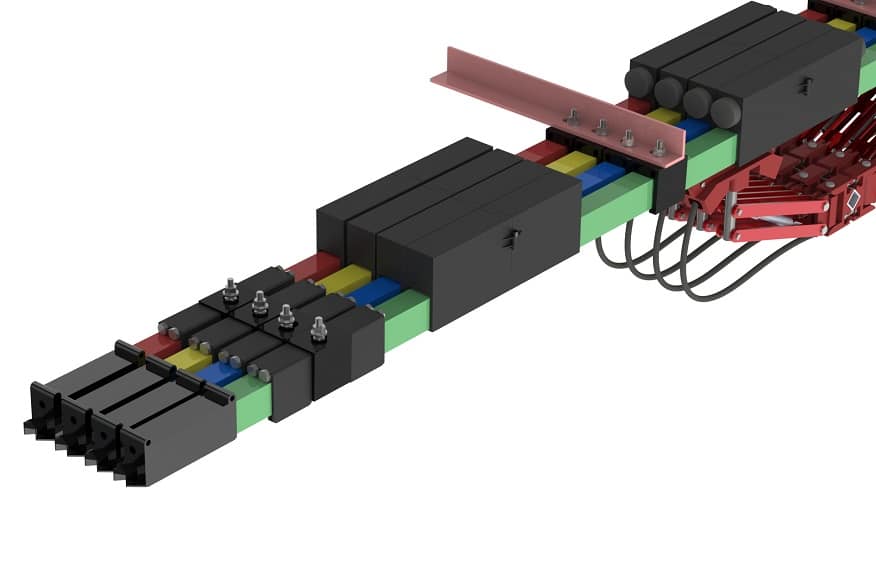

bolt joint busbar assmembly

Materials & Ratings

Galvanized Iron - 60A,100A,125A
Copper - 160A,250A,400A
Aluminium - 200A,315A

Bolt Joint
Insulated DSL Busbars

Image Description
A.

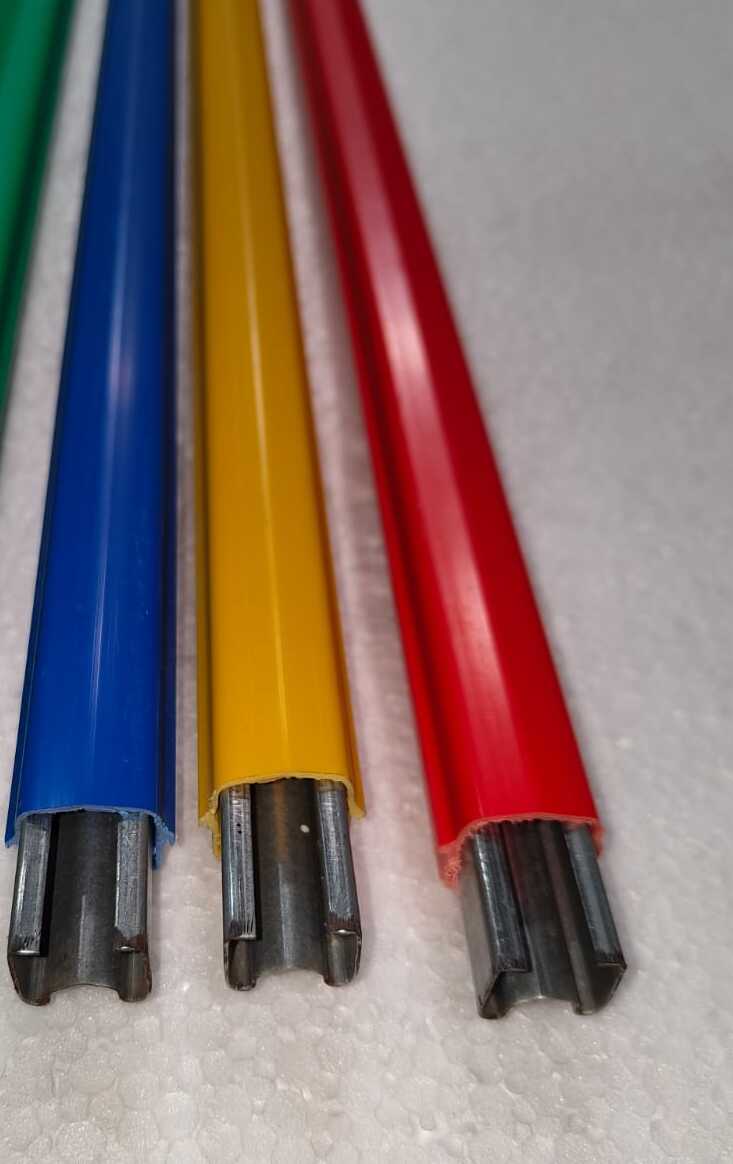

Safelink W Bolt Joint DSL Busbar Product Description

SafeLink W Bolt Joint DSL busbar makes it easy to deliver 3 phase power to Electric Overhead EOT Cranes. Factories can transfer from 60 Amperes to 400 Ampere Current ,depending on the energy required by the crane machinery.

B.

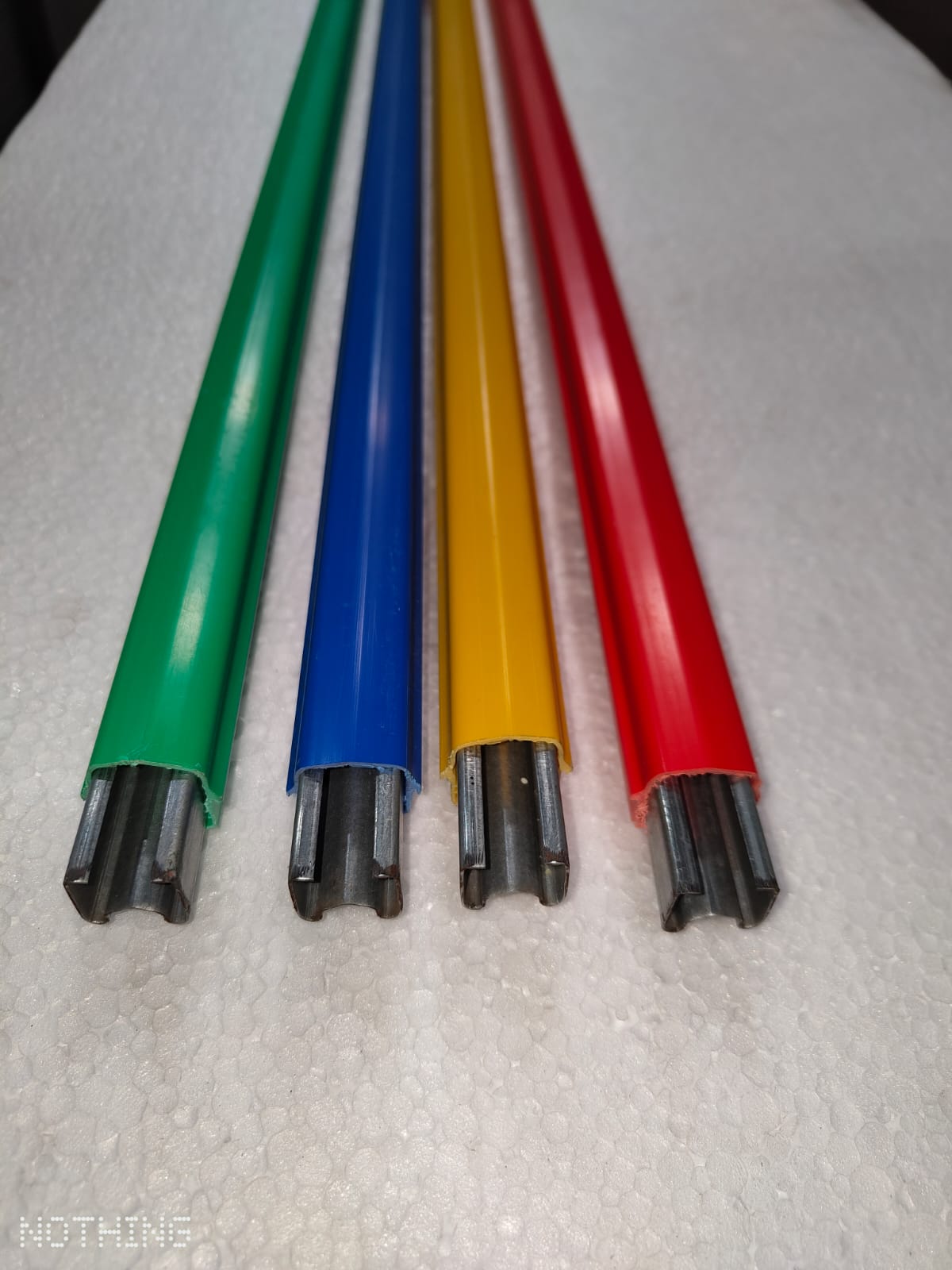

Safelink W DSL Busbar Speciality

SafeLink W DSL busbars are unique because the profile of this busbar is very effective at dissipating heat. This profile is designed to have a large surface area to lose heat by convection method. It comes insulated from start to finish which prevents anyone from touching live sections of the busbar. It is extremely easy to install with the help of standard tools .

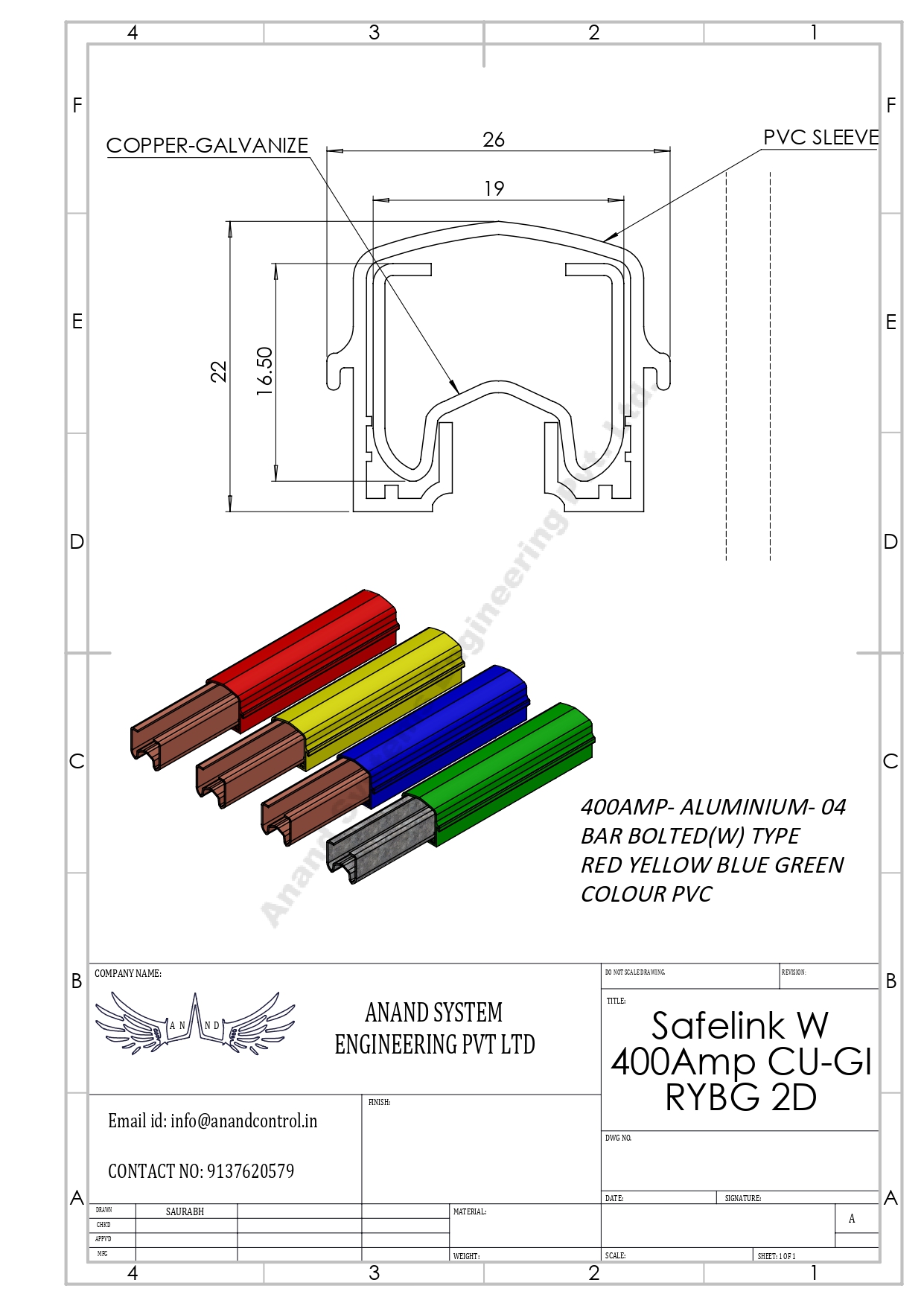

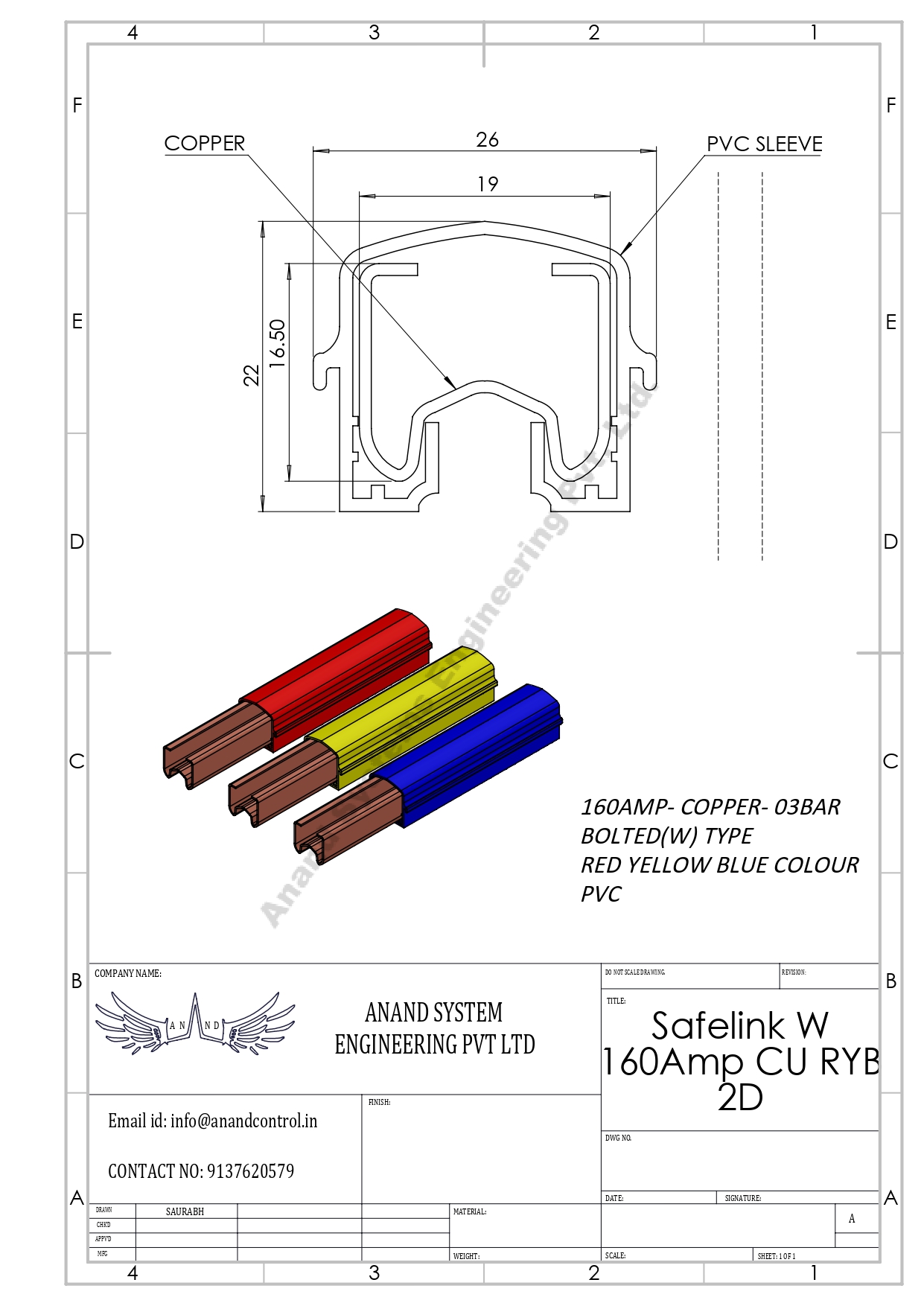

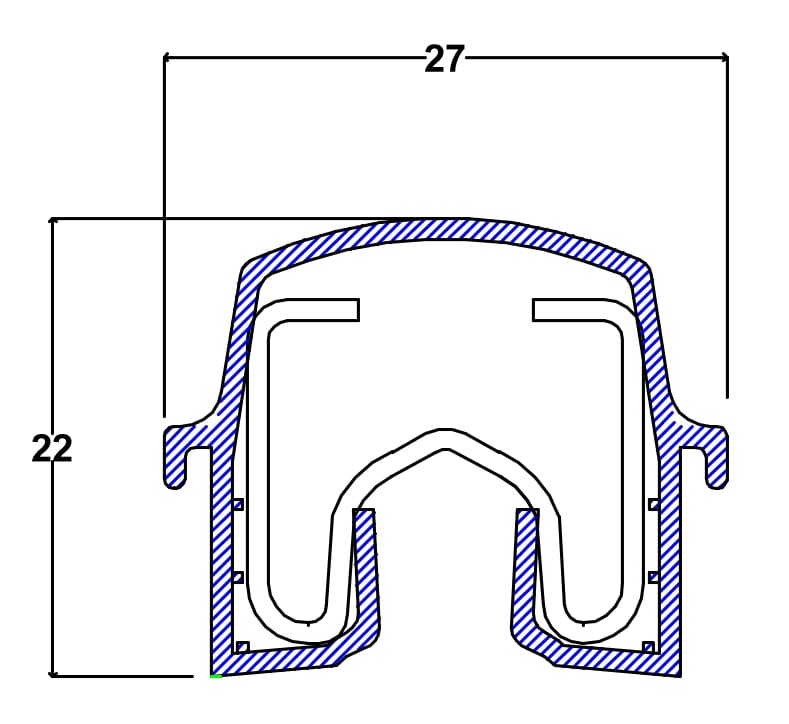

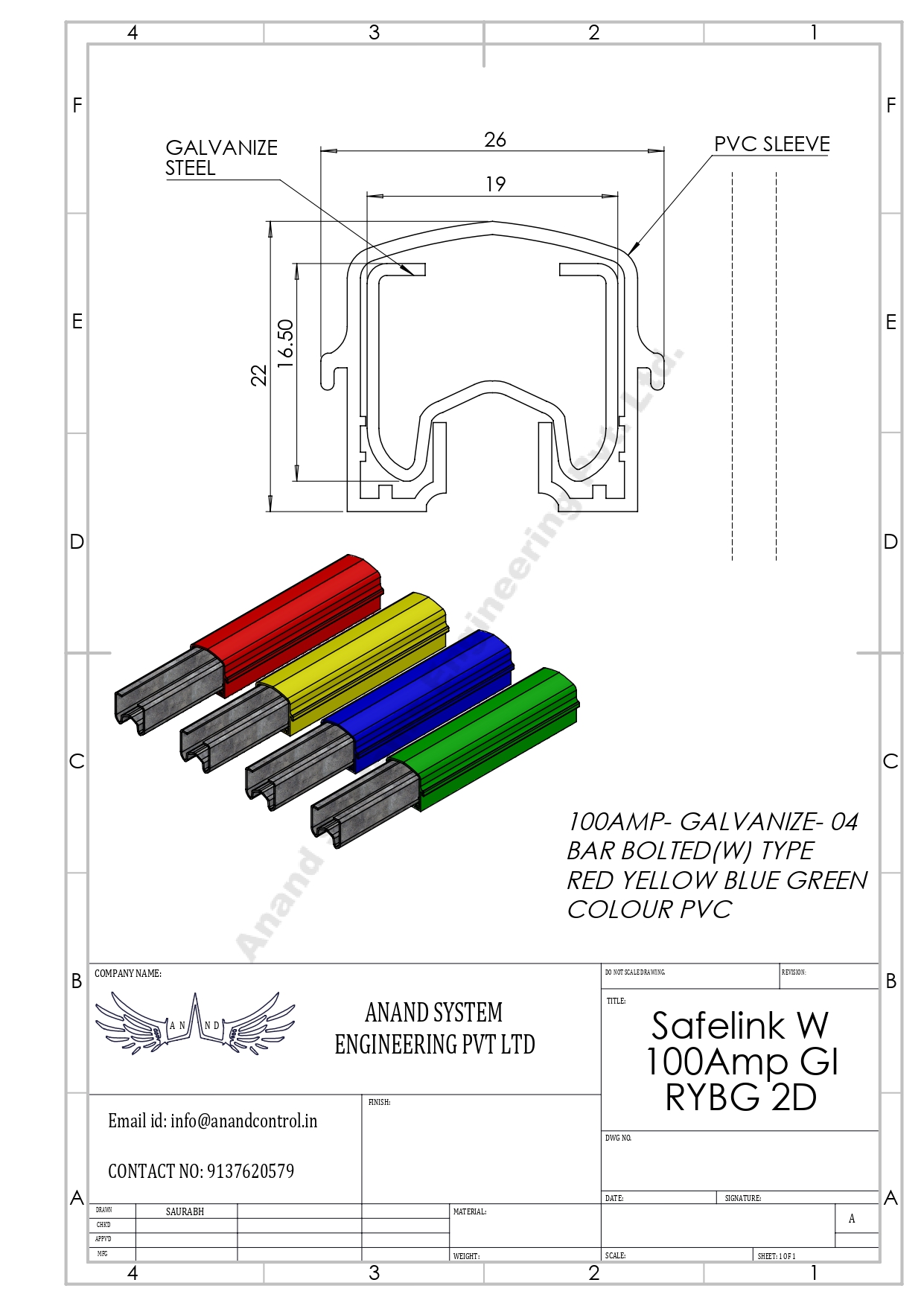

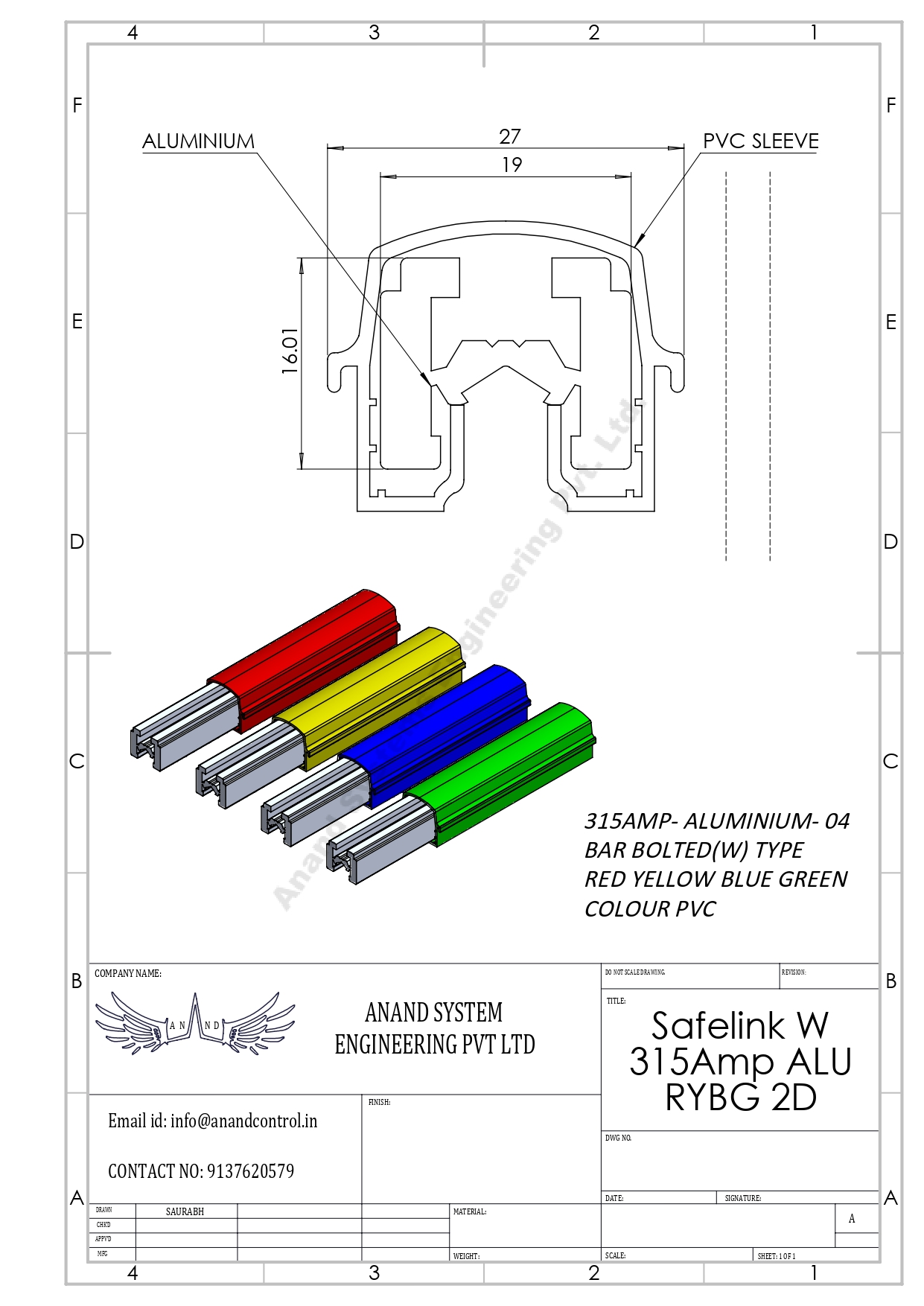

Safelink W 2D Profile Dimensions Safelink W busbar Single Pole

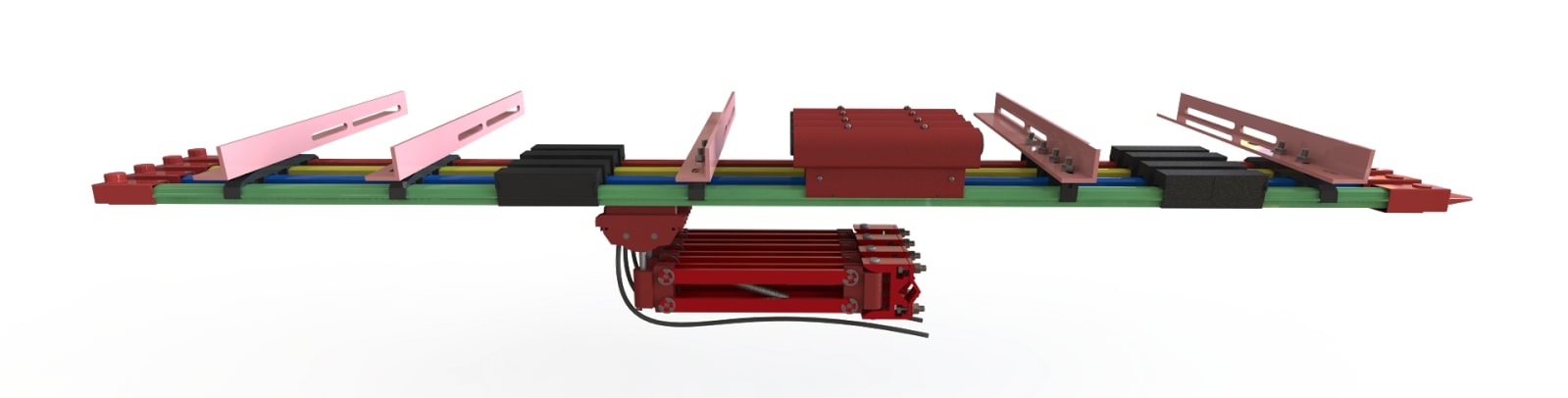

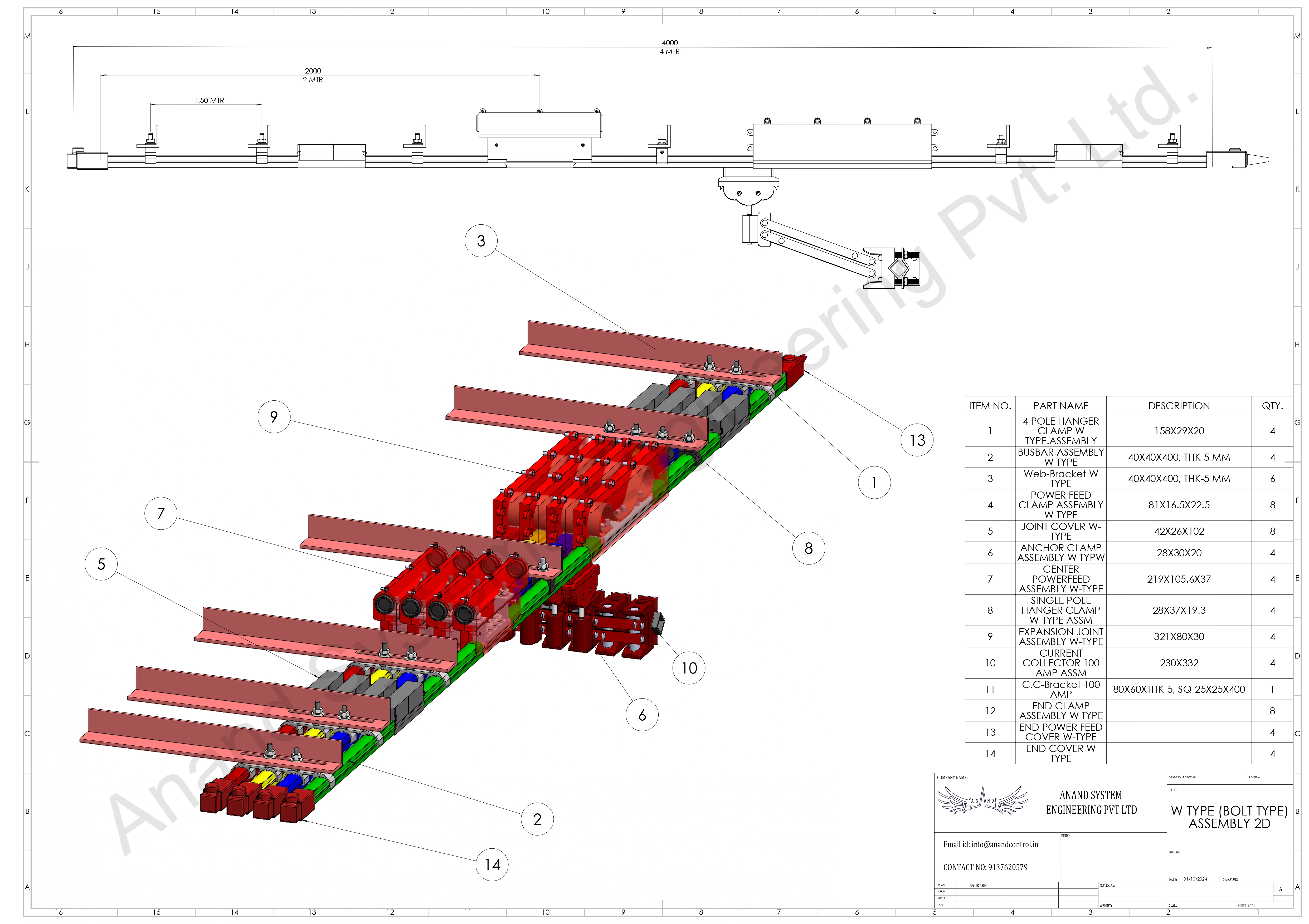

System Arrangement Drawing of Safelink W busbars

Safelink W busbar 2 Dimensional picture

Benifits of the Safelink W DSL Busbar

Safelink W busbar 2 Dimensional picture

SafeLink W DSL busbars can be installed for a long time without needing any maintenance. It is designed for cranes moving at high speed in the long travel or the cross travel direction.Due to the bolt type joints, Assembly time is less which reduces installation costs.Its insulated cover does not let water and dust to accumulate. It can also be easily expanded upto the factory requirement.Usually factories installing uninsulated angle iron busbars face issue of shock hazard.Angle Iron busbars suffer from dust and water issues. Iron busbars are not easy to install or maintain. Iron busbars also generate a lot of heat due to which the cost of electricity is very high. Safelink W busbars are IP 21 Protected, can be maintained in a very safe and reliable manner. They don’t generate as much heat as Angle Iron busbars due to the shape of the profile and hence,cost of electricity is low .

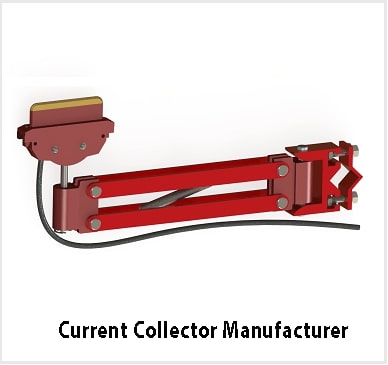

Current Collectors Specifications

Safelink M busbar 2 Dimensional picture

Features

Insulated Conductors

  • Safelink W DSL busbars are touch proof
  • No exposed live parts to human contact.
  • Protected from vertically falling water and dust.

Quick & Easy Installation

Easy Installation helps in reducing installation cost which reduces overall costs of the DSL busbar.

  • Safelink DSL busbars are installed with single bolt, 4 Pole Hanger.

Each Safelink W DSL busbar come in 4 Meters Bar Length.

The time has come to bring those ideas and plans to life.

  • This helps in installing short or long systems.
  • All joints are provided with Joint Covers.

No need of Expansion Joints up to 150 Meters long System.

This reduces overall cost of ownership and less number of joints .

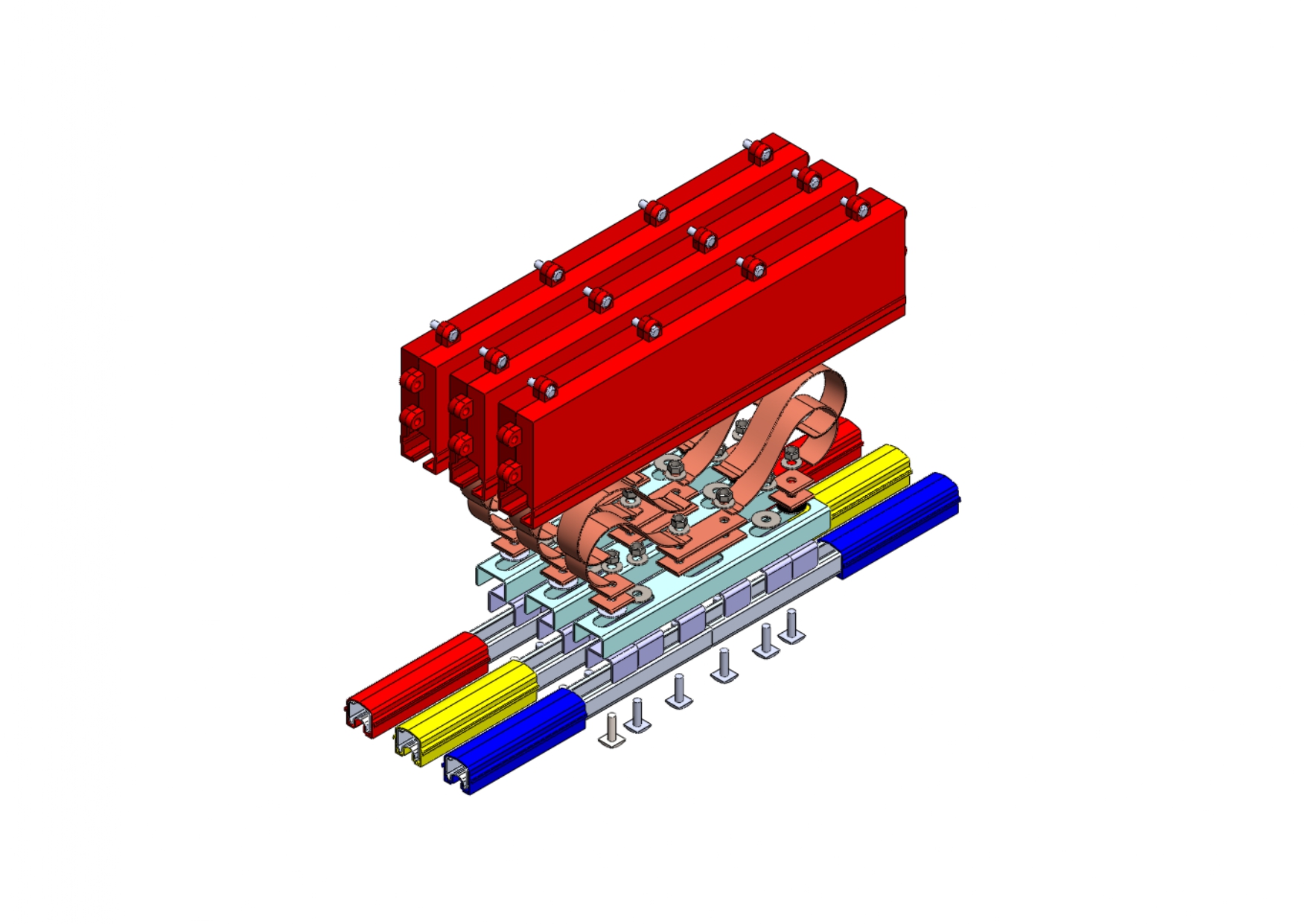

Busbar Expansion Joint

Due to the use of a spring , enough force is provided to the shoes of the current collector

Helps in properly contact the underside of the busbar even if the current collector shoes wear out over time.

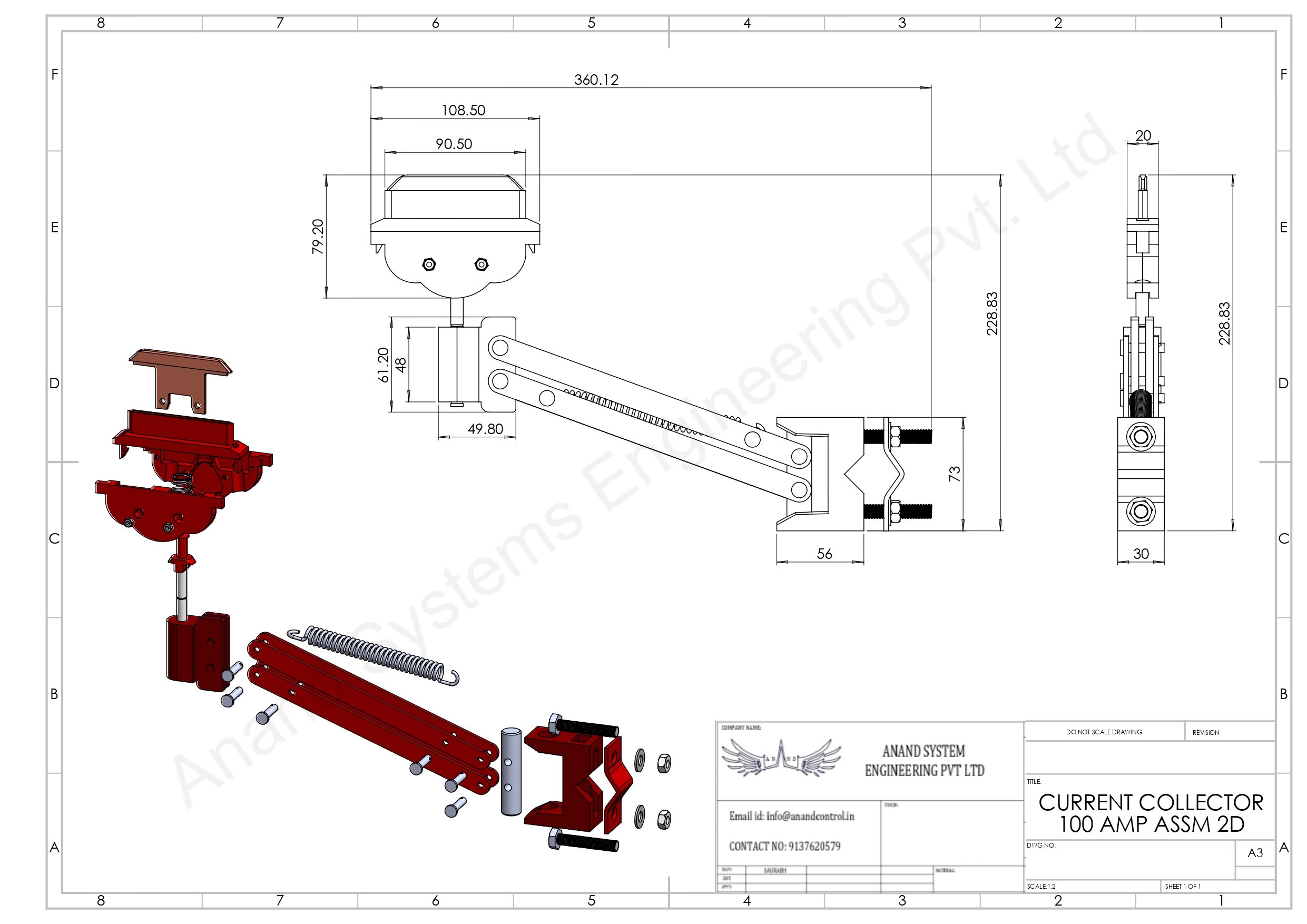

Current Collector of DSL Conductor bar

Safelink W DSL busbars can be easily modified by adding or removing more busbar sections .

The time has come to bring those ideas and plans to life.

  • They can be easily installed on any structure or wall.
  • They can also be easily moved from one installation location to another.

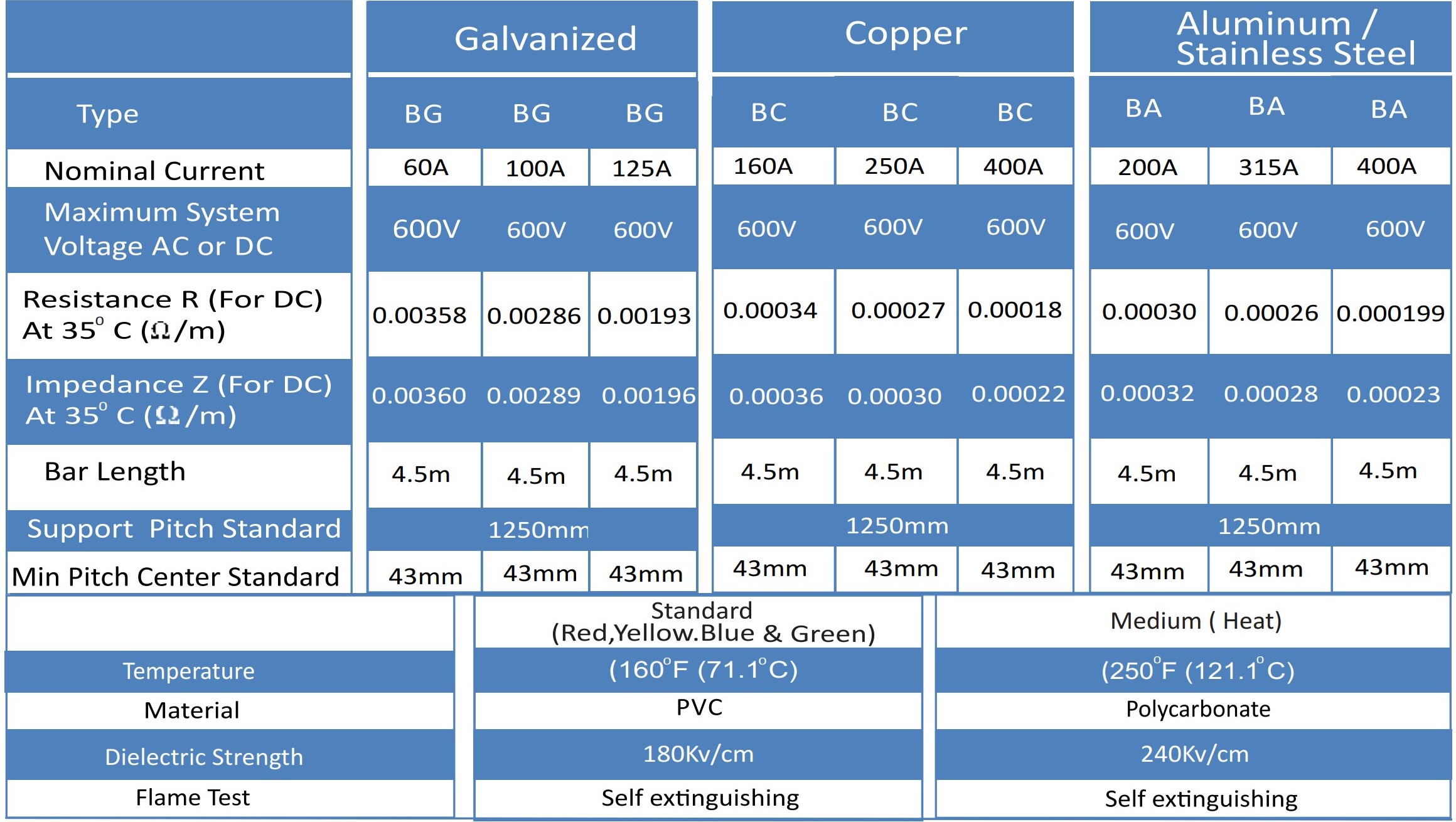

Safelink W Shrouded DSL Busbar Technical Data Specifications

Safelink w specifications

Applications of Shrouded DSL Busbar

Safelink W Applications

EOT Cranes

Electric Hoists

Straight Curved Monorail Hoists

Conveyors

Amusement Rides

Electric Trolleys

Image Description
Image Description

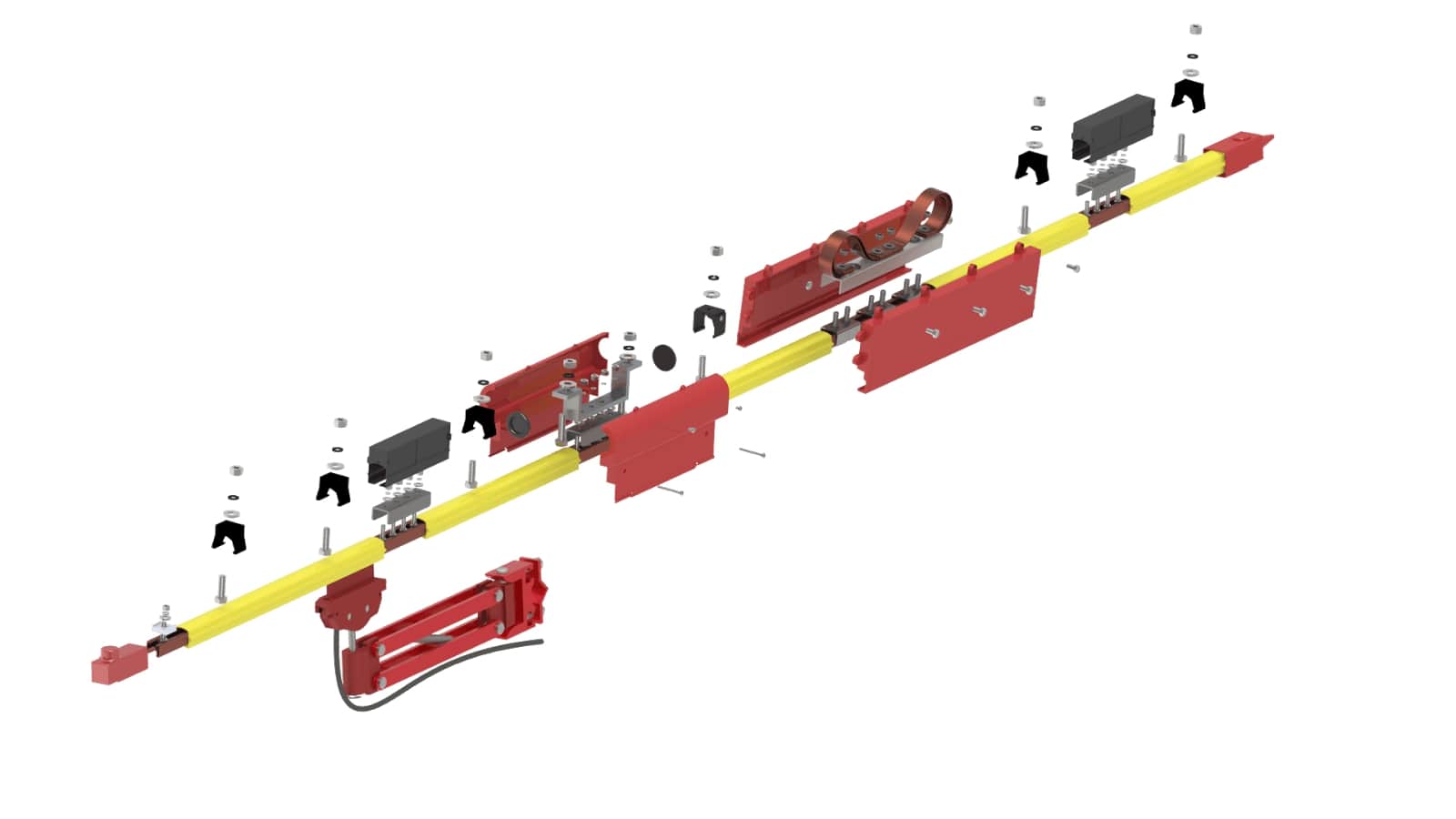

Accessories Required

Accesories of pin joint busbar

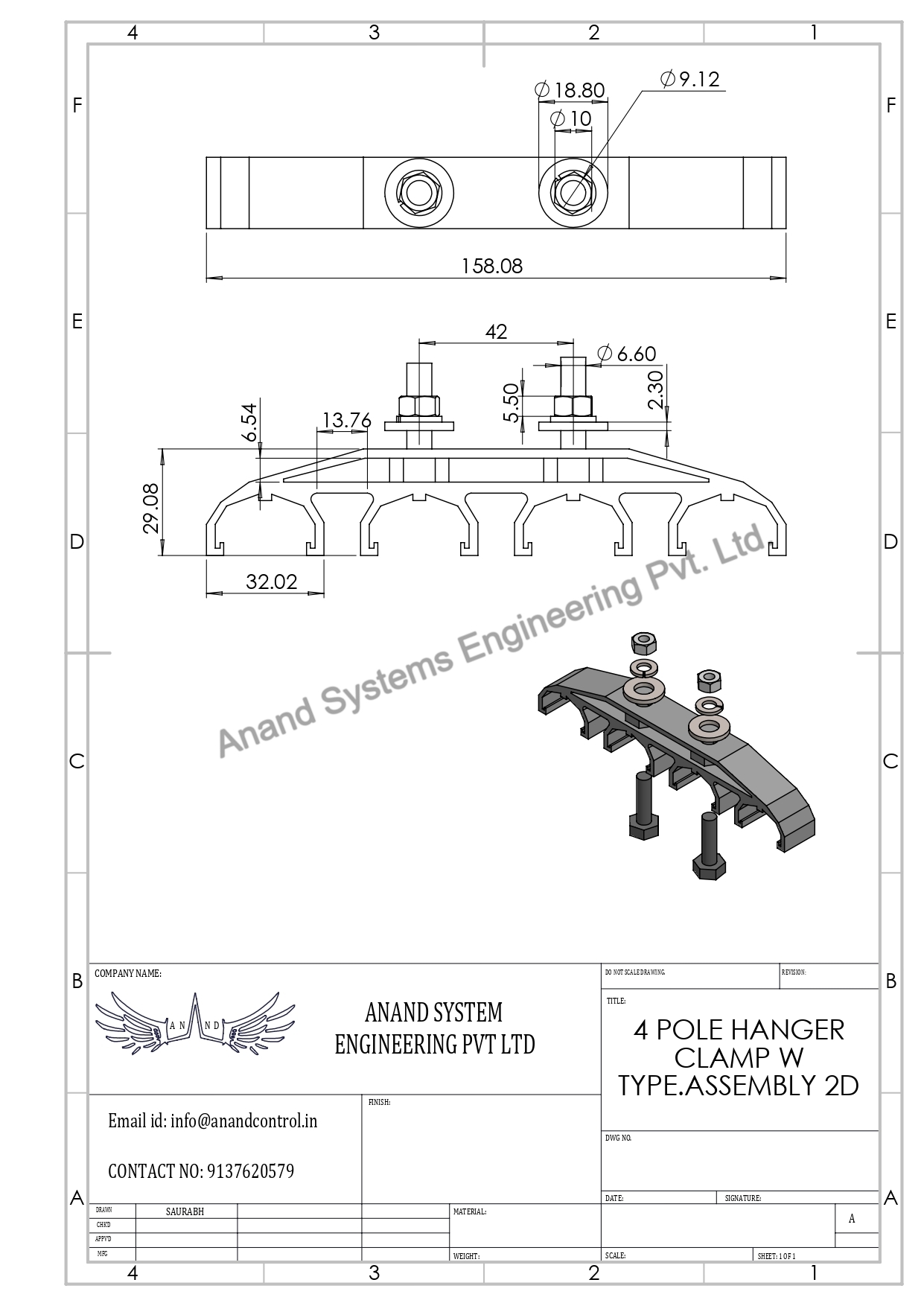

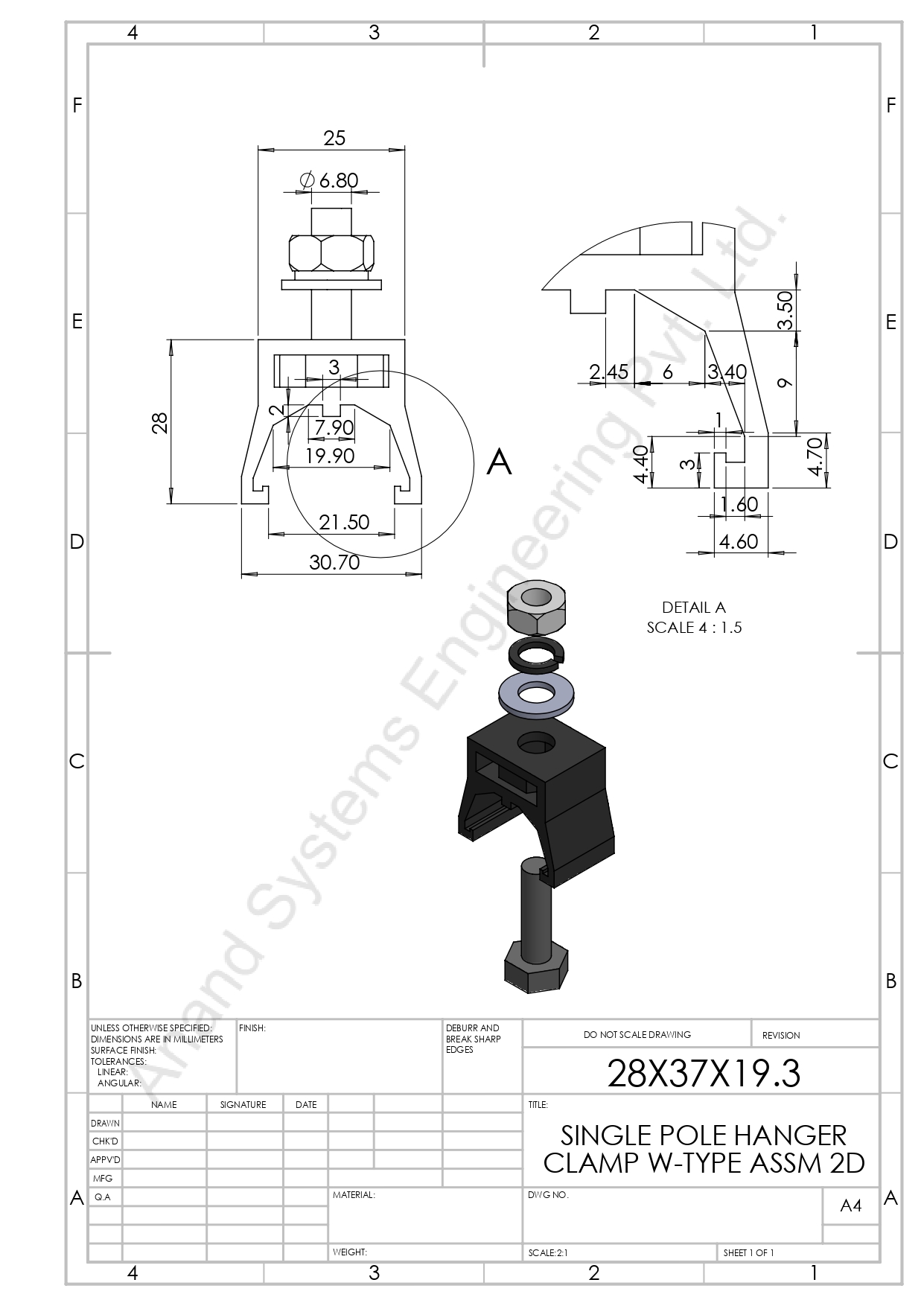

Hanger Clamp

4 Pole,3 Pole,1 Pole

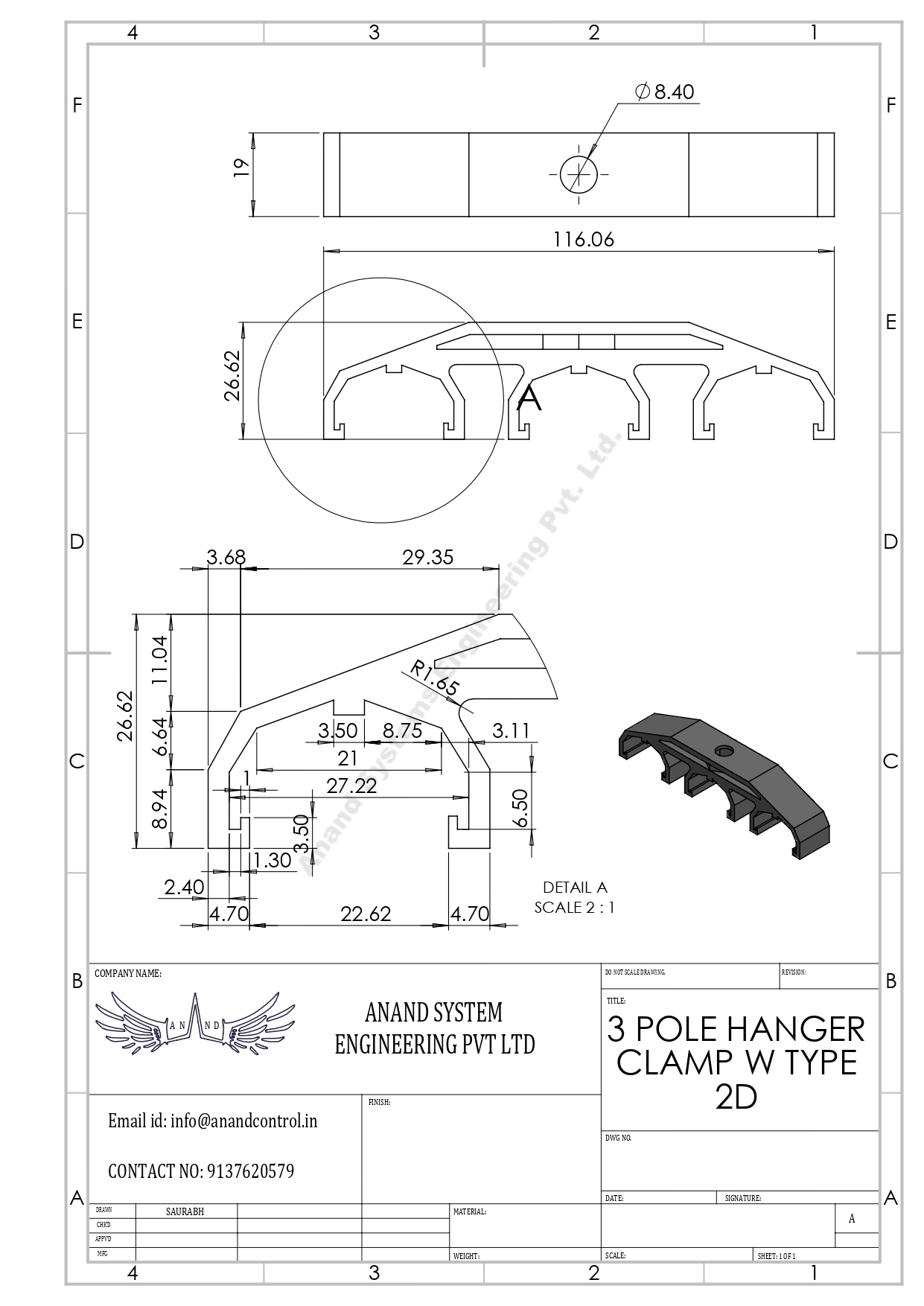

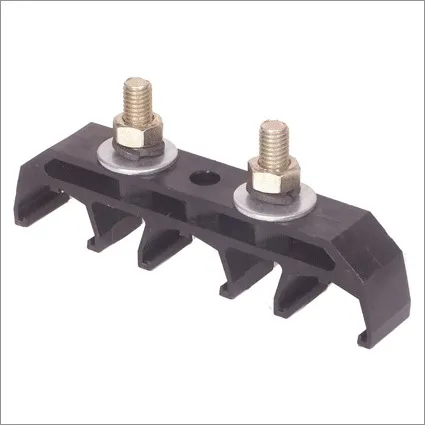

3 Pole Hangar Clamp

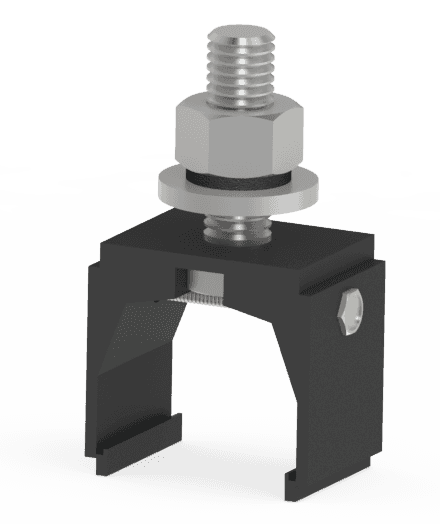

Anchor Clamp

Anchor Clamp

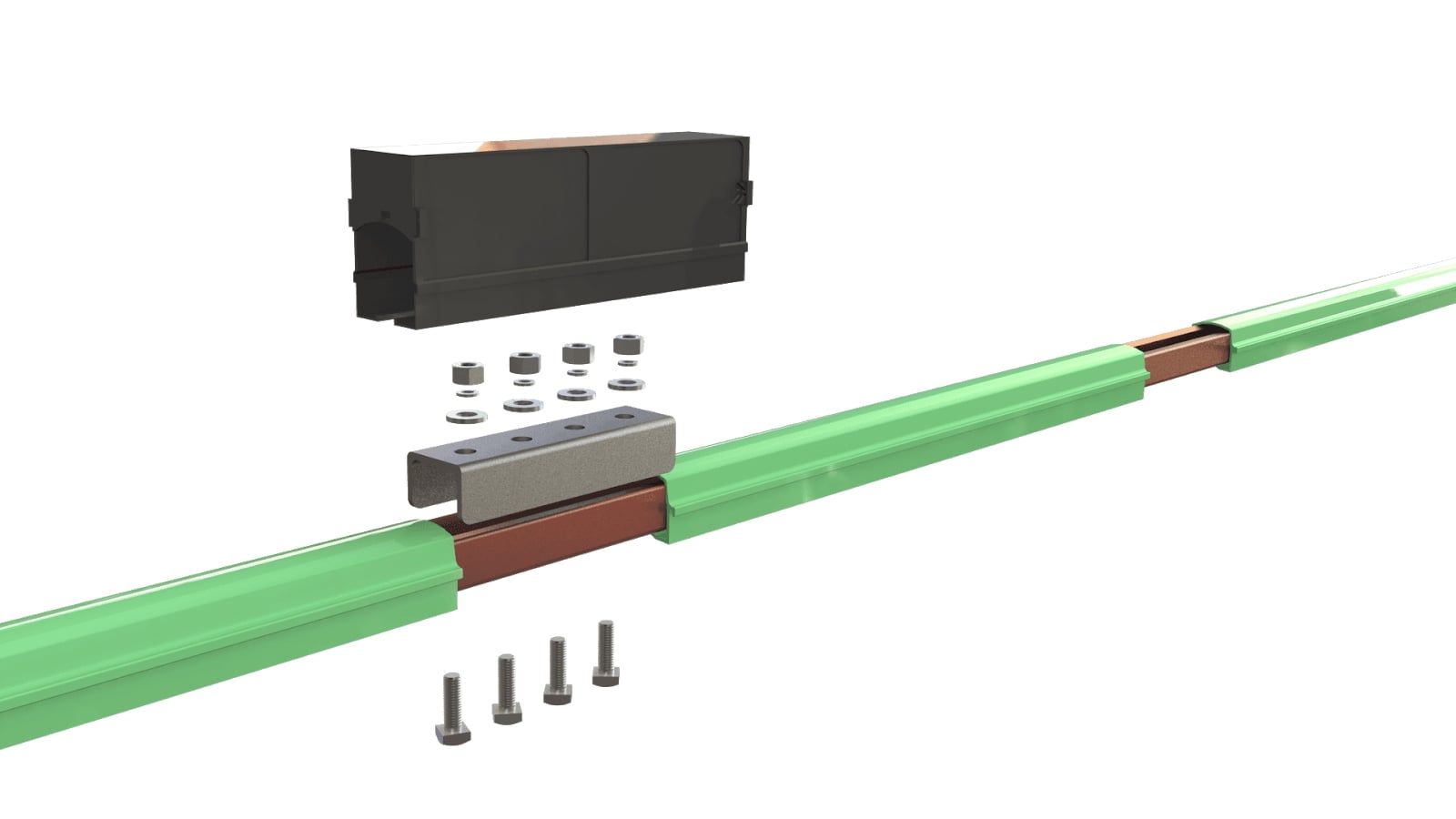

Joint Cover

4 Pole,3 Pole,1 Pole

Joint Cover

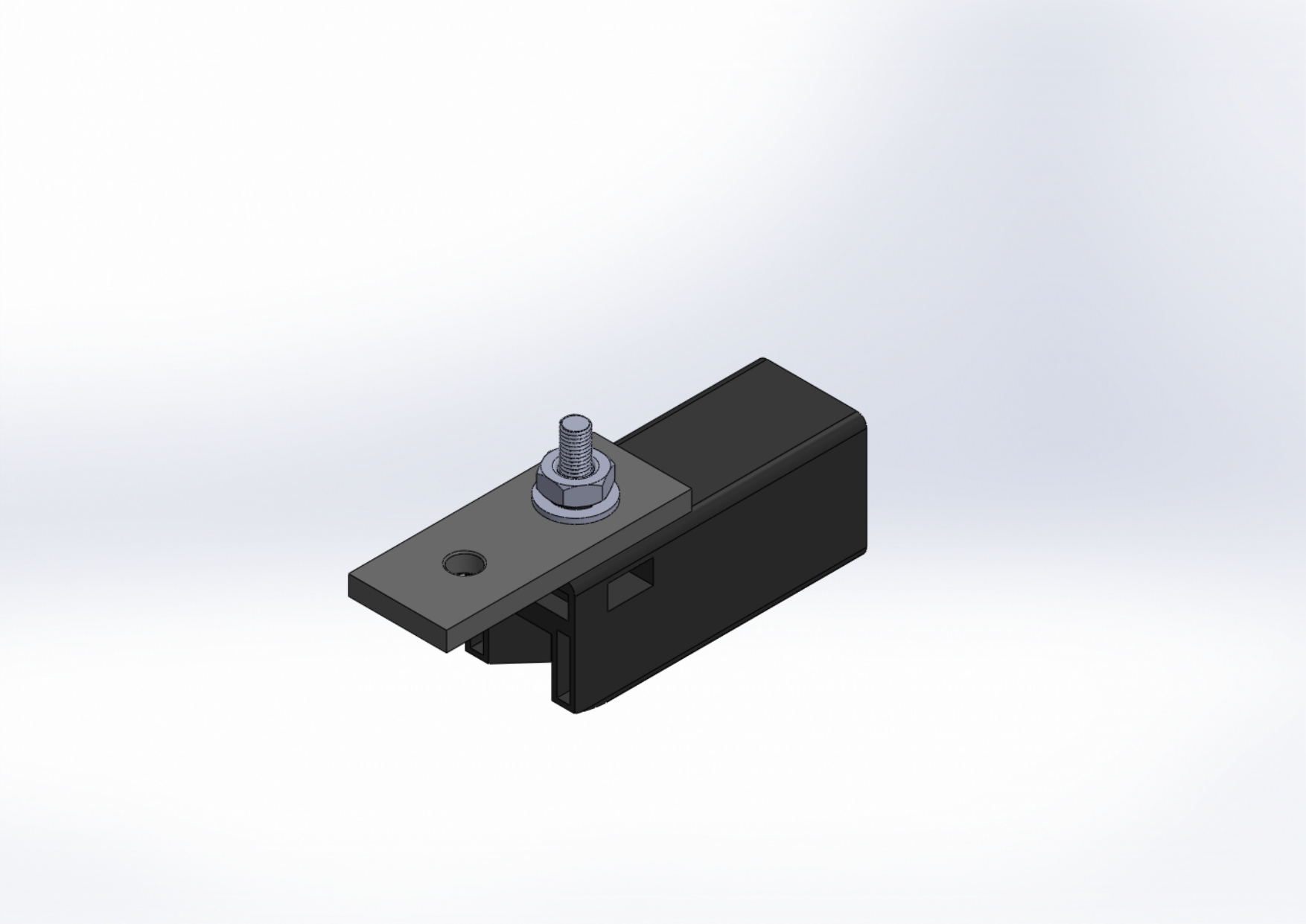

End Cover

End Cover

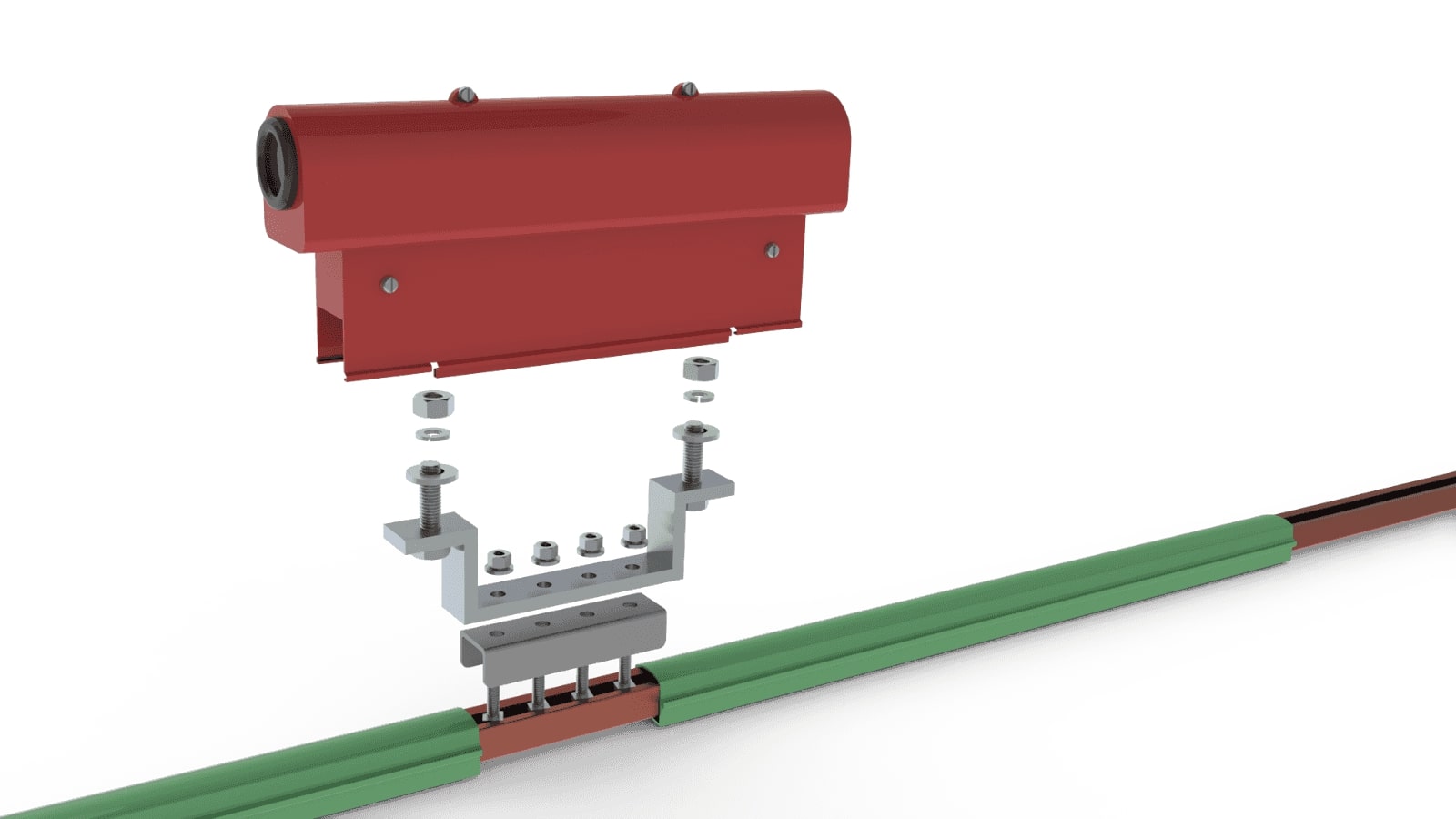

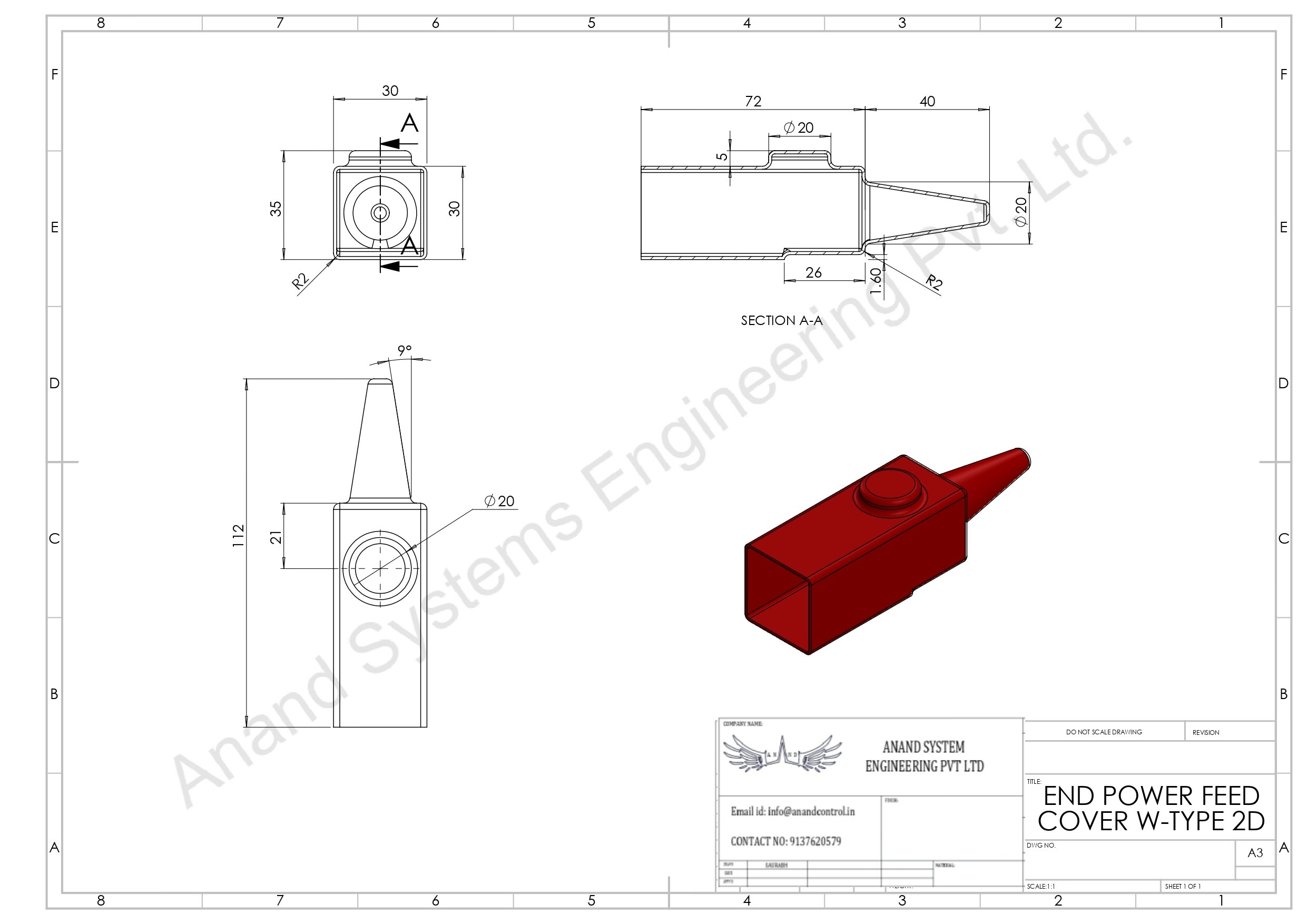

End,Centre Power Feed

4 Pole,3 Pole,1 Pole

Accesories of pin joint busbar

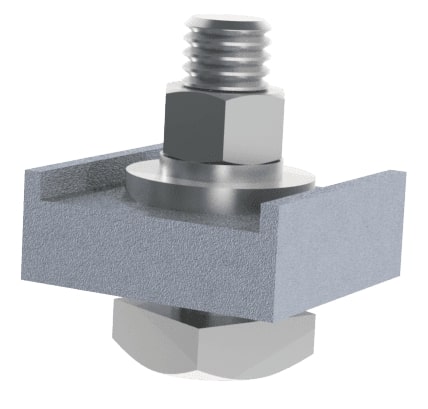

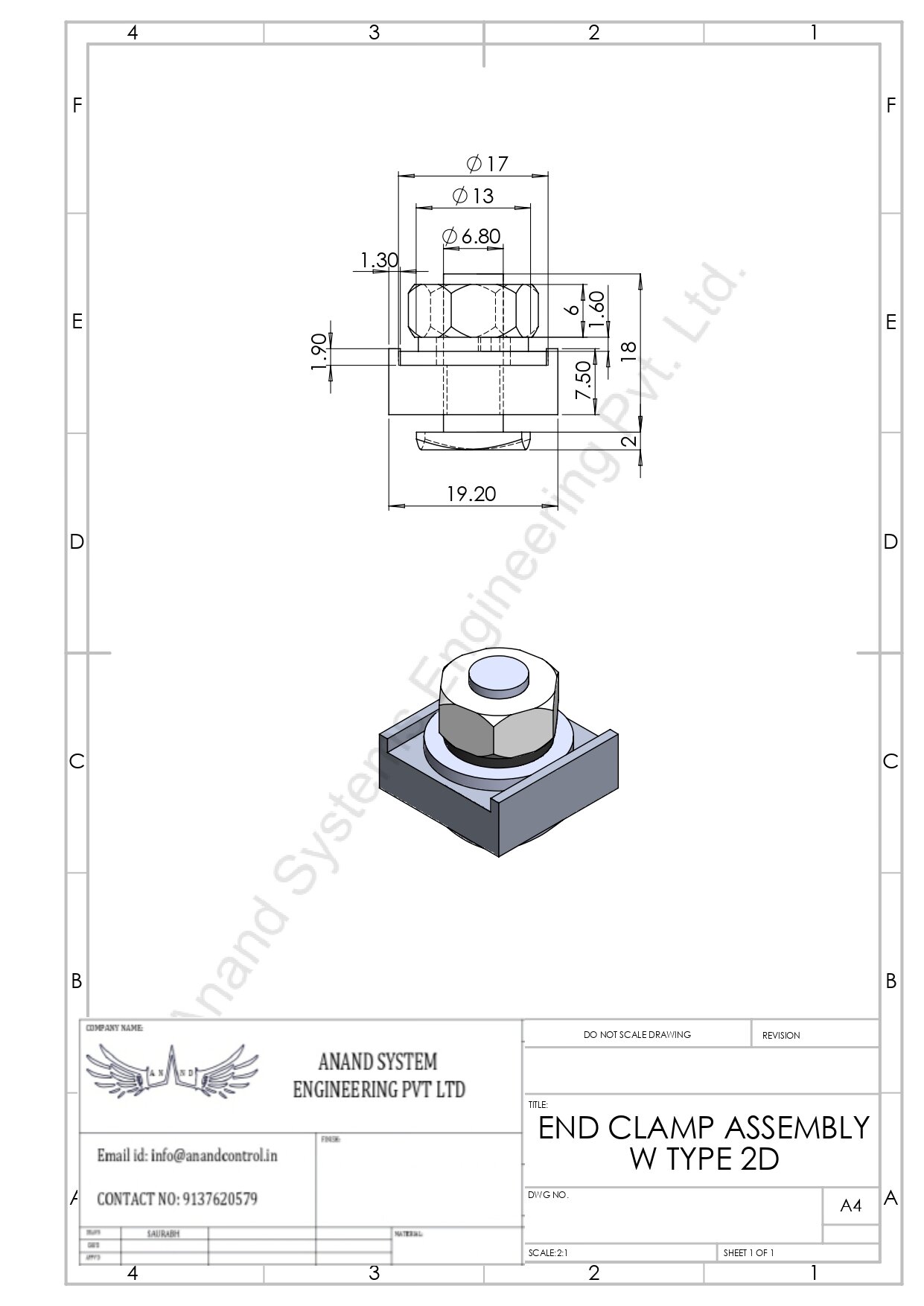

END Clamp

End Clamp

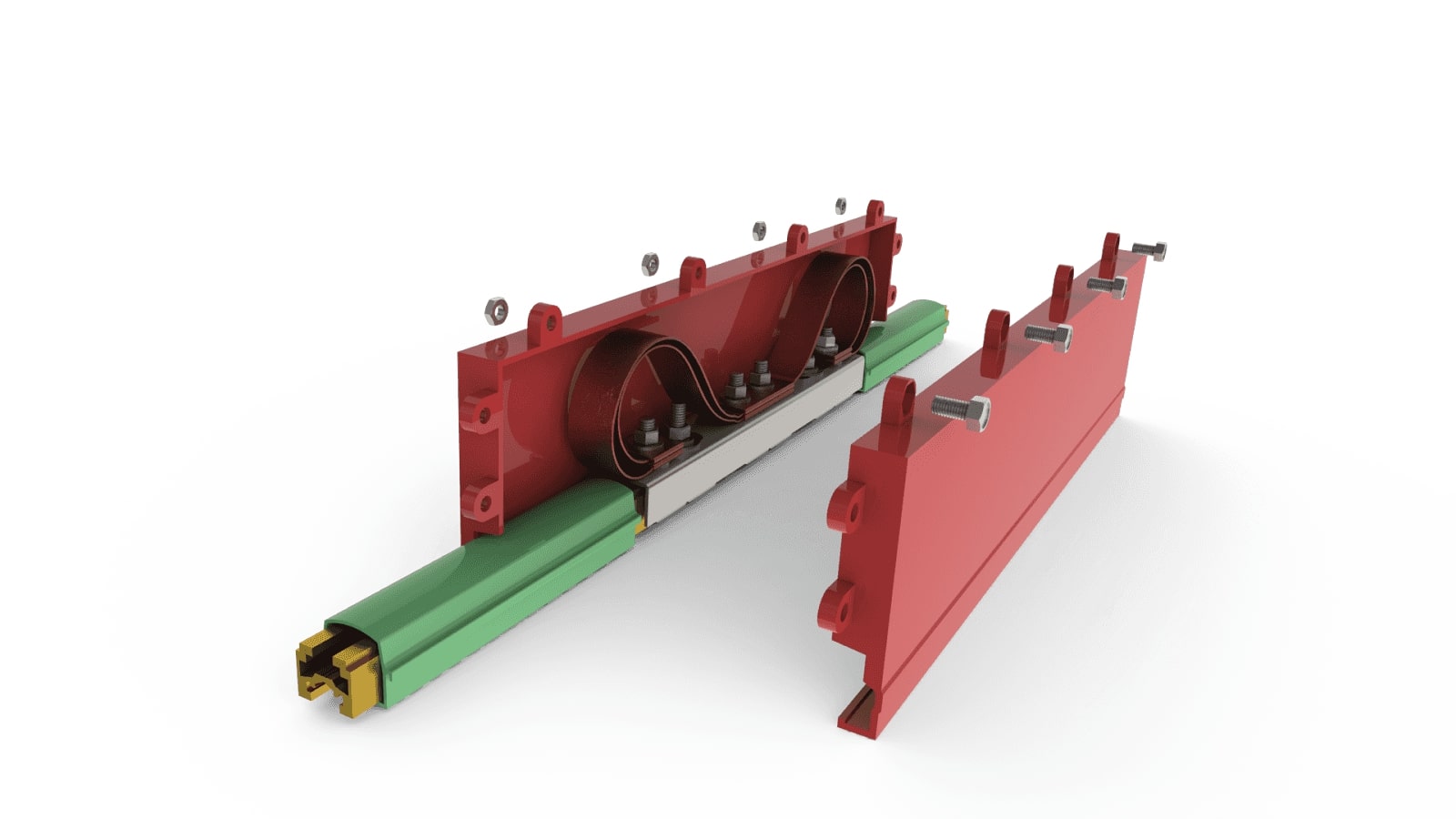

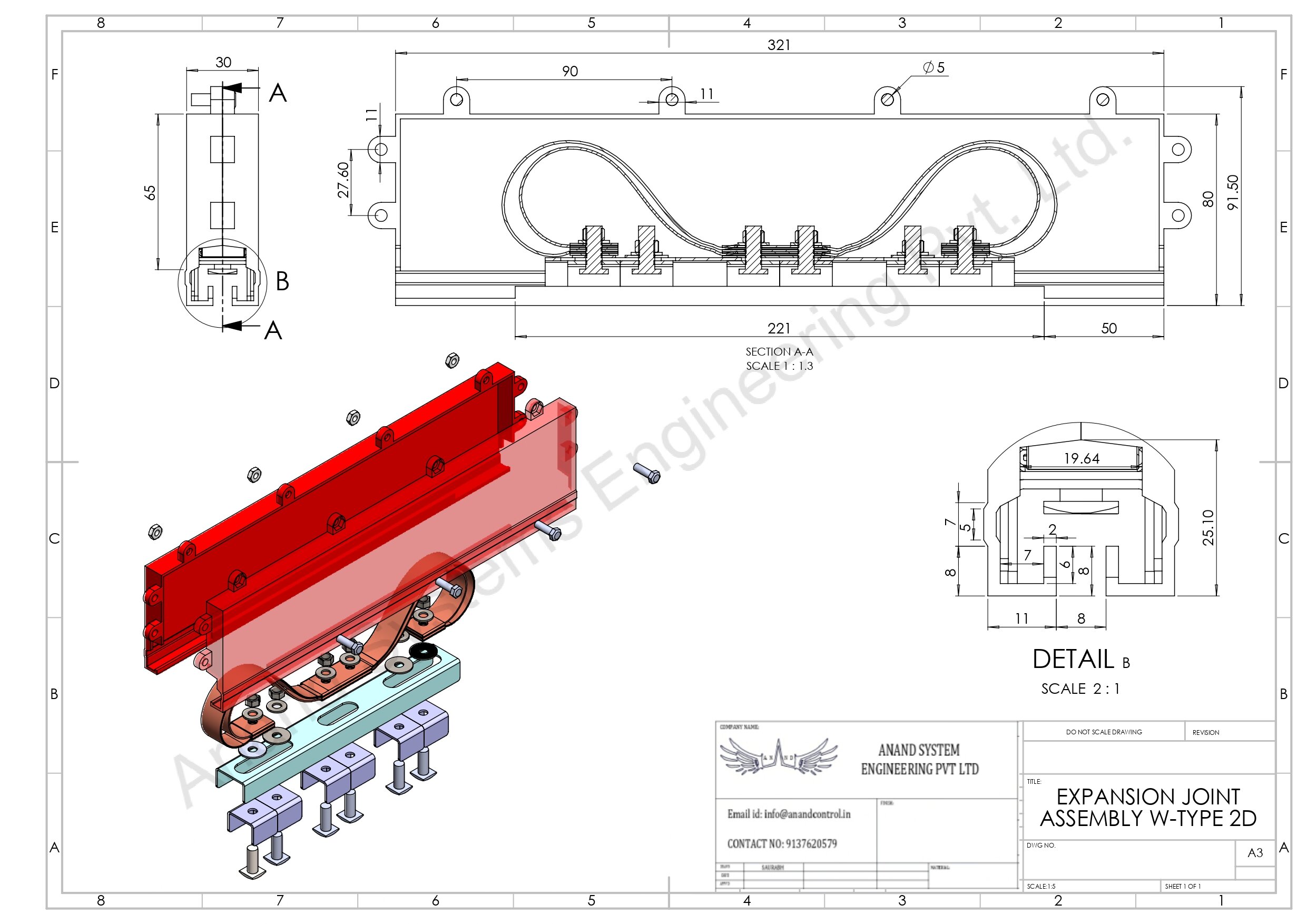

Expansion Section

Expansion Section

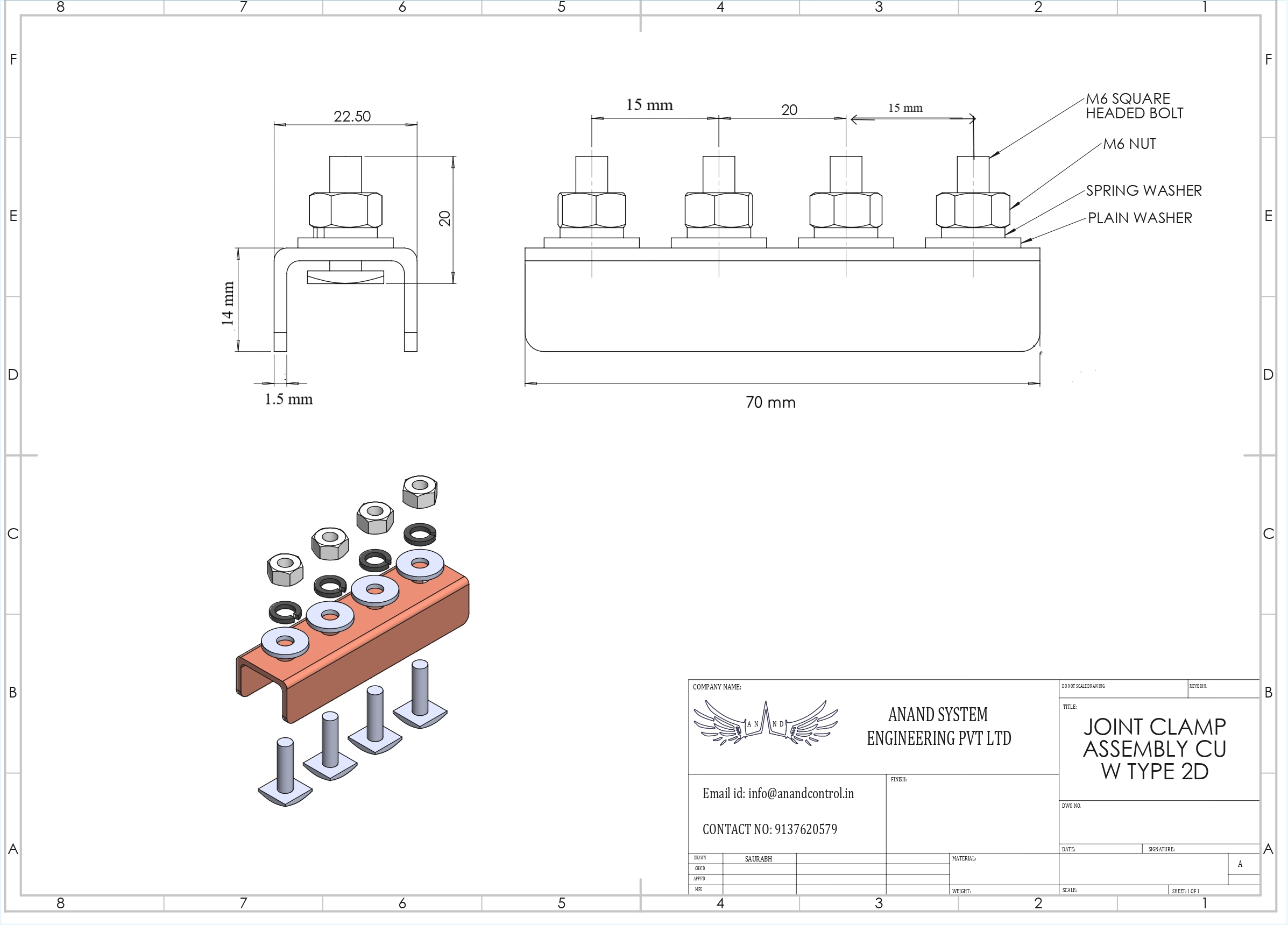

Joint Clamp

Joint Clamp

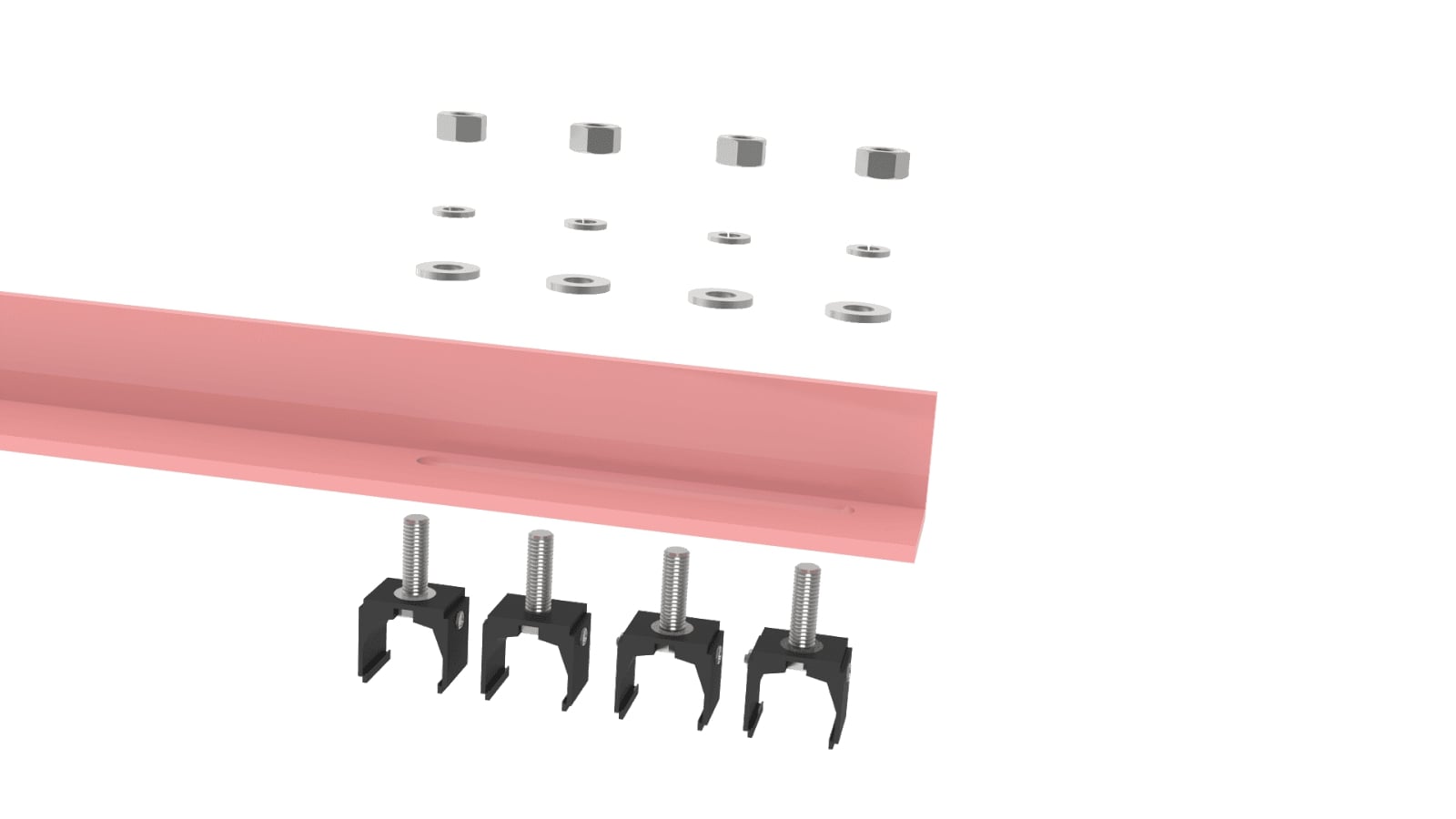

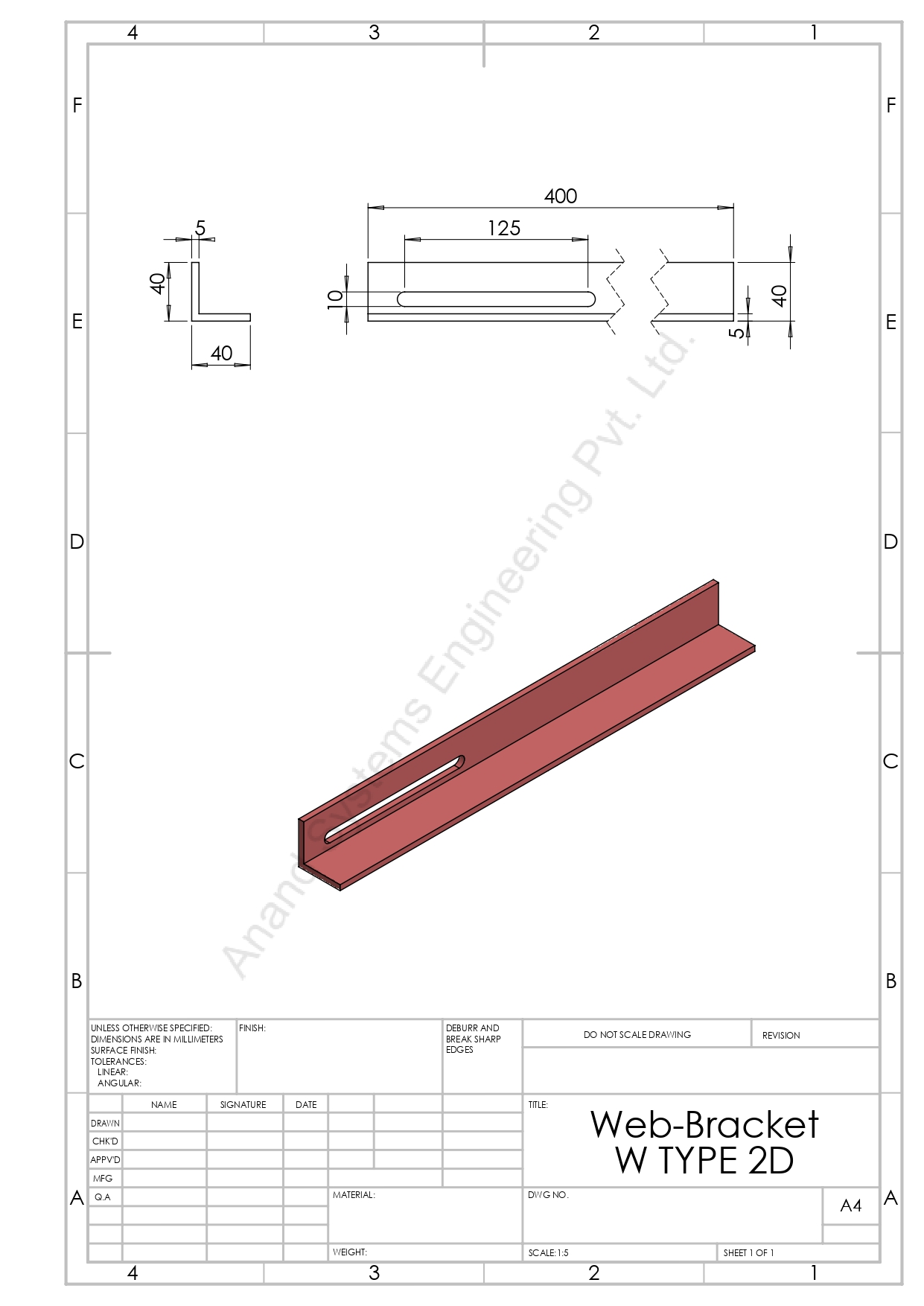

MS Web Bracket

Mild Steel Web Bracket
