SafelinkW 60Amp GI RYBG
Introduction
Model Name: SLW-60-RYBG-GI

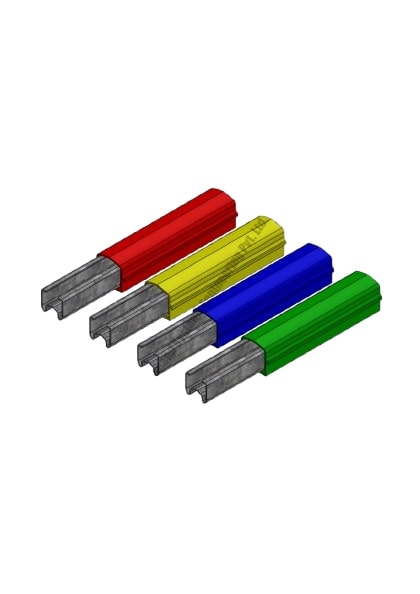

The safelinkW 60amp GI RYBG is type of DSL busbar system designed for Electric Overhead Traveling (EOT) cranes.
Working Principle of SafelinkW 60Amp GI RYBG
SafeLink W Bolt Joint DSL busbar makes it easy to deliver 3 phase power to Electric Overhead EOT Cranes. Factories can transfer from 60 Amperes to 400 Ampere Current ,depending on the energy required by the crane machinery.
SafeLink W DSL busbars are unique because the profile of this DSL busbar is very effective at dissipating heat. This profile is designed to have a large surface area to lose heat by convection method. It comes insulated from start to finish which prevents anyone from touching live sections of the DSL busbar. It is extremely easy to install with the help of standard tools .
Key Features of SafelinkW 60Amp GI RYBG
Heat Dissipation
The unique profile design allows for efficient heat dissipation.
Safety
It comes fully insulated, preventing accidental contact with live Sections.
Ease of Installation
The bolt joint design simplifies the installation process using Standard tools.

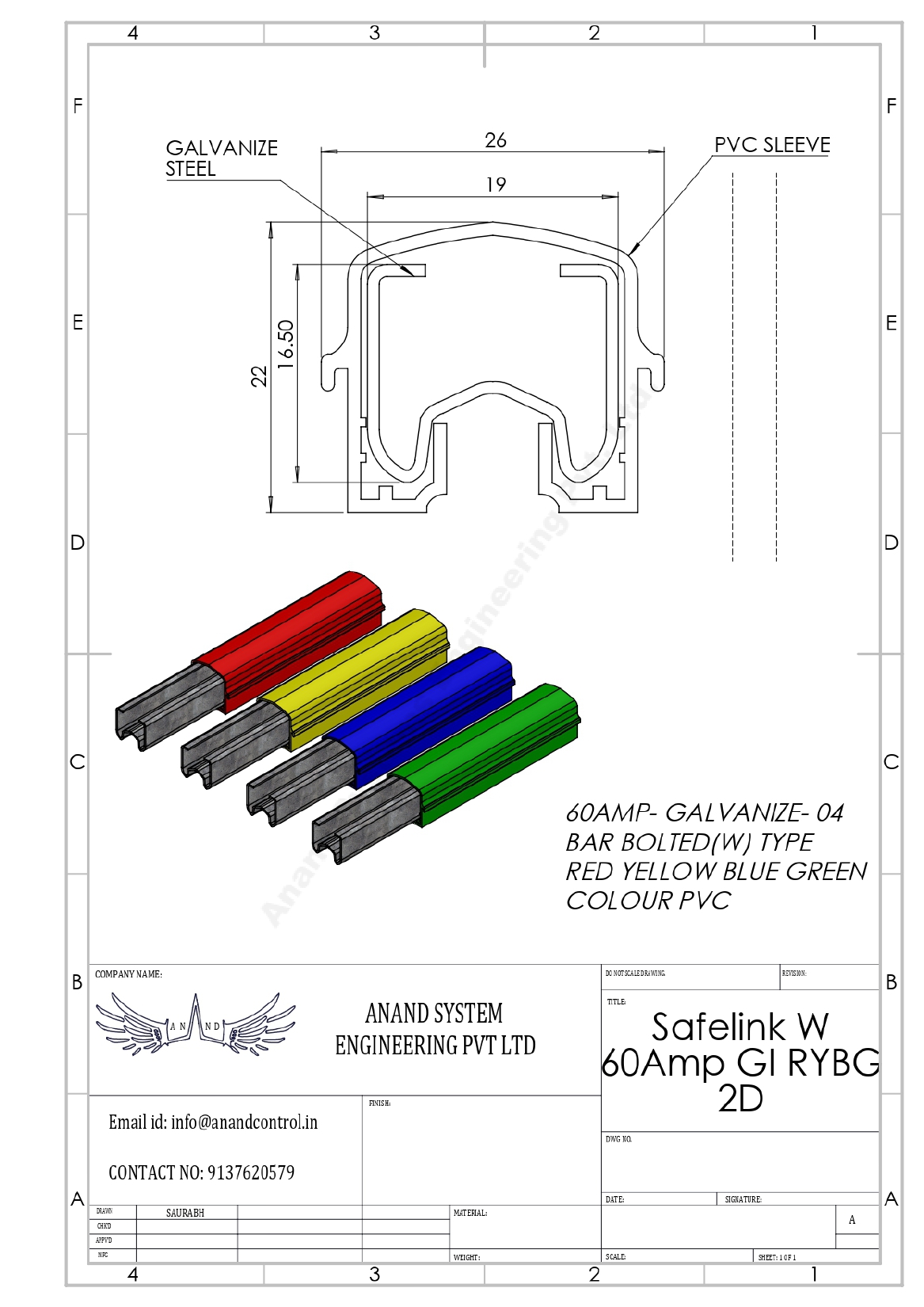

Safelink W Shrouded DSL Busbar Technical Data Specifications
| NominalCurrent | 60A |
|---|---|
| CrossSectionalArea(sqmm) | 52.8 |
| DCResistanceOhms/M | 0.003584 |
| ImpedenceOhms/M | 0.003604 |
Warranty:
SafelinkW 60Amp GI RYBG “1 years warranty” on
the date of Dispatch
Contact us:
Get in touch with us at 91376-20579, info@anandcontrol.in or visit our
website www.anandcontrol.in
