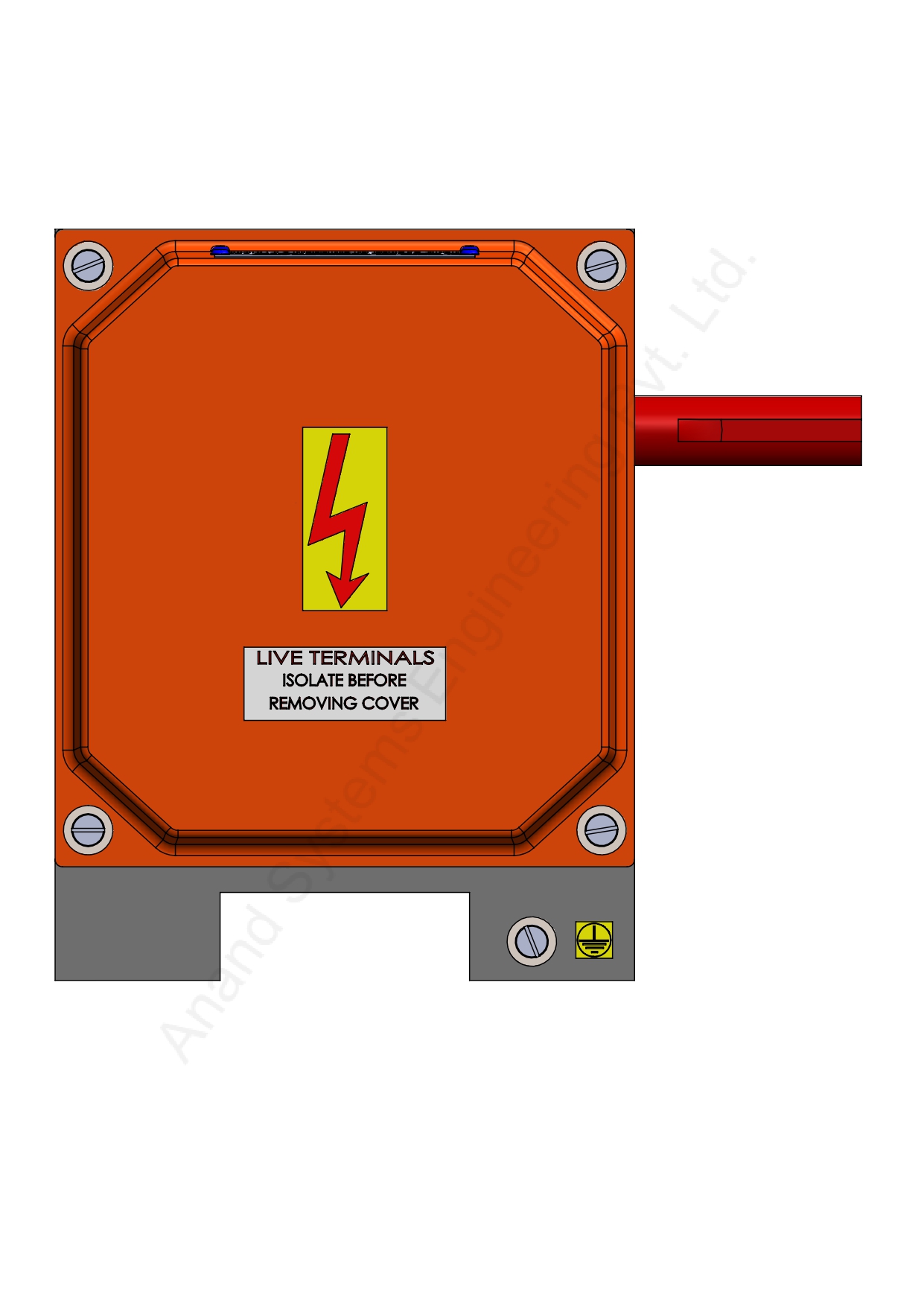

GRLS 48 Ratio 2C IP55

Introduction

Model Name: GRLS/48/SH/2/55
Rotary limit switches are directly attached to the gearbox of the motor with a shaft and a coupling. The coupling helps in relieving stress to the shaft of the limit switch in case of Misalignment . The movement of the gearbox rotates the shaft of the limit switch .









Schedule Technical Discussion

Rotary Limit Switch Working Principle

Working of GRLS 48 Ratio

Rotary Geared Limit Switch GRLS is used to trip motor supply when the moving loads reach the extreme end positions of working zone. The driving motion is transmitted by worm gear through worm shaft. The rotations and movements are transmitted to switches by adjustable cams.

Applications of Rotary Limit Switch

Rotary Limit Switches are used whenever you need to count the angle or number of rotations and stop a rotating piece of equipment when it reaches it rotating limit.

  • EOT Cranes

  • Electric Hoists

  • Gantry Cranes

  • Goliath Cranes

  • Mobile Cranes

  • Tower Cranes

Lever Limit Switch Working Principle

Technical Data :

Body Material Alluminium Die Cast(powder Coated)
protection Degree IP- 55 Confirming To is- 1394 (part) - 1993
Gear Ratio
48 : 1
60 : 1
96 : 1
Cable Entries Worm Drive
Cable Entries 2 x 3/4 Conduit
Contact Material Single / double Break Silver Cadmine
Rated Voltage Insulation 500 V.A.C.
Thermal Test Current 10 Amps. / 40Amps.
No. Of Contacts 2 NC Or 4 NC (2NO + 2NC)
Cam Setting Adjustable Worm Drive

Warranty:

GRLS 48 Ratio 2C IP55 “1 years warranty” on the date of Dispatch
