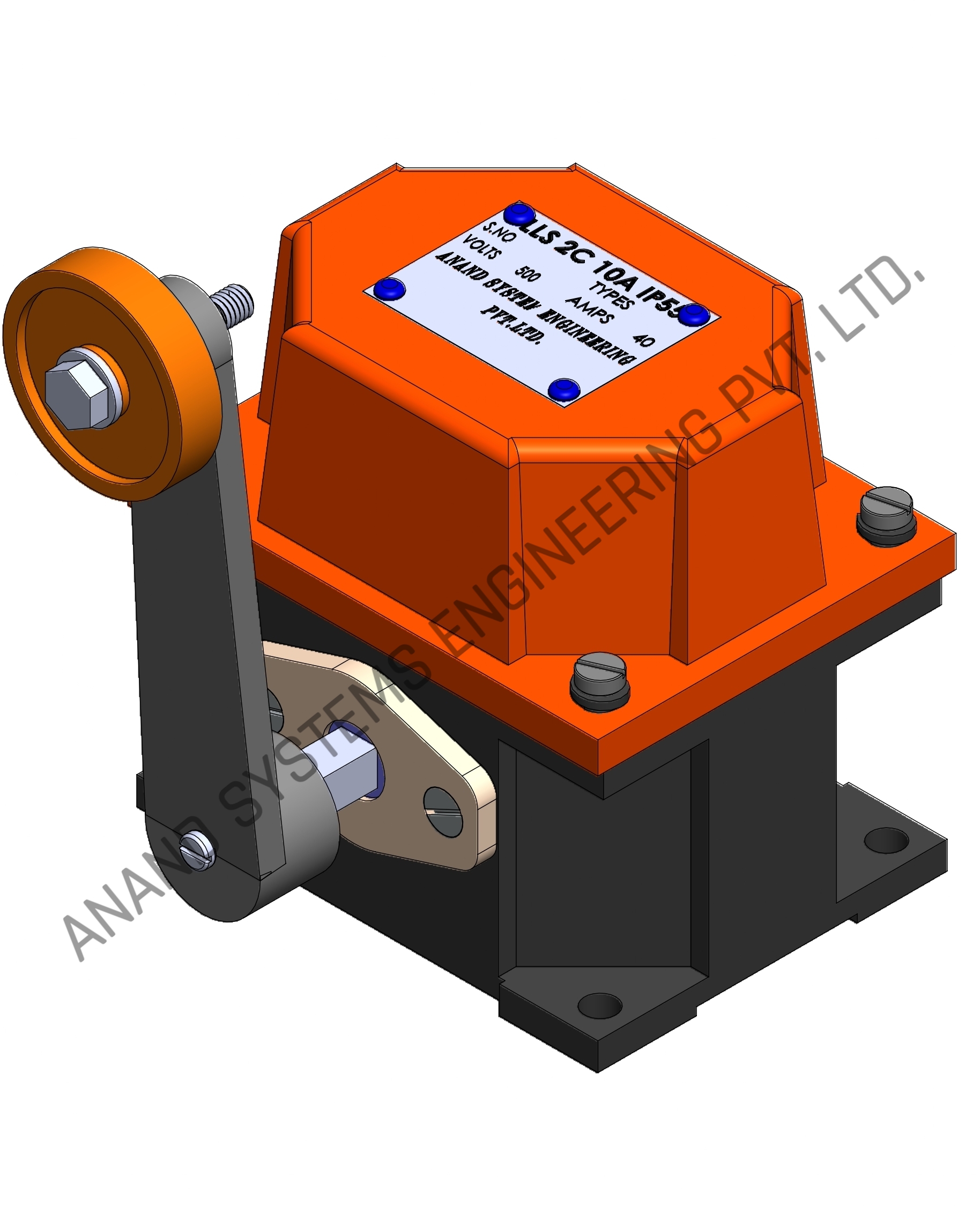

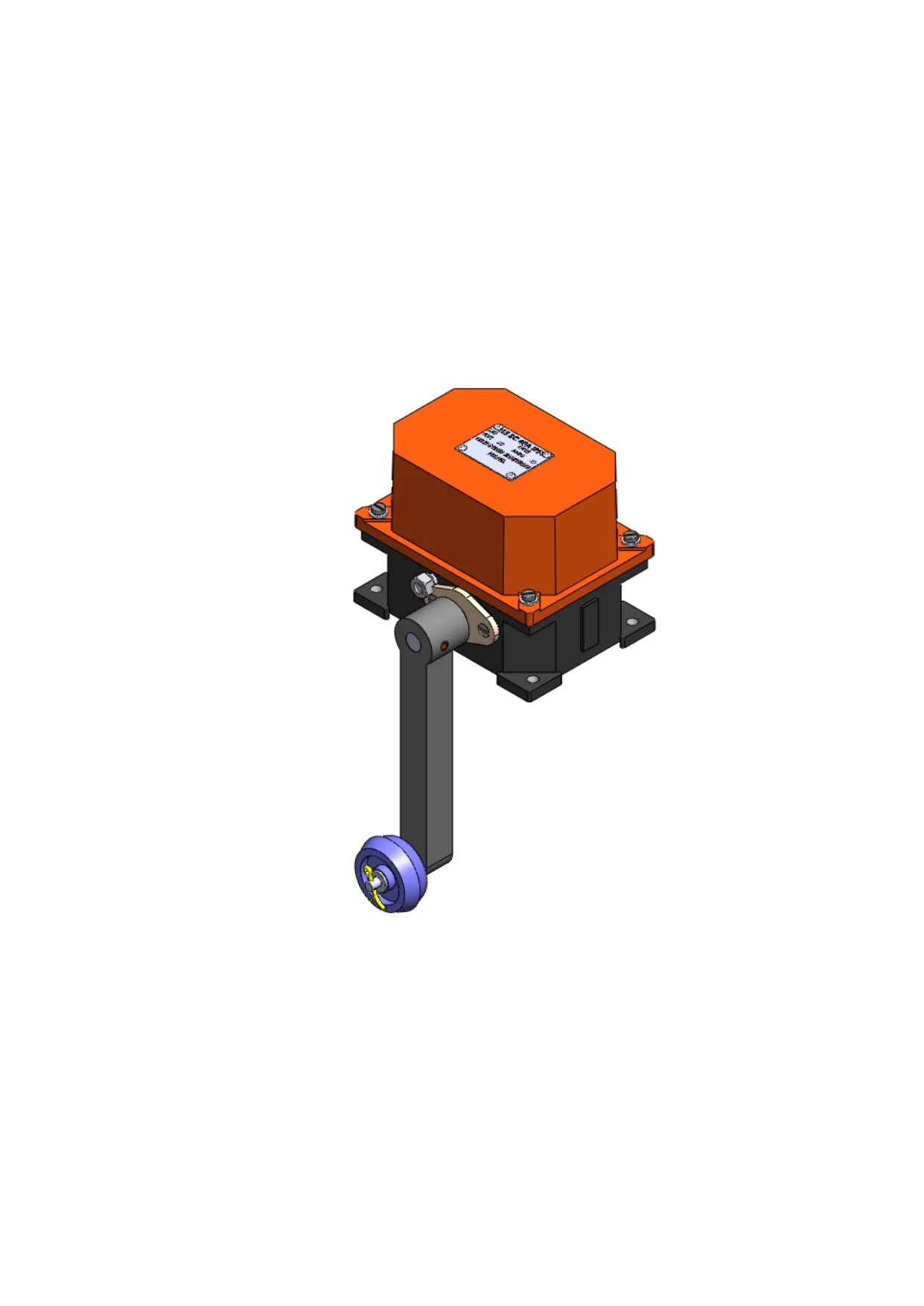

LEVER LIMIT SWITCH 2C 40A IP55
Introduction
A lever limit switch is an electromechanical device used to detect the presence or absence of an object, as position.
Call 9137620579 for Enquiry![Lever Limit Switch Working Principle](../../dist/assets/img/cranecontrolgear/limitswitch/lever_limit_switch2c_ 40_amp_ip-55_3d.jpg)
Working of lever limit switch
A lever type crane limit switch works on the principle of a lever attached to a rotating central shaft.When the moving machinery comes in contact with the lever, the central shaft of the lever rotates ,thereby rotating the coaxial cams which connect or disconnect the electrical contacts.
The rotation of the shaft can be spring returned to its stable normal position. The length of the lever type crane limit switch depends on the mounting position of the limit switch enclosure and the moving crane which needs to stop.
The Lever mechanism can be moved one way or both ways depending on the type of application. Lever type Limit Switch is prevent over travel of traverser motion within pre specified position on control or power circuit. Lever Type Limit switch is Suitable for use on Wagon shunting device,Elevators,Material handling system etc.
![Lever Limit Switch Working Principle](../../dist/assets/img/cranecontrolgear/limitswitch/lever_limit_switch2c_ 40_amp_ip-55_2d.jpg)
Applications of Lever Limit Switch
* EOT Cranes
* Electric Hoists
* Gantry Cranes
* Goliath Cranes
* Mobile Cranes
* Tower Cranes
Anand Lever Limit Switch Technical Data Specifications
Body | Cast Iron / Cast Aluminum main casing with cover | |
---|---|---|
Protection Degree | IP54/IP41: Dust ingress and protect against low pressure water jet from any direction. |
|
Cable Entries | 2, 3/4 Conduit | |
No. Of Contacts | 2/3/4 | |
Contacts | Double break silver cadmium | |
Rated Voltage Insulation | 500 VAC. | |
Thermal Test Current | 10Amps | |
Wire Connection | Screw Terminal | |
Operations | 720/hour |
Warranty:
LEVER LIMIT SWITCH 2C 40A IP55 “1 years warranty” on internal electronics circuits from
the date of Dispatch
Contact us:
Get in touch with us at 91376-20579, info@anandcontrol.in or visit our
website www.anandcontrol.in
Get Instant Quotation
Packing Details:
LEVER LIMIT SWITCH 2C 40A IP55 comes in a durable and eco-friendly Packing designed to ensure safe delivery.
