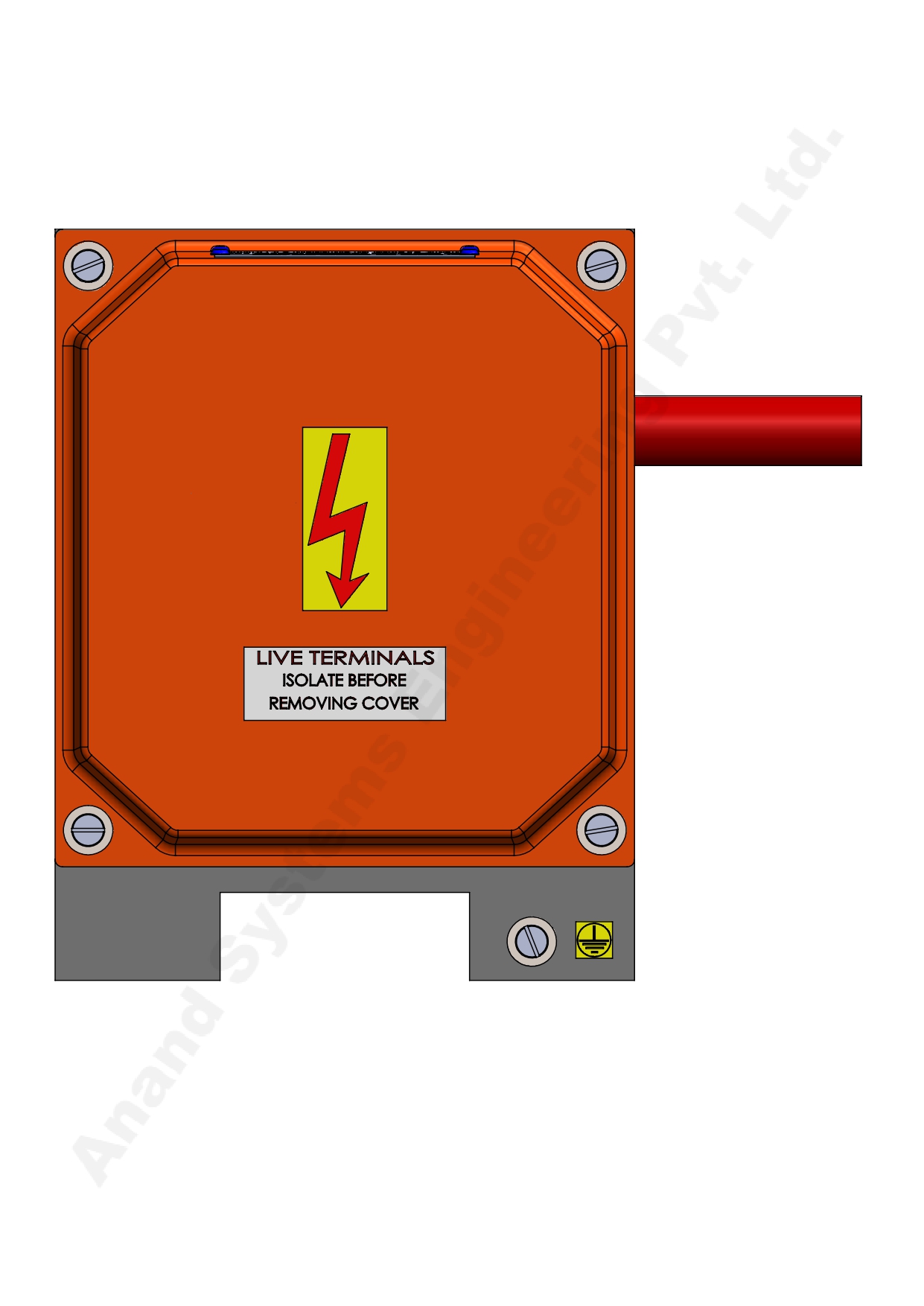

GRLS 60 Ratio 4C IP55
Introduction
Model Name: GRLS/60/SH/4/55
Rotary limit switches are directly attached to the gearbox of the motor with a shaft and a coupling. The coupling helps in relieving stress to the shaft of the limit switch in case of Misalignment . The movement of the gearbox rotates the shaft of the limit switch .
Schedule Technical Discussion
Working of GRLS 60 Ratio
Rotary Geared Limit Switch GRLS is used to trip motor supply when the moving loads reach the extreme end positions of working zone. The driving motion is transmitted by worm gear through worm shaft. The rotations and movements are transmitted to switches by adjustable cams.
Applications of Rotary Limit Switch
Rotary Limit Switches are used whenever you need to count the angle or number of rotations and stop a rotating piece of equipment when it reaches it rotating limit.
-
EOT Cranes
-
Electric Hoists
-
Gantry Cranes
-
Goliath Cranes
-
Mobile Cranes
-
Tower Cranes
Anand FG Rotary Geared Limit Switch Technical Data Specifications
| Body | Black Nylon | |
|---|---|---|
| Material Cover | Shock Resistance Thermoplastic | |
| Protection Degree | IP-55 Confirming to IS-13947(Part-1)1993 :Dust ingress and protect against low pressure water jet from any direction. | |
| Gear Ratio | 1:12.5, 1:25, 1:50,1:100 & 1:400 | |
| Drive | Worm Screw | |
| Cable Entries | 2, 3/4 Conduit | |
| Rated Voltage Insulation | 500 VAC. | |
| Thermal Test Current | 10Amps | |
| Maximum Speed | 1200 rpm | |
| Wire Connection | Screw Terminal |
Warranty:
GRLS 60 Ratio 4C IP55 “1 years warranty” on
the date of Dispatch
Contact us:
Get in touch with us at 91376-20579, info@anandcontrol.in or visit our
website www.anandcontrol.in
Packing Details:
GRLS 60 Ratio 4C IP55 comes in a durable and eco-friendly Packing designed to ensure safe delivery.
