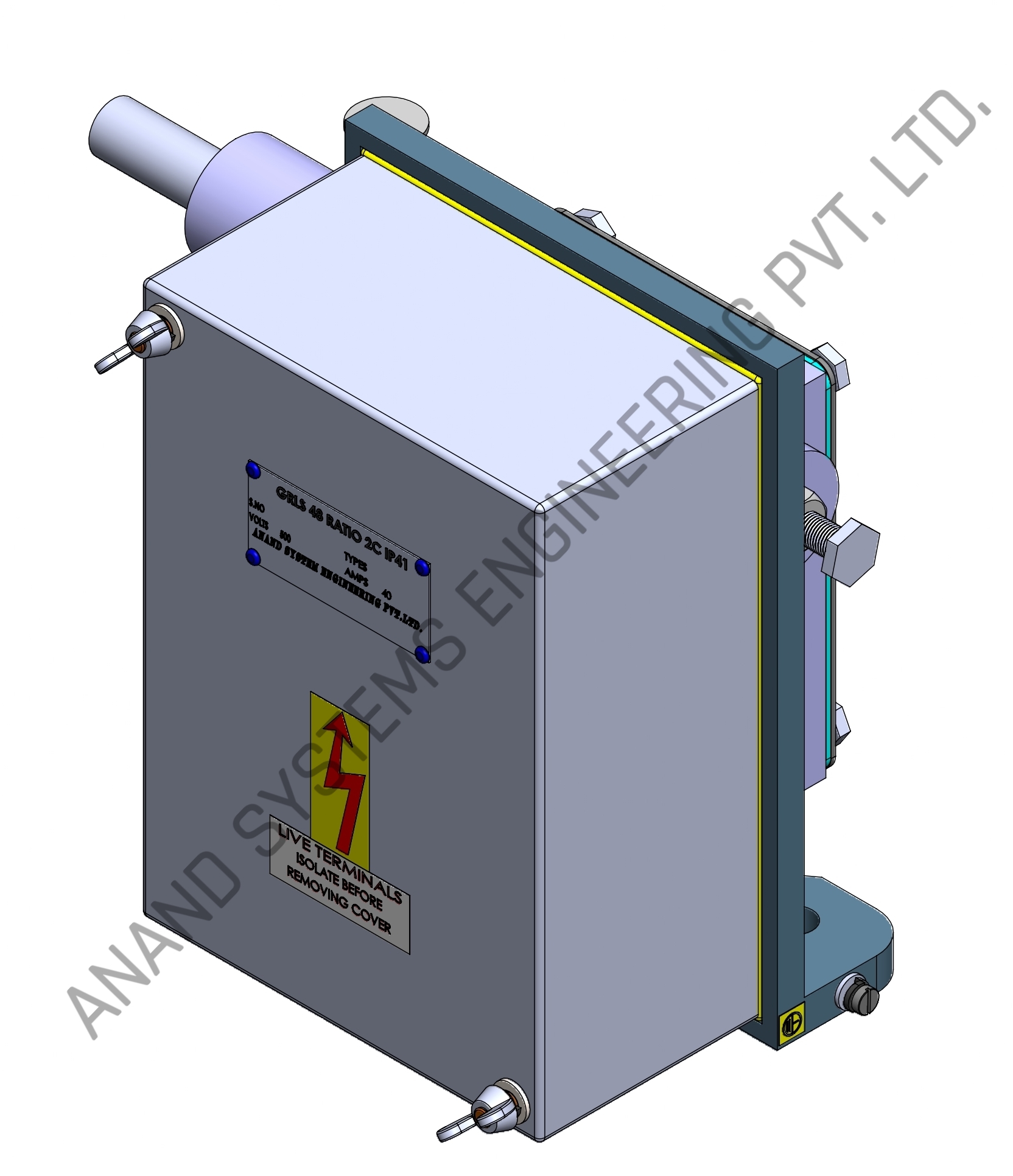

GRLS 48 Ratio 2C IP41
Introduction
Rotary limit switches are directly attached to the gearbox of the motor with a shaft and a coupling. The coupling helps in relieving stress to the shaft of the limit switch in case of Misalignment . The movement of the gearbox rotates the shaft of the limit switch .
Call 9137620579 for Enquiry![Rotary Limit Switch Working Principle](../../dist/assets/img/cranecontrolgear/limitswitch/grls_48_ratio_2cip_41.jpg)
Working of GRLS 48 Ratio
Rotary Geared Limit Switch GRLS is used to trip motor supply when the moving loads reach the extreme end positions of working zone. The driving motion is transmitted by worm gear through worm shaft. The rotations and movements are transmitted to switches by adjustable cams.
Applications of Rotary Limit Switch
Rotary Limit Switches are used whenever you need to count the angle or number of rotations and stop a rotating piece of equipment when it reaches it rotating limit.
-
EOT Cranes
-
Electric Hoists
-
Gantry Cranes
-
Goliath Cranes
-
Mobile Cranes
-
Tower Cranes
![Rotary Limit Switch Working Principle](../../dist/assets/img/cranecontrolgear/limitswitch/grls_48_ratio_2cip_41_2d_drawing.jpg)
Technical Data :
Body Material | Alluminium Die Cast(powder Coated) |
---|---|
protection Degree | IP- 55 Confirming To is- 1394 (part) - 1993 |
Gear Ratio |
48 : 1
60 : 1
96 : 1
|
Cable Entries | Worm Drive |
Cable Entries | 2 x 3/4 Conduit |
Contact Material | Single / double Break Silver Cadmine |
Rated Voltage Insulation | 500 V.A.C. |
Thermal Test Current | 10 Amps. / 40Amps. |
No. Of Contacts | 2 NC Or 4 NC (2NO + 2NC) |
Cam Setting | Adjustable Worm Drive |
Warranty:
GRLS 48 Ratio 2C IP41 “1 years warranty” on internal electronics circuits from
the date of Dispatch
Contact us:
Get in touch with us at 91376-20579, info@anandcontrol.in or visit our
website www.anandcontrol.in
Get Instant Quotation
Money Back Guarantee:
If you don’t find value with this product, we will Provide a
No-Questions-Asked - “30 Days Money Back Guarantee” from date
of dispatch
Packing Details:
GRLS 48 Ratio 2C IP41 comes in a durable and eco-friendly Packing designed to ensure safe delivery.
