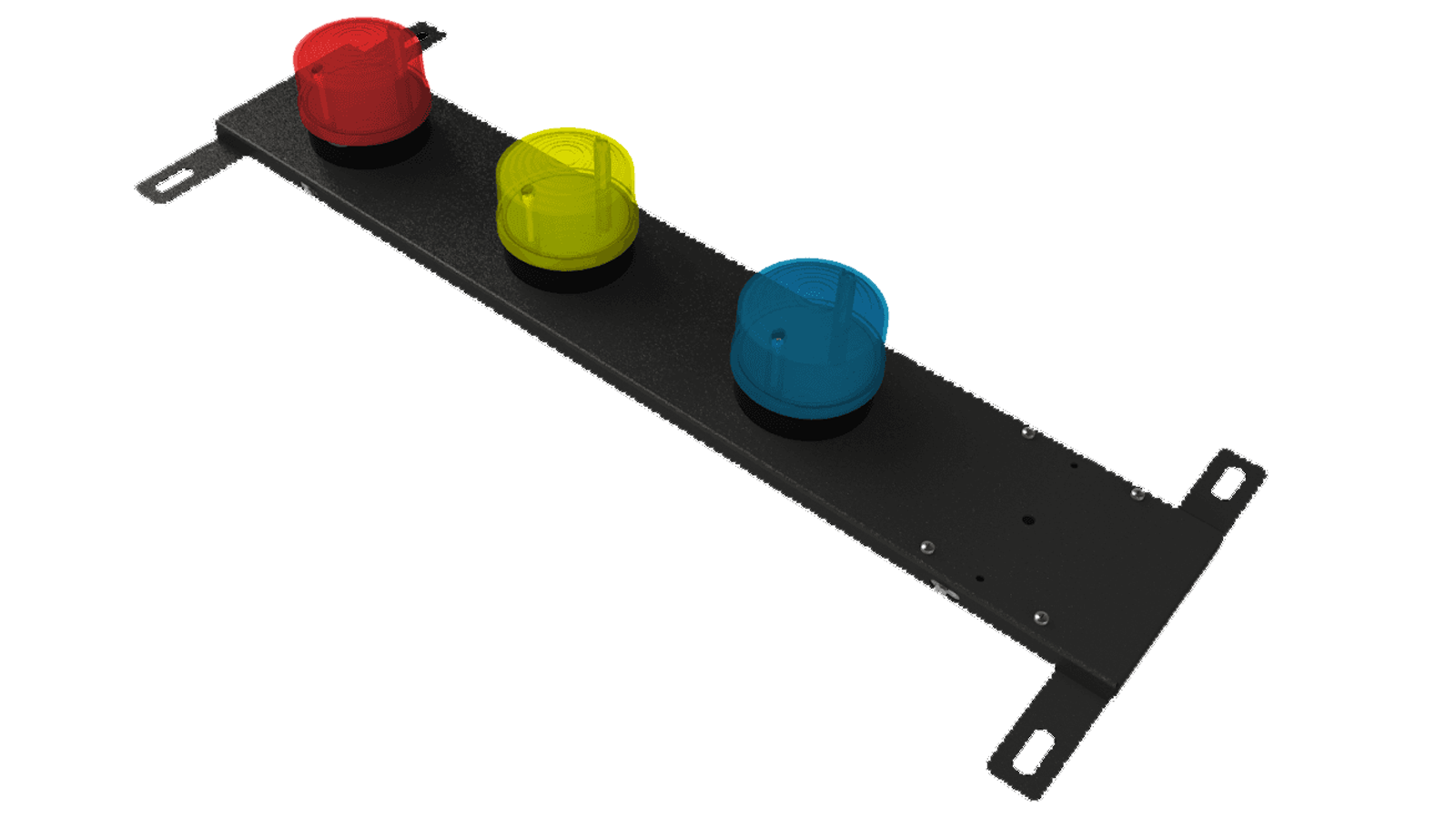

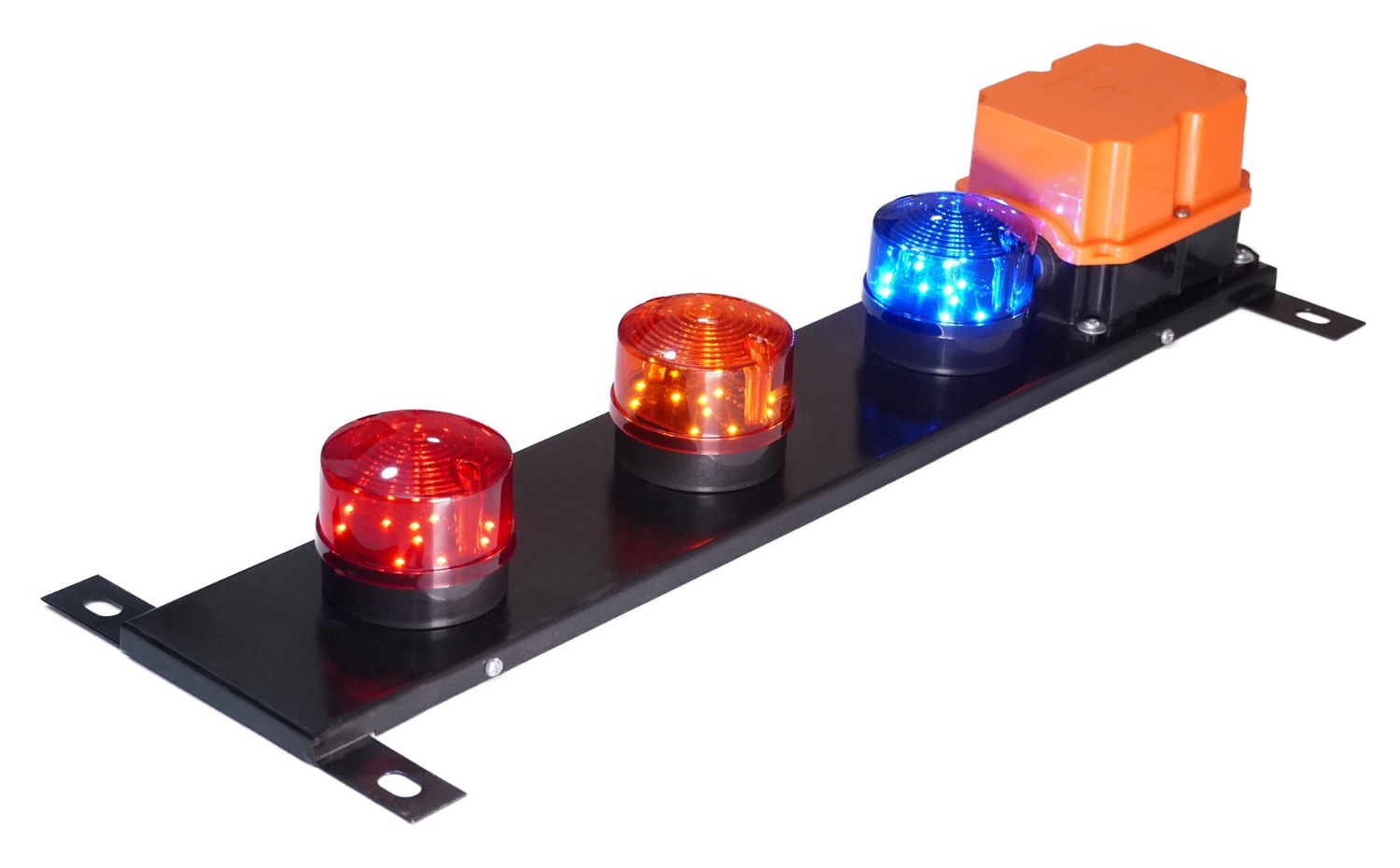

DSL Indicating Lamp
DSL Busbar Indicator Lamp for EOT Cranes.
Indicating Lamps activate when 3 Phase power is applied to your overhead EOT crane.
Extremely Easy to install
Very Easy Maintenance
3 Phase DSL Indicating Lamps Made in India.
Display Distance of more than 200 Meters
DSL Indicating lamps are used in factories where DSL busbars
are installed to know when 3 Phase power is applied to the crane.
DSL Indicating Lamp take 3 phase power as input and emit three colours in the visible spectrum- Red,Yellow and Blue.
They act like a status indicator for the presence or absence of the 3 phase input power.
The intensity of the light reduces or increases with the change in 3 phase input voltage.
In the situation where , 1 phase is not available or phase failure, the light for that particular phase will switch off .
During malfunctioning of crane or maintenance operations of crane, the DSL indicating lamp will indicate
to everyone on the factory floor whether the power is present or absent.
Anand Systems engineering DSL indicating Lamp can be easily installed by anyone with the help of 4 screws.
Anand Systems engineering DSL indicating Lamp is constructed with extremely high quality and long lasting Light emitting Diodes.
These LEDs do not require a heat sink .
Installation of 3 Phase DSL Indicating Lamp:
3 phase voltage display unit can be easily installed by anyone with the help of 4 screws. It is constructed with extremely high quality long lasting LEDs and powder coated metal body.

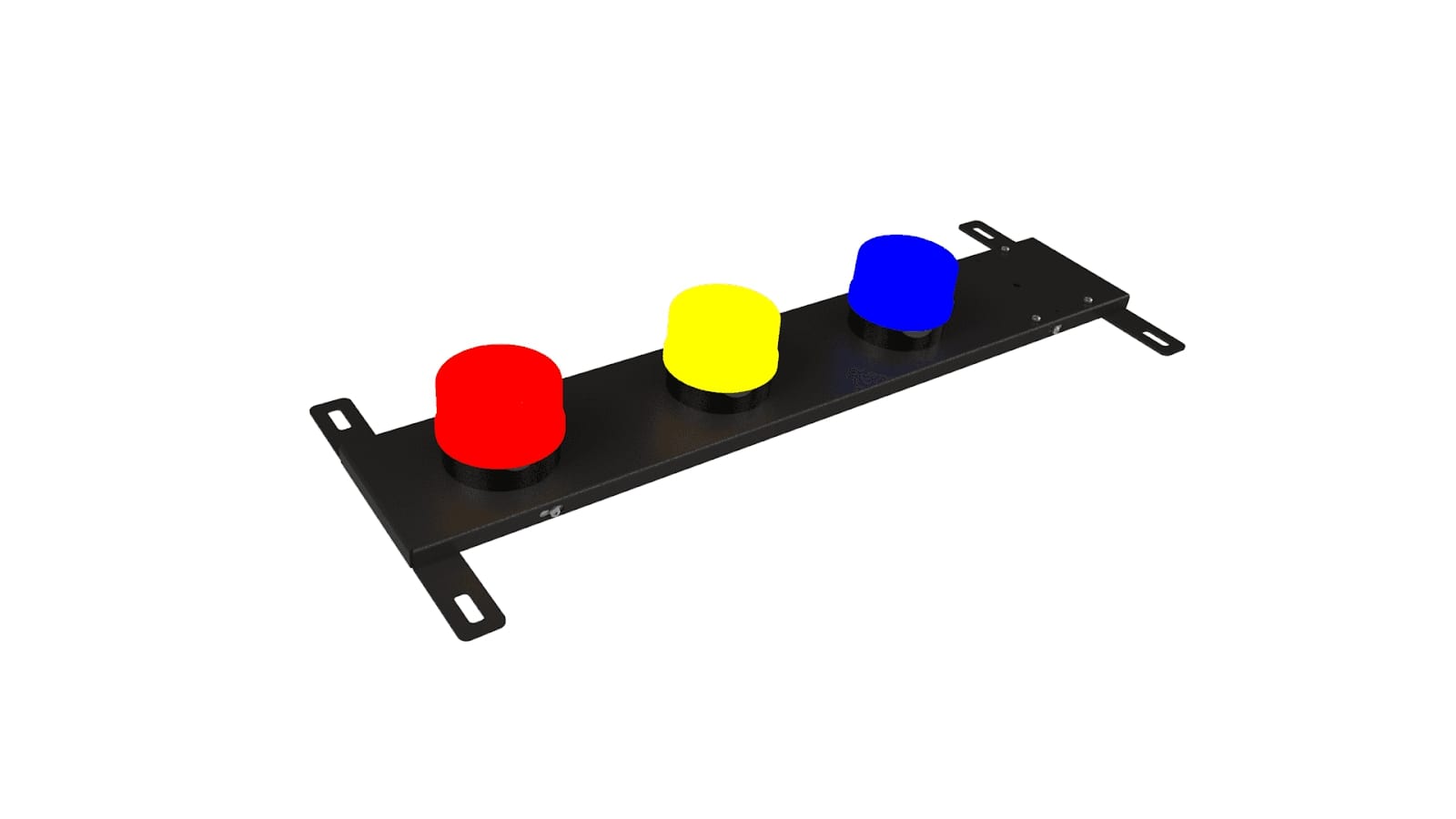

When Correct Three phase voltage is applied , all three indicating lamps light up and get illuminated.

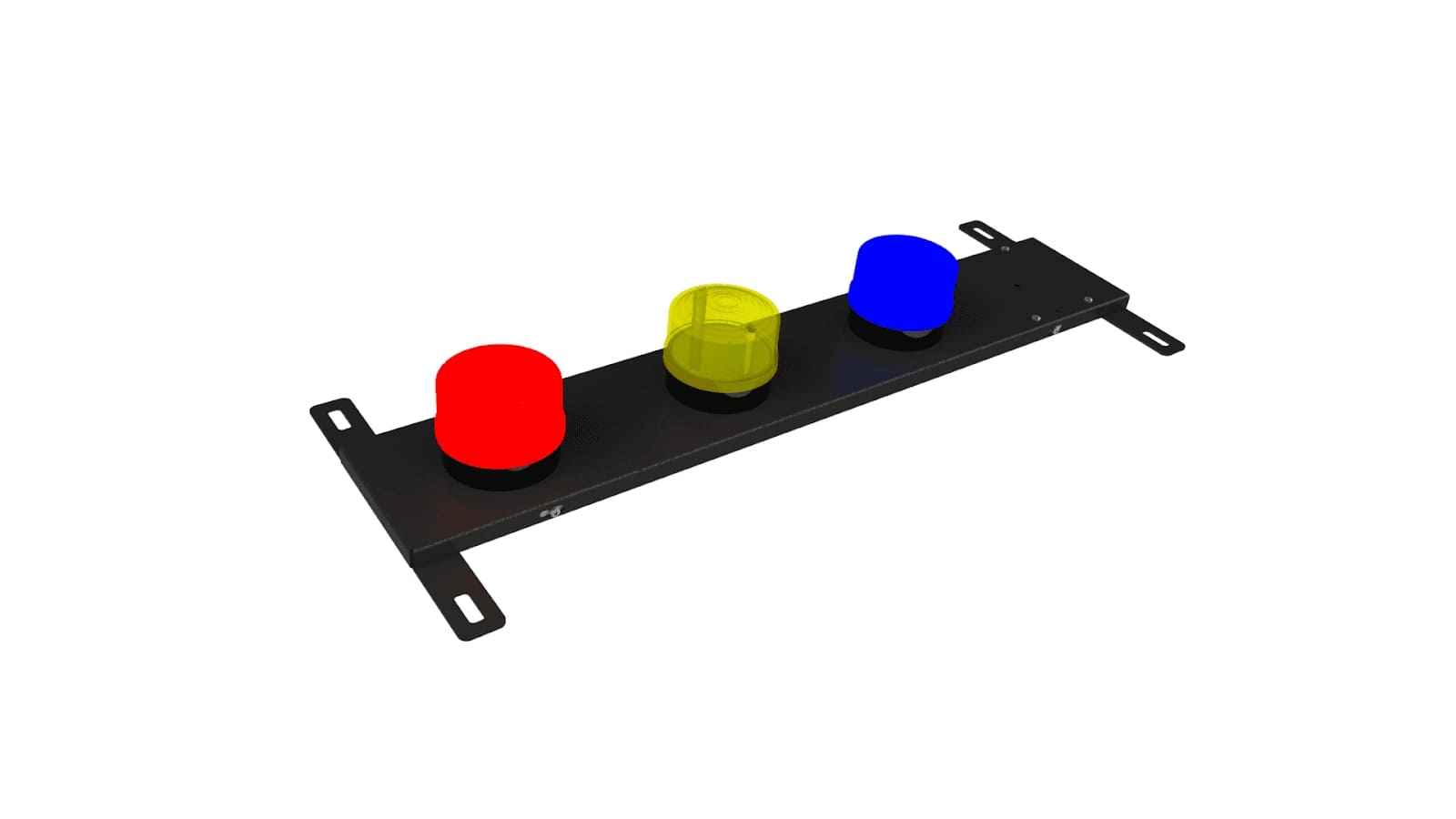

When one of the three phase voltages is not present,only two indicating lamps light up.

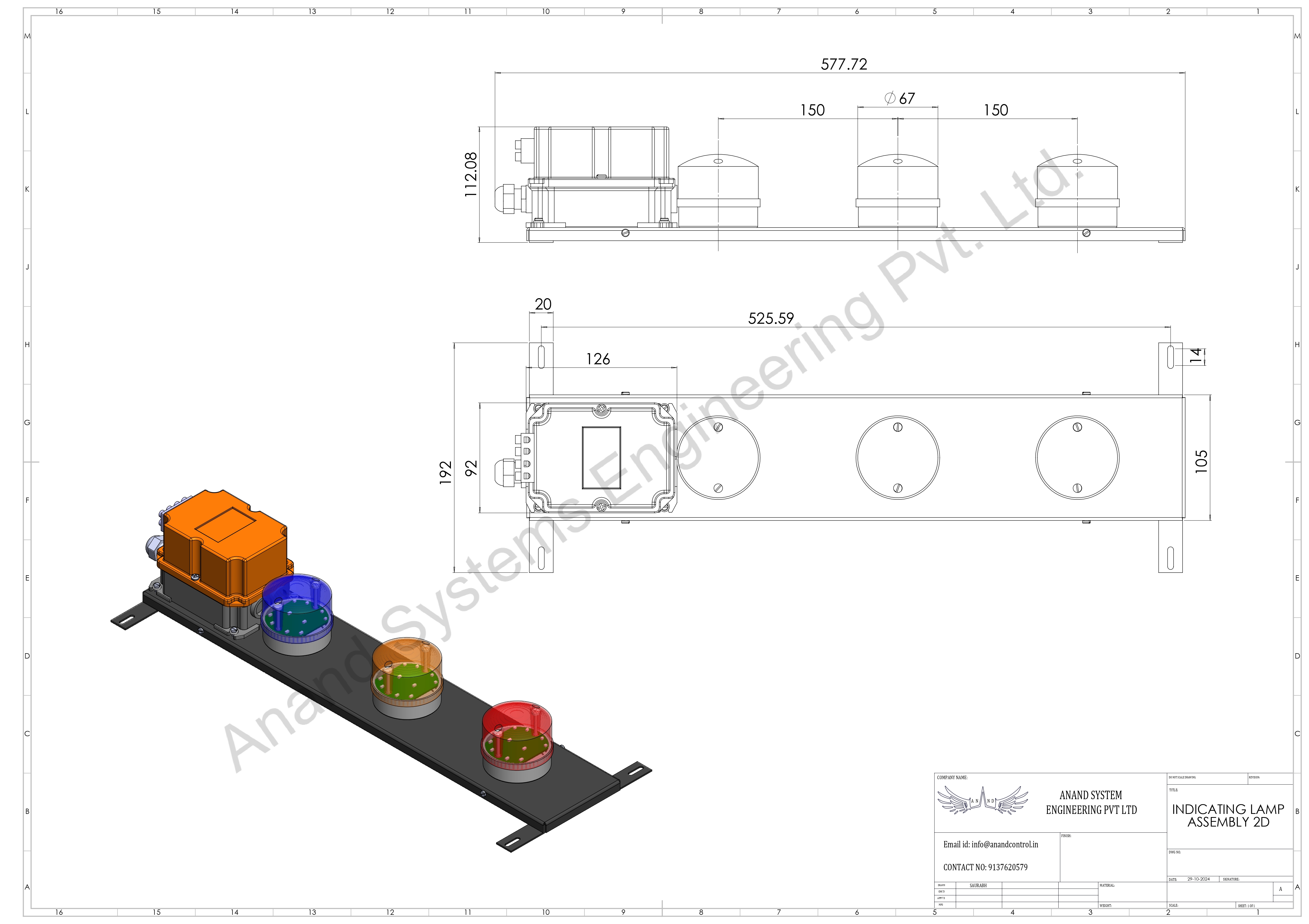

2D Drawing of indicating lamp assembly

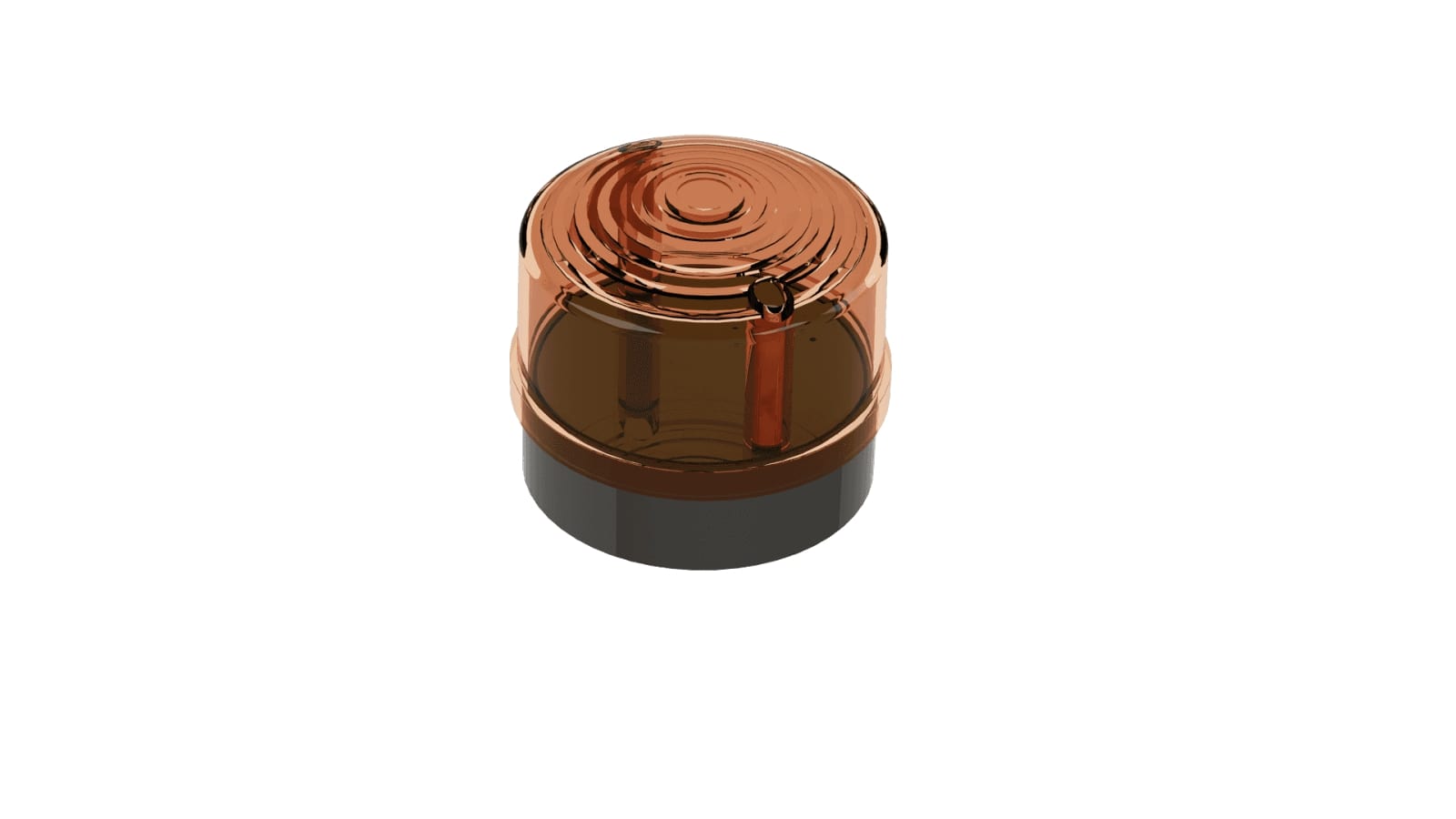

Individual Indicating Lamp
Each Individual Lamp of the DSL Indicating Lamp is made up of 3 Parts.
Transparent Polycarbonate Cover.
Electronic Circuit with Leds
Bottom ABS plastic Circuit Base

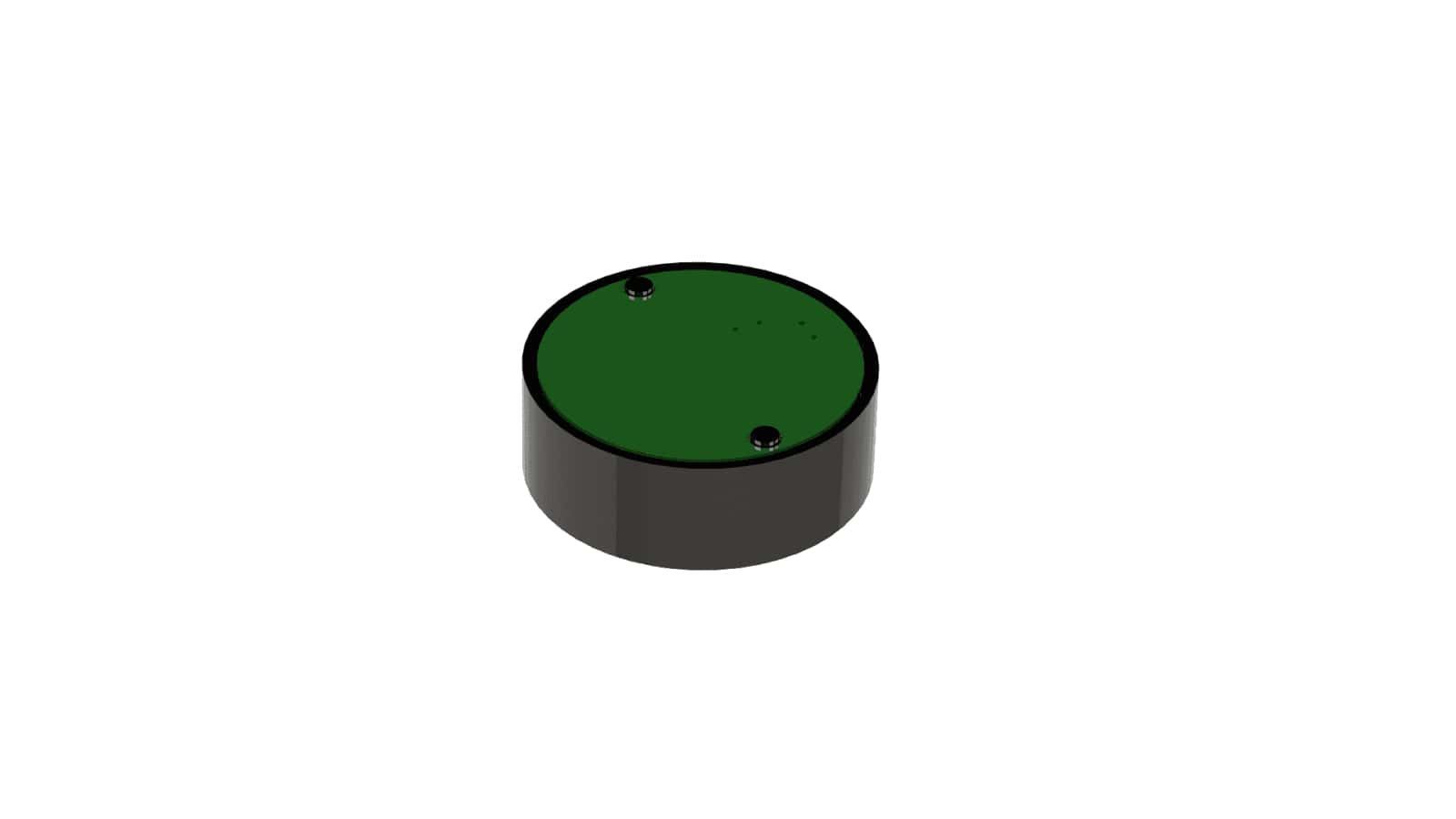

Individual PCB with LED

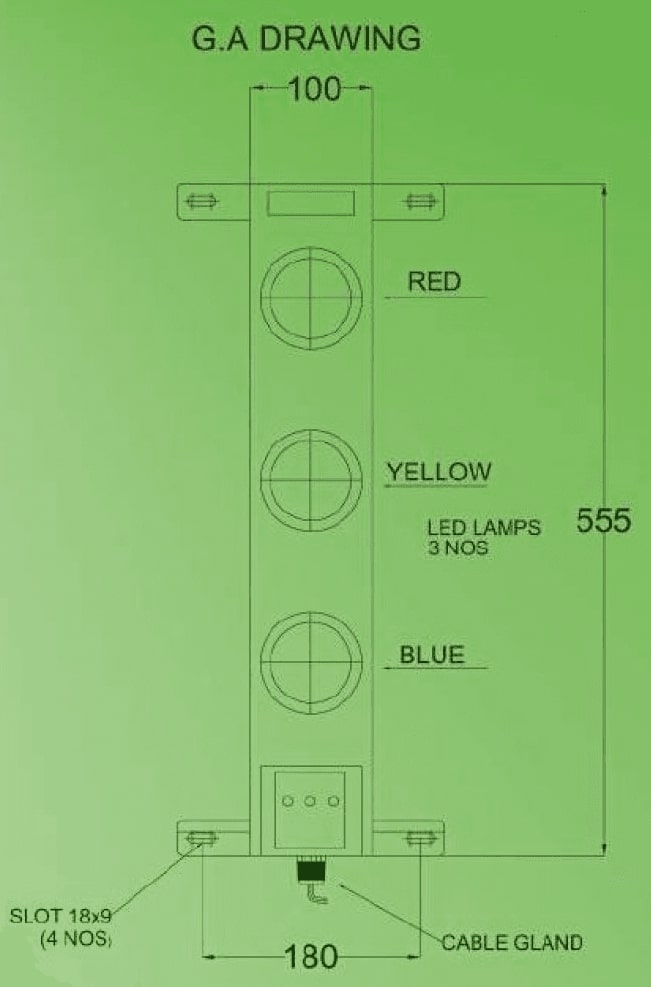

General Assembly Drawing
A General Assembly Drawing can be used as a reference for installation and estimation product dimensions.

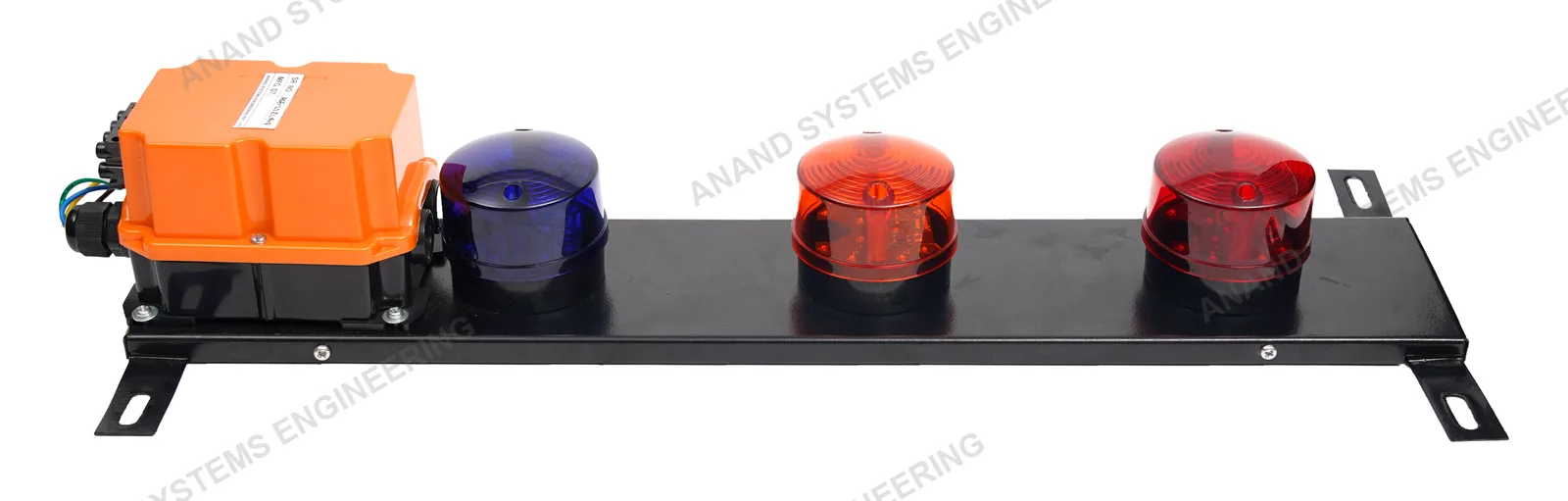

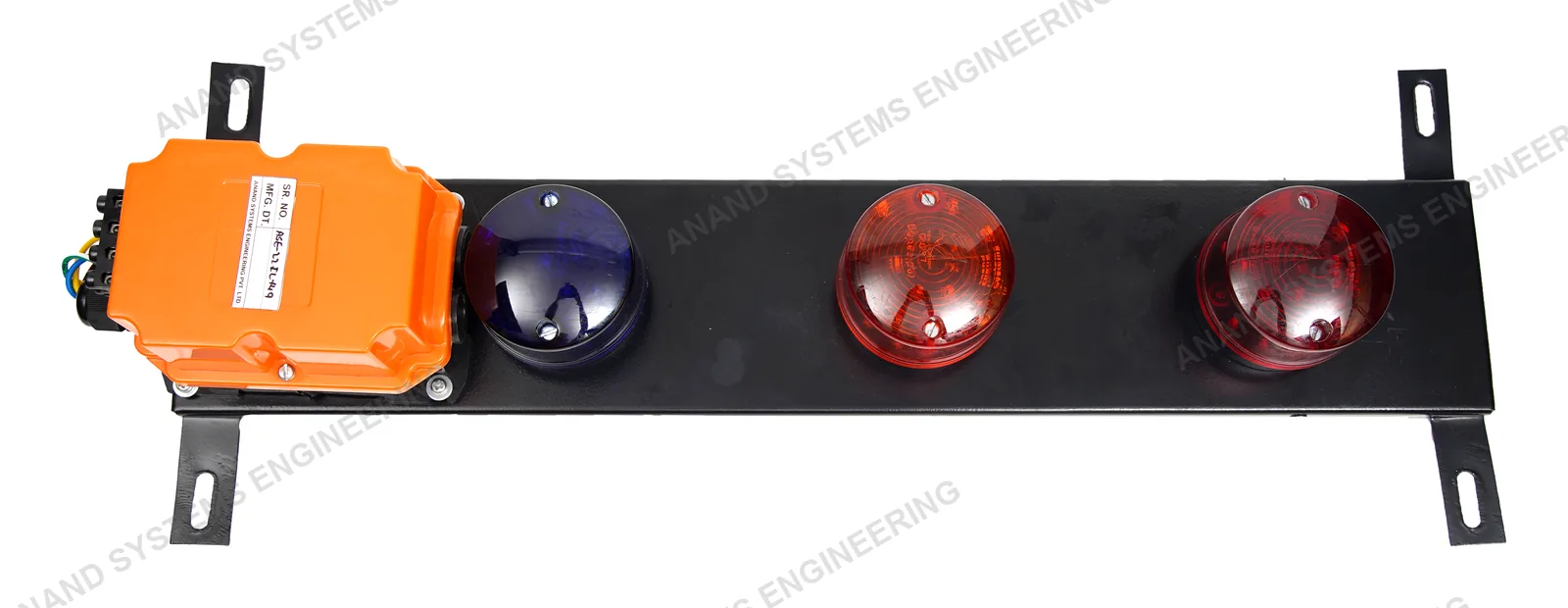

3 phase DSL Indicating Lamp kit:
Complete product kit Includes
3 Indicating Lamps - Red,Blue & Green
Each Individual Lamp indicates presence of 3 phase voltage.

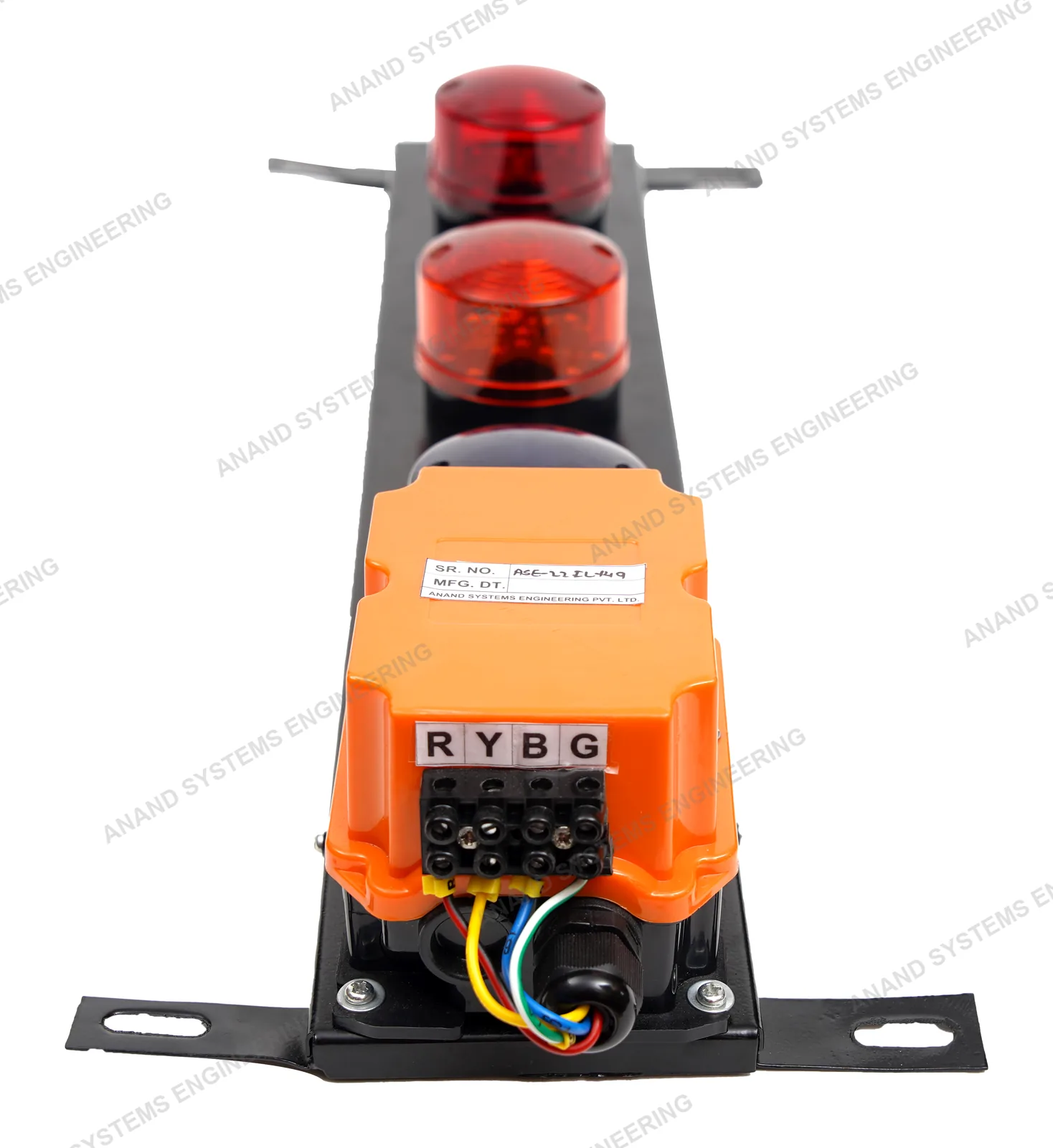

External Connector for connecting 3 Phase Power
Screwless Connector for Input 3 Phase Supply. No need of Neutral connection.
Black powder coated MS base Plate
A very well built metal frame for Industrial environments

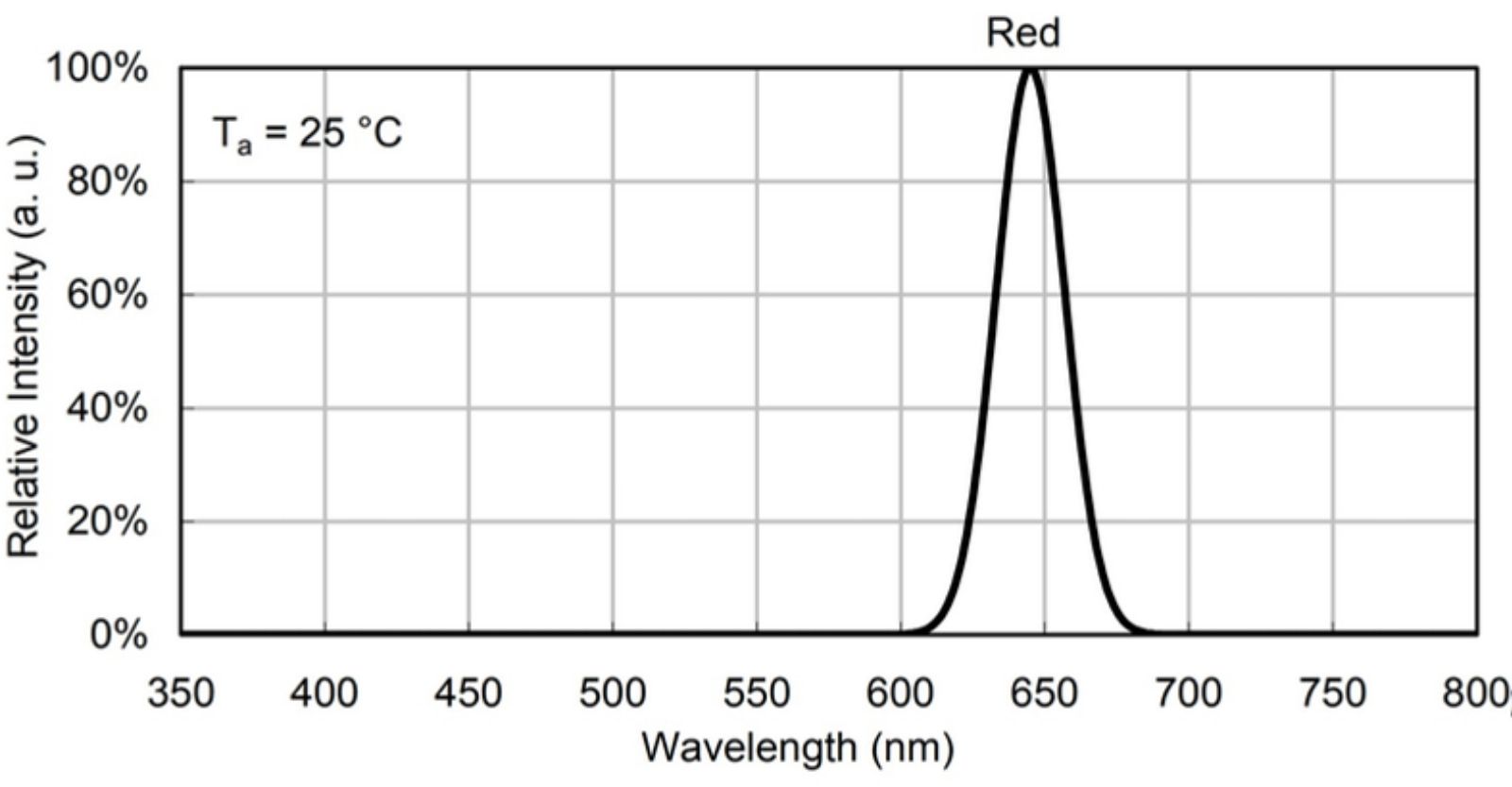

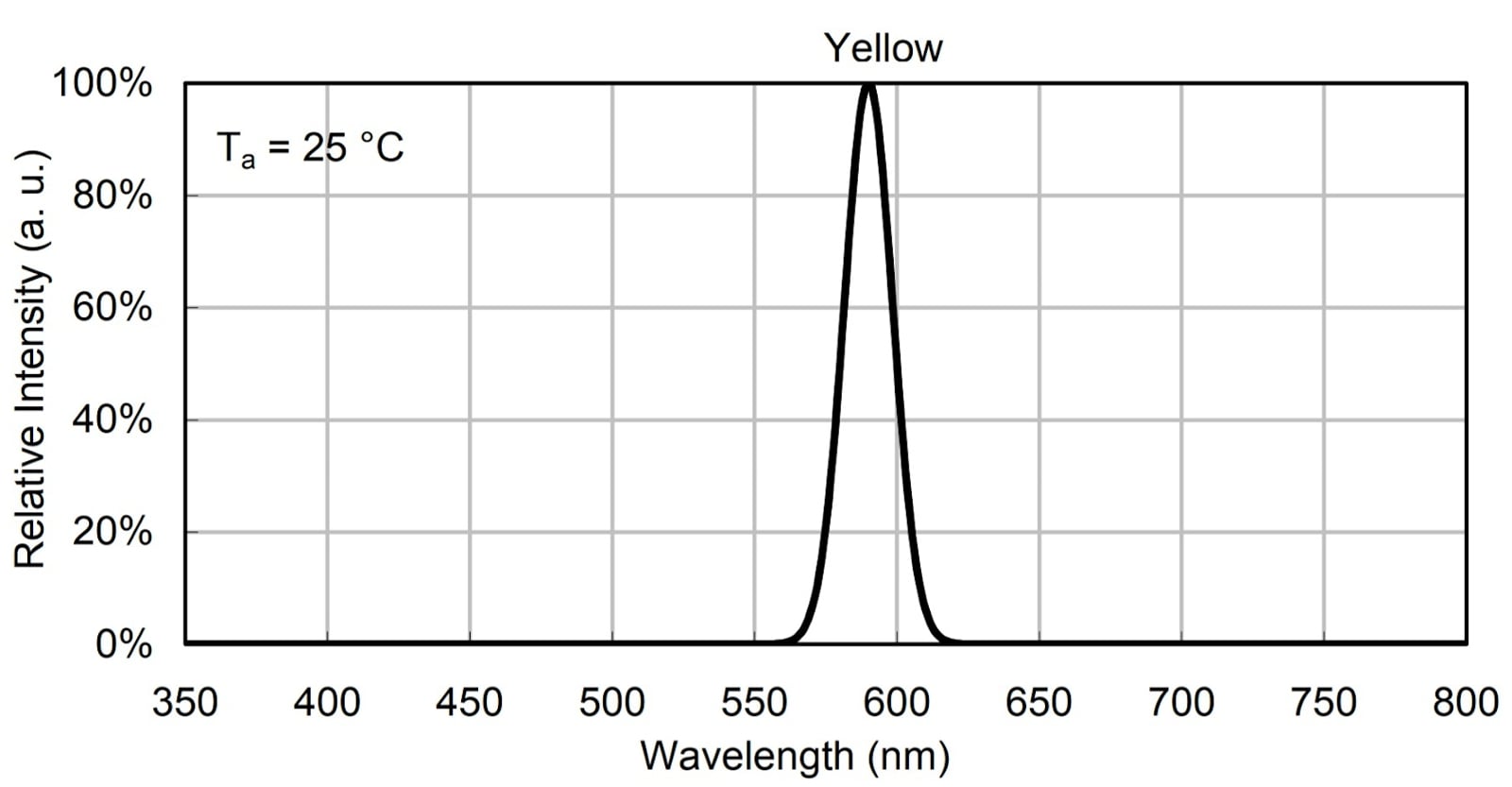

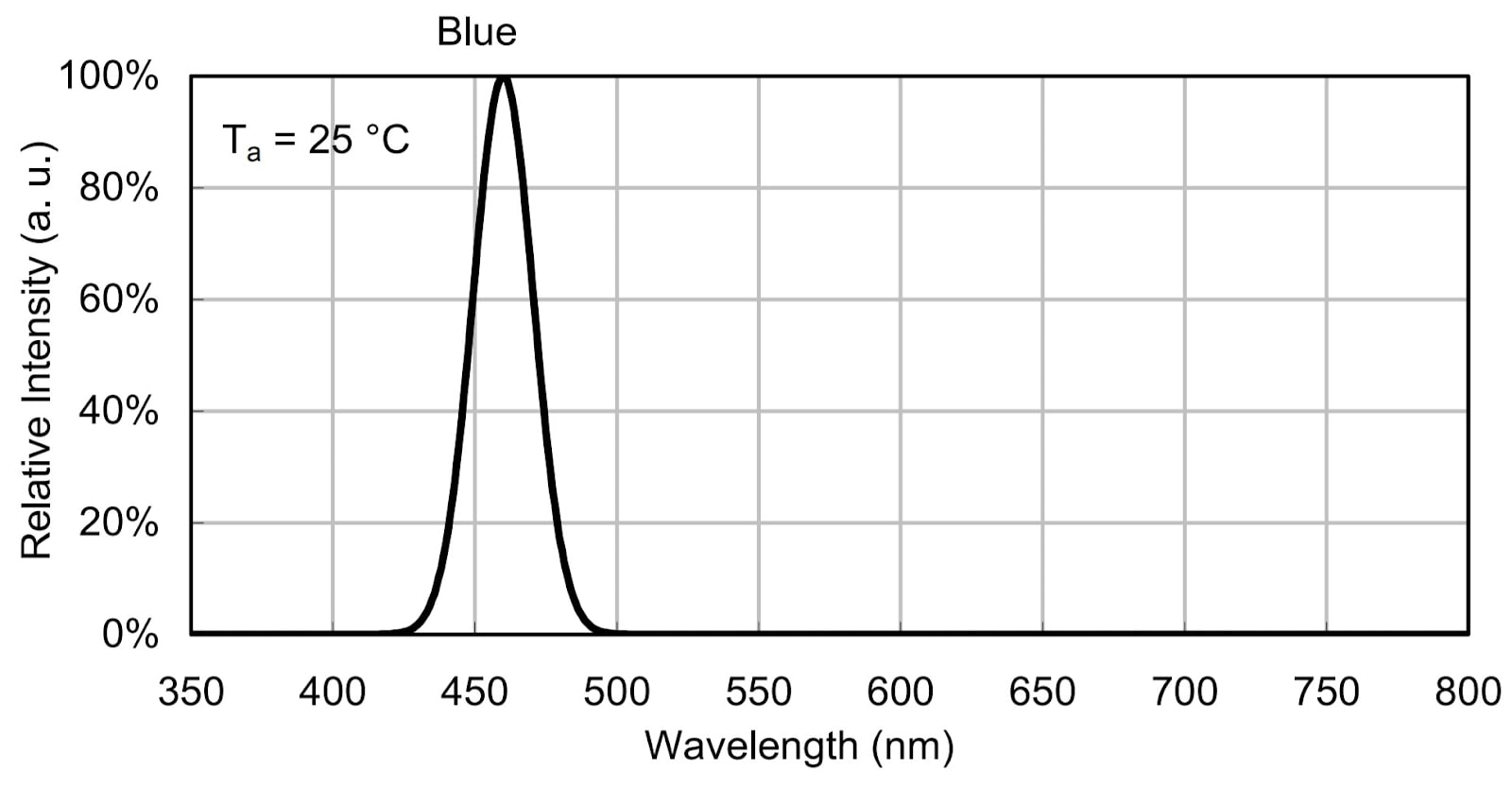

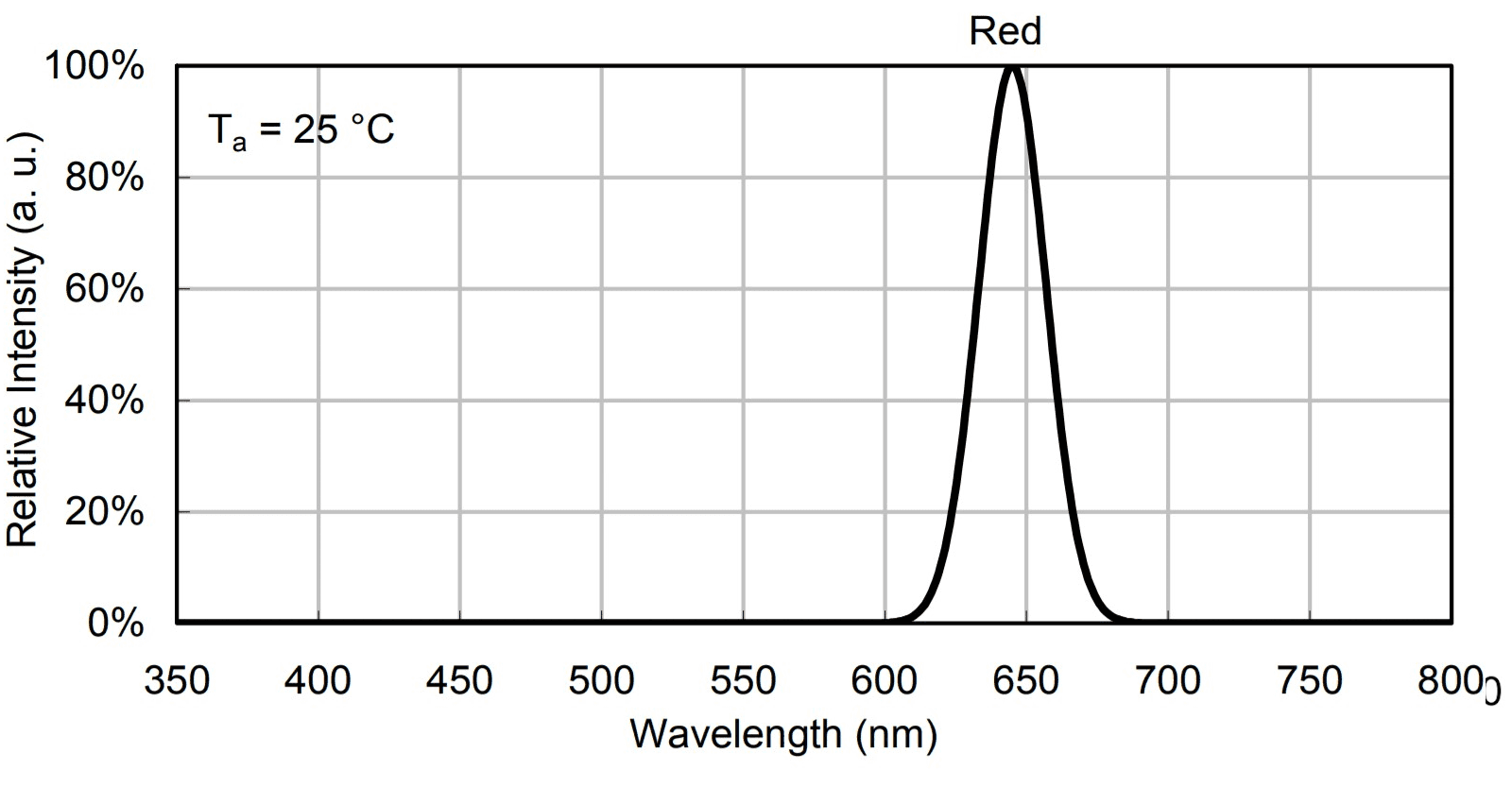

Relative Wavelength vs Intensity for each Individual colour
*Wavelength value is traceable to CIE127-2007 standards
Red
Yellow
Blue

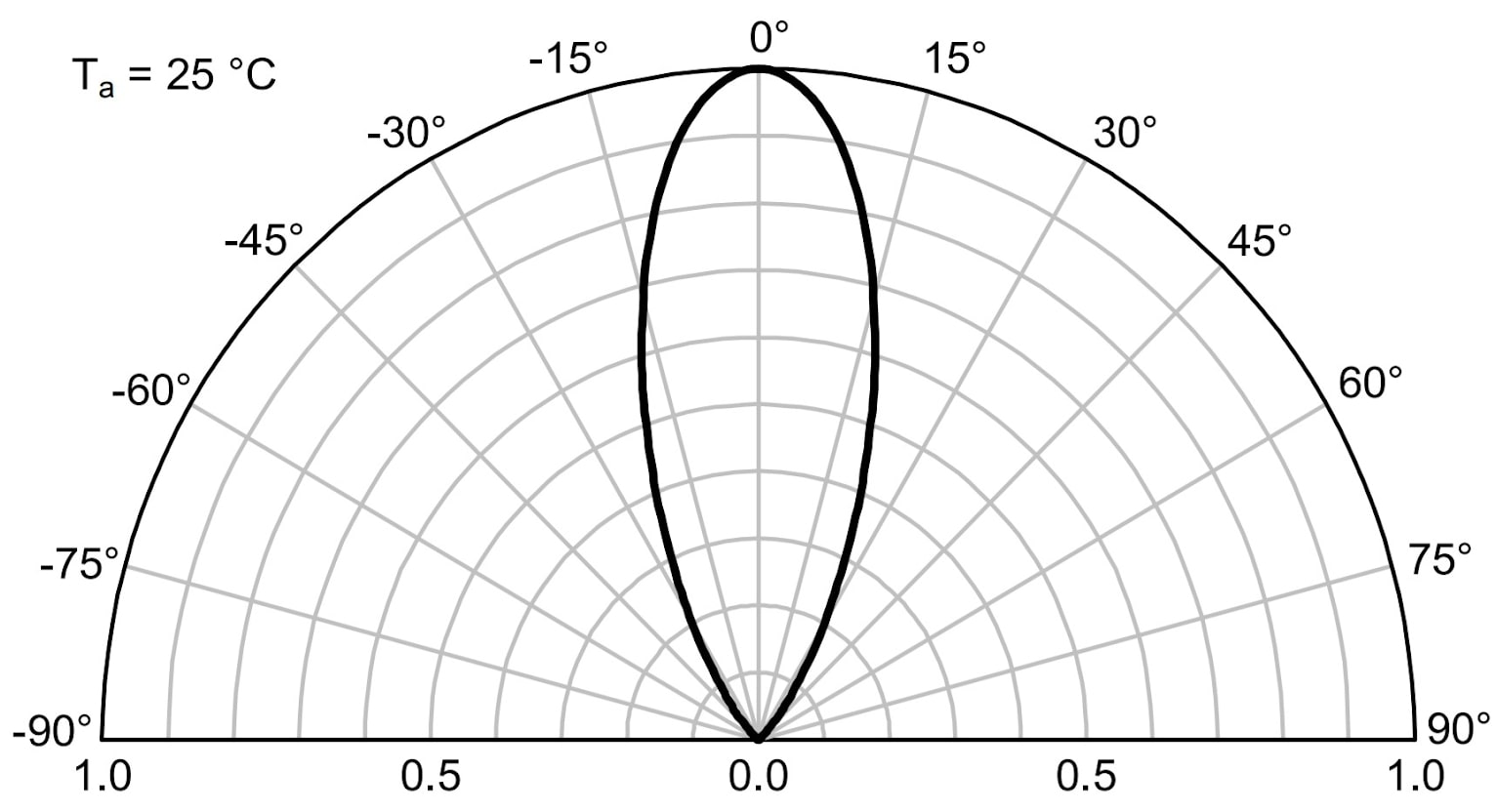

Spatial Distribution
Specifications of DSL Indicating Lamp
| Electrical Specifications | |||
|---|---|---|---|
| Input Power Supply |
3-phase without Neutral , 415V |
||
| Power Consumption |
Power Consumption = 0.3 Watts |
||
| Minimum Input Voltage | 385 VAC | ||
| Maximum Input Voltage | 440 VAC | ||
| Typical Input Voltage | 415 VAC | ||
| Power Supply | Uses Step Down Isolation transformers to achieve galvanic isolation for safe installation,safe operation and safe maintenance. | ||
| LED Specifications | |||
| Colors | Hyper Red, Super Bright Yellow, Hyper Blue | ||
| Visibility | 300 Meters | ||
| Leds per Colour | : 12 Bright Leds | ||
| Viewing angle | 40 Degrees | ||
| Led material | AlGaInP on GaAs substrate Light Emitting Diode for Red and Yellow & InGaN for Blue | ||
| Typical MCD | 3000 | ||
| RoHS Compliant | yes | ||
| Housing | |||
| Body | 2mm CRCA with black color Powder coating | ||
| Product Dimensions | :100mm x 200mm | ||
| Installation | indoor/outdoor | ||
| Life Expectancy | 5 Years | ||
| Operating Temperature | -25 to +85 C | ||
| PCB Dimension | 60 mm | ||
| Product weight | 800 grams |
*Anand systems engineering does not provide dangerous transformerless capacitive
power supply with any of its products.
*Excess operating temperature higher than recommended conditions may result in severe light degradation or
premature failure.
