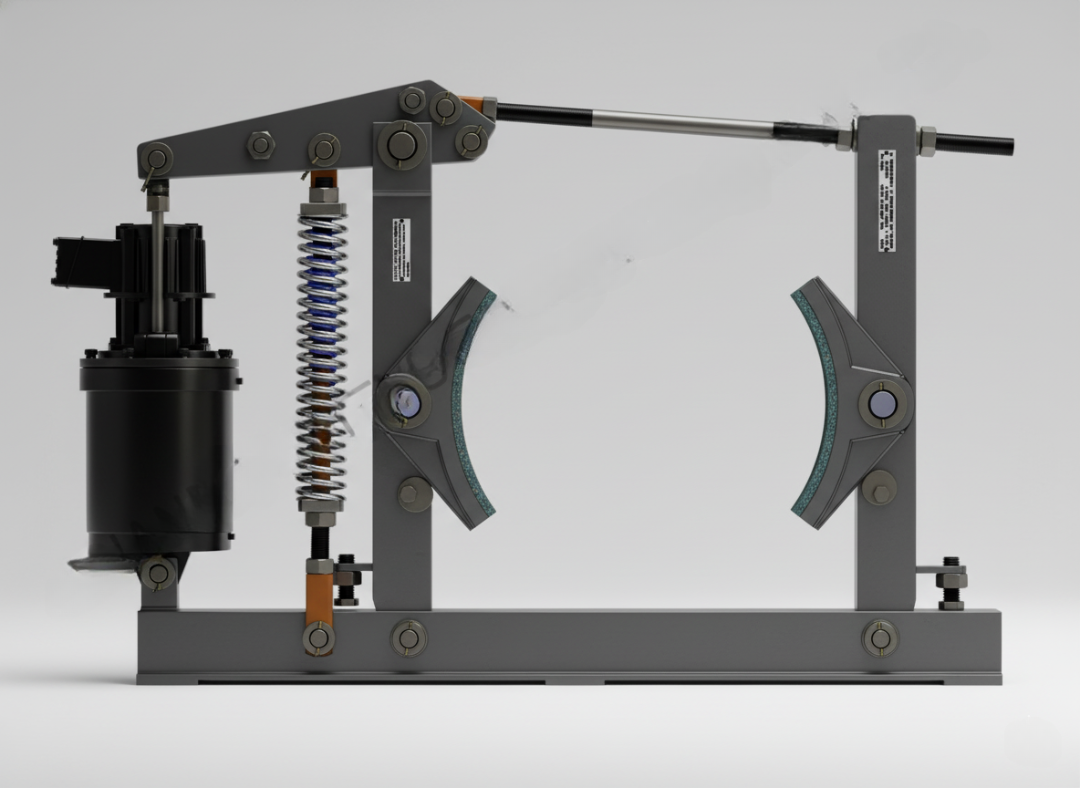

MDT 400-18 Thruster Brake
Introduction
Model Name: MDT 400-18
Thruster Brake is a device to retard the speed and to hold the moving machinery when it is stationary. The braking
force to the shoes is applied through the spring by means of lever/rod mechanism. The shoes are moved clear off
the drum again through lever /arm linkage mechanism by thruster which overcomes spring force.
Schedule Technical Discussion
Working of MDT 400-18 (Mill Duty Thruster Brakes)
The thruster applies hydraulic pressure to the brake shoe assembly, generating friction against the braking surface, resulting in the desired braking force.
Features of MDT 400-18 Thruster Brake
720 Operations / Hour
Possible only because of the well designed thruster & frame
IP rating : IP - 55
Protection against dust and small water jets
Self Contained Unit
Thruster brake provided by Anand needs no external accessories
Provides full constant thrust
Impeller spins at the rpm of the motor and creates a hydraulic pressure on the internal walls of the cylinder
Heavy Rigid Steel Frame
Industry Leading Rigid Steel frame welded for extra strength
Fast Installation
Designed from the ground up for easy maintenance & fast installation
Advance in Braking Technology
Electrohydraulic thruster brakes provide robust braking capabilities by combining the fluid power of hydraulics with the superior control of electrical systems. These brakes are designed to offer precise braking action with quick response times, which is crucial in maximizing operational safety.
The brake system comprises a thruster, brake shoe assembly, hydraulic cylinder, and applying springs, all working in tandem to deliver the required braking force. When engaged, the thruster applies hydraulic pressure to the brake shoe assembly, causing friction against the braking surface and bringing the crane to a stop.
Warranty:
MDT 400-18 Thruster Brake “1 years warranty” on
the date of Dispatch
Contact us:
Get in touch with us at 91376-20579, info@anandcontrol.in or visit our
website www.anandcontrol.in
Packing Details:
MDT 400-18 Thruster Brake comes in a durable and eco-friendly Packing designed to ensure safe delivery.
1 Thruster, 1 Brake, 1 Delivery Challan
1 Tax Invoice, 1 Tax Report
Box Dimenssions 546.1 mm x 228.6 mm x 444.5 mm
