SafelinkV 500A ALU YYYG
Introduction

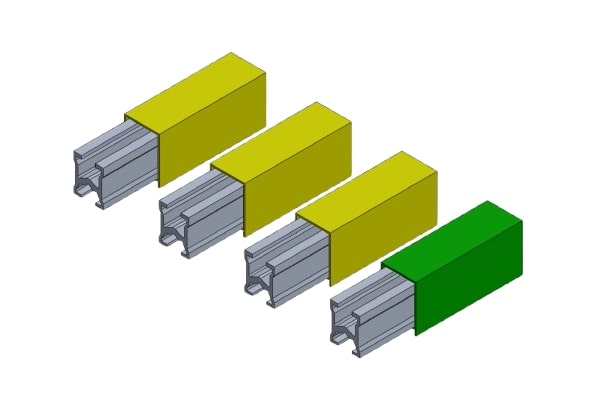

Safelink V busbar is designed for delivering three-phase power to Electric Overhead EOT Cranes
It can handle Current ranging from 500A to 2000A depending on the energy Required by the crane machinery
Call 9137620579 for Enquiry
![Heavy busbar for heavy cranes](../dist/assets/img/busbar/safelink-v/safelink-v-heavybar.png)
Working Principle of SafelinkV 500A ALU YYYG
SafeLink V busbars are unique because the profile of this busbar is very effective at dissipating heat. This profile is designed to have a large surface area to lose heat by convection method.It comes insulated from start to finish which prevents anyone from touching live sections of the busbar.And ,It is extremely easy to install with the help of standard tools.
Key Features of SafelinkV 500A ALU YYYG
insulated from start to finish.
Easy installation with pin Joint.
Low heat generation due to its profile shape.
Safelink V Shrouded DSL Busbar Technical Data Specifications
Type | SLVA | SLVA | SLVA |
---|---|---|---|
Nominal Current | 500A | 800A | 1000A |
Maximum system Voltage AC or DC | 600V | 600V | 600V |
Resistance R (For DC) At 35° C(Ω/m) | 0.000097 | 0.000074 | 0.000051 |
Impedence Z (For DC) At 35° C(Ω/m) | 0.000157 | 0.000144 | 0.000137 |
Bar lenghth | 4.5m | 4.5m | 4.5m |
Sopport pitch standard | 2250mm | ||
Min pitch Center standard | 80mm | 80mm | 80mm |
Warranty:
SafelinkV 500A ALU YYYG “1 years warranty” on internal electronics circuits from
the date of Dispatch
